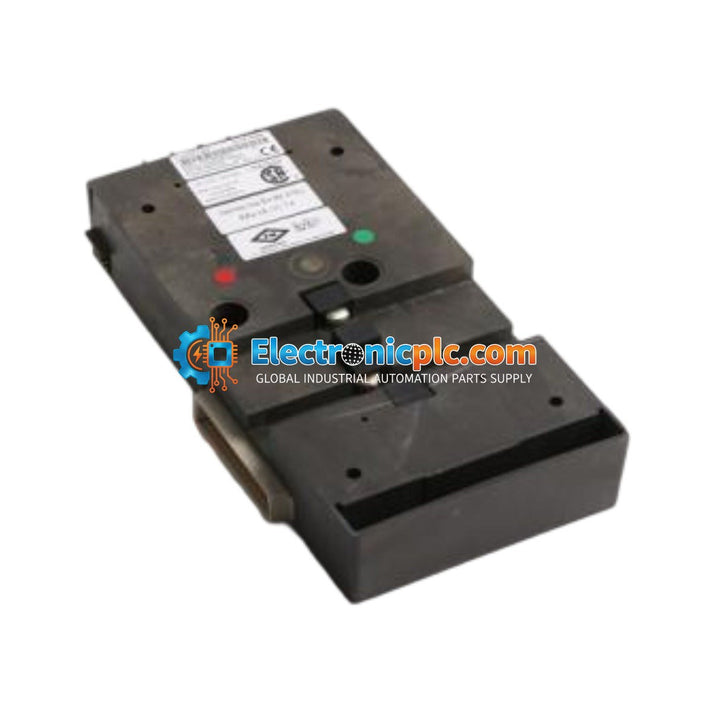

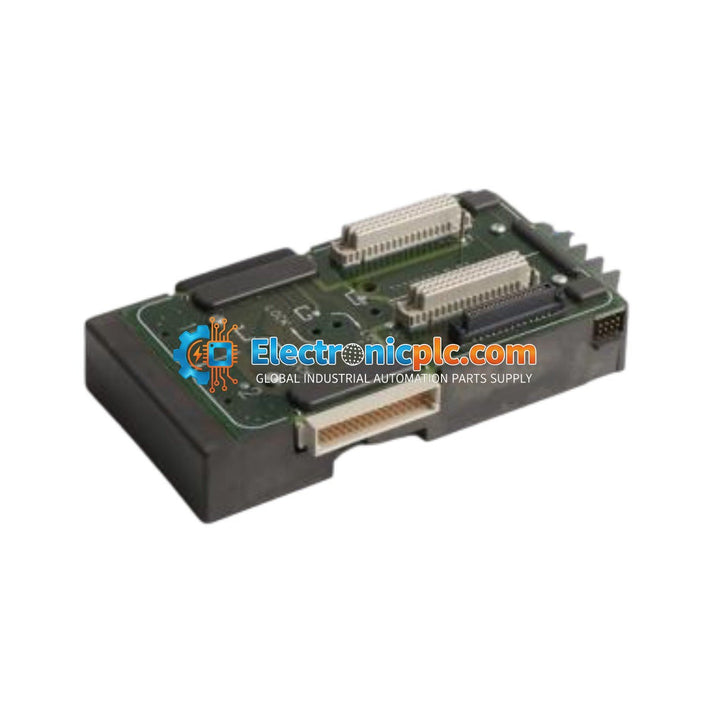

Emerson DeltaV KJ4001X1-BA2 System Power Supply Module

Emerson DeltaV KJ4001X1-BA2 System Power Supply Module

Description

The Emerson DeltaV KJ4001X1-BA2 (Part Number 12P0550X152) is a high-reliability System Power Controller designed for the DeltaV M-Series automation architecture. This module is responsible for managing and distributing regulated...

16 la gente está viendo esto ahora mismo

Disponibilidad: Bajas existencias: quedan 6

SKU: KJ4001X1-BA2
Proveedora: Emerson
tipo: Power Supply Module
Related Series:

Envíos y devoluciones

Entrega confiable a nivel mundial

  • Transportistas: Envíos a través de DHL, FedEx, UPS o USPS .
  • Envío: Los pedidos se procesan en 1-2 días hábiles y se envían dentro de 3-5 días hábiles .
  • Seguimiento: Detalles completos de seguimiento proporcionados por correo electrónico después del envío.

Garantía de devolución de dinero de 30 días

  • Garantía: período de devolución de 30 días para productos en stock y sellados de fábrica.
  • Condición: Los artículos deben estar sin abrir, sin usar y en su embalaje original.
  • Autenticidad: Garantizamos hardware 100% original y auténtico.

¿Necesitas más información? Consulta nuestra Política de envíos y reembolsos completa.

Autenticidad y garantía

  • Garantía genuina: Suministramos únicamente piezas de automatización industrial 100% originales, nuevas y selladas de fábrica .
  • Cobertura total: cada componente está respaldado por una garantía integral de 12 meses a partir de la fecha de compra.
  • Trazabilidad: Todos los productos se entregan con documentación original de fábrica y accesorios para un pleno cumplimiento industrial.

Soporte técnico y abastecimiento

  • Asistencia de expertos: Nuestro equipo técnico ofrece consulta gratuita para ayudarle a verificar la compatibilidad de los sistemas DCS y PLC.
  • Abastecimiento de piezas raras: nos especializamos en componentes obsoletos y difíciles de encontrar de Allen-Bradley, Siemens, ABB, HIMA y más.
  • Consultas al por mayor: contáctenos en pambo@5gplc.com para obtener precios por volumen o cotizaciones de proyectos personalizados.
Ver todos los detalles

Description

The Emerson DeltaV KJ4001X1-BA2 (Part Number 12P0550X152) is a high-reliability System Power Controller designed for the DeltaV M-Series automation architecture. This module is responsible for managing and distributing regulated power to the I/O subsystem, ensuring stable voltage levels for downstream components. It is widely deployed in critical industrial environments, including petrochemical refineries, offshore platforms, and large-scale power generation facilities, where it provides essential power management and protection against voltage fluctuations.

Features

  • Redundancy Support: Designed for 1+1 redundant configurations, enabling seamless power failover without interrupting system logic or field communication.
  • Integrated Diagnostics: Provides real-time power health monitoring, including input voltage status and output current draw, communicated directly to the DeltaV controller.
  • Robust Protection: Features built-in short-circuit protection and thermal overload monitoring to safeguard the local bus.
  • Status Indicators: Front-panel LED indicators for Power, Error, and Active states for rapid onsite diagnostics.
  • Harsh Environment Ready: Rated for ISA-S71.04-1985 Class G3 (harsh/corrosive) environments, ensuring longevity in demanding industrial conditions.

Applications

The KJ4001X1-BA2 is utilized within DeltaV M-Series I/O carriers to supply power to I/O modules. It is essential for distributed control systems (DCS) requiring high availability and fault-tolerant power distribution in continuous process industries.

Technical Specifications

Brand Emerson (DeltaV)
Model KJ4001X1-BA2
Part Number 12P0550X152
Module Type System Power Controller
Input Voltage 24 VDC (18 to 32 VDC range)
Output Voltage 12 VDC (Regulated)
Max Output Current 5 A
Efficiency > 85% at full load
Operating Temp -40 to +70 deg C
Storage Temp -40 to +85 deg C
Humidity 5 to 95% (Non-Condensing)
Protection Rating IP 20

Installation Guidelines

  • Mounting: Designed for rail-mounted installation within the standard DeltaV carrier system. Ensure the module is fully seated and locked into the carrier slot.
  • Safety: Always power down the carrier or follow site-specific safety procedures before inserting or removing the module to prevent electrical arcing or damage to the backplane.
  • Environment: Ensure adequate ventilation around the carrier to maintain operating temperatures within the specified -40 to +70 deg C range.
  • Handling: Use standard ESD precautions when handling the module to prevent damage to sensitive internal electronic components.

FAQ

Is this module hot-swappable?

Yes, the KJ4001X1-BA2 is designed for hot-swappable operation within the DeltaV carrier, allowing for replacement without shutting down the entire I/O subsystem, provided it is part of a redundant pair.

What does the G3 environmental rating mean?

The ISA-S71.04-1985 Class G3 rating indicates that the module is tested and qualified for use in harsh, corrosive environments where airborne contaminants may be present.
