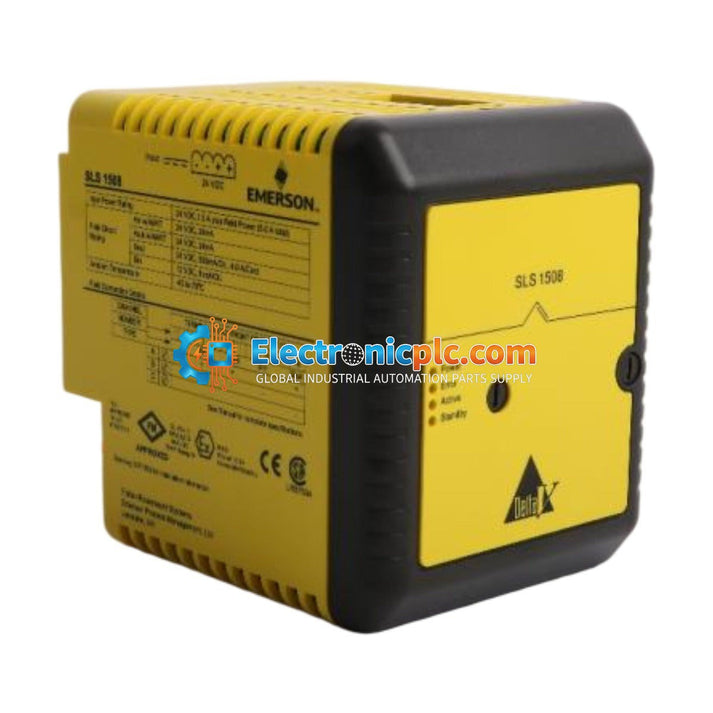

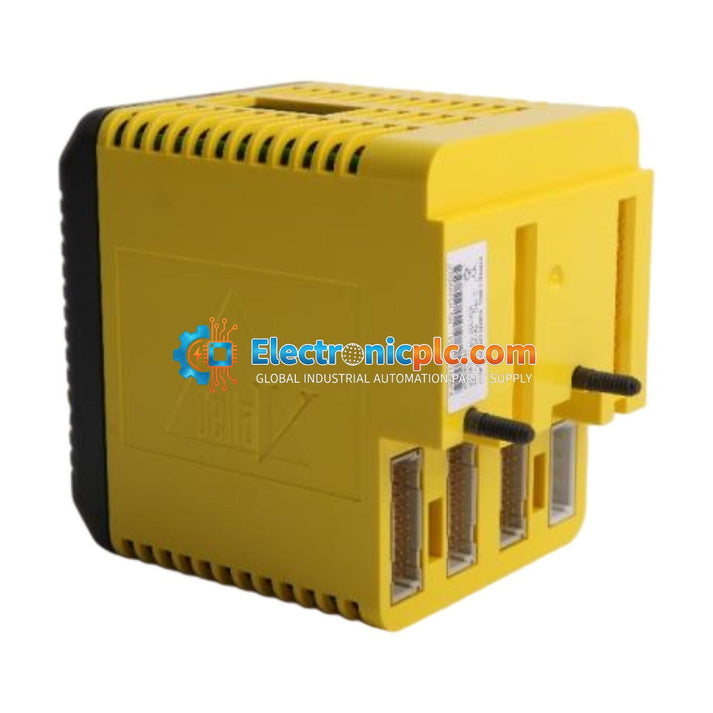

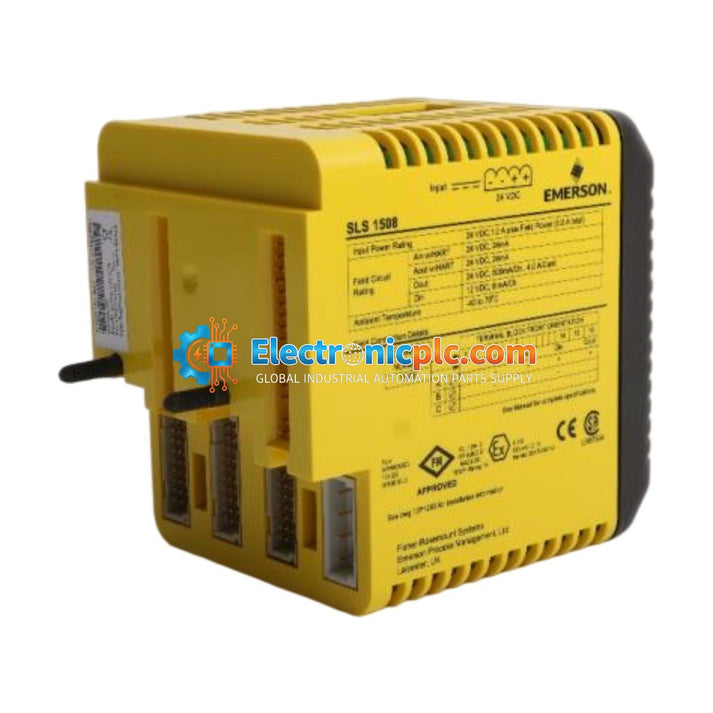

Emerson DeltaV SIS KJ2201X1-BA1 Safety Logic Solver

Emerson DeltaV SIS KJ2201X1-BA1 Safety Logic Solver

Description

The Emerson DeltaV SIS KJ2201X1-BA1 is a high-integrity Logic Solver designed for the SLS 1508 platform. This safety-certified module provides dedicated execution of safety logic, operating independently of the Basic...

20 la gente está viendo esto ahora mismo

Disponibilidad: En existencias

SKU: KJ2201X1-BA1
Proveedora: Emerson
tipo: Safety Logic Solver
Related Series:

Envíos y devoluciones

Entrega confiable a nivel mundial

  • Transportistas: Envíos a través de DHL, FedEx, UPS o USPS .
  • Envío: Los pedidos se procesan en 1-2 días hábiles y se envían dentro de 3-5 días hábiles .
  • Seguimiento: Detalles completos de seguimiento proporcionados por correo electrónico después del envío.

Garantía de devolución de dinero de 30 días

  • Garantía: período de devolución de 30 días para productos en stock y sellados de fábrica.
  • Condición: Los artículos deben estar sin abrir, sin usar y en su embalaje original.
  • Autenticidad: Garantizamos hardware 100% original y auténtico.

¿Necesitas más información? Consulta nuestra Política de envíos y reembolsos completa.

Autenticidad y garantía

  • Garantía genuina: Suministramos únicamente piezas de automatización industrial 100% originales, nuevas y selladas de fábrica .
  • Cobertura total: cada componente está respaldado por una garantía integral de 12 meses a partir de la fecha de compra.
  • Trazabilidad: Todos los productos se entregan con documentación original de fábrica y accesorios para un pleno cumplimiento industrial.

Soporte técnico y abastecimiento

  • Asistencia de expertos: Nuestro equipo técnico ofrece consulta gratuita para ayudarle a verificar la compatibilidad de los sistemas DCS y PLC.
  • Abastecimiento de piezas raras: nos especializamos en componentes obsoletos y difíciles de encontrar de Allen-Bradley, Siemens, ABB, HIMA y más.
  • Consultas al por mayor: contáctenos en pambo@5gplc.com para obtener precios por volumen o cotizaciones de proyectos personalizados.
Ver todos los detalles

Description

The Emerson DeltaV SIS KJ2201X1-BA1 is a high-integrity Logic Solver designed for the SLS 1508 platform. This safety-certified module provides dedicated execution of safety logic, operating independently of the Basic Process Control System (BPCS) to ensure maximum protection for personnel and assets in high-risk industrial environments. Engineered for critical safety functions, the module minimizes the probability of failure on demand (PFD) and provides robust diagnostic coverage to prevent hazardous incidents and reduce unplanned system downtime.

Features

  • Dedicated safety logic execution for DeltaV SIS SLS 1508 systems.
  • Physically and logically segregated safety layer independent of standard process control.
  • Hardened design with ISA-S71.04-1985 Class G3 conformal coating for corrosion resistance.
  • High-speed diagnostic coverage for continuous monitoring of safety loops.
  • Certified for use in Hazardous Atmosphere Zone 2 environments.

Applications

The KJ2201X1-BA1 is specifically designed for critical safety applications in petrochemical refineries, upstream gas facilities, and complex chemical processing plants where high-integrity safety instrumented systems are required to maintain operational safety and compliance.

Technical Specifications

Brand Emerson
Model KJ2201X1-BA1
Series DeltaV SIS (SLS 1508)
Module Type Safety Logic Solver
Input Power 24 VDC at 1 A
Field Power 4 A Maximum
Operating Temperature -40 to 70 deg C
Relative Humidity 5 to 95 percent Non-Condensing
Hazardous Area Certification II 3 G / EEx nA IIC T4
ATEX Certificate Nemko No. 02ATEX431U
Airborne Protection ISA-S71.04-1985 Class G3
Shock Resistance 10 g half-sine wave for 11 ms
Vibration Resistance 1 mm peak to peak (5 to 16 Hz); 0.5 g (16 to 150 Hz)

Installation Guidelines

  • Power Status: This module must never be removed or inserted while the system power is energized.
  • Handling: Use proper ESD protection when handling the module to prevent damage to internal circuitry.
  • Calibration: This module requires no field calibration or user adjustment; the certified safety integrity level is maintained throughout its operational lifecycle.
  • Environment: Ensure the installation location meets the specified temperature and humidity ranges to maintain the integrity of the conformal coating and electronic components.

FAQ

Does this module require periodic calibration?

No, the KJ2201X1-BA1 is a factory-certified safety device that requires no field calibration or user adjustment. It is designed to maintain its safety integrity level throughout its operational life.

Can I hot-swap this module?

No, due to the safety-critical nature of the DeltaV SIS SLS 1508 architecture, the module must not be removed or inserted while the system power is energized.
