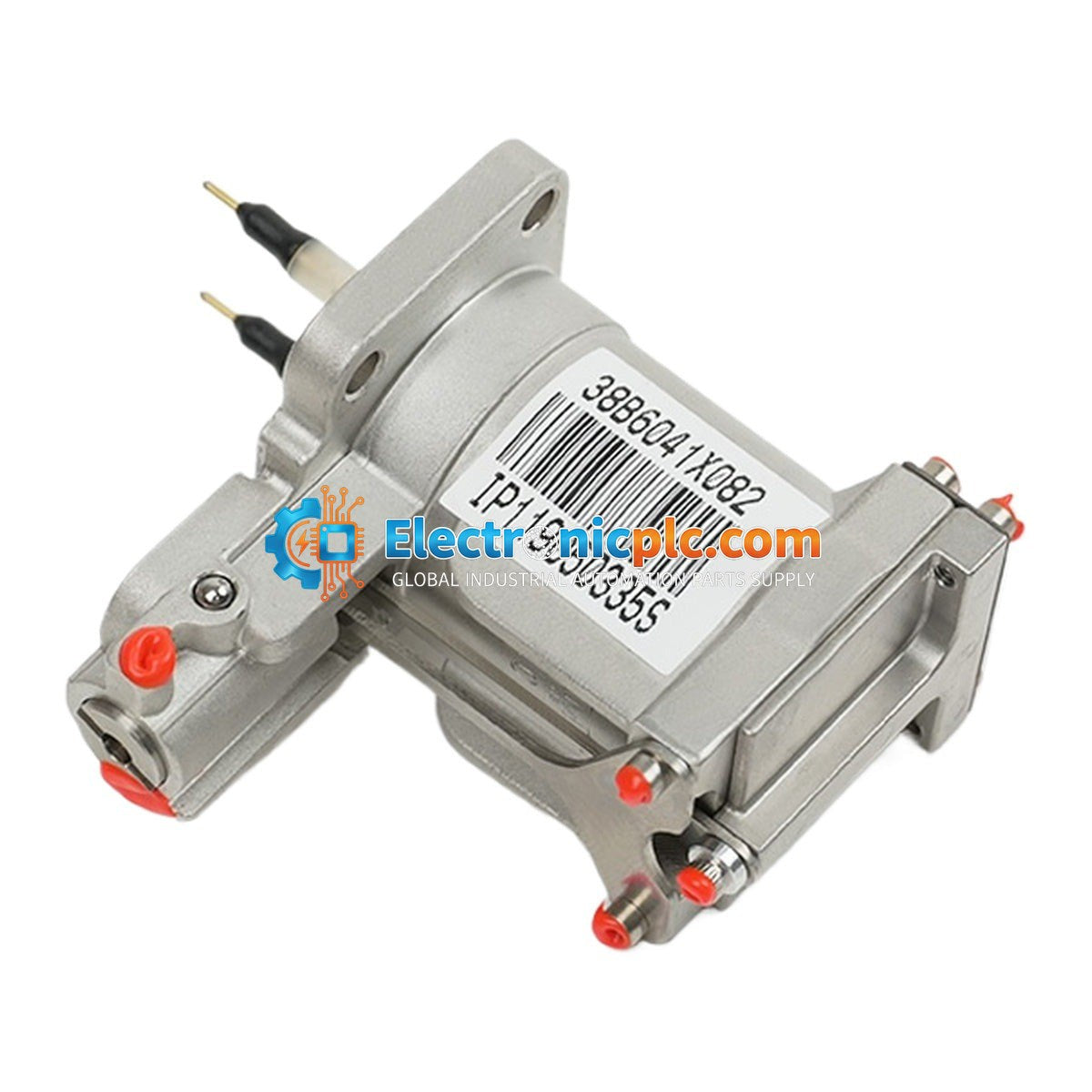

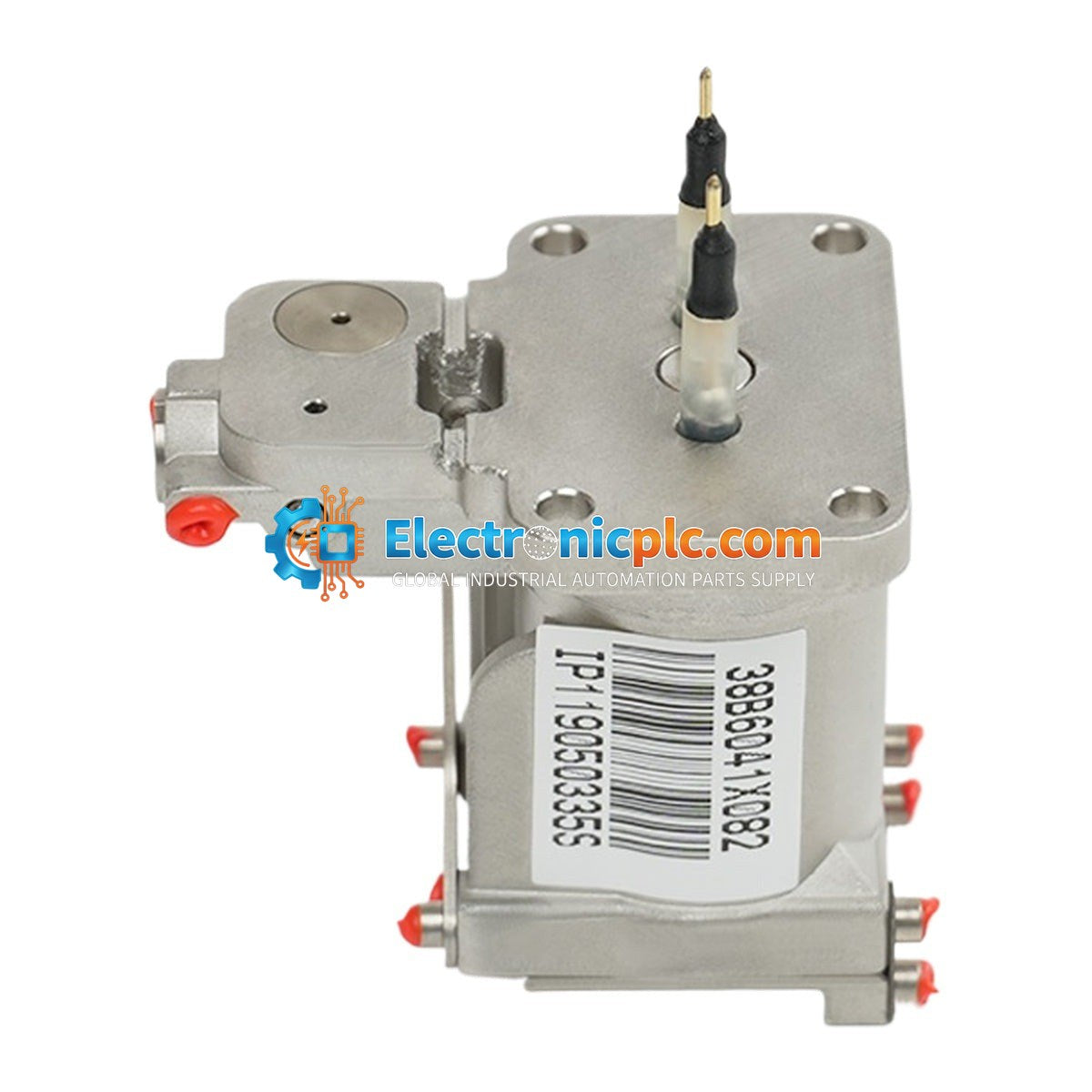

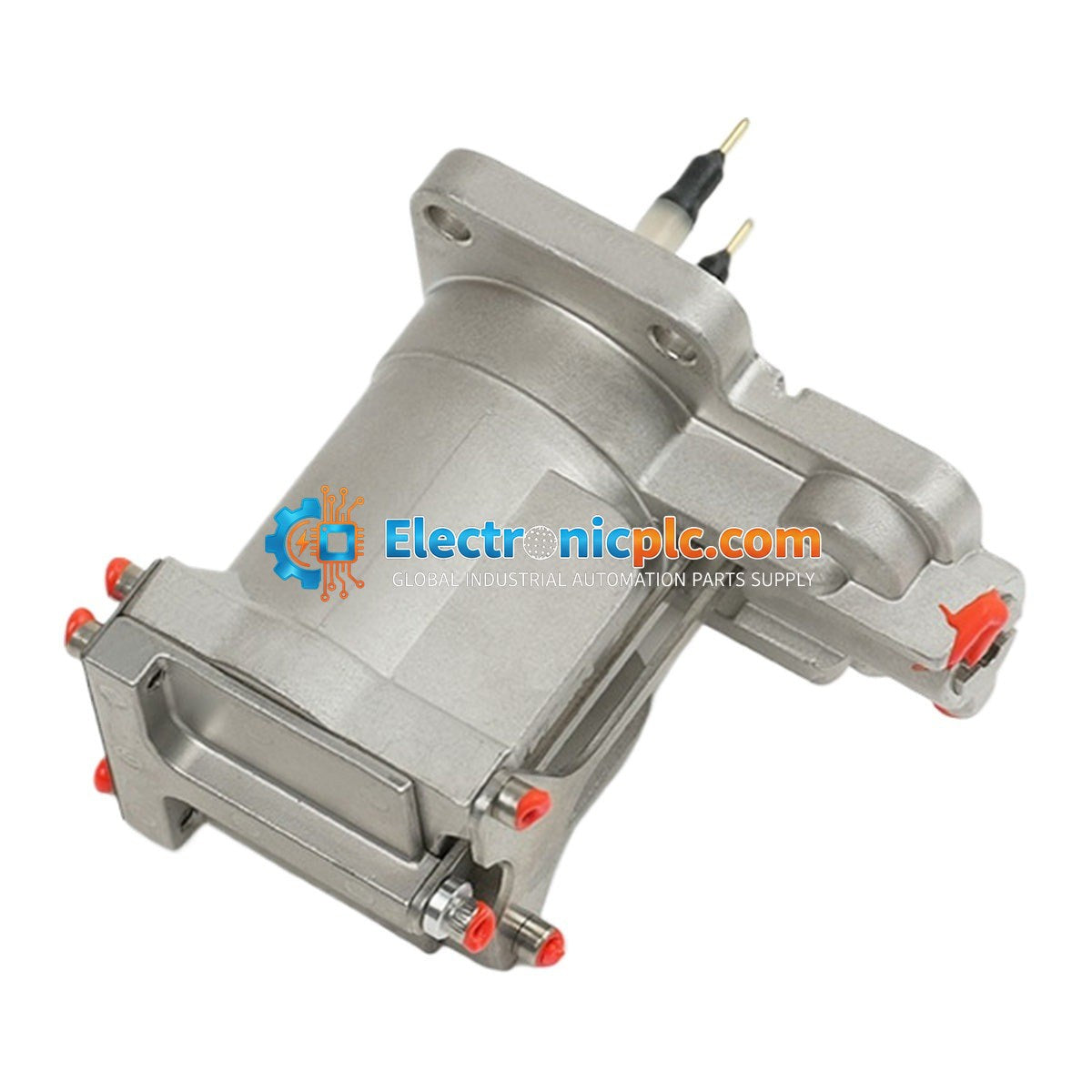

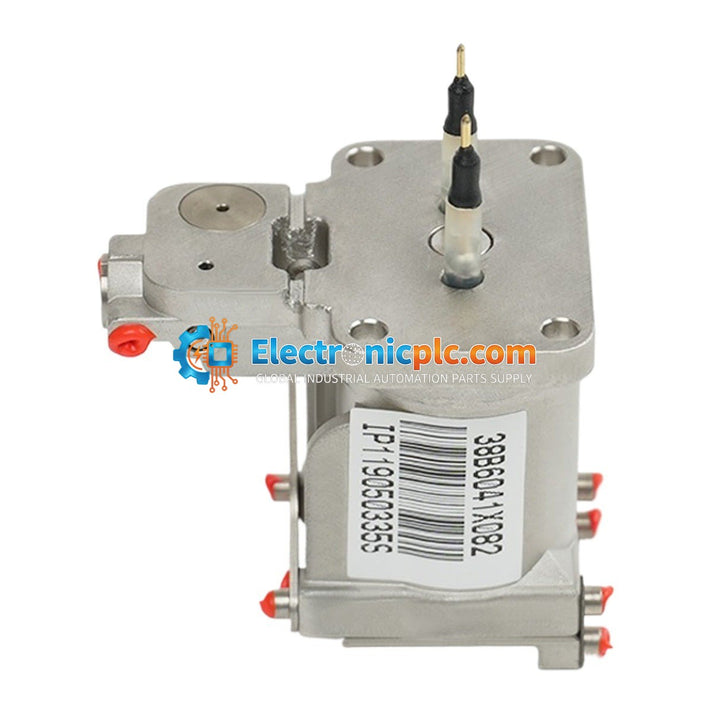

Emerson Fisher 38B6041X082 FIELDVUE I/P Converter Assembly

Emerson Fisher 38B6041X082 FIELDVUE I/P Converter Assembly

Description

The Emerson 38B6041X082 is an I/P (Current-to-Pneumatic) converter kit assembly designed for Fisher field-mounted instruments. This module converts a 4 to 20 mA DC input signal into a proportional pneumatic...

22 la gente está viendo esto ahora mismo

Disponibilidad: Bajas existencias: quedan 1

SKU: 38B6041X082
Proveedora: Emerson
tipo: I/P Converter
Related Series:

Envíos y devoluciones

Entrega confiable a nivel mundial

  • Transportistas: Envíos a través de DHL, FedEx, UPS o USPS .
  • Envío: Los pedidos se procesan en 1-2 días hábiles y se envían dentro de 3-5 días hábiles .
  • Seguimiento: Detalles completos de seguimiento proporcionados por correo electrónico después del envío.

Garantía de devolución de dinero de 30 días

  • Garantía: período de devolución de 30 días para productos en stock y sellados de fábrica.
  • Condición: Los artículos deben estar sin abrir, sin usar y en su embalaje original.
  • Autenticidad: Garantizamos hardware 100% original y auténtico.

¿Necesitas más información? Consulta nuestra Política de envíos y reembolsos completa.

Autenticidad y garantía

  • Garantía genuina: Suministramos únicamente piezas de automatización industrial 100% originales, nuevas y selladas de fábrica .
  • Cobertura total: cada componente está respaldado por una garantía integral de 12 meses a partir de la fecha de compra.
  • Trazabilidad: Todos los productos se entregan con documentación original de fábrica y accesorios para un pleno cumplimiento industrial.

Soporte técnico y abastecimiento

  • Asistencia de expertos: Nuestro equipo técnico ofrece consulta gratuita para ayudarle a verificar la compatibilidad de los sistemas DCS y PLC.
  • Abastecimiento de piezas raras: nos especializamos en componentes obsoletos y difíciles de encontrar de Allen-Bradley, Siemens, ABB, HIMA y más.
  • Consultas al por mayor: contáctenos en pambo@5gplc.com para obtener precios por volumen o cotizaciones de proyectos personalizados.
Ver todos los detalles

Description

The Emerson 38B6041X082 is an I/P (Current-to-Pneumatic) converter kit assembly designed for Fisher field-mounted instruments. This module converts a 4 to 20 mA DC input signal into a proportional pneumatic output pressure, enabling precise control for valve actuators and other pneumatic process control devices. This assembly is a critical component for maintaining the performance of Fisher FIELDVUE digital valve controllers.

Features

  • Fisher FIELDVUE I/P Converter Kit assembly
  • Factory-calibrated for high-accuracy electro-pneumatic conversion
  • Configurable output ranges (3 to 15 psi or 6 to 30 psi)
  • Supports continuous operation in demanding industrial environments
  • Includes necessary mounting hardware and seals for field installation

Applications

  • Petroleum/Oil & Gas: High-accuracy fluid flow and pressure regulation loops
  • Chemical Processing: Precise control of chemical streams via actuator calibration
  • Power Generation: Control valve positioning for steam routing and coolant loops
  • Water/Wastewater: Automated flow gating and large-scale process control

Technical Specifications

Model 38B6041X082
Input Signal 4-20 mA DC
Supply Voltage 42 V DC
Supply Air Pressure 20 to 150 psi
Accuracy <= ±0.5% of span
Response Time <= 0.2 s (for 10% step change)
Operating Temperature -40 degC to +85 degC
Storage Temperature -55 degC to +90 degC
Humidity 0-100% RH (condensing)
Air Consumption 0.2 SCFM (typical at mid-range)

Installation Guidelines

  • Ensure the supply air is clean, dry, and oil-free to prevent internal orifice clogging.
  • Verify that the supply pressure does not exceed the 150 psi maximum rating.
  • Perform all electrical connections while the system is de-energized to prevent short circuits.
  • Use appropriate thread sealant on pneumatic connections to prevent air leaks.
  • Ensure proper grounding of the instrument housing to mitigate EMI interference.
  • Follow the specific Fisher FIELDVUE instrument manual for calibration procedures after installation.

Compliance and Certifications

The 38B6041X082 is designed for use in various hazardous and general-purpose applications. It carries certifications including FM, CSA, ATEX, IECEx, and CE.

FAQs

What is the primary function of the 38B6041X082?

The 38B6041X082 is an I/P converter assembly used to translate electronic 4-20 mA control signals into pneumatic pressure, which is required to actuate control valves in process automation systems.

What output pressure ranges are supported?

The unit is configurable for standard pneumatic output ranges of 3 to 15 psi or 6 to 30 psi, depending on the specific requirements of your actuator.

Is this assembly compatible with all Fisher controllers?

This kit is specifically designed for Fisher FIELDVUE instruments. Please verify your specific controller model (e.g., DVC6200 series) against the manufacturer's compatibility documentation before installation.
