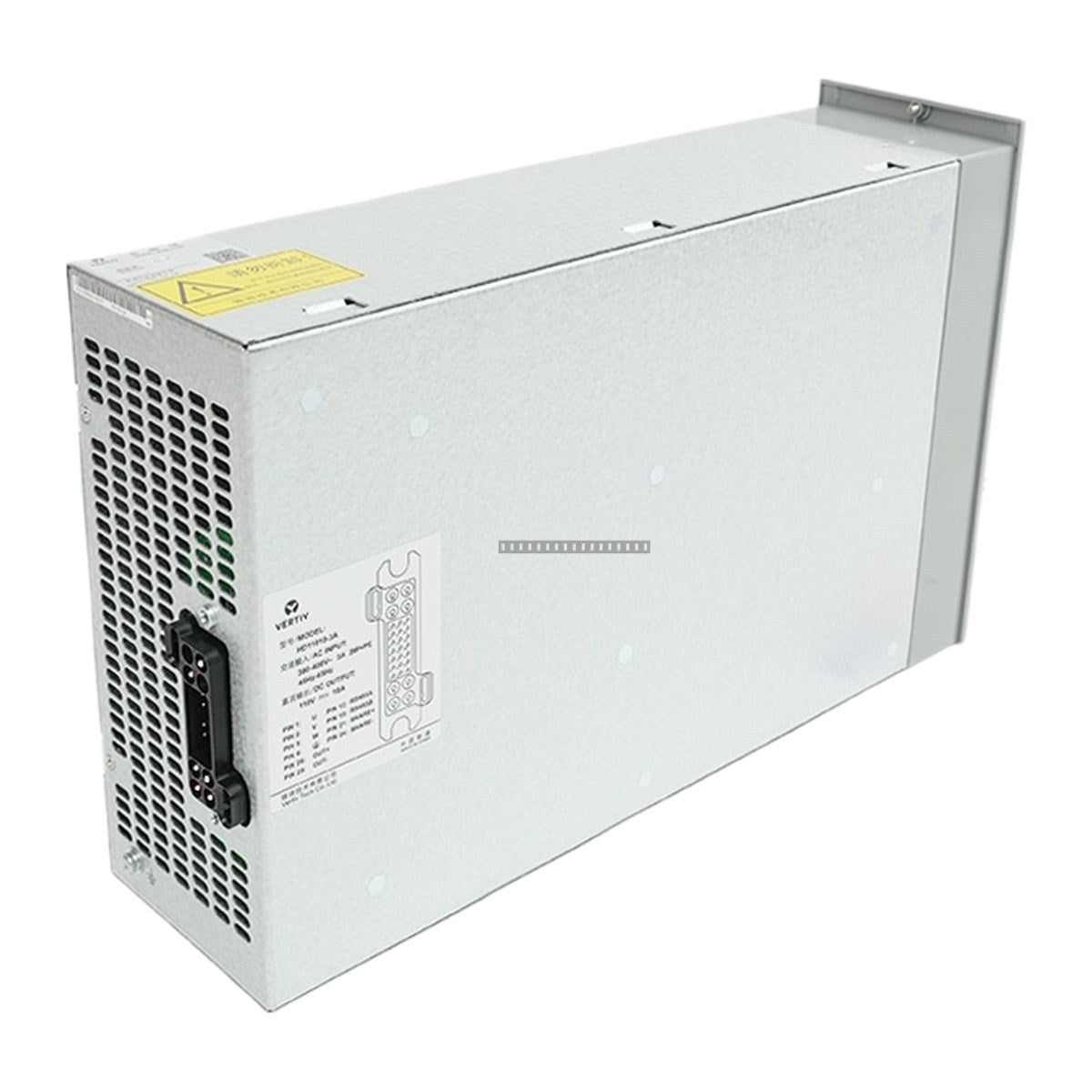

Emerson HD11010-3A High Frequency Switching Rectifier

Emerson HD11010-3A High Frequency Switching Rectifier

The Emerson HD11010-3A is a high-frequency switching rectifier module engineered for reliable DC power supply in critical industrial infrastructure. Designed for high power density and efficiency, this module is widely...

25 la gente está viendo esto ahora mismo

Disponibilidad: Bajas existencias: quedan 9

SKU: HD11010-3A
Proveedora: Emerson
tipo: Rectifier Module
Related Series:

Envíos y devoluciones

Entrega confiable a nivel mundial

  • Transportistas: Envíos a través de DHL, FedEx, UPS o USPS .
  • Envío: Los pedidos se procesan en 1-2 días hábiles y se envían dentro de 3-5 días hábiles .
  • Seguimiento: Detalles completos de seguimiento proporcionados por correo electrónico después del envío.

Garantía de devolución de dinero de 30 días

  • Garantía: período de devolución de 30 días para productos en stock y sellados de fábrica.
  • Condición: Los artículos deben estar sin abrir, sin usar y en su embalaje original.
  • Autenticidad: Garantizamos hardware 100% original y auténtico.

¿Necesitas más información? Consulta nuestra Política de envíos y reembolsos completa.

Autenticidad y garantía

  • Garantía genuina: Suministramos únicamente piezas de automatización industrial 100% originales, nuevas y selladas de fábrica .
  • Cobertura total: cada componente está respaldado por una garantía integral de 12 meses a partir de la fecha de compra.
  • Trazabilidad: Todos los productos se entregan con documentación original de fábrica y accesorios para un pleno cumplimiento industrial.

Soporte técnico y abastecimiento

  • Asistencia de expertos: Nuestro equipo técnico ofrece consulta gratuita para ayudarle a verificar la compatibilidad de los sistemas DCS y PLC.
  • Abastecimiento de piezas raras: nos especializamos en componentes obsoletos y difíciles de encontrar de Allen-Bradley, Siemens, ABB, HIMA y más.
  • Consultas al por mayor: contáctenos en pambo@5gplc.com para obtener precios por volumen o cotizaciones de proyectos personalizados.
Ver todos los detalles

The Emerson HD11010-3A is a high-frequency switching rectifier module engineered for reliable DC power supply in critical industrial infrastructure. Designed for high power density and efficiency, this module is widely utilized in DC power screens, charging systems, and power distribution applications within substations, hydropower plants, and manufacturing facilities.

Features

  • High-frequency switching technology for improved efficiency and compatibility.
  • Wide AC input voltage range (85-300V AC) providing strong adaptability to varying grid conditions.
  • Step-less current limiting for high-precision battery charging.
  • Built-in CPU for distributed control and enhanced anti-interference capability.
  • Integrated protection and warning mechanisms supporting remote monitoring functions.
  • Robust design suitable for harsh industrial environments with high reliability.

Applications

  • Power distribution rooms and DC power screens.
  • Substation and power plant control systems.
  • Industrial automation and robotic assembly lines.
  • Chemical and process plant instrumentation power.
  • Critical infrastructure requiring continuous, stable DC power.

Technical Specifications

Model HD11010-3A
Input Voltage 85-300V AC
Output Voltage 24V DC (Nominal)
Output Current 10A
Output Power 480-600W
Efficiency >90% typical
Operating Temperature -40 degC to +75 degC
Storage Temperature -40 degC to +85 degC
Humidity 5-95% RH non-condensing

Installation Guidelines

  • Ensure the power cabinet slot is compatible with the module and free of debris.
  • Inspect the module for physical damage and verify that rear connector pins are straight before insertion.
  • Align the module with the shelf guide rails and slide it firmly into the slot until the rear connector is fully seated.
  • Tighten all front-panel captive screws to secure the module and ensure proper electrical grounding.
  • Always power down the cabinet before inserting or removing the module to prevent electrical arcing.

FAQ

What is the primary use of the HD11010-3A?

The HD11010-3A is a high-frequency switching rectifier module used primarily for charging DC screens in power, utility, and telecommunication systems.

Is this module suitable for extreme temperatures?

Yes, it is designed for industrial use with an operating temperature range of -40 degC to +75 degC, making it suitable for demanding environments.

Does this module support remote monitoring?

Yes, the module features built-in CPU control and provides comprehensive protection and warning measures that support remote monitoring functions.
