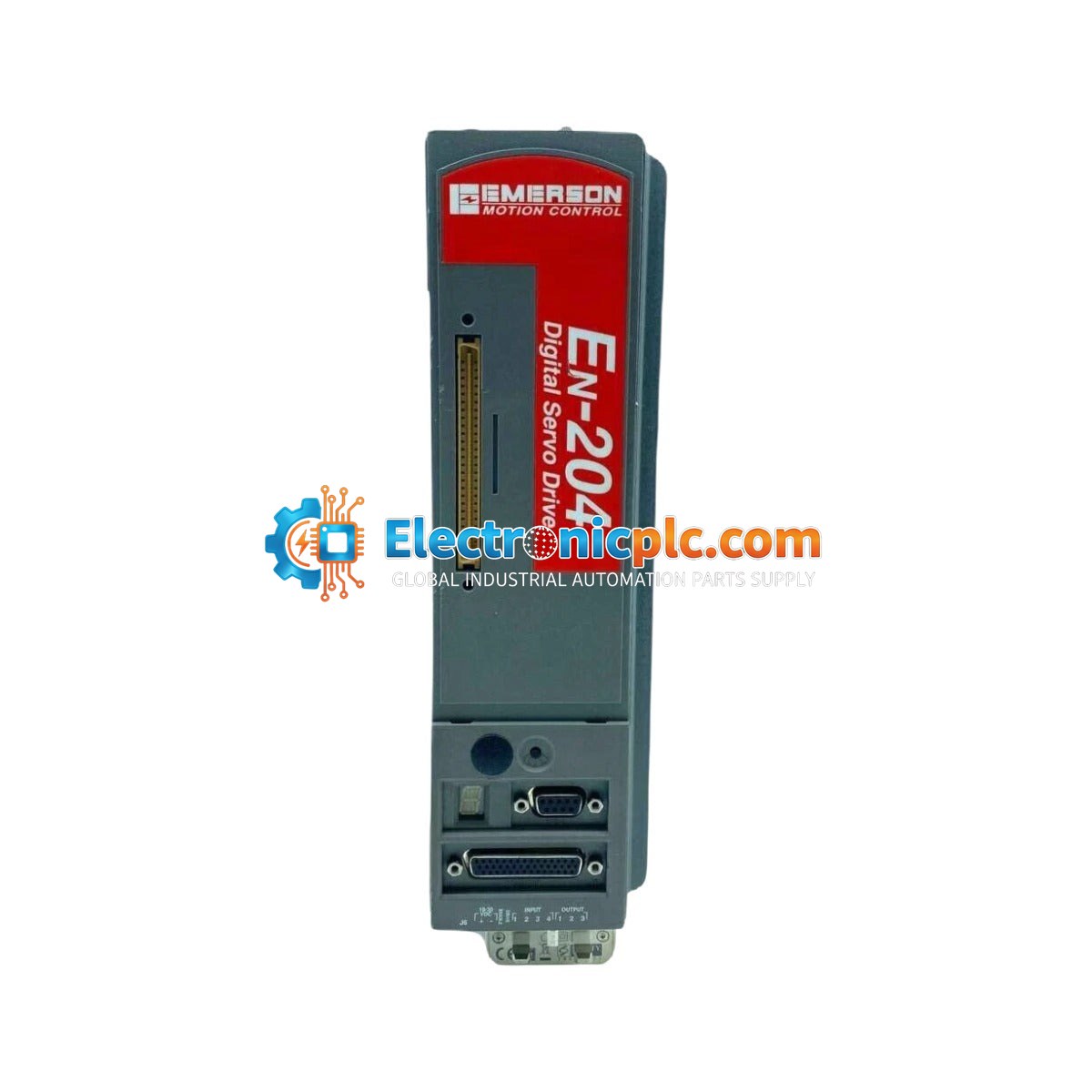

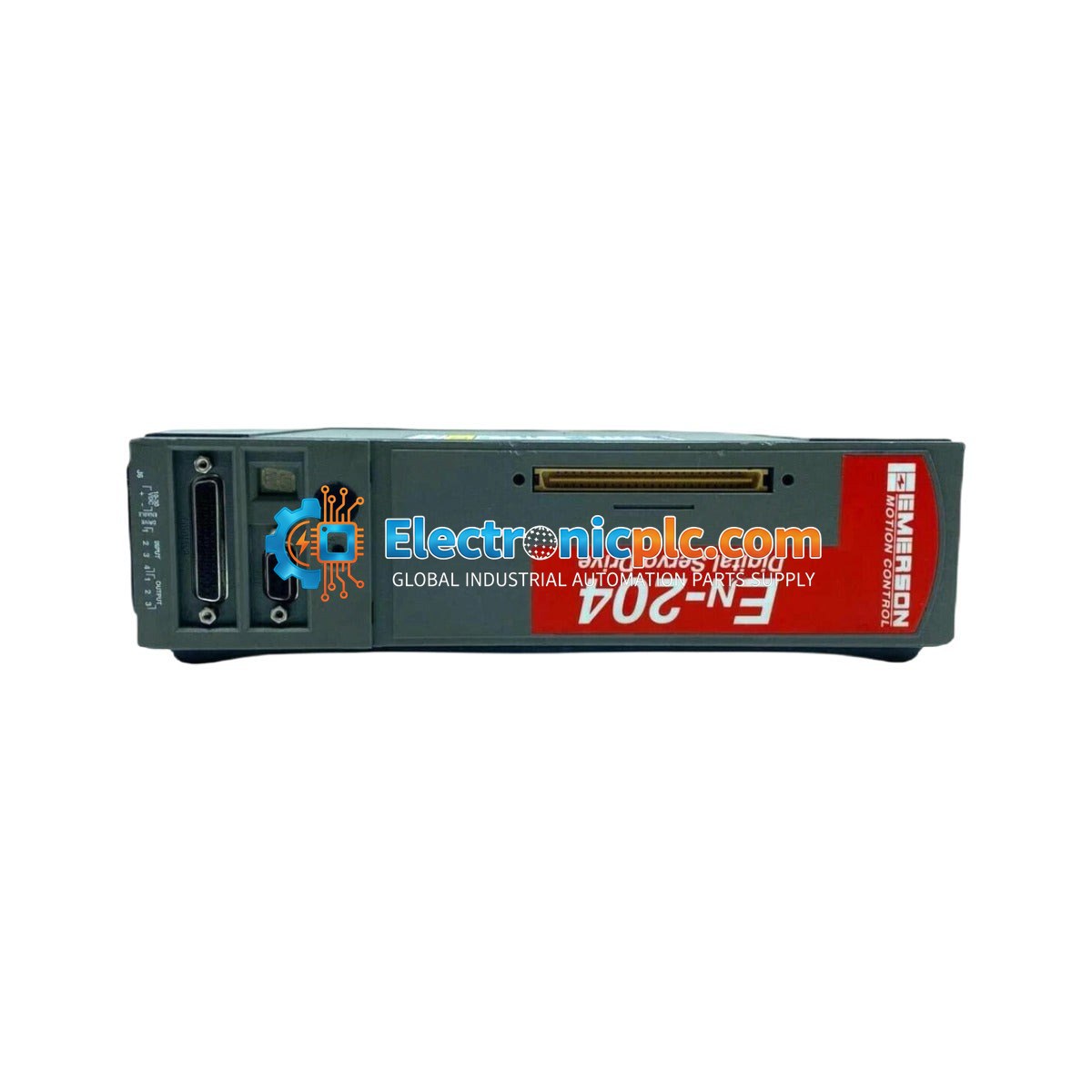

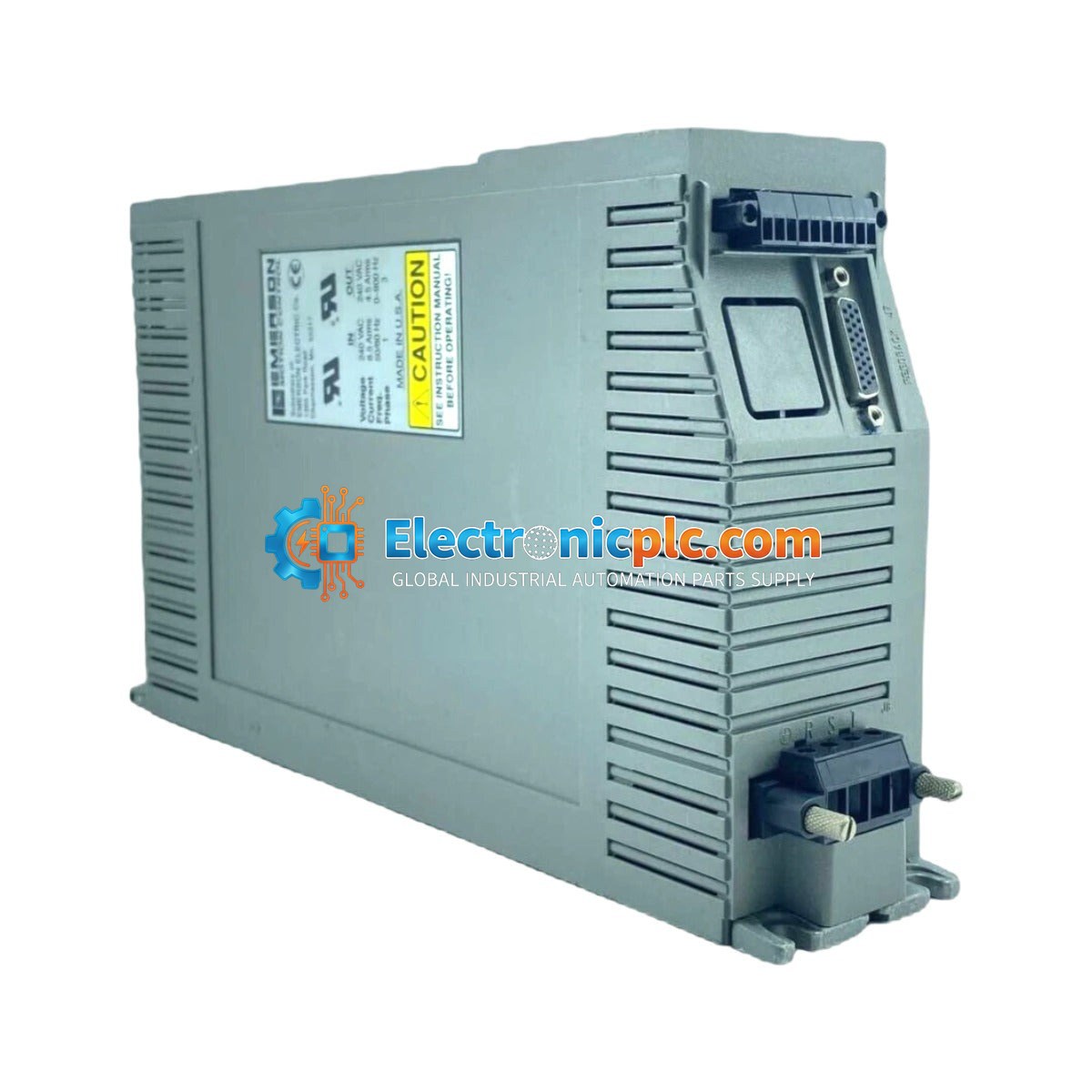

Emerson Motion Control EN-204-00-000 Servo Drive

Emerson Motion Control EN-204-00-000 Servo Drive

Description

The Emerson Motion Control EN-204 (EN-204-00-000) is a high-performance digital servo drive engineered for precision motion control applications. As part of the Control Techniques product family, this compact, standalone drive...

22 la gente está viendo esto ahora mismo

Disponibilidad: Bajas existencias: quedan 6

SKU: EN-204 EN-204-00-000
Proveedora: Emerson
tipo: Servo Drive
Related Series:

Envíos y devoluciones

Entrega confiable a nivel mundial

  • Transportistas: Envíos a través de DHL, FedEx, UPS o USPS .
  • Envío: Los pedidos se procesan en 1-2 días hábiles y se envían dentro de 3-5 días hábiles .
  • Seguimiento: Detalles completos de seguimiento proporcionados por correo electrónico después del envío.

Garantía de devolución de dinero de 30 días

  • Garantía: período de devolución de 30 días para productos en stock y sellados de fábrica.
  • Condición: Los artículos deben estar sin abrir, sin usar y en su embalaje original.
  • Autenticidad: Garantizamos hardware 100% original y auténtico.

¿Necesitas más información? Consulta nuestra Política de envíos y reembolsos completa.

Autenticidad y garantía

  • Garantía genuina: Suministramos únicamente piezas de automatización industrial 100% originales, nuevas y selladas de fábrica .
  • Cobertura total: cada componente está respaldado por una garantía integral de 12 meses a partir de la fecha de compra.
  • Trazabilidad: Todos los productos se entregan con documentación original de fábrica y accesorios para un pleno cumplimiento industrial.

Soporte técnico y abastecimiento

  • Asistencia de expertos: Nuestro equipo técnico ofrece consulta gratuita para ayudarle a verificar la compatibilidad de los sistemas DCS y PLC.
  • Abastecimiento de piezas raras: nos especializamos en componentes obsoletos y difíciles de encontrar de Allen-Bradley, Siemens, ABB, HIMA y más.
  • Consultas al por mayor: contáctenos en pambo@5gplc.com para obtener precios por volumen o cotizaciones de proyectos personalizados.
Ver todos los detalles

Description

The Emerson Motion Control EN-204 (EN-204-00-000) is a high-performance digital servo drive engineered for precision motion control applications. As part of the Control Techniques product family, this compact, standalone drive provides advanced torque, velocity, and position control for brushless servo motors. It is specifically designed to meet the demands of high-speed packaging, automated assembly, and CNC machining, utilizing high-speed digital signal processing to ensure bandwidth and accuracy. The 00-000 configuration represents the standard base model, optimized for reliable core drive functionality in sophisticated industrial automation environments.

Features

  • Digital signal processing for high-bandwidth motion control.
  • Supports multiple control modes: Torque, Velocity, and Position.
  • Programmable I/O for flexible integration with PLCs and motion controllers.
  • Internal firmware support for complex motion profiles, including electronic gearing and camming.
  • Integrated protection circuits for over-voltage, over-current, and thermal monitoring.
  • Front-panel diagnostic LEDs for real-time status and fault code reporting.

Applications

  • High-speed automated packaging machinery.
  • Precision CNC machining centers.
  • Automated assembly and robotics.
  • Material handling and conveyor systems.

Technical Specifications

Parameter Specification
Model EN-204 (EN-204-00-000)
Drive Type Digital Brushless Servo Drive
Continuous Output Current 4 A (RMS)
Peak Output Current 8 A (RMS)
Input Voltage 100 - 240 VAC (Single Phase)
Input Frequency 50 / 60 Hz
Feedback Support Encoder (Incremental/SinCos), Resolver (via adapter)
Operating Temperature 0 to 50 deg C
Ingress Protection IP 20
Communication RS-232 / RS-485

Installation Guidelines

  • Ensure the drive is mounted in a clean, dry environment with adequate clearance for natural convection cooling.
  • Use shielded cables for motor and feedback connections to minimize EMI interference.
  • Verify that the input power supply matches the 100-240 VAC range before applying power.
  • Ensure proper grounding of the drive chassis to a common earth point to prevent noise issues.
  • Always power down the unit and wait for internal capacitors to discharge before performing wiring or maintenance.
  • Handle with standard ESD precautions to protect internal logic components.

FAQ

What does the 00-000 suffix indicate?

The 00-000 suffix denotes the standard base configuration of the EN-204 drive, which includes the core control functionality without additional factory-fitted expansion modules or customized hardware options.

Is this drive compatible with my existing PLC?

The EN-204 features programmable I/O and standard communication interfaces (RS-232/RS-485), allowing it to interface with most industrial PLCs and motion controllers capable of standard digital or serial communication protocols.
