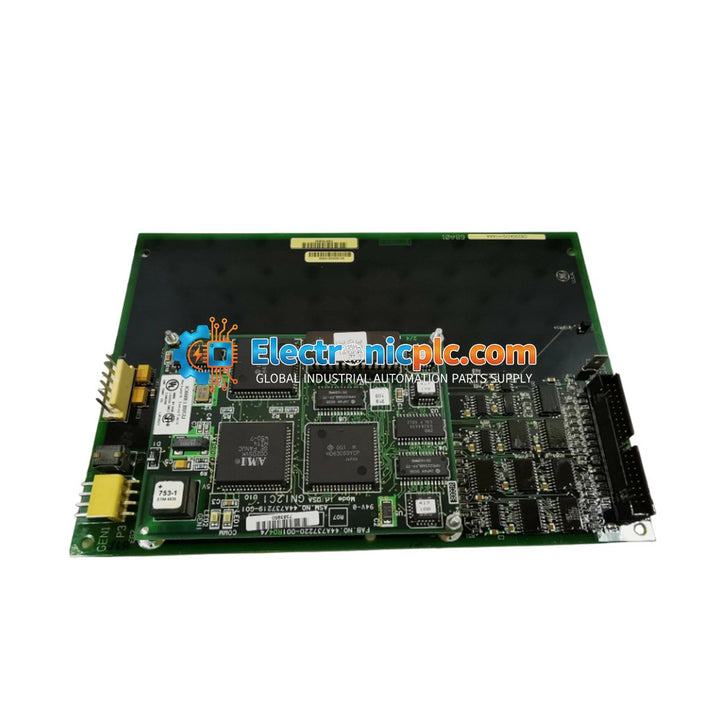

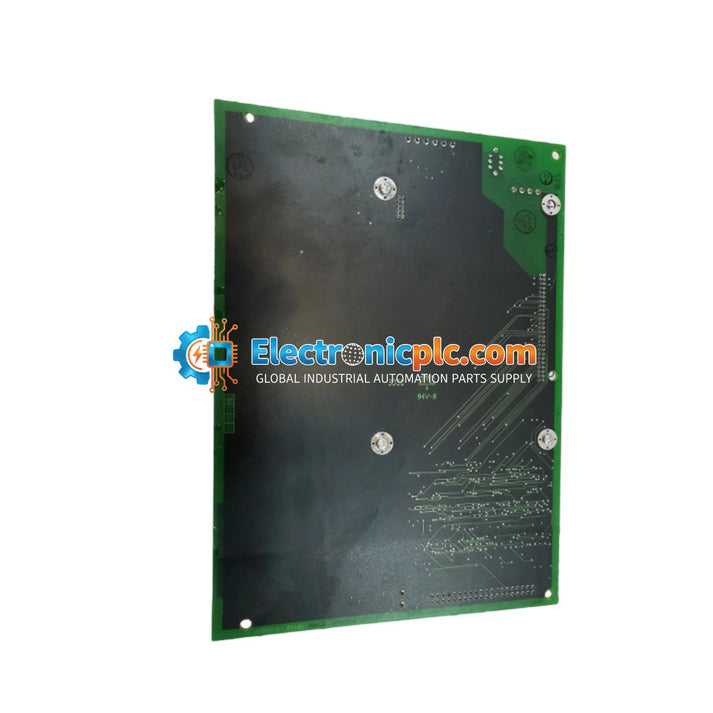

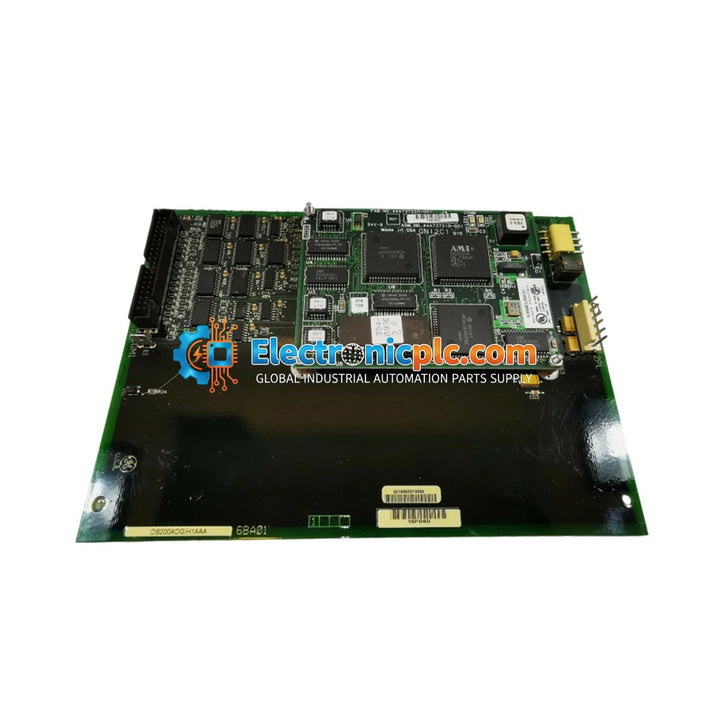

GE Fanuc DS200ADGIH1AAA Auxiliary DC Generator Interlock Control Card

GE Fanuc DS200ADGIH1AAA Auxiliary DC Generator Interlock Control Card

Description

The DS200ADGIH1AAA is a specialized Auxiliary DC Generator Interlock and Control Card designed for the GE EX2000 excitation control series. This module plays a critical role in gas turbine excitation...

21 la gente está viendo esto ahora mismo

Disponibilidad: Bajas existencias: quedan 10

SKU: DS200ADGIH1AAA
Proveedora: GE FANUC
tipo: Generator Control Card
Related Series:

Envíos y devoluciones

Entrega confiable a nivel mundial

  • Transportistas: Envíos a través de DHL, FedEx, UPS o USPS .
  • Envío: Los pedidos se procesan en 1-2 días hábiles y se envían dentro de 3-5 días hábiles .
  • Seguimiento: Detalles completos de seguimiento proporcionados por correo electrónico después del envío.

Garantía de devolución de dinero de 30 días

  • Garantía: período de devolución de 30 días para productos en stock y sellados de fábrica.
  • Condición: Los artículos deben estar sin abrir, sin usar y en su embalaje original.
  • Autenticidad: Garantizamos hardware 100% original y auténtico.

¿Necesitas más información? Consulta nuestra Política de envíos y reembolsos completa.

Autenticidad y garantía

  • Garantía genuina: Suministramos únicamente piezas de automatización industrial 100% originales, nuevas y selladas de fábrica .
  • Cobertura total: cada componente está respaldado por una garantía integral de 12 meses a partir de la fecha de compra.
  • Trazabilidad: Todos los productos se entregan con documentación original de fábrica y accesorios para un pleno cumplimiento industrial.

Soporte técnico y abastecimiento

  • Asistencia de expertos: Nuestro equipo técnico ofrece consulta gratuita para ayudarle a verificar la compatibilidad de los sistemas DCS y PLC.
  • Abastecimiento de piezas raras: nos especializamos en componentes obsoletos y difíciles de encontrar de Allen-Bradley, Siemens, ABB, HIMA y más.
  • Consultas al por mayor: contáctenos en pambo@5gplc.com para obtener precios por volumen o cotizaciones de proyectos personalizados.
Ver todos los detalles

Description

The DS200ADGIH1AAA is a specialized Auxiliary DC Generator Interlock and Control Card designed for the GE EX2000 excitation control series. This module plays a critical role in gas turbine excitation systems by managing interlock sequences and control logic for high-voltage auxiliary DC systems. It serves as a vital interface between the Turbine Control System (TCS) and the Generator Control Panels (GCP), ensuring reliable synchronization and protection during turbine startup, operation, and shutdown sequences.

Features

  • Designed for integration within the GE EX2000 excitation rack architecture.
  • Processes auxiliary signals for high-voltage DC system monitoring and control.
  • Supports robust analog output for real-time system feedback.
  • Engineered for high signal integrity in electromagnetically noisy turbine hall environments.
  • Facilitates critical interlock logic to prevent generator system faults.

Applications

This control card is primarily deployed in power generation facilities and heavy industrial turbine units utilizing GE EX2000 static excitation systems or brushless exciters. It is essential for maintaining operational stability and protecting generator assets from transient faults.

Technical Specifications

Model DS200ADGIH1AAA
Series EX2000
Brand GE Fanuc / General Electric
Product Type Auxiliary DC Generator Interlock Card
Analog Output 0-20 mA
Power Input +5 VDC
Operating Temperature -30 to +65 deg C

Installation Guidelines

  • Ensure the excitation system is fully powered down before inserting or removing the card from the rack.
  • Handle the module using proper ESD (Electrostatic Discharge) protection measures to prevent damage to sensitive internal circuitry.
  • Verify that the card is fully seated in the EX2000 rack slot to ensure reliable backplane connection.
  • Route signal cables away from high-voltage power lines and high-EMI sources to maintain signal integrity.
  • Ensure the operating environment remains within the specified -30 to +65 deg C range to prevent thermal degradation.

FAQ

What system is the DS200ADGIH1AAA designed for?
This card is specifically designed for the GE EX2000 excitation system used in gas turbine control applications.

What is the primary function of this card?
It acts as an auxiliary DC generator interlock and control card, managing critical logic between the Turbine Control System and the Generator Control Panel.

Does this card require external power?
The card operates on a +5 VDC logic bus provided by the excitation rack backplane.
