Description

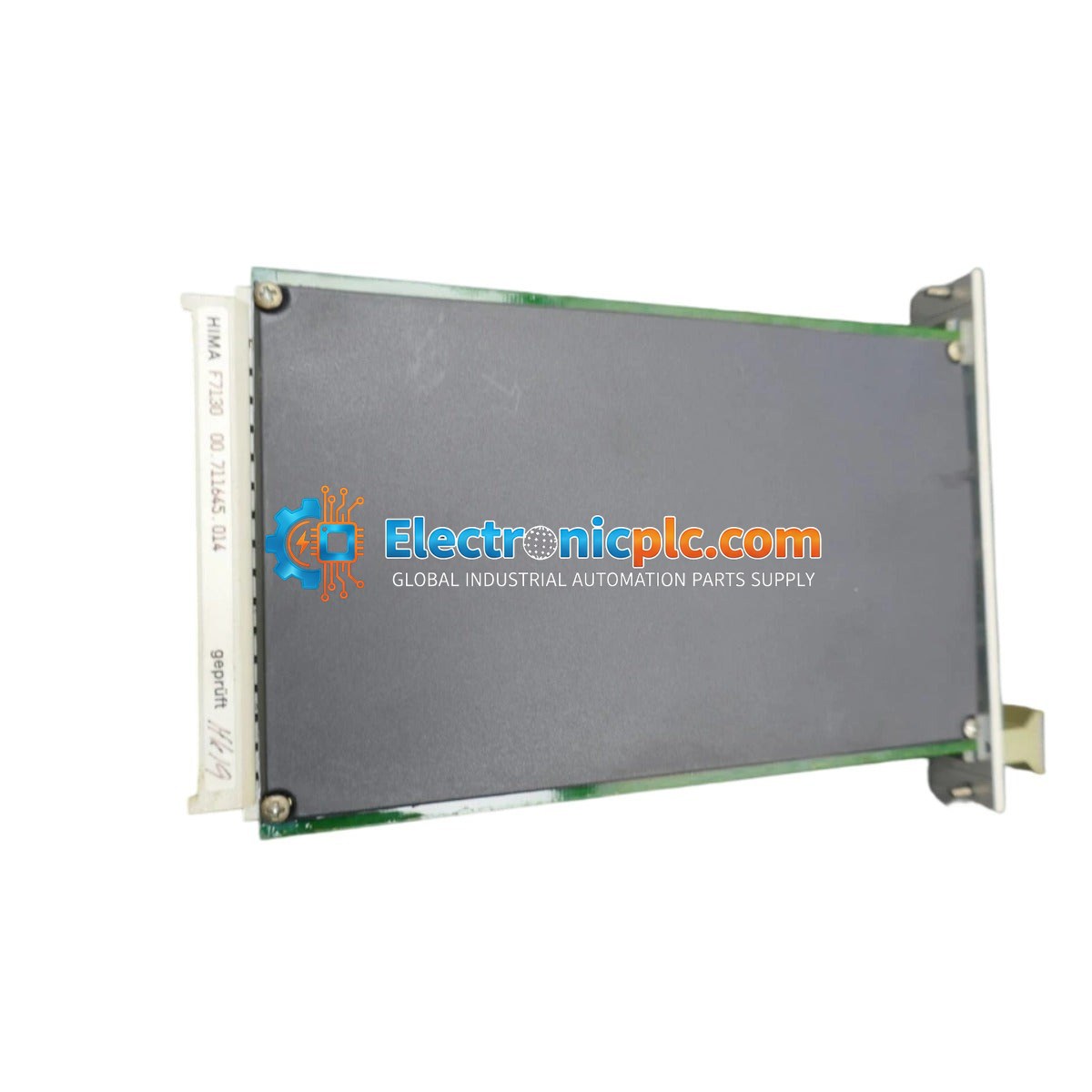

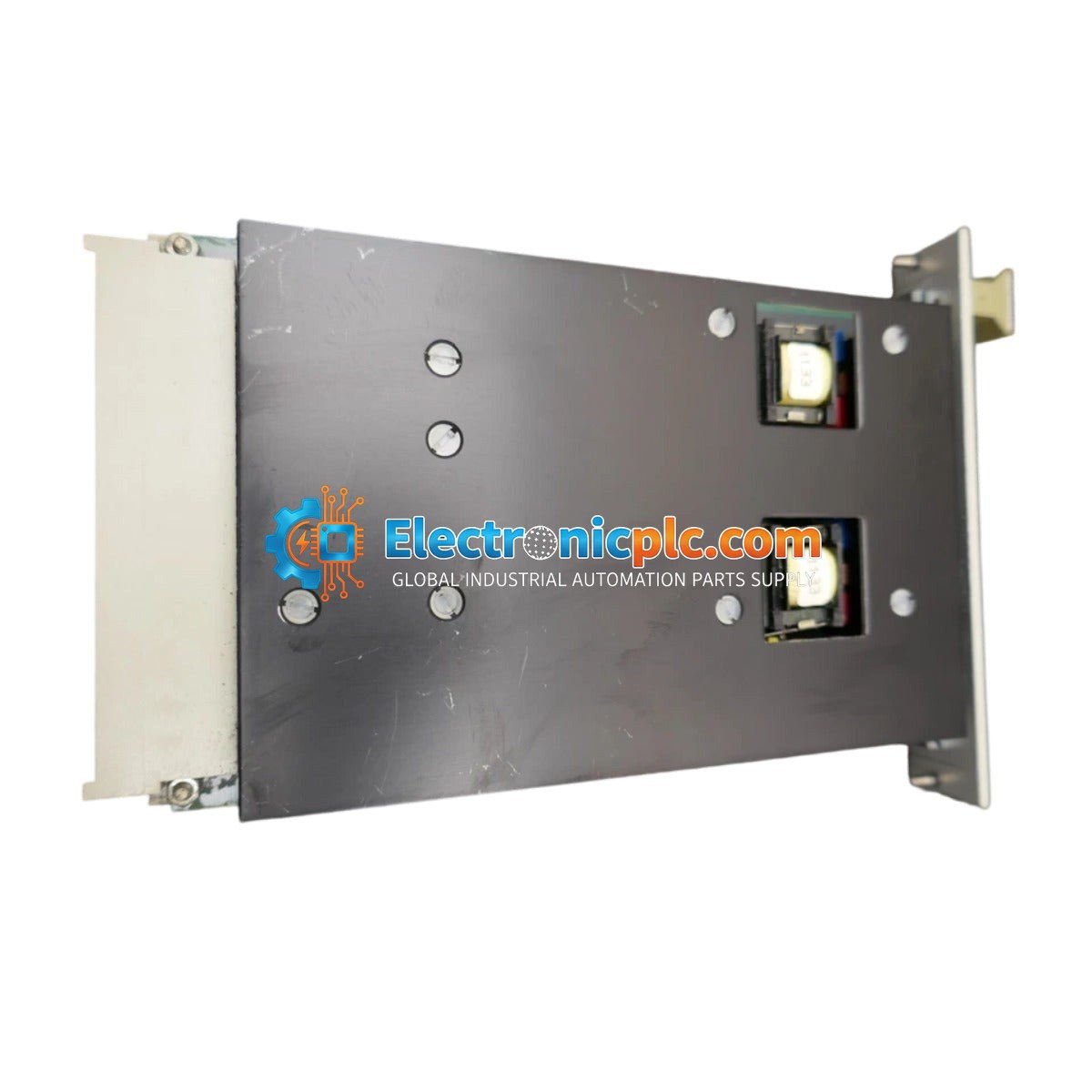

The HIMA F 7130 is a high-reliability 5 A power distribution module engineered specifically for HIMA safety-related systems. This module is designed to convert a 24 VDC input into a stable 5 VDC output, providing the necessary power for logic components and safety processors. It is widely utilized in critical industrial environments, including refineries and power generation facilities, where consistent and noise-free power delivery is essential for maintaining safety instrumented system (SIS) integrity.

Features

• Voltage Conversion: Efficiently steps down 24 VDC input to a stabilized 5 VDC output.
• Current Limiting: Integrated hardware-based current limiting circuit protects against overcurrent conditions.
• Noise Suppression: Internal filtering circuitry ensures low-noise power rails for sensitive logic components.

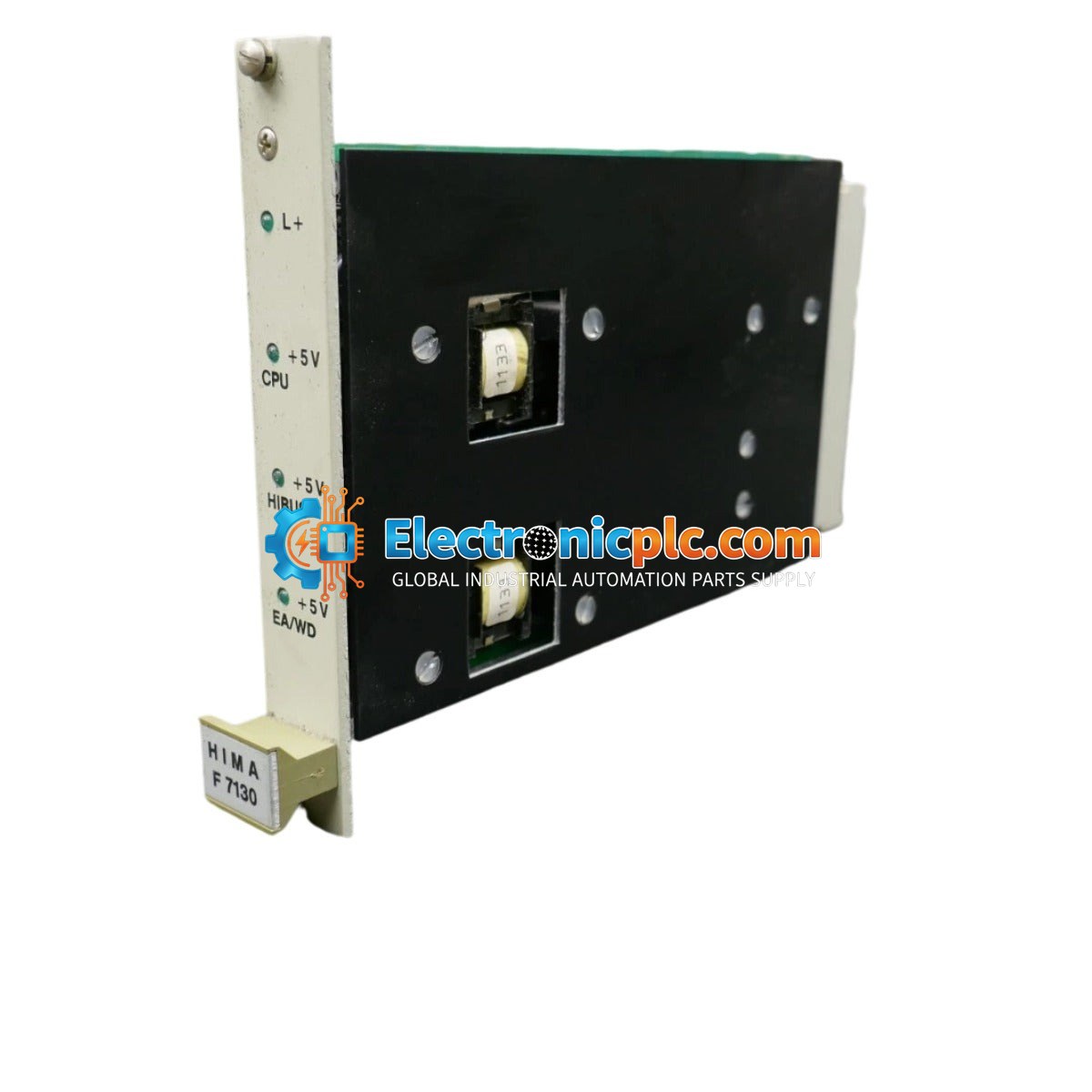

• Status Monitoring: Integrated LED indicator provides real-time status feedback for rapid troubleshooting.
• Galvanic Isolation: Supports galvanic separation between primary and secondary power stages to enhance system protection.

Applications

The F 7130 is primarily deployed within HIMA safety controllers to provide reliable power to backplane logic and associated safety modules. Its robust design makes it suitable for high-availability safety applications where downtime must be minimized and system integrity is paramount.

Technical Specifications

Installation Guidelines

• Handling: Always observe ESD (electrostatic discharge) precautions when handling the module to prevent damage to internal components.
• Power Down: Ensure the system power is disconnected before inserting or removing the module from the rack.
• Mounting: Ensure the module is fully seated in the designated rack slot to maintain proper electrical contact with the backplane.
• Environment: Install in a clean, dry environment within the specified operating temperature range of 0 to 60 degC.
• Wiring: Use appropriate wire gauges for the 24 VDC input to minimize voltage drop and ensure reliable power delivery.

FAQ

What is the primary function of the HIMA F 7130?

The F 7130 acts as a power distribution module that converts 24 VDC input to a 5 VDC output, specifically designed to power logic components within HIMA safety systems.

Does this module include overcurrent protection?

Yes, the F 7130 features a built-in hardware-based current limiting circuit to prevent overcurrent propagation and protect the downstream safety controller.

How can I verify the status of the module?

The module is equipped with an integrated LED indicator that provides immediate visual feedback regarding the operational status of the power distribution.
