Description

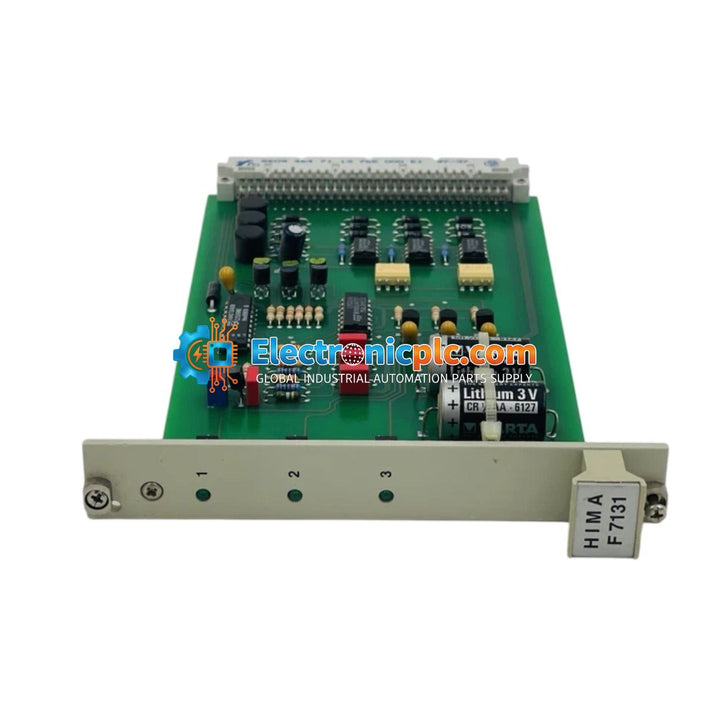

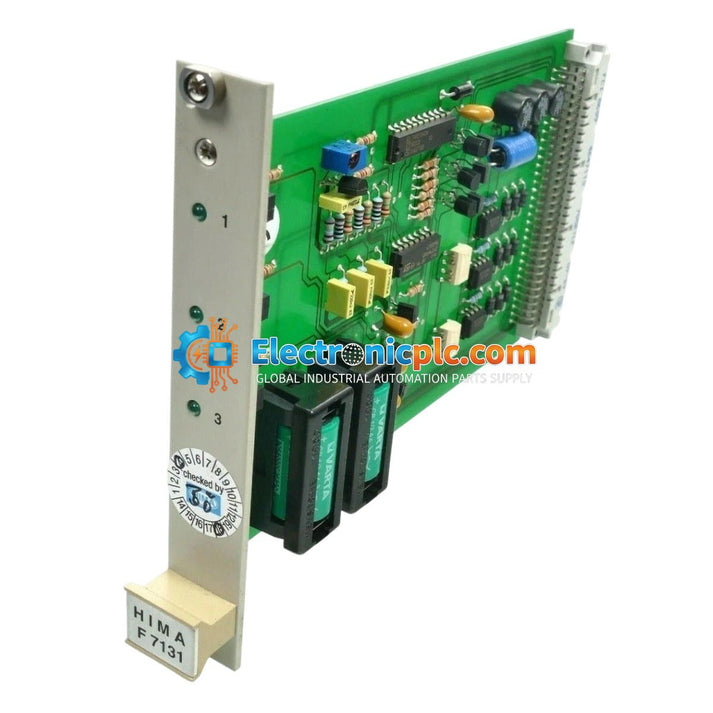

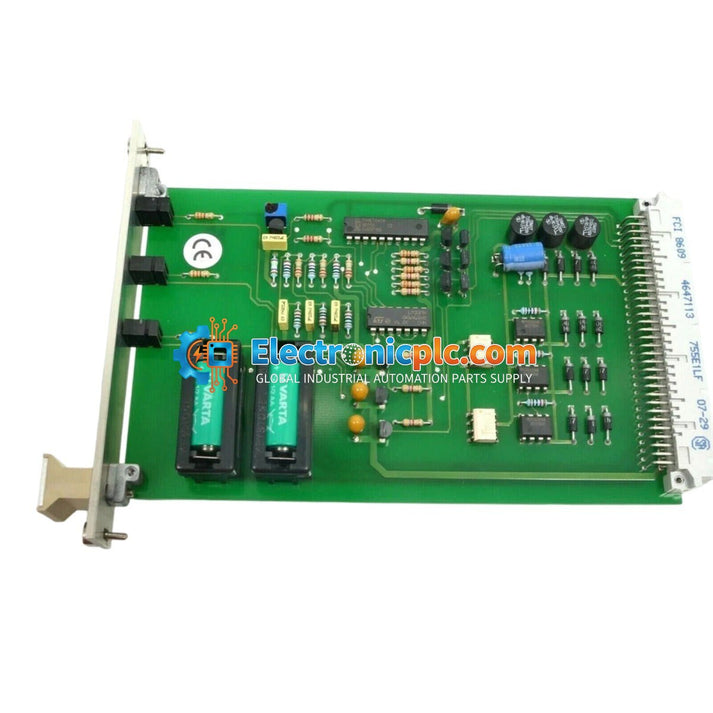

The HIMA F 7131 is a safety-critical power supply and monitoring module engineered for high-availability HIMA automation systems. This module provides essential diagnostic capabilities and power rail management, ensuring voltage stability and reliable redundancy transitions in safety-instrumented systems. It is designed to operate within demanding industrial environments, such as oil and gas refineries and power generation facilities, where maintaining continuous power integrity is vital for safety and operational uptime.

Features

• Integrated power rail monitoring for real-time diagnostic feedback.
• Supports high-availability configurations for SIL-rated safety applications.
• Designed for seamless integration into HIMA system backplanes.
• Fail-safe backup logic to ensure system continuity during power fluctuations.

Technical Specifications

Installation Guidelines

• Ensure the system is powered down before inserting or removing the F 7131 module to prevent electrical arcing or damage to the backplane connectors.
• Verify that the module is correctly seated and locked into the designated backplane slot to ensure reliable electrical contact.
• Maintain proper ventilation within the cabinet to ensure the ambient temperature remains within the specified 0 to 60 deg C range.
• Follow standard ESD (Electrostatic Discharge) precautions when handling the module to protect sensitive internal circuitry.
• Ensure all power supply wiring is correctly terminated and secured to prevent intermittent connections.

FAQ

What is the primary function of the F 7131?

The F 7131 serves as a power supply monitoring and backup module, ensuring that the power rails within a HIMA safety system remain stable and providing diagnostic data to the controller.

Is this module suitable for SIL applications?

Yes, the F 7131 is designed for use in safety-critical environments requiring high availability and is compatible with HIMA safety-instrumented system architectures.
