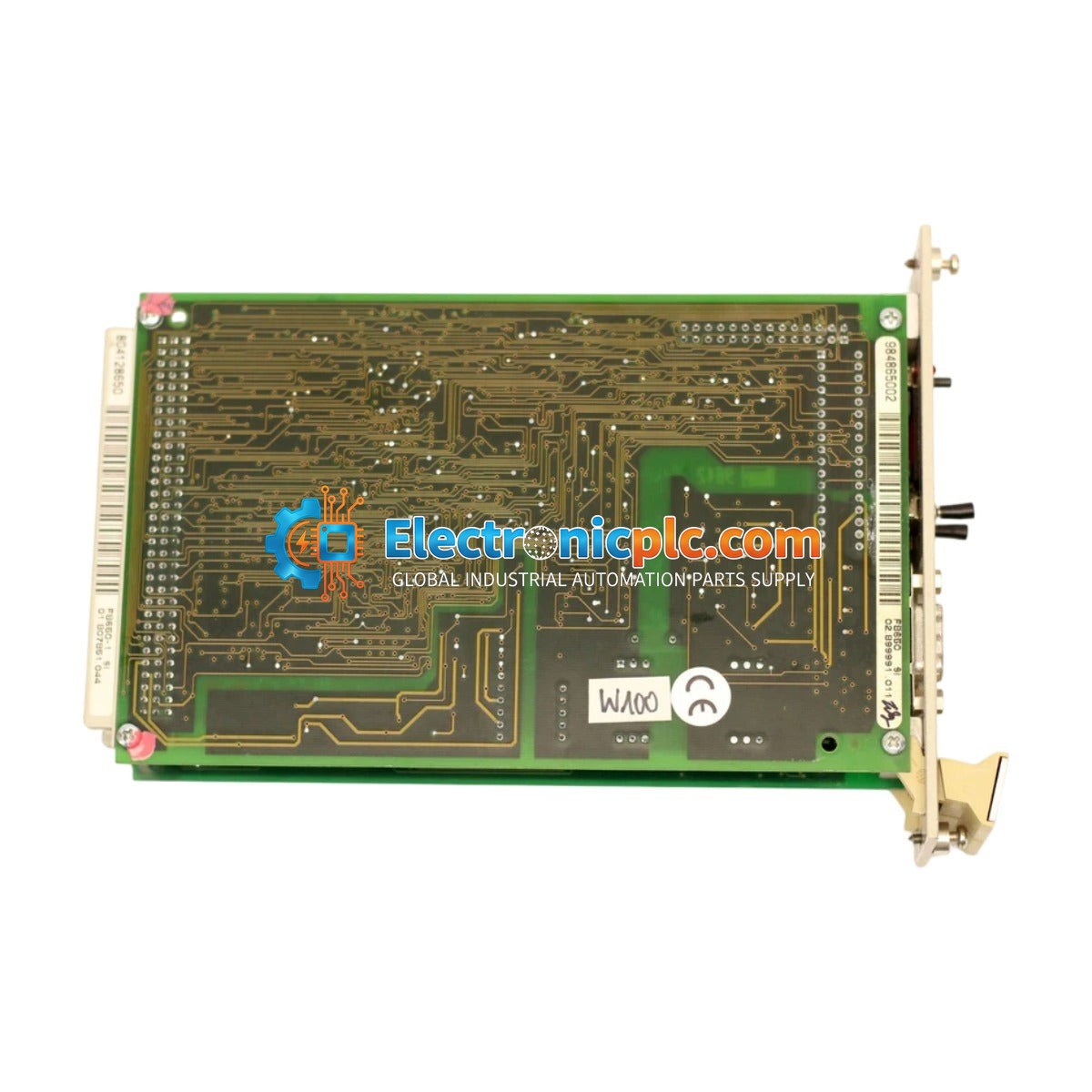

HIMA F8650E CPU Module for H41Q and H51Q Safety Systems

HIMA F8650E CPU Module for H41Q and H51Q Safety Systems

Description

The HIMA F8650E is a high-performance central processor unit engineered specifically for the H41Q and H51Q safety-related systems. Operating at a clock speed of 25 MHz, this module is designed...

25 la gente está viendo esto ahora mismo

Disponibilidad: Bajas existencias: quedan 10

SKU: F8650E
Proveedora: HIMA
tipo: CPU Module
Related Series:

Envíos y devoluciones

Entrega confiable a nivel mundial

  • Transportistas: Envíos a través de DHL, FedEx, UPS o USPS .
  • Envío: Los pedidos se procesan en 1-2 días hábiles y se envían dentro de 3-5 días hábiles .
  • Seguimiento: Detalles completos de seguimiento proporcionados por correo electrónico después del envío.

Garantía de devolución de dinero de 30 días

  • Garantía: período de devolución de 30 días para productos en stock y sellados de fábrica.
  • Condición: Los artículos deben estar sin abrir, sin usar y en su embalaje original.
  • Autenticidad: Garantizamos hardware 100% original y auténtico.

¿Necesitas más información? Consulta nuestra Política de envíos y reembolsos completa.

Autenticidad y garantía

  • Garantía genuina: Suministramos únicamente piezas de automatización industrial 100% originales, nuevas y selladas de fábrica .
  • Cobertura total: cada componente está respaldado por una garantía integral de 12 meses a partir de la fecha de compra.
  • Trazabilidad: Todos los productos se entregan con documentación original de fábrica y accesorios para un pleno cumplimiento industrial.

Soporte técnico y abastecimiento

  • Asistencia de expertos: Nuestro equipo técnico ofrece consulta gratuita para ayudarle a verificar la compatibilidad de los sistemas DCS y PLC.
  • Abastecimiento de piezas raras: nos especializamos en componentes obsoletos y difíciles de encontrar de Allen-Bradley, Siemens, ABB, HIMA y más.
  • Consultas al por mayor: contáctenos en pambo@5gplc.com para obtener precios por volumen o cotizaciones de proyectos personalizados.
Ver todos los detalles

Description

The HIMA F8650E is a high-performance central processor unit engineered specifically for the H41Q and H51Q safety-related systems. Operating at a clock speed of 25 MHz, this module is designed to execute safety-critical logic with high determinism, ensuring reliable performance in demanding industrial environments such as oil refineries, chemical processing plants, and power utilities. The F8650E is built to meet SIL 3 safety standards, providing robust diagnostic capabilities and rapid fault detection to support continuous, safe plant operations.

Features

  • Designed for HIMA H41Q and H51Q Programmable Electronic Systems (PES).
  • High-integrity processing for SIL 3 safety-critical applications.
  • Advanced self-test routines and integrated watchdog monitoring for high diagnostic coverage.
  • Optimized for redundant, fail-safe system architectures.
  • Compact 4 TE form factor for efficient rack-space utilization.

Applications

The F8650E is intended for use in mission-critical safety instrumented systems (SIS) where high availability and fault tolerance are required. Typical applications include emergency shutdown (ESD) systems, burner management systems (BMS), and fire and gas (F&G) detection systems within hazardous industrial zones.

Technical Specifications

Model F8650E
Brand HIMA
System Compatibility H41Q / H51Q PES
Clock Speed 25 MHz
Input Voltage 24 VDC
Current Consumption 500 mA to 2000 mA
Operating Temperature 0 to 60 deg C

Installation Guidelines

  • Ensure the system power is disconnected before installing or removing the CPU module from the rack.
  • The module should be handled using standard ESD (Electrostatic Discharge) protection practices to prevent damage to internal circuitry.
  • Verify that the module is fully seated in the backplane connector to ensure proper synchronization and communication with other system components.
  • Maintain adequate ventilation within the cabinet to keep ambient temperatures within the specified 0 to 60 deg C operating range.
  • Ensure all backplane connections are secure and free from debris to prevent intermittent signal loss.

FAQ

Is the HIMA F8650E compatible with other HIMA systems?

The F8650E is specifically designed for the H41Q and H51Q series. It is not intended for use in other HIMA system architectures such as the HIMax or HIQuad series.

What is the primary function of the watchdog monitoring on this module?

The watchdog monitoring is a safety feature that continuously checks the health of the processor and the execution of the safety program. If the CPU fails to respond or a fault is detected, the watchdog triggers a safe-state transition to prevent hazardous conditions.
