Description

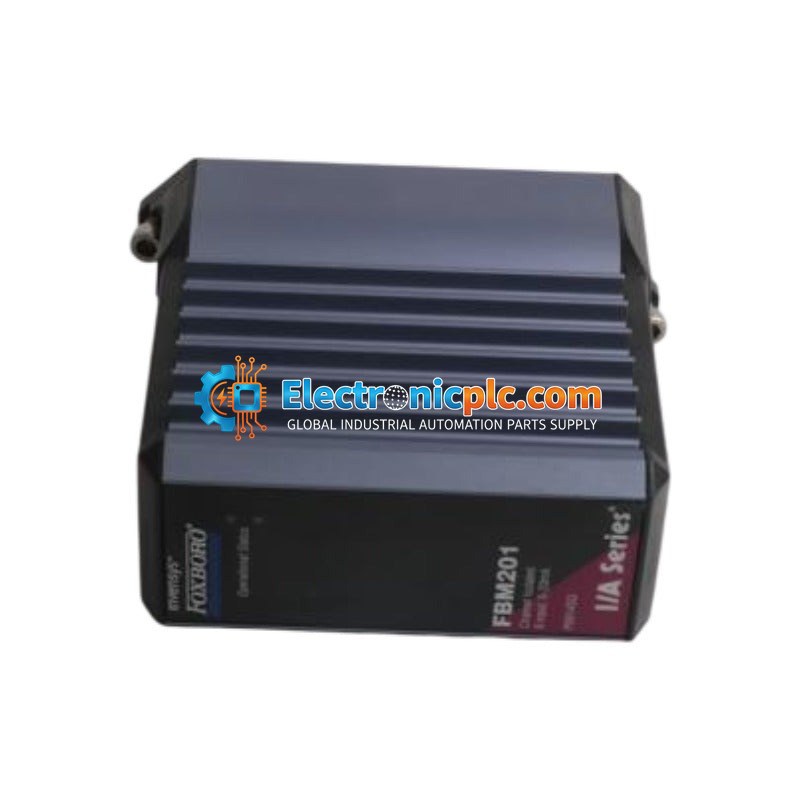

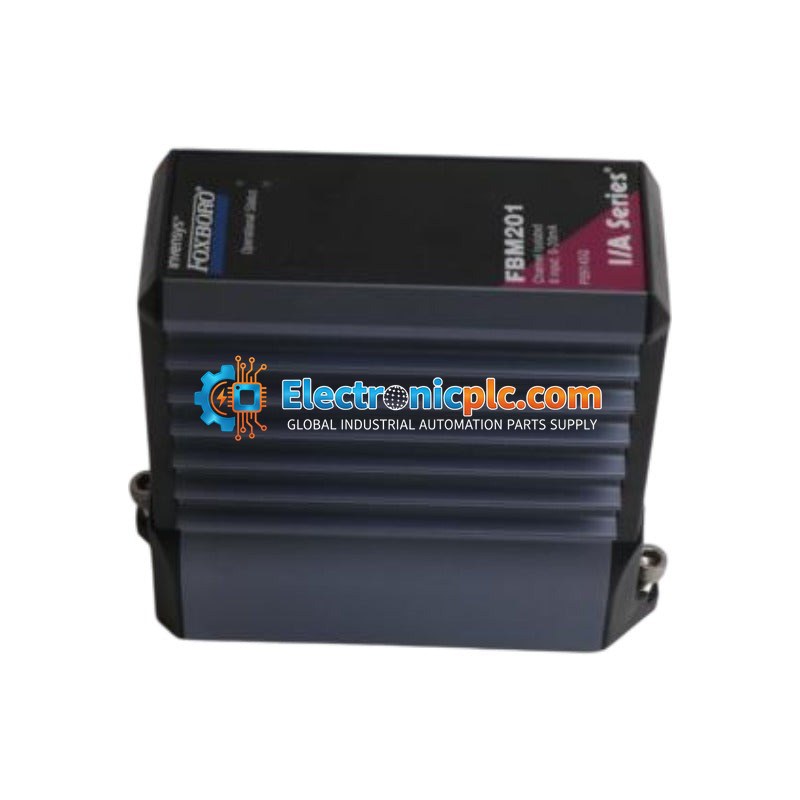

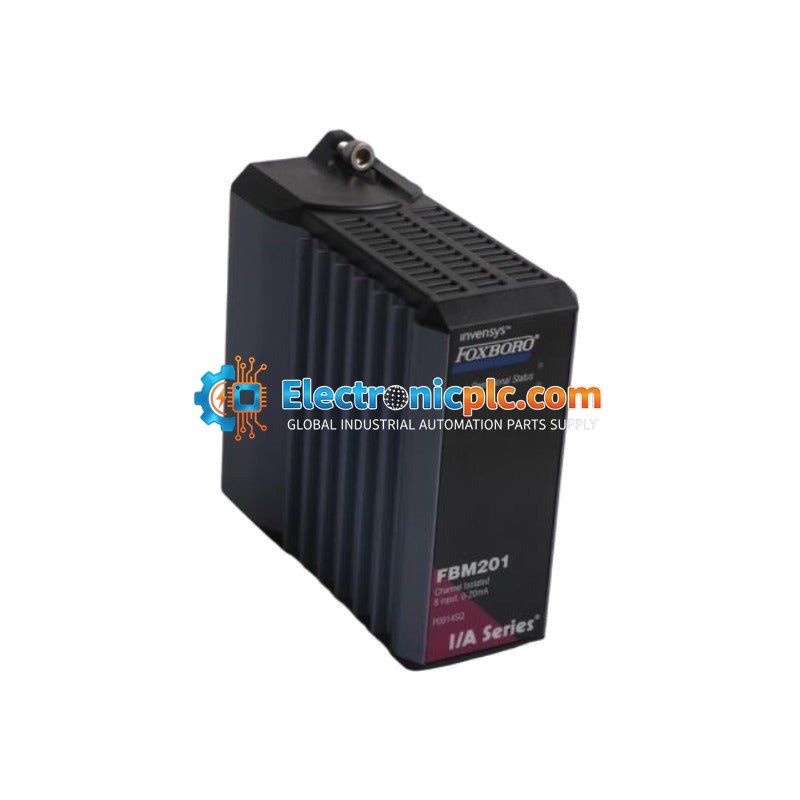

The Foxboro FBM201 (P0914SQ) is a high-density 0 to 20 mA Analog Input Interface Module designed for the I/A Series Distributed Control System (DCS). This module serves as a critical interface for connecting up to eight non-isolated analog input signals from field transmitters to the high-speed Fieldbus. Primarily utilized in heavy industries such as chemical processing, mining, and oil & gas, the FBM201 ensures precise data acquisition for process variables like pressure, flow, and temperature. By providing reliable signal conversion and integration into the control logic, this component plays a vital role in maintaining system stability, optimizing process efficiency, and reducing operational downtime through consistent hardware performance.

Hardware Architecture

The FBM201 architecture is centered on high-speed data conversion and robust subsystem integration. It features eight analog input channels that share a common ground return. The module performs analog-to-digital conversion for each channel, filtering and validating signals before transmitting them to the Fieldbus Modules or Control Processors. It is designed to reside on a standard FBM baseplate, which provides the necessary redundant power and communication paths. The hardware supports software-configurable integration times, allowing engineers to balance between noise rejection and response speed based on specific application requirements.

Features

• 8-channel analog input interface (0 to 20 mA DC).
• High-resolution 15-bit analog-to-digital conversion.
• Compact form factor optimized for high-density cabinet installations.
• Software-configurable integration times for noise filtering.
• Compatible with standard I/A Series FBM baseplates.

Applications

The FBM201 is widely deployed in process automation environments, including oil and gas refineries, chemical manufacturing plants, and power generation facilities. It is ideal for monitoring critical process variables where standard 0-20 mA current loops are utilized for instrumentation feedback.

Technical Specifications

Installation Guidelines

• Ensure the system is powered down before inserting or removing the module from the baseplate.
• Handle the module using proper ESD (Electrostatic Discharge) precautions to prevent damage to internal circuitry.
• Verify that the module is fully seated in the baseplate slot to ensure proper communication and power connection.
• Route signal cables away from high-voltage lines and sources of electromagnetic interference (EMI) to maintain signal integrity.
• Ensure the environment meets the specified temperature and humidity ratings for reliable long-term operation.

Compliance and Certifications

The FBM201 (P0914SQ) meets rigorous industrial standards, including CSA Certification, FM Approval, and CE Marking, ensuring suitability for demanding control room and field cabinet environments.

FAQ

Is the FBM201 isolated? No, the FBM201 features eight analog input channels that share a common ground return.

What is the primary function of this module? It acts as an interface between field-mounted analog transmitters and the Foxboro I/A Series DCS, converting 0-20 mA signals into digital data for the control system.
