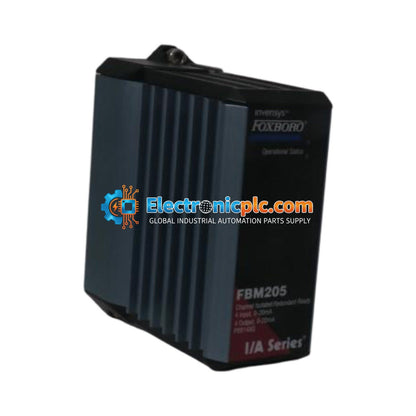

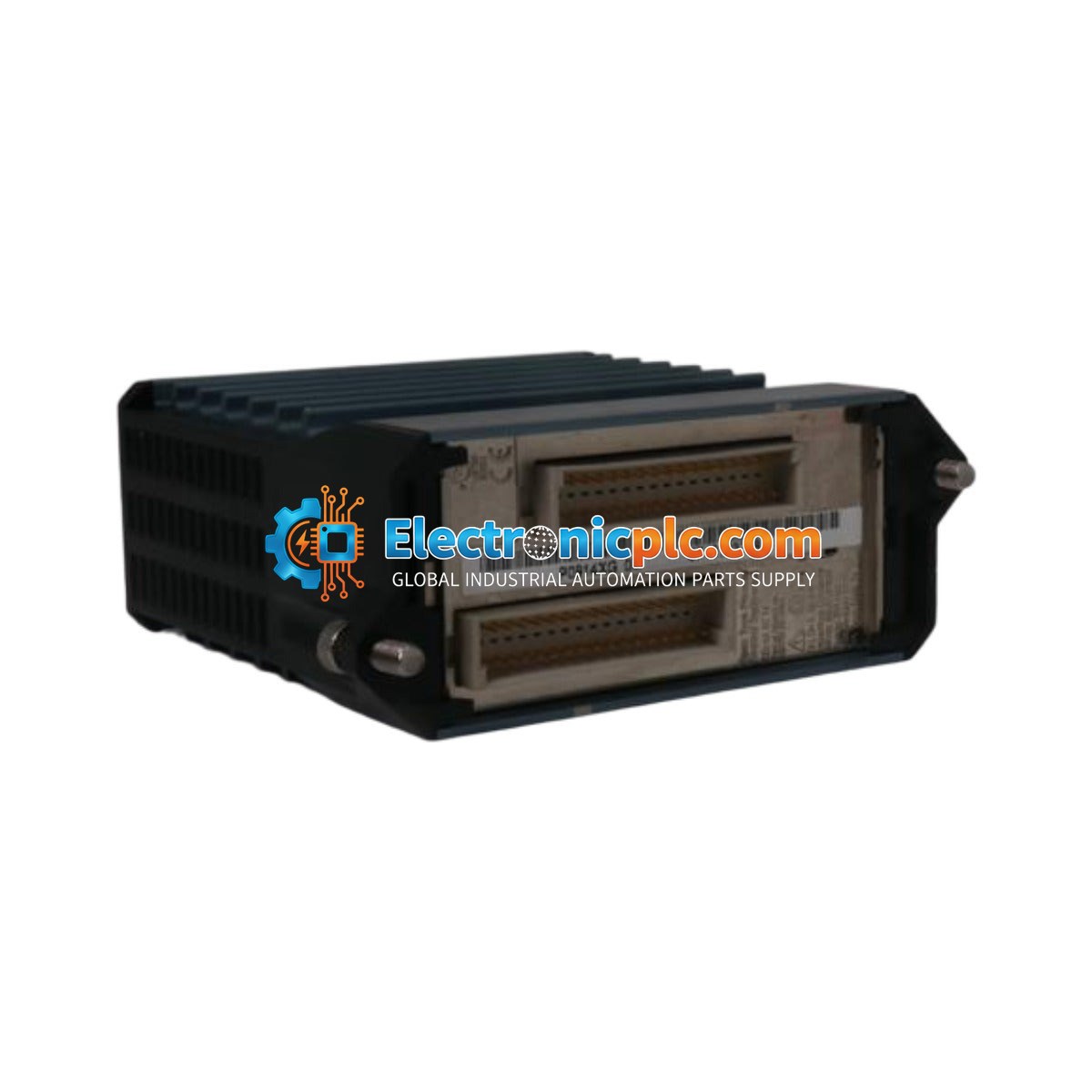

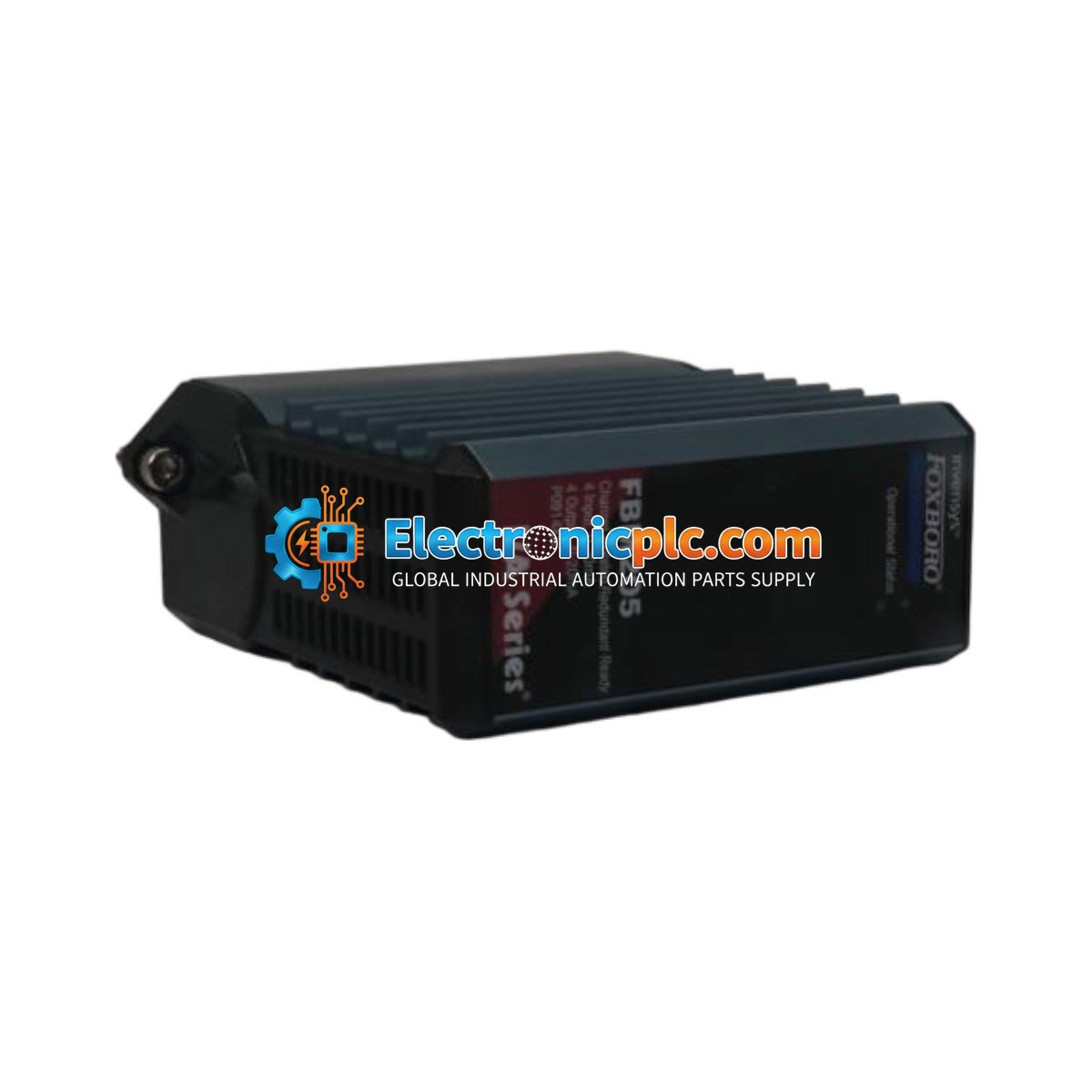

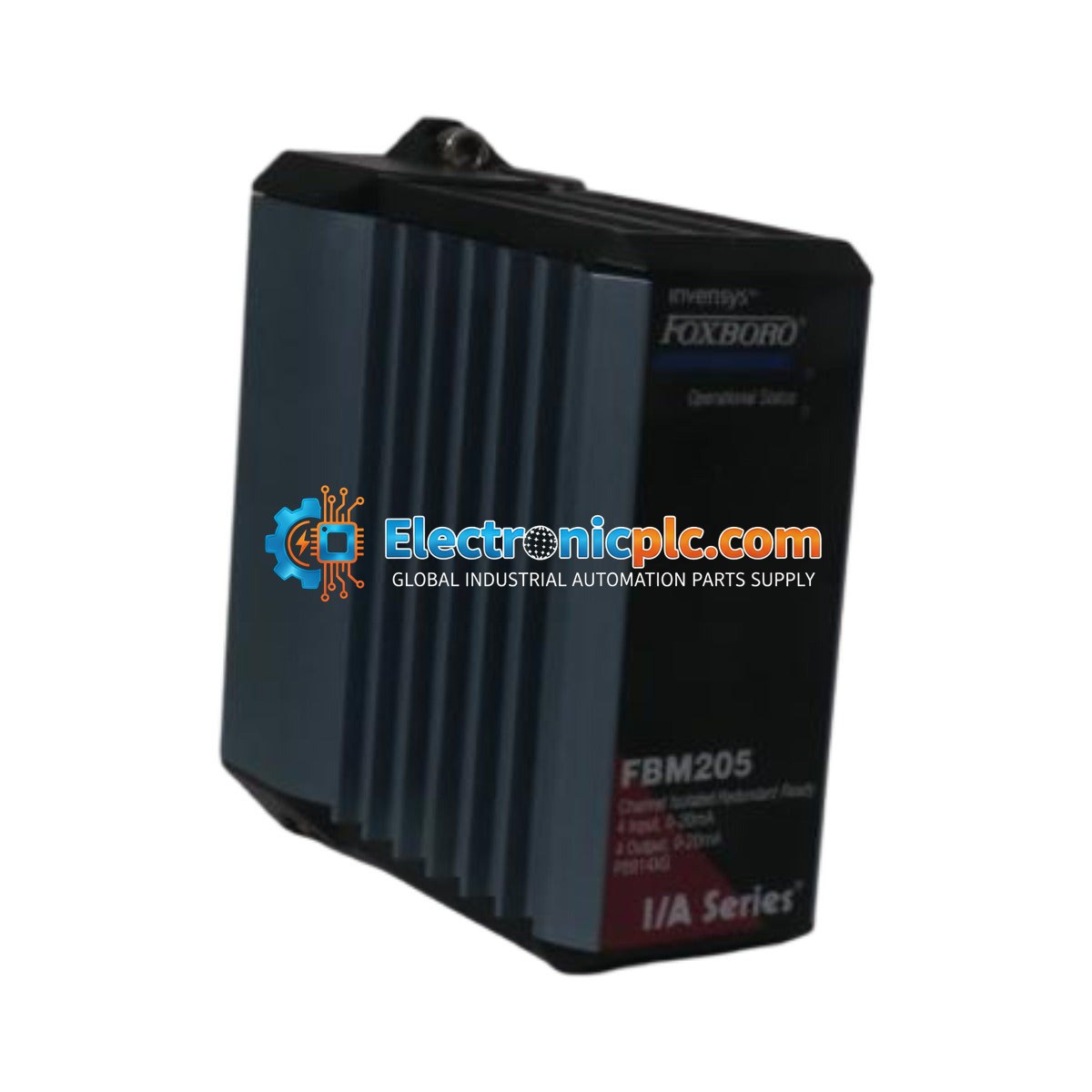

Foxboro FBM205 P0914XG Redundant 0-20mA I/O Module

Foxboro FBM205 P0914XG Redundant 0-20mA I/O Module

Description

The Foxboro FBM205 (P0914XG) is a high-reliability, redundant analog input/output interface module designed for the I/A Series distributed control system. This module provides four channels of 0 to 20 mA...

26 la gente está viendo esto ahora mismo

Disponibilidad: Bajas existencias: quedan 4

SKU: FBM205 P0914XG
Proveedora: Foxboro
tipo: Analog I/O Module
Related Series:

Envíos y devoluciones

Entrega confiable a nivel mundial

  • Transportistas: Envíos a través de DHL, FedEx, UPS o USPS .
  • Envío: Los pedidos se procesan en 1-2 días hábiles y se envían dentro de 3-5 días hábiles .
  • Seguimiento: Detalles completos de seguimiento proporcionados por correo electrónico después del envío.

Garantía de devolución de dinero de 30 días

  • Garantía: período de devolución de 30 días para productos en stock y sellados de fábrica.
  • Condición: Los artículos deben estar sin abrir, sin usar y en su embalaje original.
  • Autenticidad: Garantizamos hardware 100% original y auténtico.

¿Necesitas más información? Consulta nuestra Política de envíos y reembolsos completa.

Autenticidad y garantía

  • Garantía genuina: Suministramos únicamente piezas de automatización industrial 100% originales, nuevas y selladas de fábrica .
  • Cobertura total: cada componente está respaldado por una garantía integral de 12 meses a partir de la fecha de compra.
  • Trazabilidad: Todos los productos se entregan con documentación original de fábrica y accesorios para un pleno cumplimiento industrial.

Soporte técnico y abastecimiento

  • Asistencia de expertos: Nuestro equipo técnico ofrece consulta gratuita para ayudarle a verificar la compatibilidad de los sistemas DCS y PLC.
  • Abastecimiento de piezas raras: nos especializamos en componentes obsoletos y difíciles de encontrar de Allen-Bradley, Siemens, ABB, HIMA y más.
  • Consultas al por mayor: contáctenos en pambo@5gplc.com para obtener precios por volumen o cotizaciones de proyectos personalizados.
Ver todos los detalles

Description

The Foxboro FBM205 (P0914XG) is a high-reliability, redundant analog input/output interface module designed for the I/A Series distributed control system. This module provides four channels of 0 to 20 mA analog input and two channels of 0 to 20 mA analog output, supporting critical control loops in demanding industrial environments such as oil refineries, thermal power plants, and mineral processing facilities. By utilizing a redundant hardware architecture, the FBM205 ensures that a single component failure does not interrupt process signals, maximizing plant availability and reducing the risk of unscheduled downtime.

Features

  • Redundant Architecture: Fully redundant circuit design maintains process integrity and ensures seamless failover between logic paths.
  • High-Density I/O: Provides 4 analog input channels and 2 analog output channels in a compact Eurocard form factor.
  • Galvanic Isolation: Each channel features independent galvanic isolation to suppress electromagnetic interference.
  • Hot-Swappable: Supports replacement under power without disturbing field wiring or interrupting adjacent module operation.
  • Advanced Diagnostics: Real-time monitoring of open-circuit or short-circuit conditions on 0-20 mA loops.
  • Environmental Ruggedness: Rated for G3 harsh environments per ISA S71.04.

Applications

The FBM205 is designed for high-availability process control applications, including:

  • Oil and Gas upstream and downstream processing.
  • Thermal power generation and boiler control.
  • Chemical and mineral processing facilities.
  • Critical safety and control loops requiring redundant signal paths.

Technical Specifications

Parameter Specification
Model FBM205 (P0914XG)
Input Channels 4 (0 to 20 mA DC)
Output Channels 2 (0 to 20 mA DC)
Accuracy +/- 0.05% of span
Isolation 600 V AC galvanic
Power Consumption 5 W maximum
Operating Temperature -20 to +70 deg C
Storage Temperature -40 to +80 deg C
Relative Humidity 5 to 95% (non-condensing)
Environmental Rating G3 (ISA S71.04)

Installation Guidelines

  • Handling: Use standard ESD protection practices when handling the module to prevent damage to internal circuitry.
  • Mounting: Ensure the module is fully seated in the I/A Series baseplate or rack. Verify that the locking mechanism is engaged.
  • Wiring: Ensure all field wiring is properly terminated according to the system wiring diagram. Use shielded cables for analog signals to minimize EMI.
  • Power: The module is hot-swappable; however, ensure the baseplate power is stable before insertion.
  • Cooling: Maintain adequate airflow within the cabinet to ensure the module operates within the specified temperature range.

FAQ

Is the FBM205 P0914XG compatible with all I/A Series systems?

The FBM205 is designed for use within the Foxboro I/A Series distributed control system. Please verify your specific system revision and baseplate compatibility before installation.

Can I replace this module while the system is running?

Yes, the FBM205 supports hot-swapping, allowing for replacement under power without interrupting the operation of the control loop or adjacent modules.
