Description

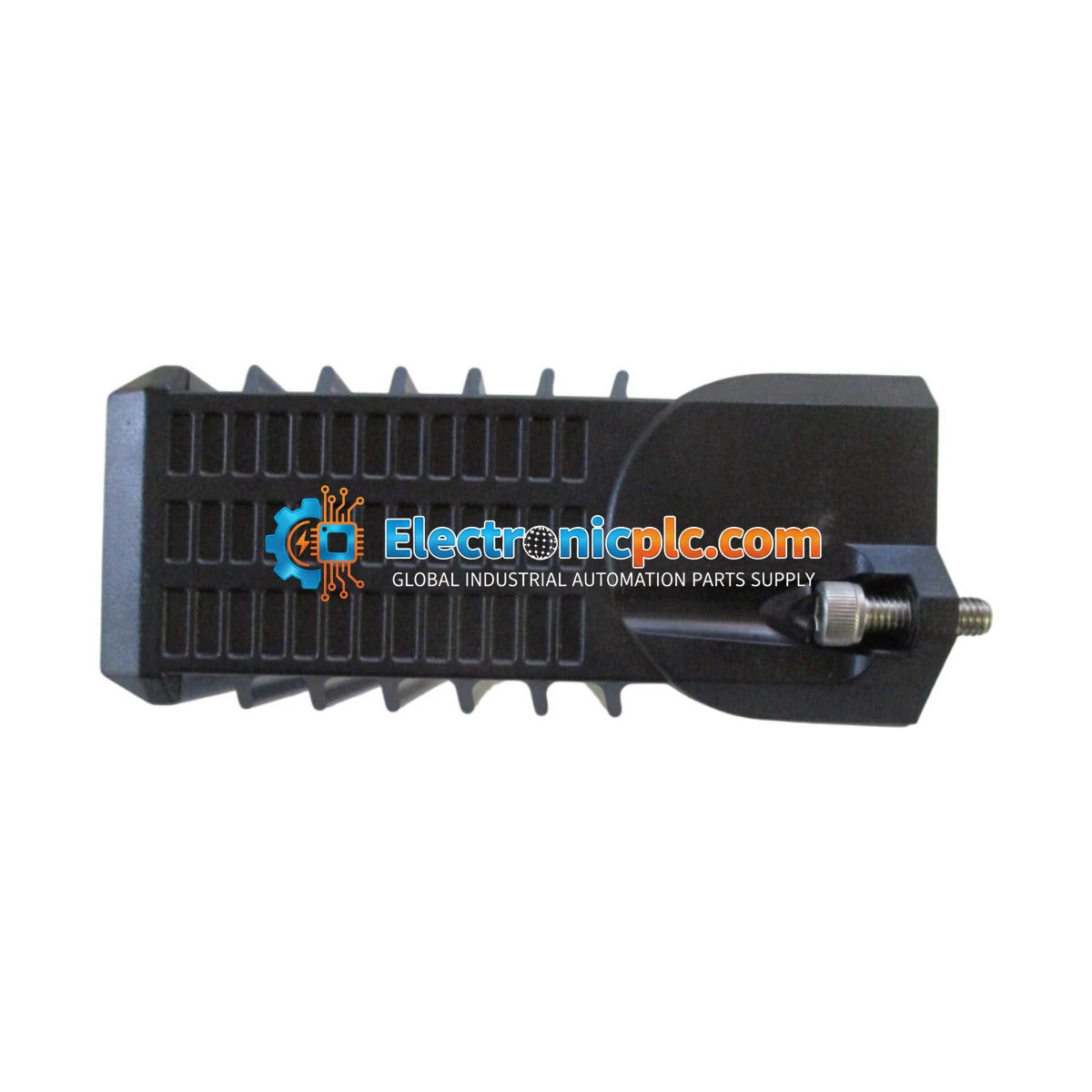

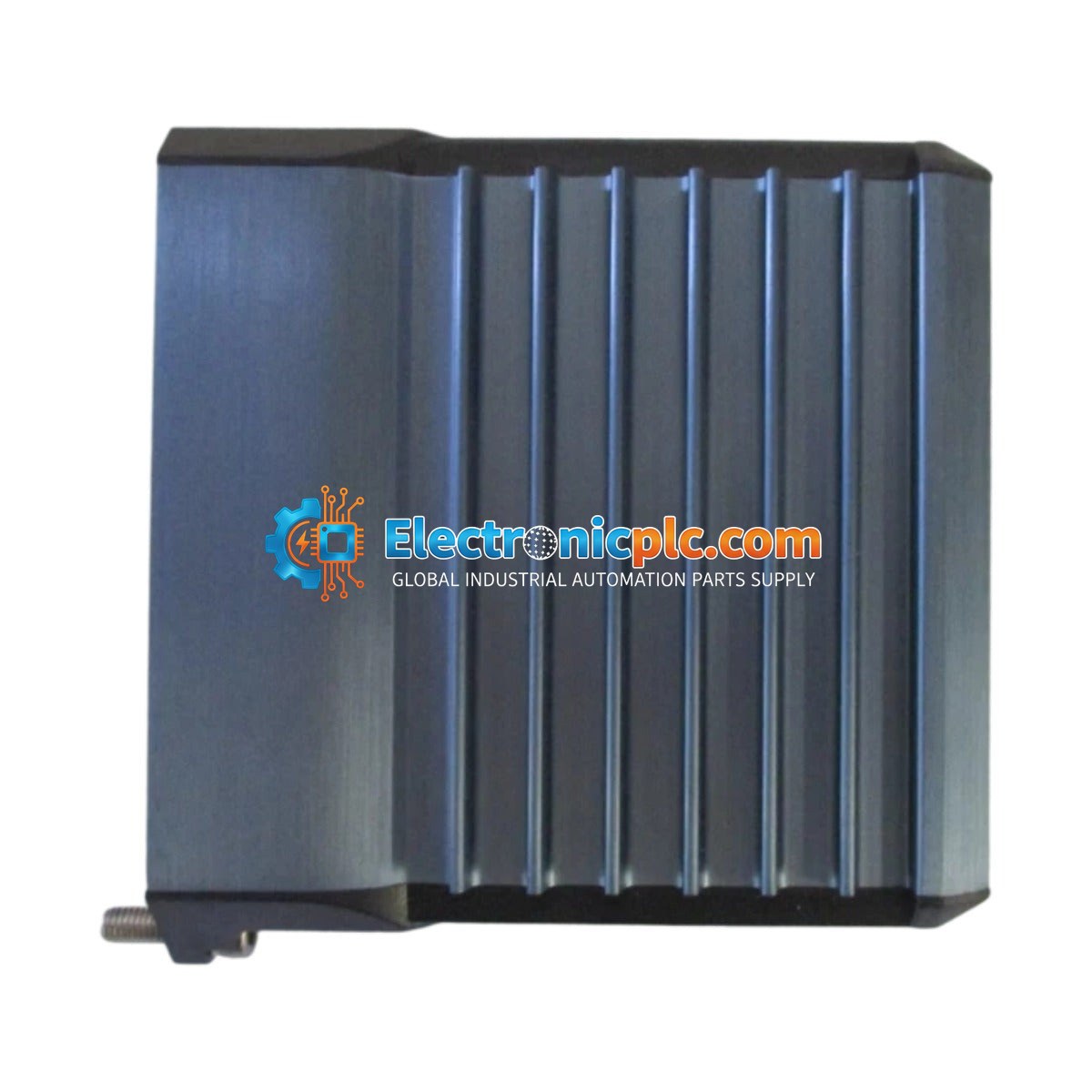

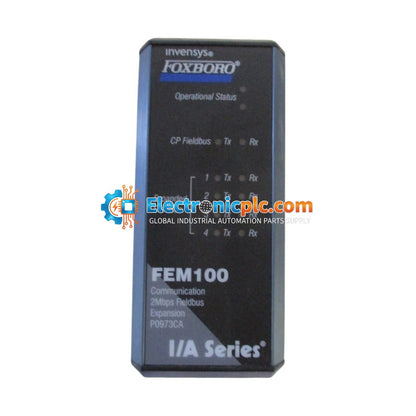

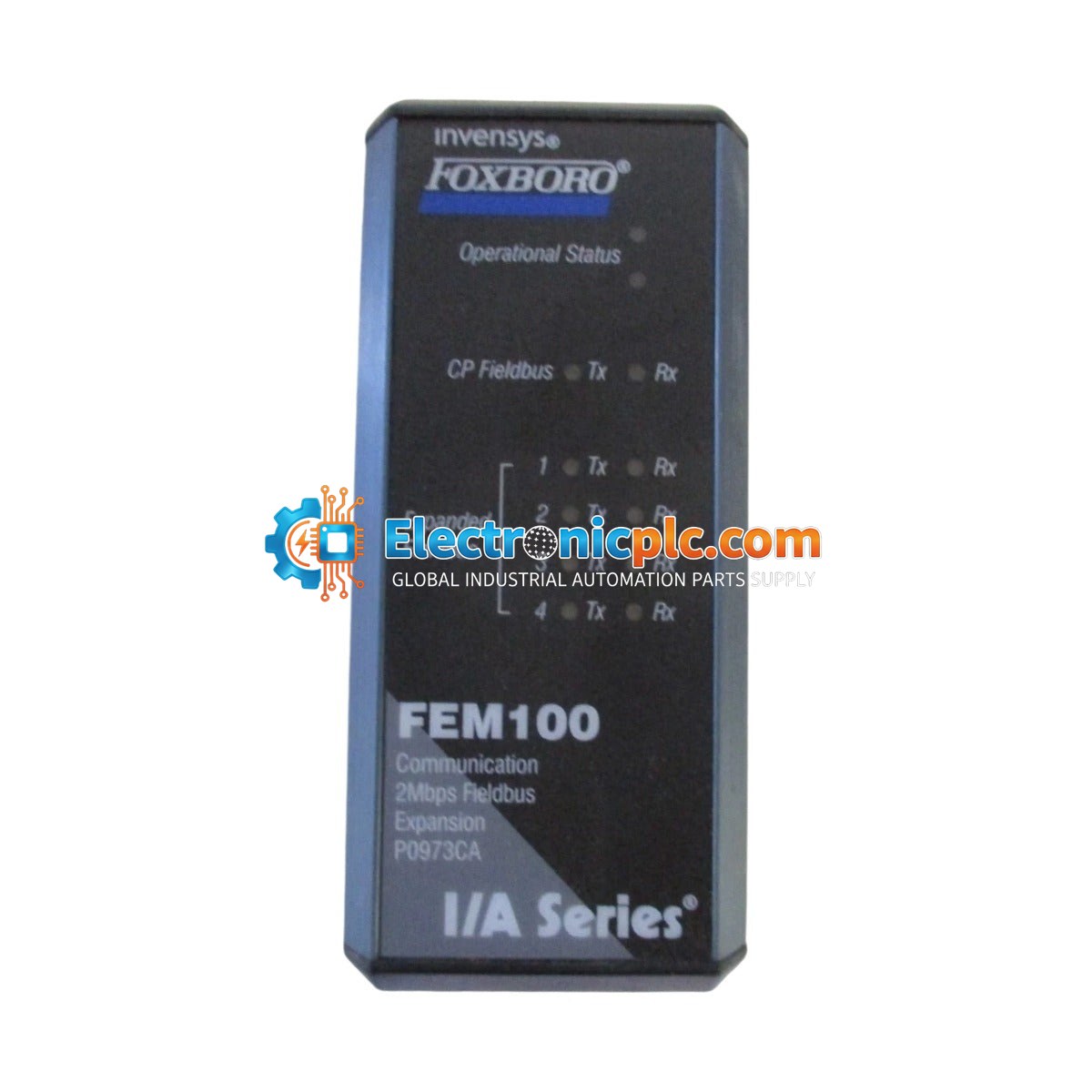

The Foxboro FEM100 (P0973CA) is a high-performance Fieldbus Expansion Module designed to extend the communication capabilities of the I/A Series Distributed Control System (DCS). This module serves as a critical bridge, allowing for the expansion of the Fieldbus to accommodate additional Fieldbus Modules (FBMs) across multiple baseplates. It is primarily utilized in large-scale industrial operations such as petrochemical complexes, pharmaceutical plants, and massive power generation facilities where high I/O density is required. The FEM100 ensures that real-time data integrity and deterministic communication are maintained across expanded network segments.

Network Architecture

The FEM100 architecture is optimized for transparent signal repetition and bus extension. It interfaces directly with the 2 Mbps Fieldbus, regenerating and buffering signals to overcome distance and loading limitations inherent in high-speed serial communication. The module supports redundant Fieldbus configurations, providing two independent communication paths (Path A and Path B) to ensure that the control network remains operational even if one cable segment is compromised. It acts as an active node that monitors bus health and provides isolation between baseplate segments, preventing local electrical faults from propagating through the entire Fieldbus string.

Features

• Supports 2 Mbps Fieldbus communication rates.
• Provides signal regeneration and buffering for extended bus distances.
• Facilitates dual-redundant Fieldbus paths (Path A and Path B).
• Active bus health monitoring and electrical isolation between segments.
• Seamless integration into standard Foxboro I/A Series mounting structures.

Applications

• Large-scale Distributed Control System (DCS) expansions.
• High-density I/O configurations in petrochemical and power generation facilities.
• Industrial environments requiring deterministic communication over extended distances.

Technical Specifications

Installation Guidelines

• Ensure the system is powered down before inserting or removing the module from the baseplate.
• Verify that the baseplate is properly grounded to maintain signal integrity and EMI protection.
• Handle the module using ESD-safe practices to prevent damage to internal circuitry.
• Ensure proper ventilation in the cabinet to maintain operating temperatures within the 0 to 60 deg C range.
• Check for secure seating in the baseplate slot to ensure reliable electrical contact with the Fieldbus backplane.

Compliance and Certifications

The FEM100 is designed to meet rigorous industrial standards, including CE marking, CSA certification, and FM Approval for Class 1 Division 2 hazardous locations.

FAQ

Does the FEM100 require software configuration? No, the module is designed for transparent operation and does not require complex software addressing to perform its expansion duties.

Can this module handle redundant paths? Yes, the FEM100 supports dual-redundant Fieldbus configurations (Path A and Path B) to ensure continuous operation.
