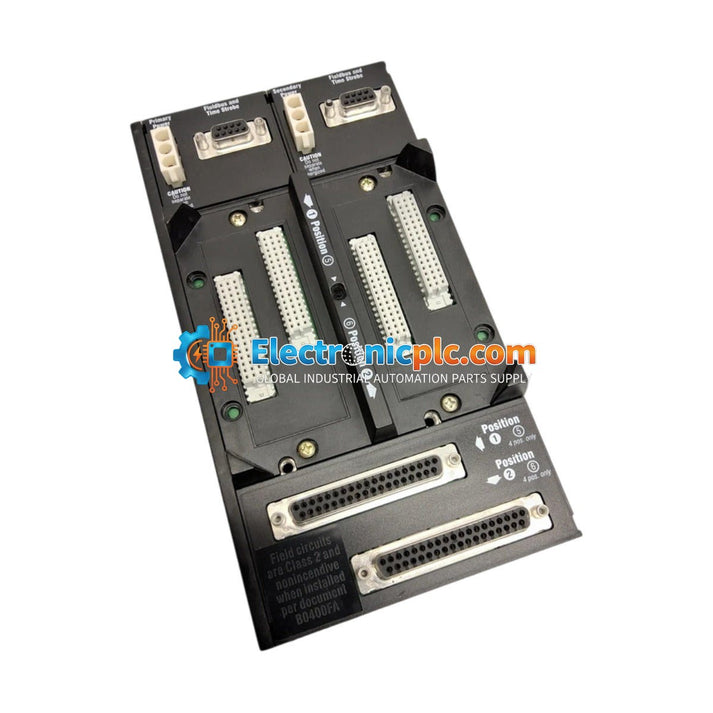

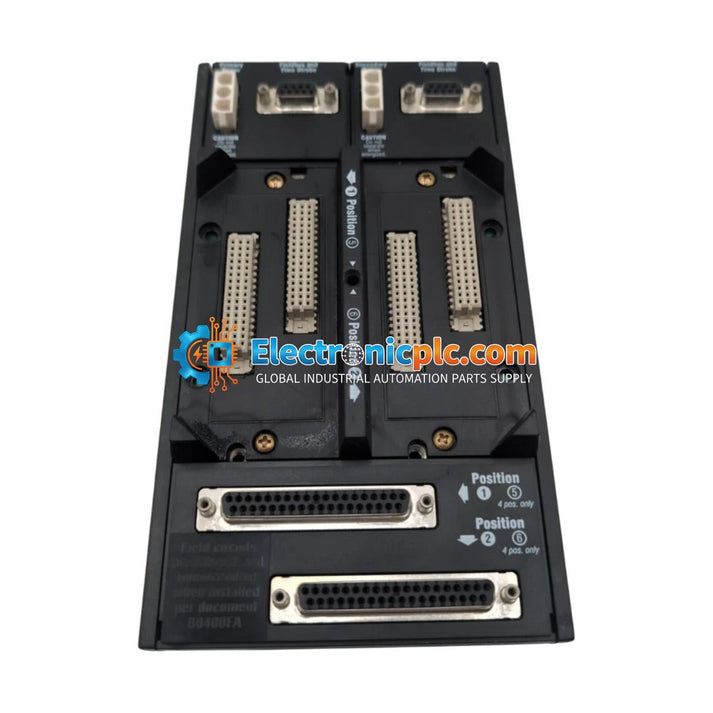

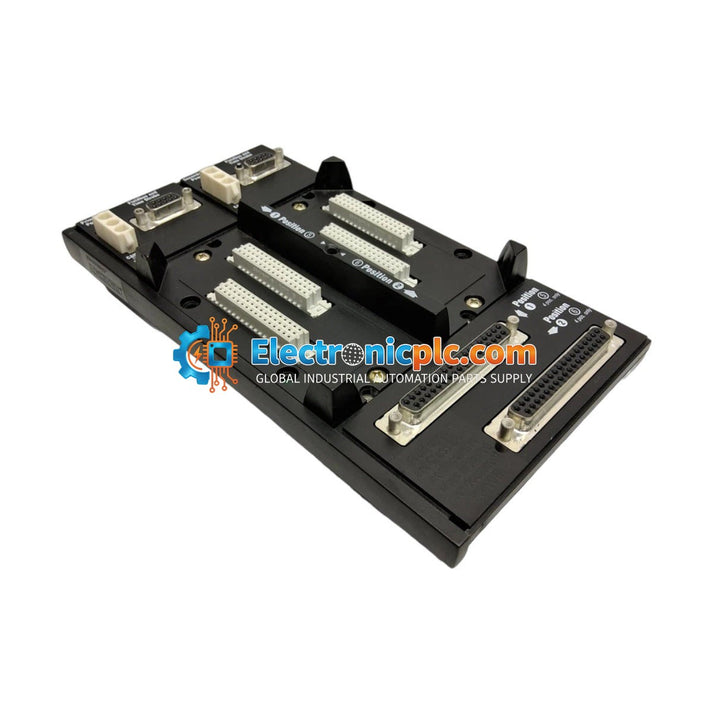

Foxboro P0926KE I/A Series 2-Position Modular Baseplate

Foxboro P0926KE I/A Series 2-Position Modular Baseplate

Description

The Foxboro P0926KE (also identified as RH926KE) is a 2-position modular baseplate engineered for the Foxboro I/A Series and Foxboro Evo process automation systems. This baseplate serves as a critical...

17 la gente está viendo esto ahora mismo

Disponibilidad: Bajas existencias: quedan 2

SKU: P0926KE
Proveedora: Foxboro
tipo: Modular Baseplate
Related Series:

Envíos y devoluciones

Entrega confiable a nivel mundial

  • Transportistas: Envíos a través de DHL, FedEx, UPS o USPS .
  • Envío: Los pedidos se procesan en 1-2 días hábiles y se envían dentro de 3-5 días hábiles .
  • Seguimiento: Detalles completos de seguimiento proporcionados por correo electrónico después del envío.

Garantía de devolución de dinero de 30 días

  • Garantía: período de devolución de 30 días para productos en stock y sellados de fábrica.
  • Condición: Los artículos deben estar sin abrir, sin usar y en su embalaje original.
  • Autenticidad: Garantizamos hardware 100% original y auténtico.

¿Necesitas más información? Consulta nuestra Política de envíos y reembolsos completa.

Autenticidad y garantía

  • Garantía genuina: Suministramos únicamente piezas de automatización industrial 100% originales, nuevas y selladas de fábrica .
  • Cobertura total: cada componente está respaldado por una garantía integral de 12 meses a partir de la fecha de compra.
  • Trazabilidad: Todos los productos se entregan con documentación original de fábrica y accesorios para un pleno cumplimiento industrial.

Soporte técnico y abastecimiento

  • Asistencia de expertos: Nuestro equipo técnico ofrece consulta gratuita para ayudarle a verificar la compatibilidad de los sistemas DCS y PLC.
  • Abastecimiento de piezas raras: nos especializamos en componentes obsoletos y difíciles de encontrar de Allen-Bradley, Siemens, ABB, HIMA y más.
  • Consultas al por mayor: contáctenos en pambo@5gplc.com para obtener precios por volumen o cotizaciones de proyectos personalizados.
Ver todos los detalles

Description

The Foxboro P0926KE (also identified as RH926KE) is a 2-position modular baseplate engineered for the Foxboro I/A Series and Foxboro Evo process automation systems. This baseplate serves as a critical mounting platform and communication backplane for 200 Series Fieldbus Modules (FBM) and Field Communications Modules (FCM). Designed for high-reliability industrial environments, it supports seamless integration and hot-swapping of modules, allowing for maintenance without interrupting field wiring or system power.

Features

  • Supports up to two 200 Series FBM or FCM modules.
  • Passive backplane architecture for enhanced system reliability.
  • Redundant 24 VDC power input connections for high availability.
  • Integrated module guides for precise alignment and protection of electrical contacts.
  • Supports 2 Mbps redundant Module Fieldbus (HDLC) communication.
  • Fixed baseplate addressing (Baseplate 0) with slots 1 and 2.

Applications

This baseplate is widely utilized in distributed control environments, including oil and gas refining, power generation, and large-scale mining operations where modular, high-availability I/O configurations are required.

Technical Specifications

Model P0926KE (RH926KE)
Brand Foxboro by Schneider Electric
Module Positions 2
Mounting Horizontal DIN rail
Input Voltage 24 VDC (Redundant)
Communication 2 Mbps Redundant Module Fieldbus (HDLC)
Operating Temperature -20 to +60 deg C
Storage Temperature -40 to +70 deg C
Relative Humidity 5 to 95% (Noncondensing)
Material PC and ABS (UL94 V0)

Installation Guidelines

  • Ensure the DIN rail is securely mounted and grounded according to local electrical codes before installing the baseplate.
  • The baseplate is designed for horizontal mounting; ensure adequate clearance for airflow and module insertion/removal.
  • Handle with care to avoid ESD damage to the backplane connectors.
  • Verify that the 24 VDC power supply is properly connected to the redundant terminals to ensure system availability.
  • Modules may be hot-swapped; however, always ensure the module is fully seated and locked into the guide rails to prevent contact misalignment.

Compliance and Certifications

The P0926KE is designed for use in hazardous locations, holding certifications including UL/UL-C Class I Div 2 and ATEX Zone 2. It is CE compliant. Please note this specific model is not Marine certified.

FAQ

Is this baseplate compatible with all 200 Series modules?

The P0926KE is designed for standard 200 Series FBMs and FCMs. Please verify your specific module's compatibility with the 2-position baseplate architecture before installation.

Can I replace modules while the system is running?

Yes, the P0926KE supports hot-swapping of modules, allowing you to remove or install units without powering down the baseplate or disconnecting field wiring.
