GE 531X300CCHAFM5 Drive Systems Control Card

GE 531X300CCHAFM5 Drive Systems Control Card

Description

The GE 531X300CCHAFM5 is a specialized control card engineered for the DC-300 drive series, serving as a core component in industrial motor management. This printed circuit board acts as the...

23 la gente está viendo esto ahora mismo

Disponibilidad: Bajas existencias: quedan 10

SKU: 531X300CCHAFM5
Proveedora: GE FANUC
tipo: Drive Control Card
Related Series:

Envíos y devoluciones

Entrega confiable a nivel mundial

  • Transportistas: Envíos a través de DHL, FedEx, UPS o USPS .
  • Envío: Los pedidos se procesan en 1-2 días hábiles y se envían dentro de 3-5 días hábiles .
  • Seguimiento: Detalles completos de seguimiento proporcionados por correo electrónico después del envío.

Garantía de devolución de dinero de 30 días

  • Garantía: período de devolución de 30 días para productos en stock y sellados de fábrica.
  • Condición: Los artículos deben estar sin abrir, sin usar y en su embalaje original.
  • Autenticidad: Garantizamos hardware 100% original y auténtico.

¿Necesitas más información? Consulta nuestra Política de envíos y reembolsos completa.

Autenticidad y garantía

  • Garantía genuina: Suministramos únicamente piezas de automatización industrial 100% originales, nuevas y selladas de fábrica .
  • Cobertura total: cada componente está respaldado por una garantía integral de 12 meses a partir de la fecha de compra.
  • Trazabilidad: Todos los productos se entregan con documentación original de fábrica y accesorios para un pleno cumplimiento industrial.

Soporte técnico y abastecimiento

  • Asistencia de expertos: Nuestro equipo técnico ofrece consulta gratuita para ayudarle a verificar la compatibilidad de los sistemas DCS y PLC.
  • Abastecimiento de piezas raras: nos especializamos en componentes obsoletos y difíciles de encontrar de Allen-Bradley, Siemens, ABB, HIMA y más.
  • Consultas al por mayor: contáctenos en pambo@5gplc.com para obtener precios por volumen o cotizaciones de proyectos personalizados.
Ver todos los detalles

Description

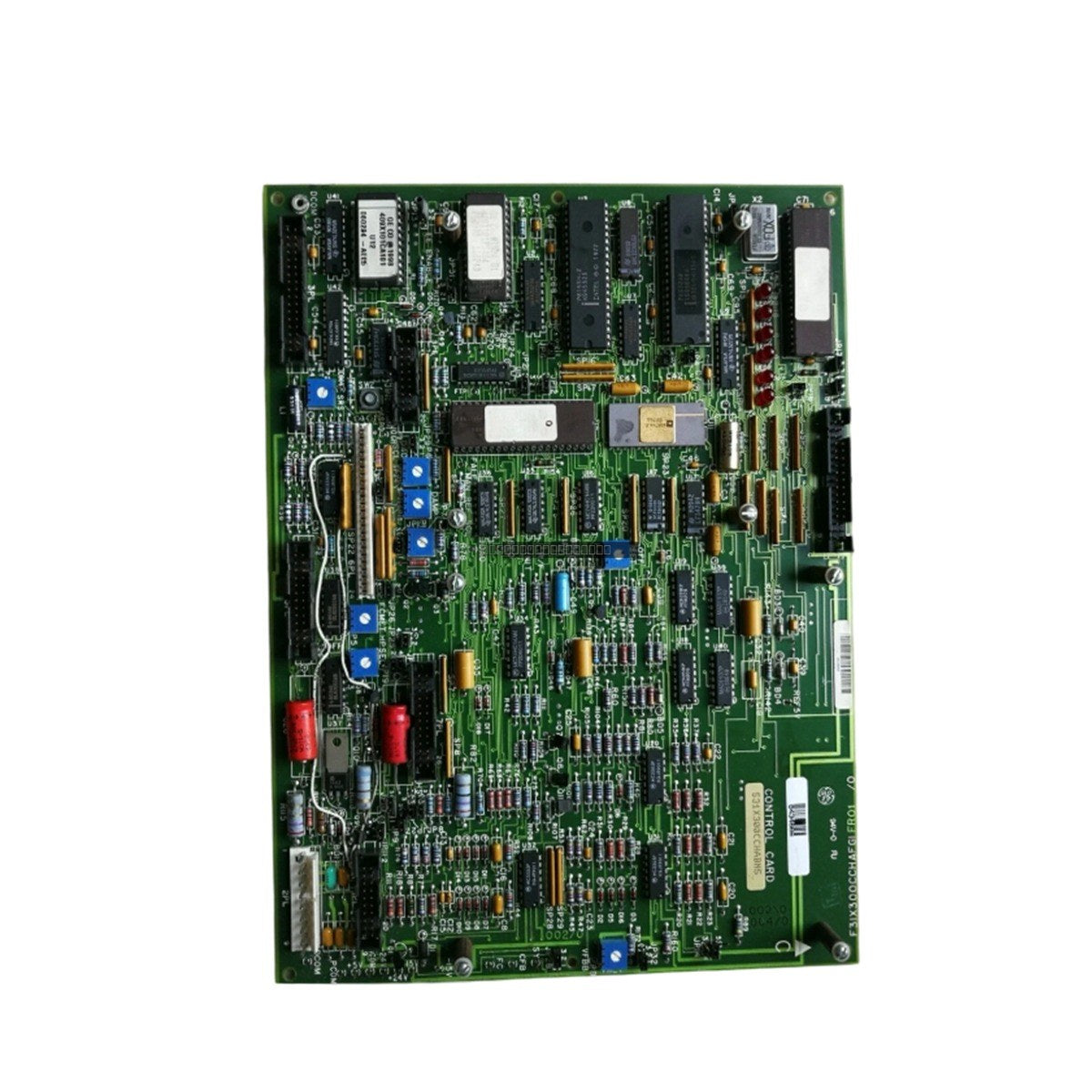

The GE 531X300CCHAFM5 is a specialized control card engineered for the DC-300 drive series, serving as a core component in industrial motor management. This printed circuit board acts as the central command interface, regulating motor performance and logic in demanding industrial environments. By providing precise parameter control, the board facilitates consistent operation in manufacturing, metal processing, and material handling systems, helping to maintain high uptime and operational stability.

Features

  • Centralized control logic for DC-300 drive series applications.
  • Integrated diagnostic suite featuring six on-board LED indicators.
  • Extensive configuration capability via 28 onboard jumper switches and two dedicated switch components.
  • High-fidelity signal processing using an array of potentiometers and resistor networks.
  • Vertical pin headers for secure connection of auxiliary daughterboards.
  • Sturdy mounting architecture utilizing factory-drilled holes and integrated stand-offs.

Applications

This control card is specifically intended for use within GE DC-300 industrial drive systems. It is commonly deployed in heavy manufacturing, conveyor systems, and metal processing lines where precise DC motor regulation is required to prevent process instability and system faults.

Technical Specifications

Model 531X300CCHAFM5
Brand General Electric
Operating Temperature 0 to 50 degC
Power Consumption Less than 20 W
Configuration 28 Jumper switches
Component Density Over 30 Integrated Circuits
Weight 0.65 kg

Installation Guidelines

  • Ensure the drive system is fully de-energized and locked out before attempting to install or remove the control card.
  • Handle the PCB by its edges to prevent electrostatic discharge (ESD) damage to sensitive integrated circuits.
  • Secure the card using the provided mounting holes and stand-offs to ensure proper mechanical stability and vibration resistance.
  • Verify that all vertical pin connectors are correctly aligned and firmly seated before applying power.
  • Confirm that jumper switch configurations match the specific requirements of your drive application before commissioning.
  • Maintain clear airflow around the board to ensure it stays within the specified 0 to 50 degC operating range.

FAQ

What is the primary function of the 531X300CCHAFM5?
This card functions as the central control interface for GE DC-300 drive systems, managing the motor control logic and signal processing necessary for stable drive regulation.

How do I configure this control card?
The board features 28 jumper switches and two additional switch components that allow for system-specific configuration. Refer to your specific DC-300 drive technical manual for the correct switch settings.

Are there built-in diagnostic tools on this board?
Yes, the board includes six on-board LED indicators and multiple test point (TP) interfaces to assist with monitoring and troubleshooting.
