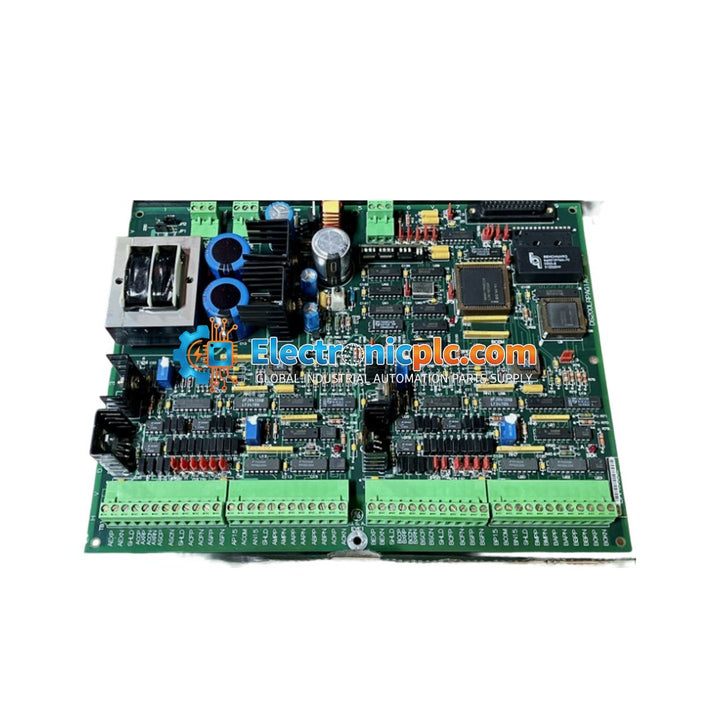

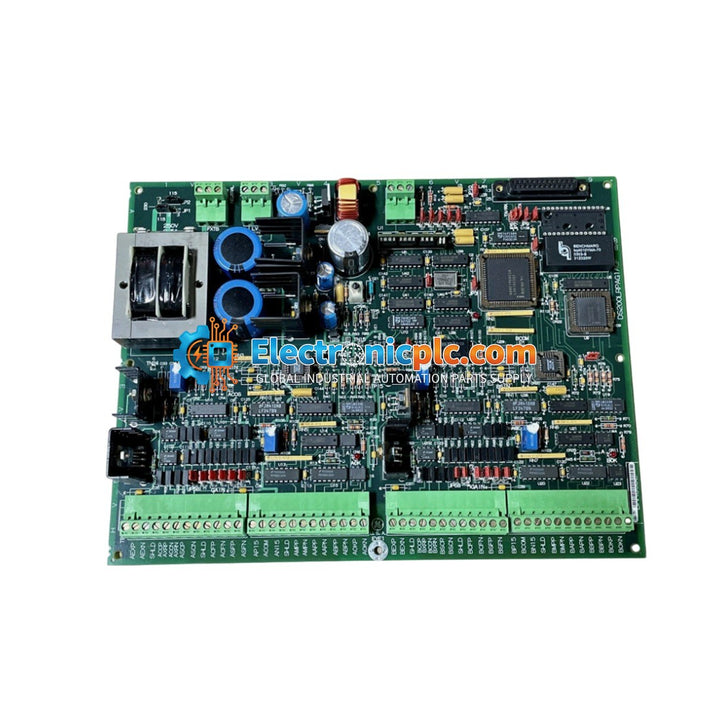

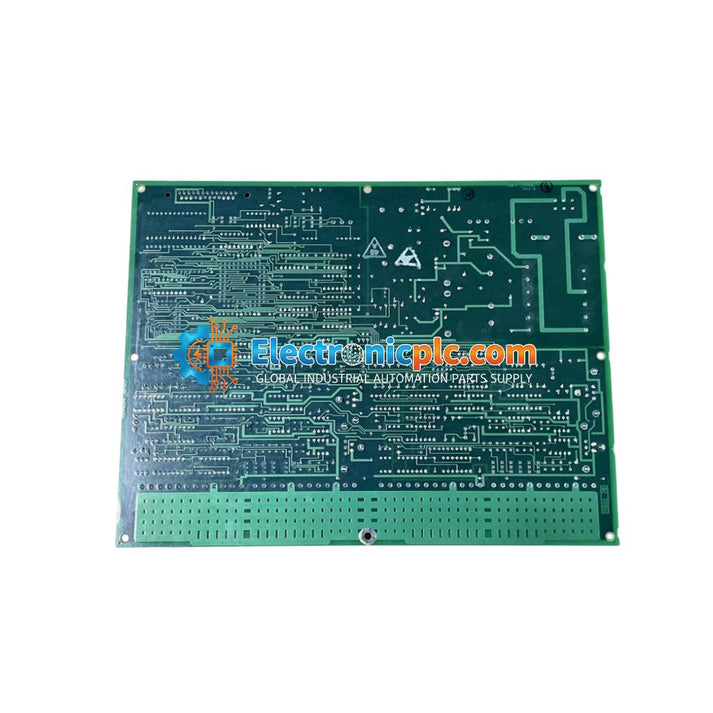

GE DS200LRPAG1AGF Mark V EX2000 Line Protection Card

GE DS200LRPAG1AGF Mark V EX2000 Line Protection Card

Description

The DS200LRPAG1AGF is a specialized Line Protection Printed Circuit Card engineered for the General Electric Mark V Speedtronic turbine control system and EX2000 excitation interfaces. This LRPA-acronym board provides essential...

24 la gente está viendo esto ahora mismo

Disponibilidad: Bajas existencias: quedan 3

SKU: DS200LRPAG1AGF
Proveedora: GE FANUC
tipo: Line Protection Card
Related Series:

Envíos y devoluciones

Entrega confiable a nivel mundial

  • Transportistas: Envíos a través de DHL, FedEx, UPS o USPS .
  • Envío: Los pedidos se procesan en 1-2 días hábiles y se envían dentro de 3-5 días hábiles .
  • Seguimiento: Detalles completos de seguimiento proporcionados por correo electrónico después del envío.

Garantía de devolución de dinero de 30 días

  • Garantía: período de devolución de 30 días para productos en stock y sellados de fábrica.
  • Condición: Los artículos deben estar sin abrir, sin usar y en su embalaje original.
  • Autenticidad: Garantizamos hardware 100% original y auténtico.

¿Necesitas más información? Consulta nuestra Política de envíos y reembolsos completa.

Autenticidad y garantía

  • Garantía genuina: Suministramos únicamente piezas de automatización industrial 100% originales, nuevas y selladas de fábrica .
  • Cobertura total: cada componente está respaldado por una garantía integral de 12 meses a partir de la fecha de compra.
  • Trazabilidad: Todos los productos se entregan con documentación original de fábrica y accesorios para un pleno cumplimiento industrial.

Soporte técnico y abastecimiento

  • Asistencia de expertos: Nuestro equipo técnico ofrece consulta gratuita para ayudarle a verificar la compatibilidad de los sistemas DCS y PLC.
  • Abastecimiento de piezas raras: nos especializamos en componentes obsoletos y difíciles de encontrar de Allen-Bradley, Siemens, ABB, HIMA y más.
  • Consultas al por mayor: contáctenos en pambo@5gplc.com para obtener precios por volumen o cotizaciones de proyectos personalizados.
Ver todos los detalles

Description

The DS200LRPAG1AGF is a specialized Line Protection Printed Circuit Card engineered for the General Electric Mark V Speedtronic turbine control system and EX2000 excitation interfaces. This LRPA-acronym board provides essential monitoring and circuit protection for gas and steam turbine management infrastructures. Designed to support both Triple Modular Redundant (TMR) and Simplex configurations, it plays a critical role in safeguarding electrical lines within power generation plants and heavy industrial facilities. By maintaining the integrity of the EX2000 interface, this module minimizes system faults and prevents extensive downtime in high-stakes utility operations.

Features

  • Designed for integration with GE Mark V and EX2000 excitation systems.
  • Supports both Simplex and TMR (Triple Modular Redundant) system configurations.
  • Equipped with one onboard reset switch for manual hardware initialization and diagnostic support.
  • Features standard industrial PCB coating for enhanced environmental protection.
  • Optimized for high-speed signal processing and reliable line protection logic.
  • Hardware revision level 3, providing refined signal isolation and improved response times.

Applications

This module is primarily utilized in power generation environments, specifically within gas and steam turbine control systems. It is a critical component for line protection in EX2000 excitation interfaces, ensuring the stability and safety of electrical distribution and management systems in heavy industrial plants.

Technical Specifications

Model DS200LRPAG1AGF
Brand General Electric (GE)
Series Mark V / EX2000
Functional Acronym LRPA
Module Type Line Protection Card
Reset Configuration 1 Onboard Switch
Coating Normal Industrial
Operating Temperature 0 to 60 deg C
Humidity Range 5 to 95 percent non-condensing

Installation Guidelines

  • Ensure the control system is powered down before installing or removing the circuit card to prevent electrical damage.
  • Handle the card using proper ESD (Electrostatic Discharge) mitigation techniques, such as wearing a grounded wrist strap.
  • Ensure the module is fully seated in the designated Mark V rack slot to maintain proper backplane communication.
  • Verify that the environment meets the specified temperature and humidity ranges to ensure long-term reliability.
  • Inspect the board for any physical damage or debris before installation.

FAQ

Does this card require firmware updates?

No, the DS200LRPAG1AGF is designed with fixed, stable logic and does not require field firmware updates for operation.

Is this module compatible with TMR systems?

Yes, this card is engineered to support both Simplex and Triple Modular Redundant (TMR) configurations within the Mark V and EX2000 architecture.
