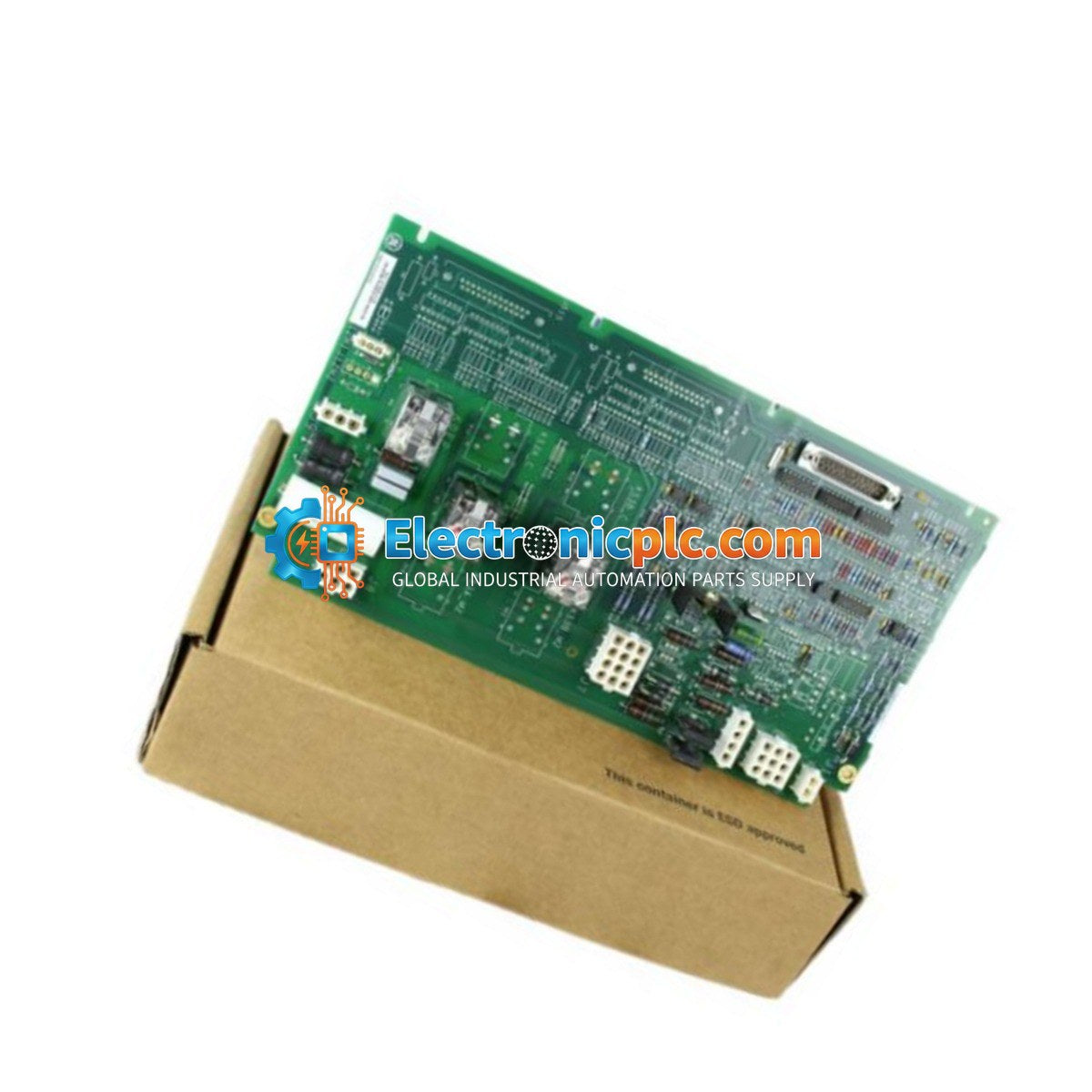

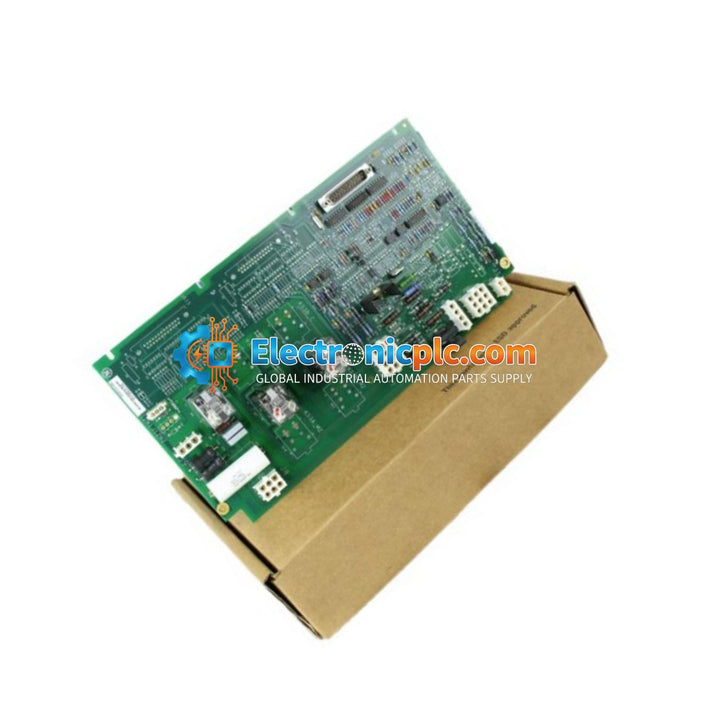

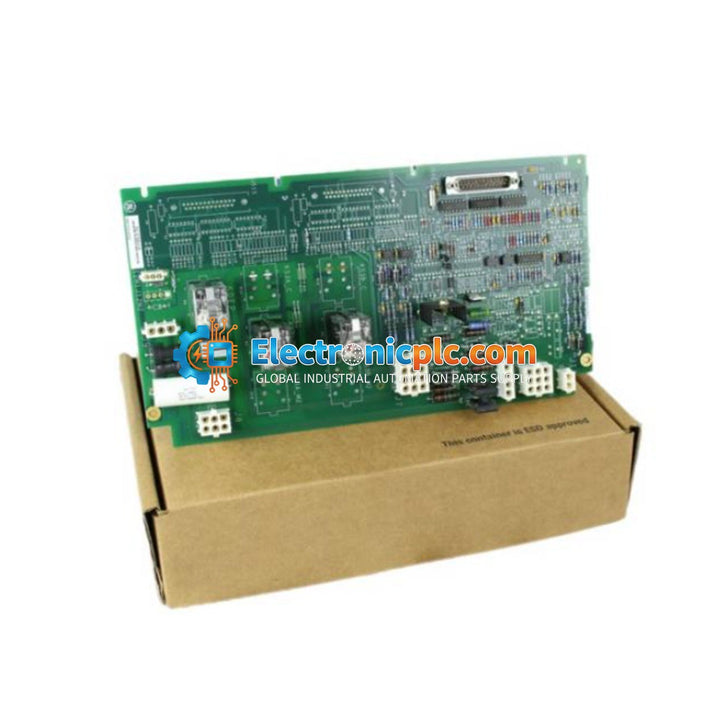

GE EX2100 IS200EXHSG4A Exciter High-Speed Relay Driver Board

GE EX2100 IS200EXHSG4A Exciter High-Speed Relay Driver Board

Description

The IS200EXHSG4A is a specialized High-Speed Relay Driver board designed for the GE EX2100 Excitation system. This module serves as a critical interface for Simplex control operations, providing dedicated driver...

22 la gente está viendo esto ahora mismo

Disponibilidad: Bajas existencias: quedan 6

SKU: IS200EXHSG4A
Proveedora: GE FANUC
tipo: Exciter High-Speed Relay Driver Board
Related Series:

Envíos y devoluciones

Entrega confiable a nivel mundial

  • Transportistas: Envíos a través de DHL, FedEx, UPS o USPS .
  • Envío: Los pedidos se procesan en 1-2 días hábiles y se envían dentro de 3-5 días hábiles .
  • Seguimiento: Detalles completos de seguimiento proporcionados por correo electrónico después del envío.

Garantía de devolución de dinero de 30 días

  • Garantía: período de devolución de 30 días para productos en stock y sellados de fábrica.
  • Condición: Los artículos deben estar sin abrir, sin usar y en su embalaje original.
  • Autenticidad: Garantizamos hardware 100% original y auténtico.

¿Necesitas más información? Consulta nuestra Política de envíos y reembolsos completa.

Autenticidad y garantía

  • Garantía genuina: Suministramos únicamente piezas de automatización industrial 100% originales, nuevas y selladas de fábrica .
  • Cobertura total: cada componente está respaldado por una garantía integral de 12 meses a partir de la fecha de compra.
  • Trazabilidad: Todos los productos se entregan con documentación original de fábrica y accesorios para un pleno cumplimiento industrial.

Soporte técnico y abastecimiento

  • Asistencia de expertos: Nuestro equipo técnico ofrece consulta gratuita para ayudarle a verificar la compatibilidad de los sistemas DCS y PLC.
  • Abastecimiento de piezas raras: nos especializamos en componentes obsoletos y difíciles de encontrar de Allen-Bradley, Siemens, ABB, HIMA y más.
  • Consultas al por mayor: contáctenos en pambo@5gplc.com para obtener precios por volumen o cotizaciones de proyectos personalizados.
Ver todos los detalles

Description

The IS200EXHSG4A is a specialized High-Speed Relay Driver board designed for the GE EX2100 Excitation system. This module serves as a critical interface for Simplex control operations, providing dedicated driver circuitry for DC contactors (41) and pilot relays essential for field flashing and de-excitation sequences. By integrating directly with the Exciter Backplane Board (EBKP), the module facilitates communication with EMIO boards, ensuring precise execution of power plant excitation commands and maintaining system stability in demanding industrial environments.

Features

  • Designed for Simplex control configurations within the EX2100 excitation series.
  • Provides robust driver support for DC contactors and pilot relays.
  • Integrates with the Exciter Backplane Board (EBKP) for seamless system communication.
  • Processes critical safety signals including de-excitation status (from EDEX) and crowbar status (from EXDE).
  • Features integrated signal conditioning for contact inputs (41, 53A, 53B).

Technical Specifications

Model IS200EXHSG4A
System Series EX2100
Control Configuration Simplex
Wetting Voltage 70 VDC (Nominal), 63-84 VDC (Range)
Contactor Compatibility 125 VDC Coil
Bridge Capacity 500 A, 42 mm bridges
Operating Temperature 0 to 60 deg C

Installation Guidelines

  • Ensure the excitation system is fully powered down before inserting or removing the IS200EXHSG4A board to prevent electrical damage.
  • Handle the module using proper ESD (Electrostatic Discharge) protection practices to avoid damaging sensitive onboard components.
  • Verify that the J12M1 and J12M2 plugs are correctly seated and secured to maintain signal integrity for the wetting voltage circuits.
  • Ensure proper grounding of the EX2100 chassis to minimize EMI interference, which can affect the high-speed relay switching performance.
  • Maintain adequate ventilation within the cabinet to keep the operating temperature within the specified 0 to 60 deg C range.

FAQ

What is the primary function of the IS200EXHSG4A in the EX2100 system?

The IS200EXHSG4A acts as a high-speed relay driver that manages the switching of field flashing and de-excitation contactors, while also conditioning critical status signals for the M1 controller.

What voltage is required for the contact inputs?

The board uses an internal 70 VDC supply to wet the contact inputs, with an operational range of 63 to 84 VDC.

Is this board compatible with redundant control configurations?

No, the IS200EXHSG4A is specifically designed for Simplex control configurations within the EX2100 system.
