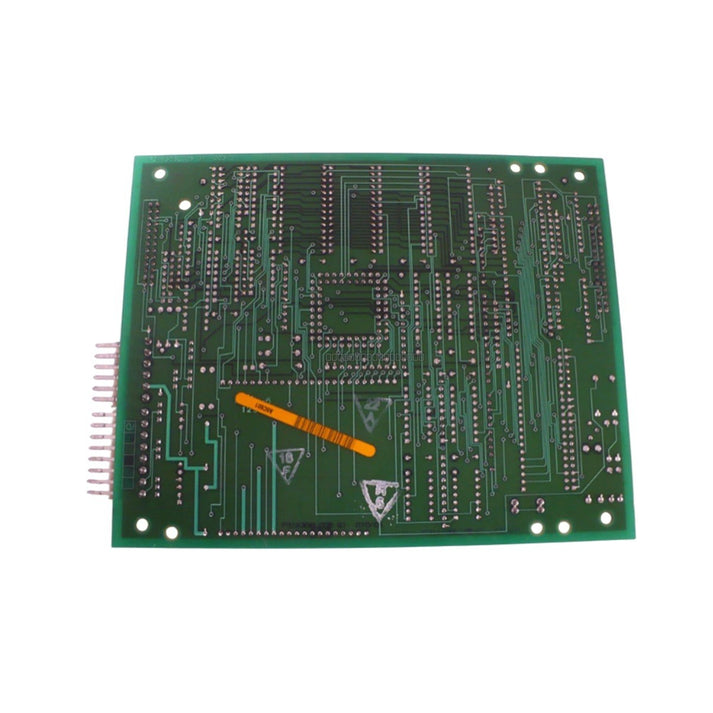

GE Fanuc 531X306LCCBFM1 Drive Control Board and Display Card

GE Fanuc 531X306LCCBFM1 Drive Control Board and Display Card

Description

The GE Fanuc 531X306LCCBFM1 is a high-reliability drive control board and display card designed for integration within industrial drive systems. This module functions as a critical monitoring interface, processing operational...

29 la gente está viendo esto ahora mismo

Disponibilidad: En existencias

SKU: 531X306LCCBFM1
Proveedora: GE FANUC
tipo: Drive Control Board
Related Series:

Envíos y devoluciones

Entrega confiable a nivel mundial

  • Transportistas: Envíos a través de DHL, FedEx, UPS o USPS .
  • Envío: Los pedidos se procesan en 1-2 días hábiles y se envían dentro de 3-5 días hábiles .
  • Seguimiento: Detalles completos de seguimiento proporcionados por correo electrónico después del envío.

Garantía de devolución de dinero de 30 días

  • Garantía: período de devolución de 30 días para productos en stock y sellados de fábrica.
  • Condición: Los artículos deben estar sin abrir, sin usar y en su embalaje original.
  • Autenticidad: Garantizamos hardware 100% original y auténtico.

¿Necesitas más información? Consulta nuestra Política de envíos y reembolsos completa.

Autenticidad y garantía

  • Garantía genuina: Suministramos únicamente piezas de automatización industrial 100% originales, nuevas y selladas de fábrica .
  • Cobertura total: cada componente está respaldado por una garantía integral de 12 meses a partir de la fecha de compra.
  • Trazabilidad: Todos los productos se entregan con documentación original de fábrica y accesorios para un pleno cumplimiento industrial.

Soporte técnico y abastecimiento

  • Asistencia de expertos: Nuestro equipo técnico ofrece consulta gratuita para ayudarle a verificar la compatibilidad de los sistemas DCS y PLC.
  • Abastecimiento de piezas raras: nos especializamos en componentes obsoletos y difíciles de encontrar de Allen-Bradley, Siemens, ABB, HIMA y más.
  • Consultas al por mayor: contáctenos en pambo@5gplc.com para obtener precios por volumen o cotizaciones de proyectos personalizados.
Ver todos los detalles

Description

The GE Fanuc 531X306LCCBFM1 is a high-reliability drive control board and display card designed for integration within industrial drive systems. This module functions as a critical monitoring interface, processing operational parameters and displaying real-time data via its onboard alphanumeric LED display. It is engineered to support system diagnostics, helping to minimize downtime in demanding industrial environments such as steel manufacturing, oil and gas processing, and power generation facilities.

Features

  • Integrated LAN communication interface for deterministic data exchange between the drive controller and display architecture.

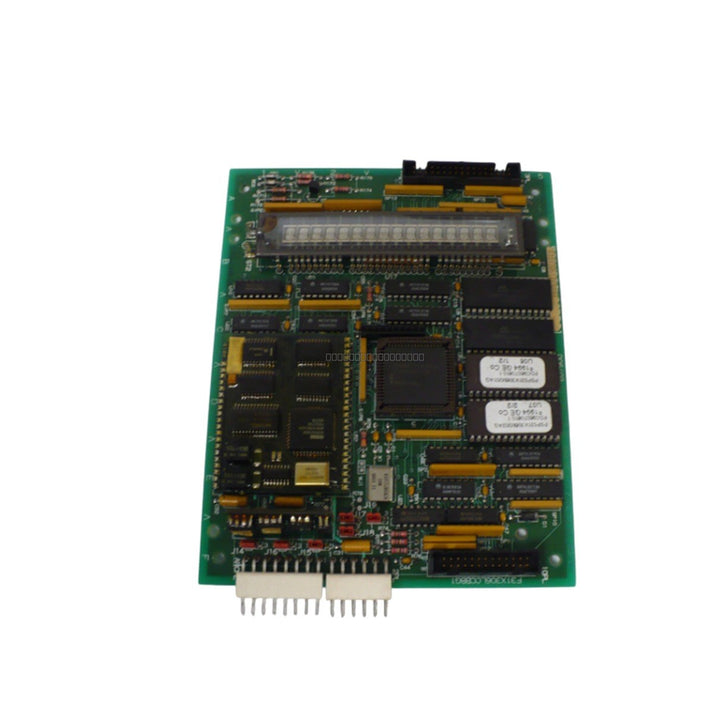

  • 16-Digit LED alphanumeric display for monitoring status codes, fault logs, and real-time velocity or torque metrics.
  • Robust PCB design engineered to mitigate electromagnetic interference (EMI) in high-power drive cabinets.
  • Designed for stable operation during voltage fluctuations and thermal stress.
  • Natural convection cooling architecture.

Applications

This module is primarily utilized in GE Fanuc industrial drive systems, providing localized monitoring and control feedback. It is suitable for deployment in automated manufacturing lines, heavy-duty motor control centers, and power distribution systems where real-time drive status visibility is required.

Technical Specifications

Model 531X306LCCBFM1
Brand GE Fanuc
Display Type 16-Digit LED alphanumeric
Communication Protocol GE Fanuc proprietary LAN
Power Supply 5 VDC / 24 VDC internal bus
Operating Temperature 0 to 60 deg C
Storage Temperature -20 to 70 deg C
Cooling Method Natural convection

Installation Guidelines

  • Ensure the drive system is fully powered down before inserting or removing the board to prevent electrical damage.
  • Handle the module using proper ESD (Electrostatic Discharge) safety precautions to protect sensitive onboard components.
  • Verify that the board is securely seated in the designated drive slot to ensure reliable electrical contact.
  • Maintain adequate clearance around the module to allow for natural convection cooling.
  • Route communication cabling away from high-voltage power lines to minimize potential signal interference.

FAQ

What is the primary function of the 531X306LCCBFM1?
This module acts as both a drive control board and a display interface, allowing for the monitoring of drive metrics and system fault logs via an onboard LED display.

Does this board require external cooling?
No, the module is designed for natural convection air cooling within the drive cabinet.

What communication protocol does this card use?
It utilizes a GE Fanuc proprietary LAN network interface for data exchange with the drive system.
