Description

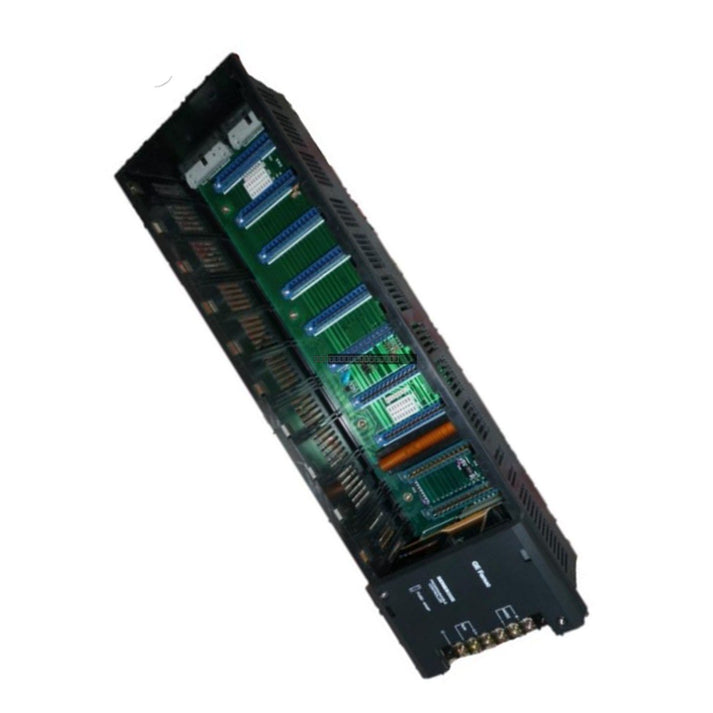

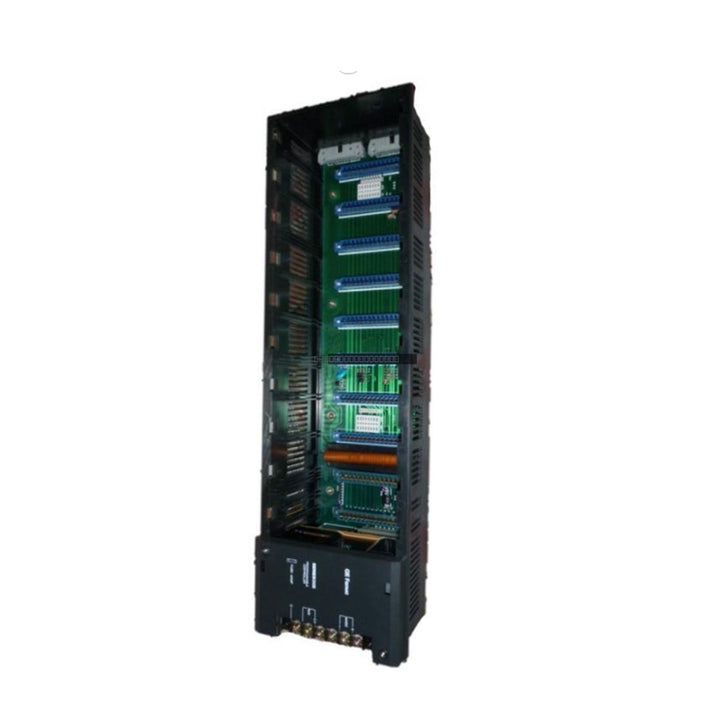

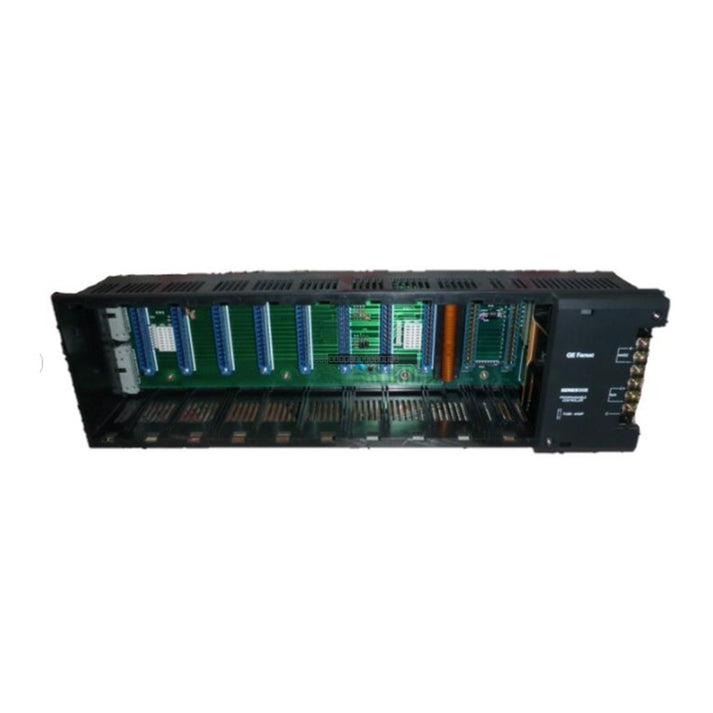

The IC610CHS134A is a 10-slot rack module manufactured by General Electric (GE Fanuc) for use within their industrial control systems. This rack assembly is designed to house and provide power distribution to compatible I/O or controller modules, featuring an integrated 24VDC power supply to support system operations. As a legacy component, this unit is officially discontinued by the manufacturer, making it a critical spare part for maintaining existing GE Series One or compatible legacy automation architectures.

Features

• 10-slot configuration for high-density module mounting.
• Integrated 24VDC power supply unit.
• Robust mechanical design for industrial cabinet mounting.
• Compatible with standard GE Fanuc Series One modular components.

Applications

This rack module is primarily utilized in legacy automation environments, including manufacturing process control, machine tool automation, and material handling systems where GE Fanuc Series One hardware remains in active service.

Technical Specifications

Installation Guidelines

• Ensure the rack is mounted in a clean, dry, and vibration-free environment within an industrial enclosure.
• Verify that the incoming power supply is strictly 24VDC before connecting to the rack terminals.
• Always power down the system before inserting or removing any modules from the rack slots to prevent electrical arcing or damage to the backplane connectors.
• Ensure proper grounding of the rack chassis to the cabinet earth bus to mitigate electromagnetic interference (EMI).
• Maintain adequate clearance around the rack to allow for proper airflow and cooling of the power supply components.

FAQ

Is this module still in production? No, the IC610CHS134A has been discontinued by General Electric. We provide these as refurbished or surplus units to support legacy system maintenance.

Does this rack include the power supply? Yes, the IC610CHS134A model includes an integrated 24VDC power supply designed to power the modules installed in its 10 slots.
