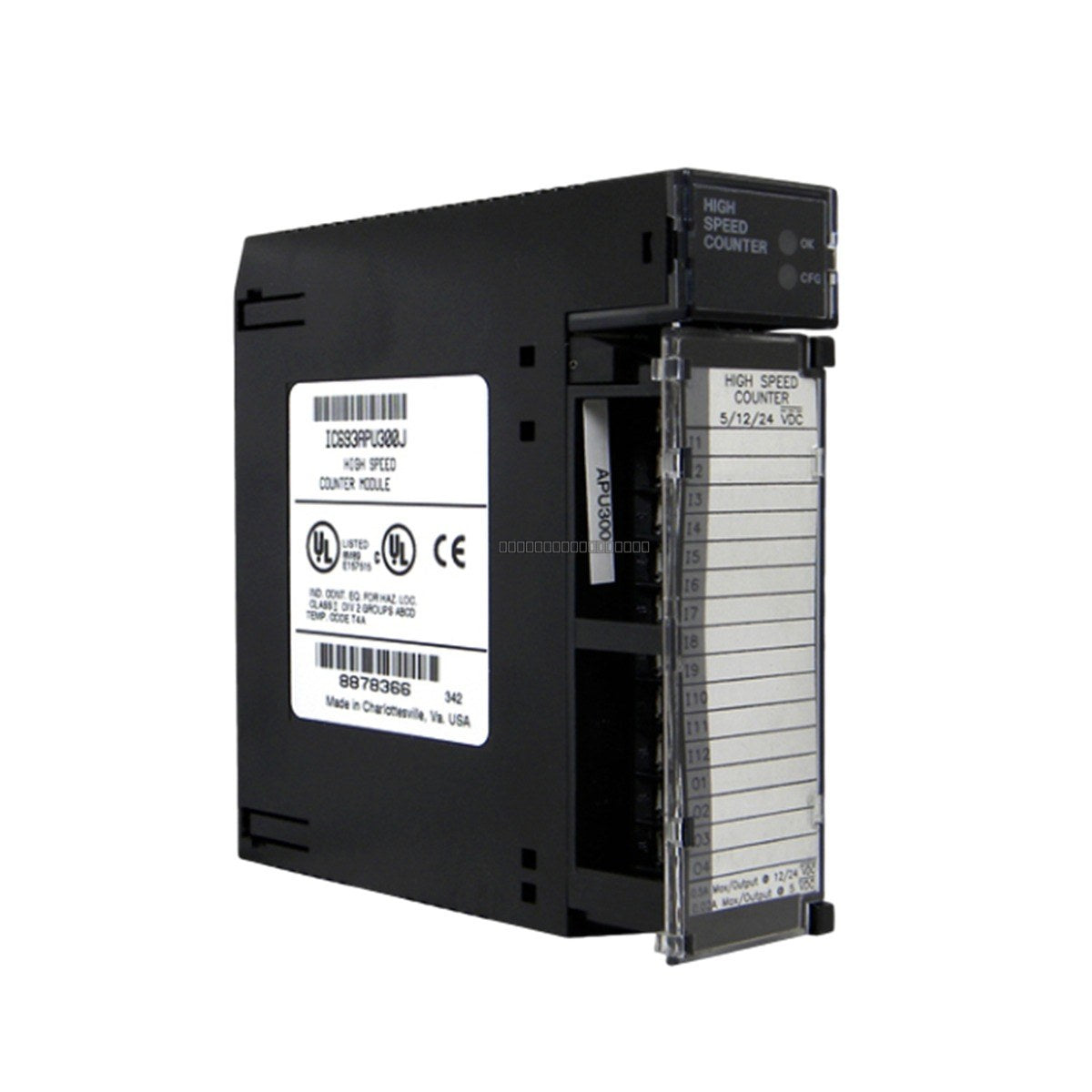

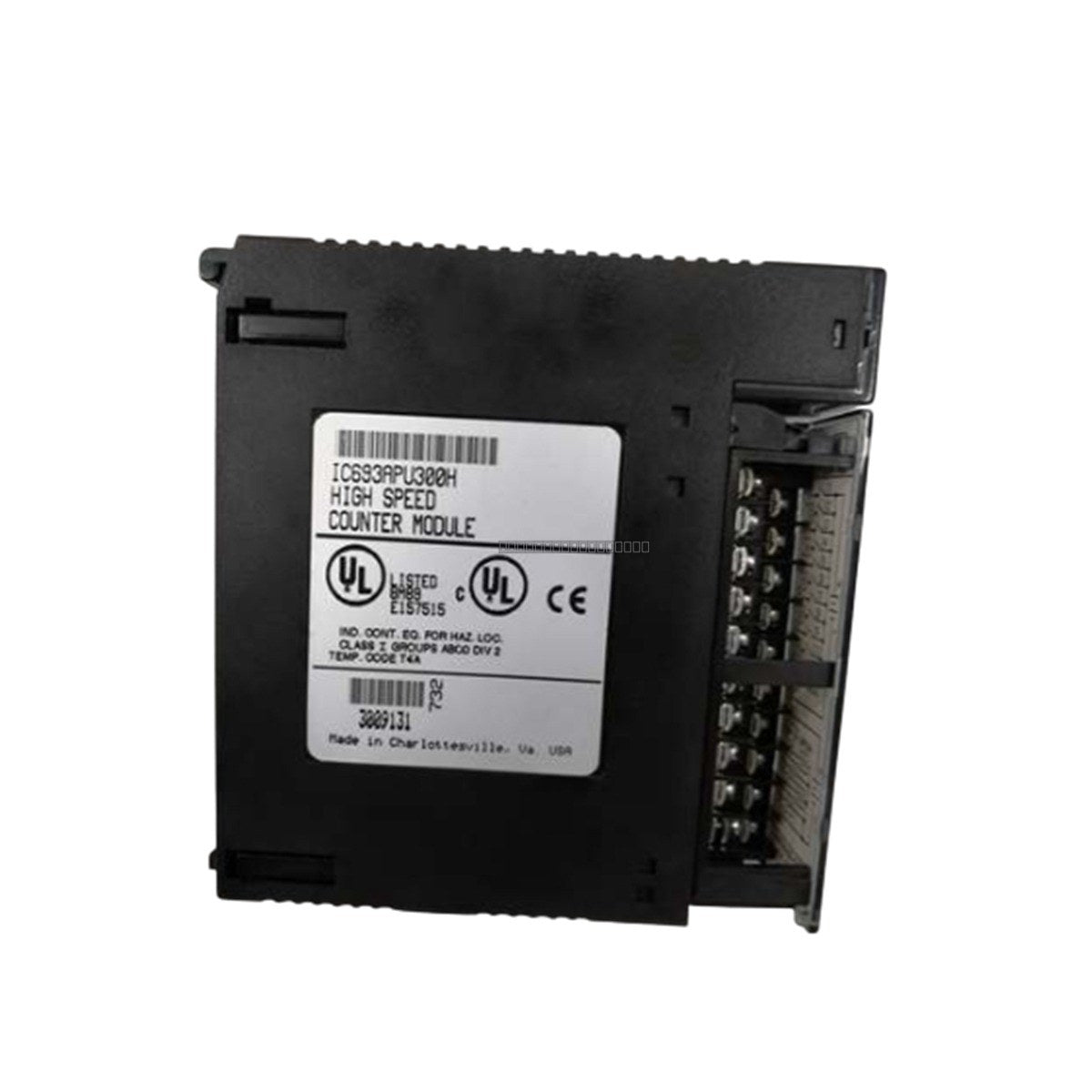

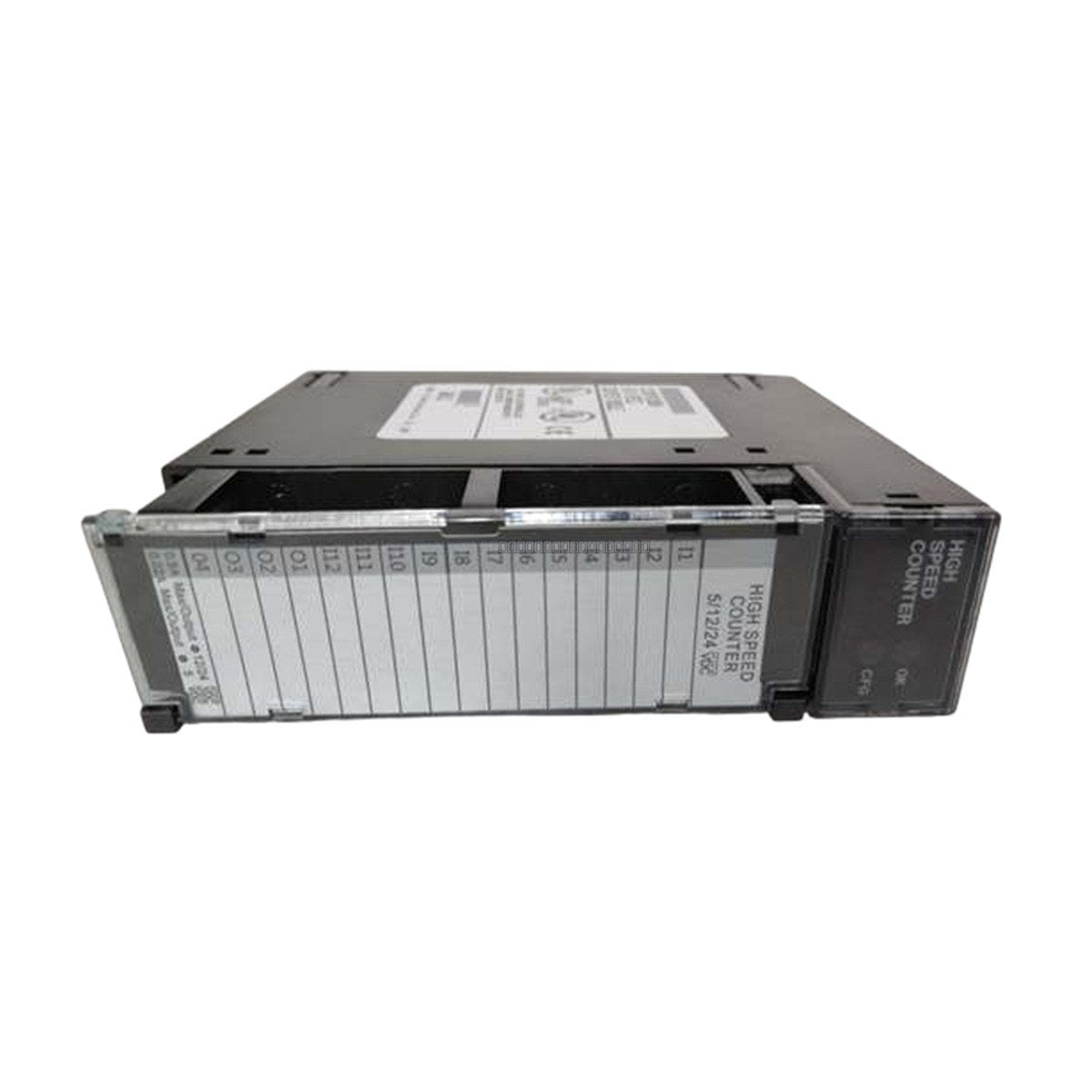

GE Fanuc IC693APU300H Series 90-30 High Speed Counter Module

GE Fanuc IC693APU300H Series 90-30 High Speed Counter Module

Description

The GE Fanuc IC693APU300H is a high-speed counter (HSC) module designed for the Series 90-30 Programmable Logic Controller (PLC) system. This module is engineered to handle high-frequency pulse inputs, providing...

26 la gente está viendo esto ahora mismo

Disponibilidad: En existencias

SKU: IC693APU300H
Proveedora: General Electric
tipo: High Speed Counter Module
Related Series:

Envíos y devoluciones

Entrega confiable a nivel mundial

  • Transportistas: Envíos a través de DHL, FedEx, UPS o USPS .
  • Envío: Los pedidos se procesan en 1-2 días hábiles y se envían dentro de 3-5 días hábiles .
  • Seguimiento: Detalles completos de seguimiento proporcionados por correo electrónico después del envío.

Garantía de devolución de dinero de 30 días

  • Garantía: período de devolución de 30 días para productos en stock y sellados de fábrica.
  • Condición: Los artículos deben estar sin abrir, sin usar y en su embalaje original.
  • Autenticidad: Garantizamos hardware 100% original y auténtico.

¿Necesitas más información? Consulta nuestra Política de envíos y reembolsos completa.

Autenticidad y garantía

  • Garantía genuina: Suministramos únicamente piezas de automatización industrial 100% originales, nuevas y selladas de fábrica .
  • Cobertura total: cada componente está respaldado por una garantía integral de 12 meses a partir de la fecha de compra.
  • Trazabilidad: Todos los productos se entregan con documentación original de fábrica y accesorios para un pleno cumplimiento industrial.

Soporte técnico y abastecimiento

  • Asistencia de expertos: Nuestro equipo técnico ofrece consulta gratuita para ayudarle a verificar la compatibilidad de los sistemas DCS y PLC.
  • Abastecimiento de piezas raras: nos especializamos en componentes obsoletos y difíciles de encontrar de Allen-Bradley, Siemens, ABB, HIMA y más.
  • Consultas al por mayor: contáctenos en pambo@5gplc.com para obtener precios por volumen o cotizaciones de proyectos personalizados.
Ver todos los detalles

Description

The GE Fanuc IC693APU300H is a high-speed counter (HSC) module designed for the Series 90-30 Programmable Logic Controller (PLC) system. This module is engineered to handle high-frequency pulse inputs, providing precise counting and timing capabilities required for industrial motion control, flow metering, and high-speed production line monitoring.

Features

  • Twelve (12) positive logic input channels for versatile signal acquisition.
  • Four (4) positive logic output channels for control and signaling.
  • Supports a wide input signal voltage range from 5 VDC to 30 VDC.
  • High-speed counting performance with rates up to 200 kHz.
  • Integrated LED indicators for Board OK and Configuration OK status monitoring.
  • Galvanic isolation rated at 250 Volts AC for enhanced system protection.
  • Powered directly from the PLC backplane at 5 VDC.

Applications

This module is typically utilized in industrial automation environments requiring high-speed pulse processing, such as:

  • Rotary encoder interfacing for position control.
  • High-speed turbine or flow meter pulse counting.
  • Batch counting and conveyor speed monitoring.
  • Synchronization of high-speed manufacturing processes.

Technical Specifications

Model IC693APU300H
Manufacturer General Electric (GE Fanuc)
Series Series 90-30
Input Channels 12 (Positive Logic)
Output Channels 4 (Positive Logic)
Max Count Rate Up to 200 kHz
Input Voltage 5 VDC, 10-30 VDC
Output Voltage Range 10-30 VDC (at 500 mA) / 4.75-6 VDC (at 20 mA)
Backplane Power 250 mA at 5 VDC
Isolation 250 Volts AC

Installation Guidelines

  • Ensure the PLC system is powered down before inserting or removing the module from the rack.
  • Install the module in an appropriate Series 90-30 I/O slot, ensuring the backplane connector is fully seated and the module is secured with the provided mounting screws.
  • Use shielded cabling for high-speed pulse inputs to minimize electromagnetic interference (EMI).
  • Maintain proper grounding practices for the PLC chassis to ensure signal integrity and safety.
  • Ensure the operating environment is within the specified temperature ranges and free from excessive dust or corrosive gases.

FAQ

What is the primary function of the IC693APU300H?

The IC693APU300H is a specialized I/O module for the GE Series 90-30 PLC that counts high-frequency pulses from external devices like encoders or sensors and provides high-speed output control based on those counts.

Is this module compatible with all Series 90-30 racks?

Yes, this module is designed for standard Series 90-30 PLC backplanes. Please ensure your specific CPU and rack configuration support the power requirements of this module.
