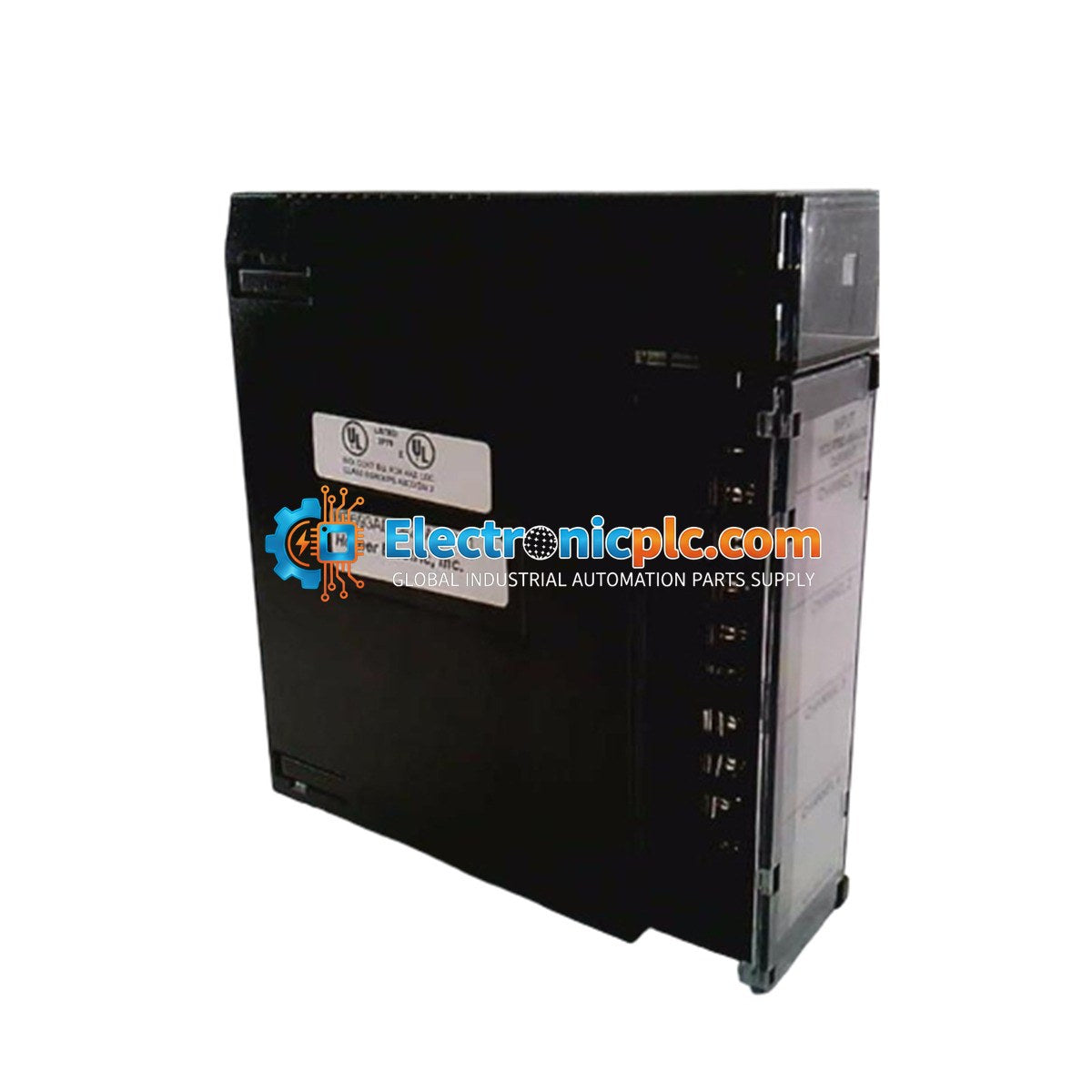

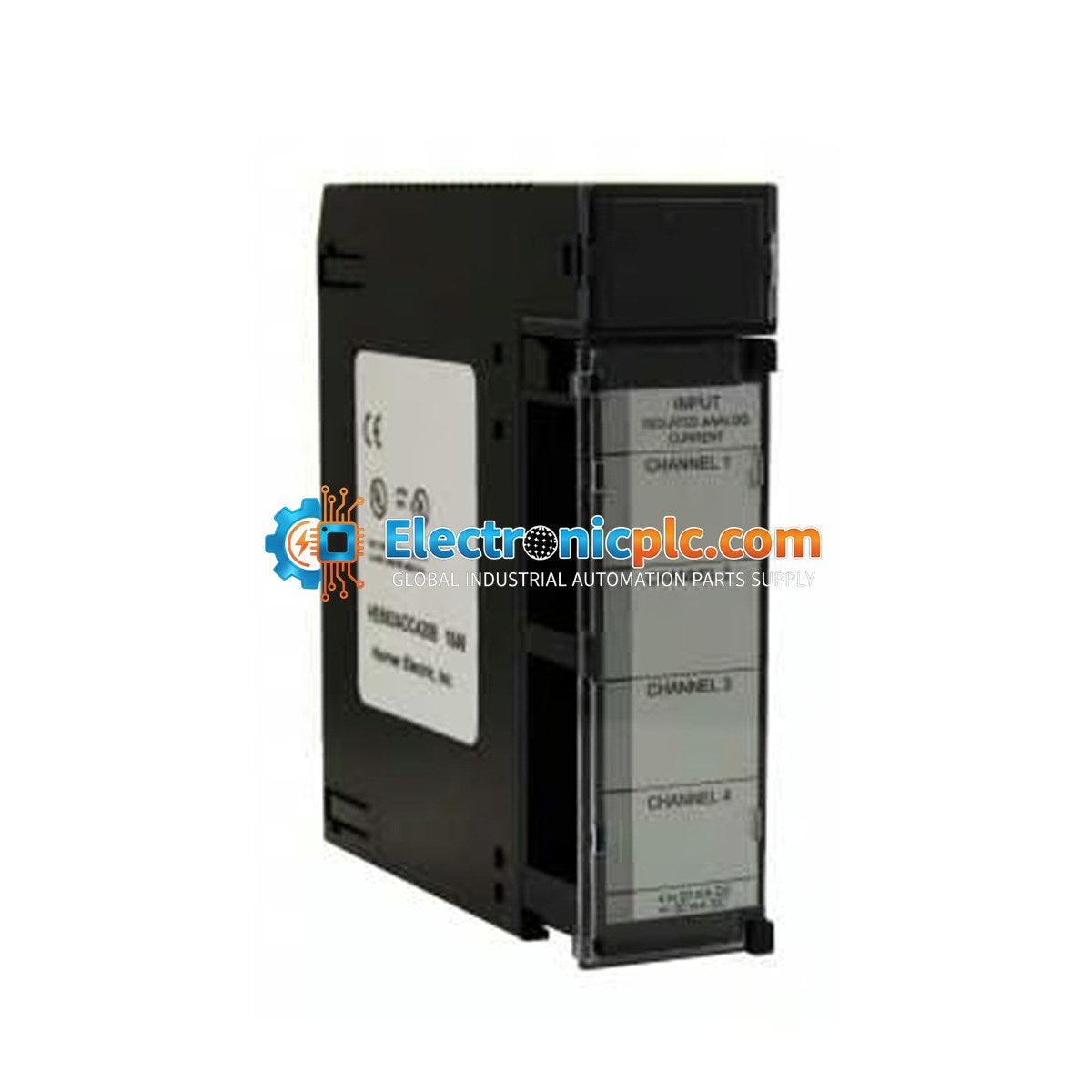

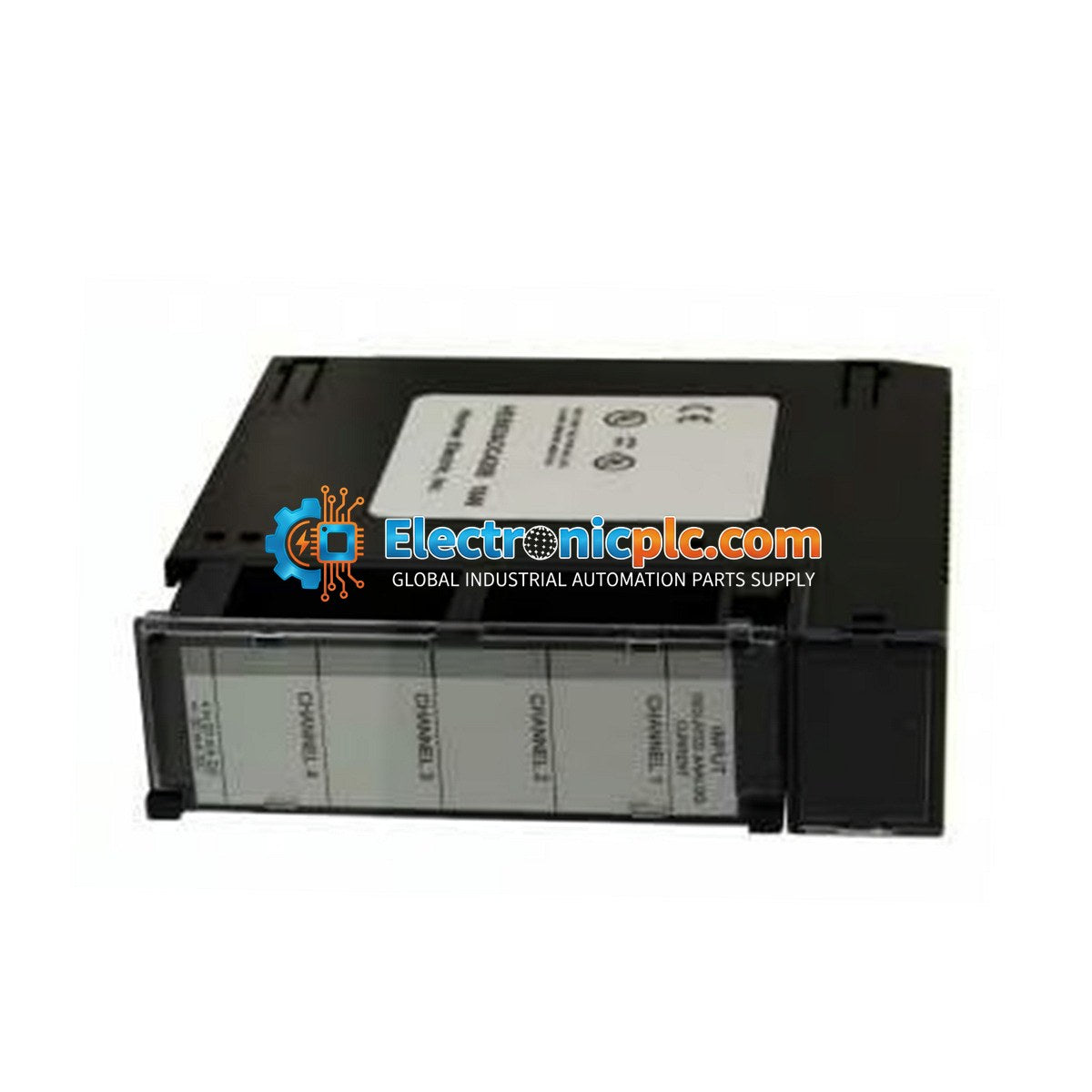

General Electric HE693ADC420 4-Channel Analog Input Module

General Electric HE693ADC420 4-Channel Analog Input Module

Description

The HE693ADC420 is a high-performance, 4-channel isolated analog input module designed for integration with the GE Fanuc Series 90-30 PLC system. Manufactured by Horner Electric, this module provides precise current...

20 la gente está viendo esto ahora mismo

Disponibilidad: Bajas existencias: quedan 2

SKU: HE693ADC420
Proveedora: General Electric
tipo: Analog Input Module
Related Series:

Envíos y devoluciones

Entrega confiable a nivel mundial

  • Transportistas: Envíos a través de DHL, FedEx, UPS o USPS .
  • Envío: Los pedidos se procesan en 1-2 días hábiles y se envían dentro de 3-5 días hábiles .
  • Seguimiento: Detalles completos de seguimiento proporcionados por correo electrónico después del envío.

Garantía de devolución de dinero de 30 días

  • Garantía: período de devolución de 30 días para productos en stock y sellados de fábrica.
  • Condición: Los artículos deben estar sin abrir, sin usar y en su embalaje original.
  • Autenticidad: Garantizamos hardware 100% original y auténtico.

¿Necesitas más información? Consulta nuestra Política de envíos y reembolsos completa.

Autenticidad y garantía

  • Garantía genuina: Suministramos únicamente piezas de automatización industrial 100% originales, nuevas y selladas de fábrica .
  • Cobertura total: cada componente está respaldado por una garantía integral de 12 meses a partir de la fecha de compra.
  • Trazabilidad: Todos los productos se entregan con documentación original de fábrica y accesorios para un pleno cumplimiento industrial.

Soporte técnico y abastecimiento

  • Asistencia de expertos: Nuestro equipo técnico ofrece consulta gratuita para ayudarle a verificar la compatibilidad de los sistemas DCS y PLC.
  • Abastecimiento de piezas raras: nos especializamos en componentes obsoletos y difíciles de encontrar de Allen-Bradley, Siemens, ABB, HIMA y más.
  • Consultas al por mayor: contáctenos en pambo@5gplc.com para obtener precios por volumen o cotizaciones de proyectos personalizados.
Ver todos los detalles

Description

The HE693ADC420 is a high-performance, 4-channel isolated analog input module designed for integration with the GE Fanuc Series 90-30 PLC system. Manufactured by Horner Electric, this module provides precise current signal monitoring with 1500 VAC RMS channel-to-channel and channel-to-ground isolation. It converts incoming current signals into digital values, which are then mapped directly into the %AI table of the PLC CPU, facilitating seamless data acquisition in demanding industrial environments.

Features

  • Four independent analog input channels.
  • Configurable input ranges: 4-20 mA or +/- 20 mA.
  • High-precision 18-bit A/D conversion with 14-bit usable resolution.
  • 1500 VAC RMS isolation for enhanced signal integrity and protection.
  • Programmable setpoint alarms for each channel, configurable via %AQ output registers.
  • Direct digital input (%I) feedback when setpoints are reached or exceeded.

Applications

  • Power generation and substation monitoring.
  • Heavy industrial processes, including steel and aluminum smelting.
  • Automated production lines and construction machinery control.
  • Textile, food processing, and packaging machinery.

Technical Specifications

Model HE693ADC420
Channels 4
Input Range 4-20 mA, +/- 20 mA
Isolation 1500 VAC RMS
Resolution 18-bit (A/D), 14-bit usable
Update Rate 45 channels/second
Power Consumption 7W (140 mA @ 5V), 1.2W (50 mA @ 24V)
Operating Humidity 5% to 95% (non-condensing)

Installation Guidelines

  • Power Down: Always disconnect power from the PLC rack before inserting or removing the module to prevent electrical damage.
  • Mounting: Ensure the module is fully seated in the Series 90-30 backplane slot and secured using the integrated mounting screws.
  • Wiring: Use shielded twisted-pair cabling for analog signals to minimize EMI/RFI interference. Ensure proper grounding of the shield at the source or rack side according to local electrical codes.
  • Environment: Maintain adequate ventilation within the cabinet to ensure the module operates within specified temperature limits.
  • ESD Precautions: Handle the module by its edges or housing; avoid touching the backplane connector pins to prevent electrostatic discharge damage.

FAQs

What is the primary function of the HE693ADC420?

The HE693ADC420 is designed to convert analog current signals into digital data for processing by the GE 90-30 PLC, providing 4 channels of isolated input with programmable alarm setpoints.

How are the alarm setpoints configured?

Alarm setpoints are user-defined and configured within the PLC program using %AQ output registers. When an input exceeds its setpoint, a corresponding %I digital input is energized.

What is the isolation rating of this module?

The HE693ADC420 features 1500 VAC RMS isolation, providing robust protection between channels and between channels and ground.
