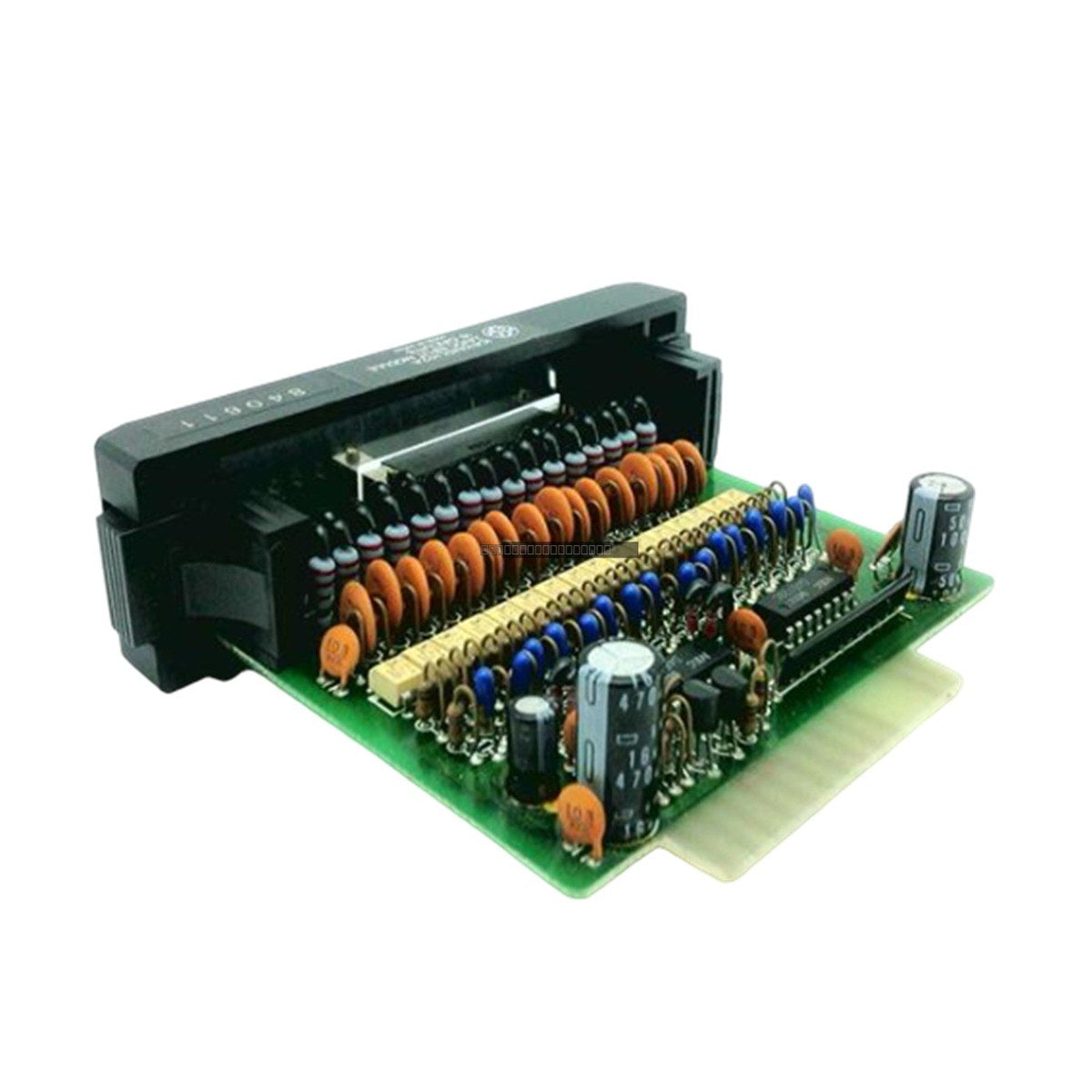

GE Fanuc IC610MDL102 Series One Input Output Module

GE Fanuc IC610MDL102 Series One Input Output Module

Description

The IC610MDL102 is a combination input/output module designed for the GE Fanuc Series One programmable logic controller (PLC) platform. This module provides a compact solution for managing discrete digital signals...

15 la gente está viendo esto ahora mismo

Disponibilidad: Bajas existencias: quedan 10

SKU: IC610MDL102
Proveedora: GE FANUC
tipo: PLC I/O Module
Related Series:

Envíos y devoluciones

Entrega confiable a nivel mundial

  • Transportistas: Envíos a través de DHL, FedEx, UPS o USPS .
  • Envío: Los pedidos se procesan en 1-2 días hábiles y se envían dentro de 3-5 días hábiles .
  • Seguimiento: Detalles completos de seguimiento proporcionados por correo electrónico después del envío.

Garantía de devolución de dinero de 30 días

  • Garantía: período de devolución de 30 días para productos en stock y sellados de fábrica.
  • Condición: Los artículos deben estar sin abrir, sin usar y en su embalaje original.
  • Autenticidad: Garantizamos hardware 100% original y auténtico.

¿Necesitas más información? Consulta nuestra Política de envíos y reembolsos completa.

Autenticidad y garantía

  • Garantía genuina: Suministramos únicamente piezas de automatización industrial 100% originales, nuevas y selladas de fábrica .
  • Cobertura total: cada componente está respaldado por una garantía integral de 12 meses a partir de la fecha de compra.
  • Trazabilidad: Todos los productos se entregan con documentación original de fábrica y accesorios para un pleno cumplimiento industrial.

Soporte técnico y abastecimiento

  • Asistencia de expertos: Nuestro equipo técnico ofrece consulta gratuita para ayudarle a verificar la compatibilidad de los sistemas DCS y PLC.
  • Abastecimiento de piezas raras: nos especializamos en componentes obsoletos y difíciles de encontrar de Allen-Bradley, Siemens, ABB, HIMA y más.
  • Consultas al por mayor: contáctenos en pambo@5gplc.com para obtener precios por volumen o cotizaciones de proyectos personalizados.
Ver todos los detalles

Description

The IC610MDL102 is a combination input/output module designed for the GE Fanuc Series One programmable logic controller (PLC) platform. This module provides a compact solution for managing discrete digital signals in industrial environments, integrating four input channels and four output channels into a single unit. It is engineered to facilitate reliable communication between field-level devices and the PLC processor, helping to maintain operational efficiency in automated systems.

Features

  • Integrated I/O: Combines 4 discrete inputs and 4 discrete outputs to maximize rack density.
  • Status Monitoring: High-visibility front-panel LED indicators provide real-time status feedback for each channel, simplifying field troubleshooting.
  • Signal Isolation: Designed to isolate internal logic circuitry from field-side electrical noise.
  • Versatile Compatibility: Inputs are compatible with standard industrial devices such as limit switches, pushbuttons, and relay contacts.
  • Output Flexibility: Output stages are designed to drive external DC loads, including pilot lights and relay coils.

Applications

This module is suitable for various industrial control applications, including:

  • Automated assembly line control
  • Material handling and conveyor systems
  • Water and wastewater treatment process monitoring
  • General-purpose discrete signal interfacing

Technical Specifications

Model IC610MDL102
Brand GE Fanuc
Series Series One
Input Channels 4
Output Channels 4
Operating Voltage 24 VDC
Operating Temperature 0 to 60 deg C
Storage Temperature -40 to 85 deg C
Relative Humidity 5 to 95 percent non-condensing

Installation Guidelines

  • Power Down: Always disconnect power from the rack before inserting or removing the module to prevent electrical damage.
  • ESD Protection: Handle the module by its edges and use proper electrostatic discharge (ESD) grounding procedures to protect internal components.
  • Wiring: Ensure all field wiring is properly secured to the terminal blocks. Use shielded cables where necessary to minimize EMI interference.
  • Environment: Ensure the module is installed in an enclosure that meets the specified temperature and humidity requirements.
  • Seating: Ensure the module is fully seated in the backplane connector to guarantee reliable communication with the CPU.

FAQ

What is the primary function of the IC610MDL102?

The IC610MDL102 is a combination I/O module for the Series One PLC, allowing the system to read 4 discrete inputs and control 4 discrete outputs simultaneously.

Does the module provide its own power to the output loads?

No, the output stage requires an external user-supplied DC power source to drive field loads such as relays or indicator lights.

How can I verify the status of the I/O points?

The module features front-panel LED indicators that correspond to each input and output channel, providing an immediate visual status of the logic state.
