Description

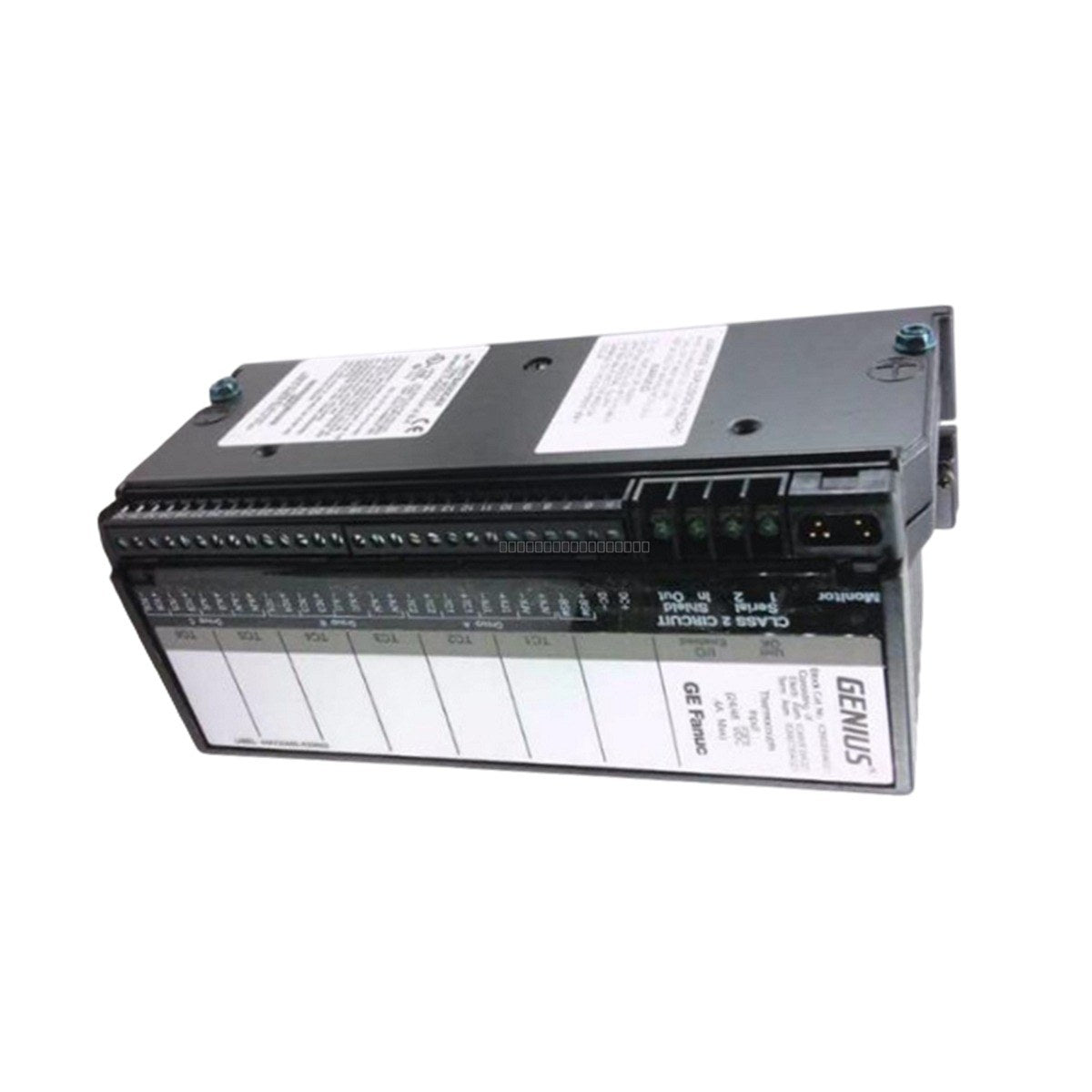

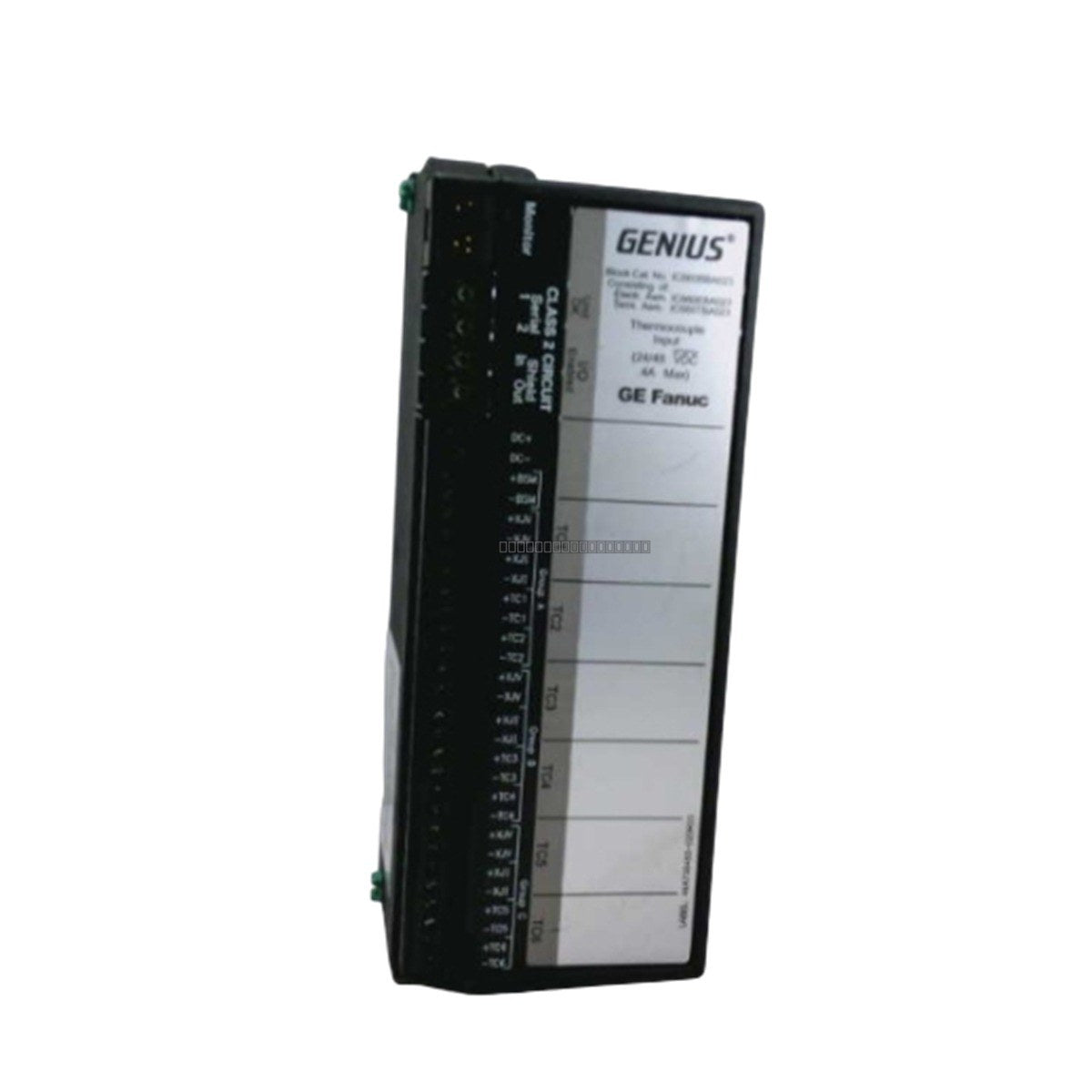

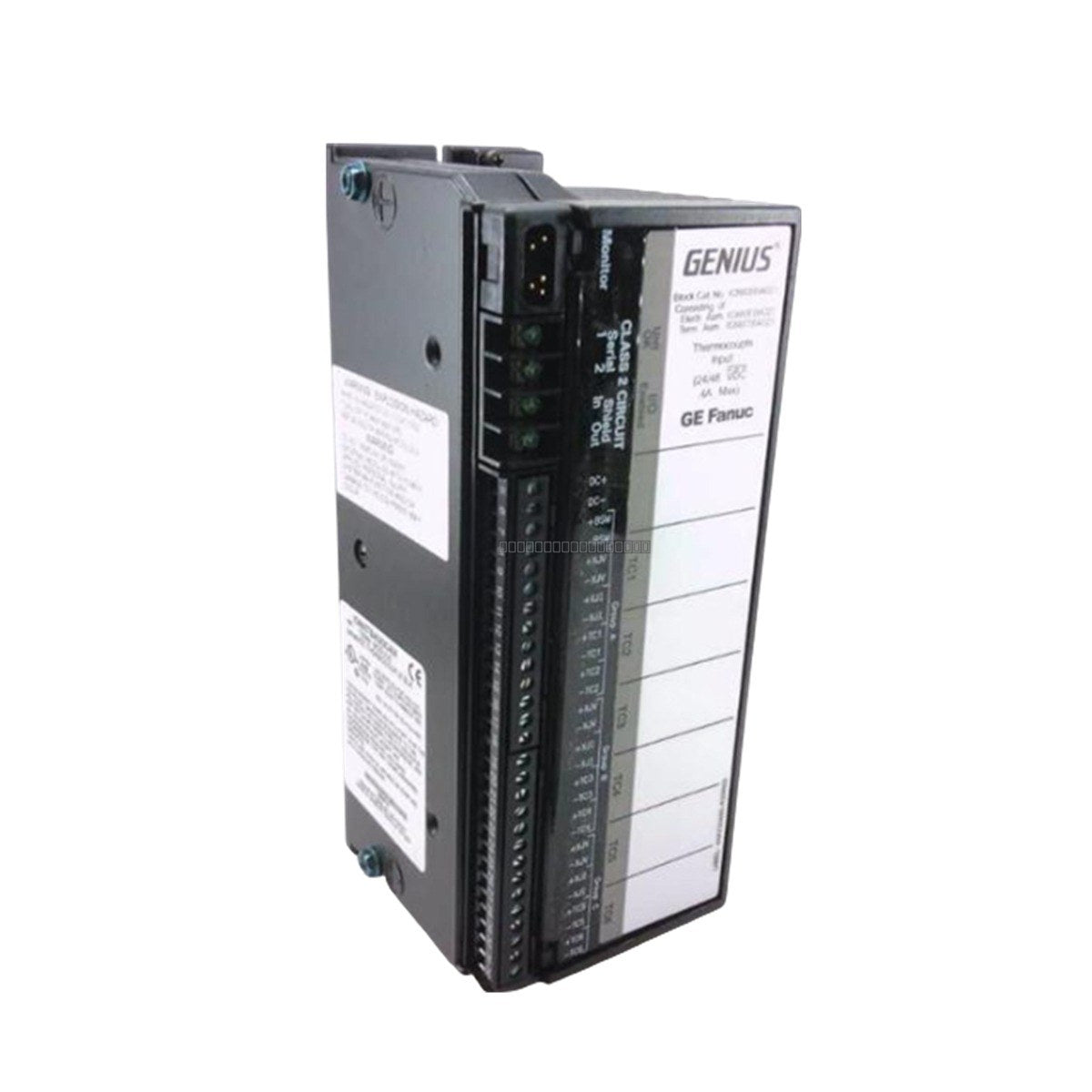

The General Electric IC660BBA023 is a thermocouple input module from the Genius I/O product series. This block is designed to interface thermocouple sensors directly with a Genius I/O network, providing reliable data acquisition for industrial temperature monitoring applications. It supports multiple input channels and is engineered for robust performance in demanding plant environments.

Features

• Six isolated thermocouple input channels.
• Compatible with 24/48V DC block power supply.
• Integrated status LEDs for Unit OK and I/O Enable monitoring.
• High isolation ratings for signal integrity and protection.
• Designed for integration within the Genius I/O distributed control architecture.

Technical Specifications

Installation Guidelines

• Ensure the power supply is disconnected before installing or removing the module from the I/O network.
• Mount the module in a location that allows for adequate ventilation to manage the 9W heat dissipation.
• Use shielded thermocouple cabling to minimize electromagnetic interference (EMI) in industrial environments.
• Verify that the block power supply matches the 24/48V DC specification before energizing.
• Ensure proper grounding of the module chassis to the system common ground to maintain signal integrity.
• Handle with care to prevent electrostatic discharge (ESD) damage to the internal circuitry.

FAQ

What type of sensors does the IC660BBA023 support?

This module is specifically designed for thermocouple inputs, supporting a voltage measurement range of -25 mV to 150 mV.

What do the status LEDs indicate?

The module features Unit OK and I/O Enable LEDs, providing immediate visual feedback on the operational status and communication health of the block.

Is this module compatible with other Genius I/O blocks?

Yes, the IC660BBA023 is part of the Genius I/O series and is designed to communicate over the standard Genius I/O bus alongside other compatible blocks.
