General Electric IC693CHS392 10-Slot Expansion Baseplate

General Electric IC693CHS392 10-Slot Expansion Baseplate

Description

The IC693CHS392 is a 10-slot expansion baseplate designed for the GE Series 90-30 Programmable Logic Controller (PLC) platform. This baseplate facilitates system expansion by providing additional mounting space for...

29 la gente está viendo esto ahora mismo

Disponibilidad: Bajas existencias: quedan 10

SKU: IC693CHS392
Proveedora: General Electric
tipo: PLC I/O Module
Related Series:

Envíos y devoluciones

Entrega confiable a nivel mundial

  • Transportistas: Envíos a través de DHL, FedEx, UPS o USPS .
  • Envío: Los pedidos se procesan en 1-2 días hábiles y se envían dentro de 3-5 días hábiles .
  • Seguimiento: Detalles completos de seguimiento proporcionados por correo electrónico después del envío.

Garantía de devolución de dinero de 30 días

  • Garantía: período de devolución de 30 días para productos en stock y sellados de fábrica.
  • Condición: Los artículos deben estar sin abrir, sin usar y en su embalaje original.
  • Autenticidad: Garantizamos hardware 100% original y auténtico.

¿Necesitas más información? Consulta nuestra Política de envíos y reembolsos completa.

Autenticidad y garantía

  • Garantía genuina: Suministramos únicamente piezas de automatización industrial 100% originales, nuevas y selladas de fábrica .
  • Cobertura total: cada componente está respaldado por una garantía integral de 12 meses a partir de la fecha de compra.
  • Trazabilidad: Todos los productos se entregan con documentación original de fábrica y accesorios para un pleno cumplimiento industrial.

Soporte técnico y abastecimiento

  • Asistencia de expertos: Nuestro equipo técnico ofrece consulta gratuita para ayudarle a verificar la compatibilidad de los sistemas DCS y PLC.
  • Abastecimiento de piezas raras: nos especializamos en componentes obsoletos y difíciles de encontrar de Allen-Bradley, Siemens, ABB, HIMA y más.
  • Consultas al por mayor: contáctenos en pambo@5gplc.com para obtener precios por volumen o cotizaciones de proyectos personalizados.
Ver todos los detalles

Description

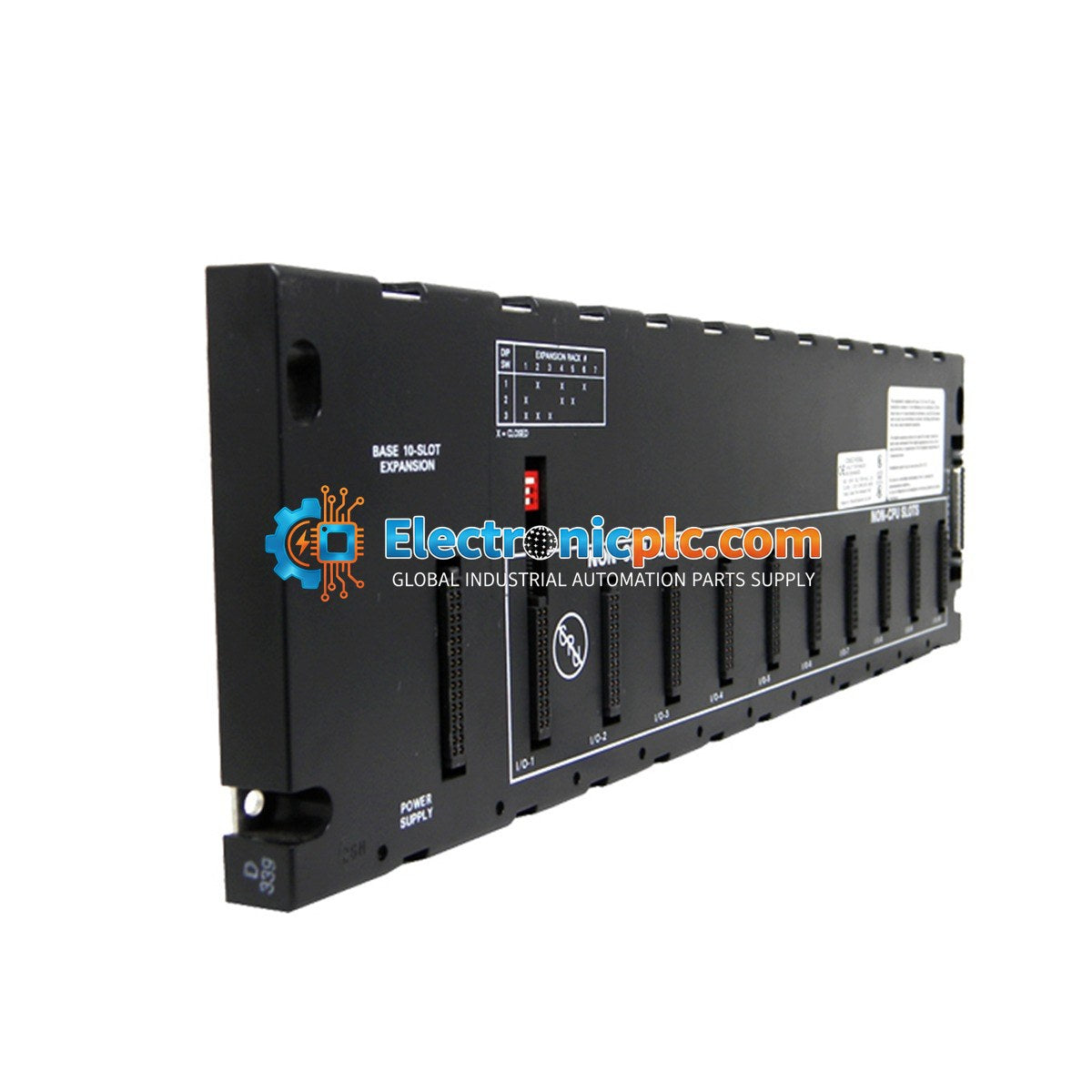

The IC693CHS392 is a 10-slot expansion baseplate designed for the GE Series 90-30 Programmable Logic Controller (PLC) platform. This baseplate facilitates system expansion by providing additional mounting space for standard Series 90-30 I/O modules. It features one dedicated power supply slot, ten I/O slots, and a 25-pin female D-type connector for I/O bus expansion. The unit is designed for panel mounting and includes an integrated DIP switch for rack address configuration.

Features

  • 10-slot capacity for standard I/O modules.
  • Integrated 25-pin D-type expansion connector for daisy-chaining baseplates.
  • Rack number selection via onboard DIP switch.
  • Dedicated slot for Series 90-30 power supply modules.
  • Compatible with CPU 331, 340, 341, 350, and higher models.

Applications

  • Water and Wastewater Treatment: Managing flow, filtration, and chemical dosing systems.
  • Material Handling: Controlling conveyor systems, sorters, and automated logistics.
  • Food and Beverage: Automating processing lines, mixing, and packaging machinery.
  • Mining and Metal Processing: Providing robust control for heavy machinery and emission monitoring.
  • Plastic Manufacturing: Managing precise temperature and pressure for injection molding.

Technical Specifications

Model IC693CHS392
Slots 10 I/O Slots + 1 Power Supply Slot
Expansion Connector 25-pin female D-type
Voltage 5V DC
Current 150 mA
Max Cable Length 50 feet (15 meters)
Max CPUs Supported Up to 7 (depending on CPU model)

Installation Guidelines

  • Mounting: Designed for panel mounting using the integrated tabs on the left and right sides of the baseplate.
  • Grounding: Ensure all expansion baseplates are connected to a common ground to maintain signal integrity and electrical safety.
  • Cabling: The total cumulative length of interconnecting cables between the CPU baseplate and all expansion baseplates must not exceed 50 feet (15 meters).
  • Slot Management: All unused slots must be covered with filler modules (e.g., IC693ACC310) to protect internal circuitry.
  • Compatibility: Intelligent modules such as PCM, ADC, BEM330, and CMM must be installed in the CPU baseplate, not the expansion baseplate.
  • Handling: Always power down the system before installing or removing modules to prevent electrical damage.

FAQs

What is the IC693CHS392?
It is a 10-slot, 25-pin female D-type I/O Bus Expansion baseplate for the Series 90-30 PLC system.

What is the maximum cable length for the IC693CHS392?
The total cable length connecting the expansion backplane and the CPU backplane must not exceed 50 feet (15 meters).

What modules are not supported by the IC693CHS392?
It does not support intelligent option modules such as PCM, ADC, BEM330, and CMM311. These must be mounted in a CPU baseplate.

Can the IC693CHS392 stand alone?
No. It cannot act as a standalone CPU baseplate. It must be connected to a CPU baseplate (either a PLC or a PC with a Personal Computer Interface Card).
