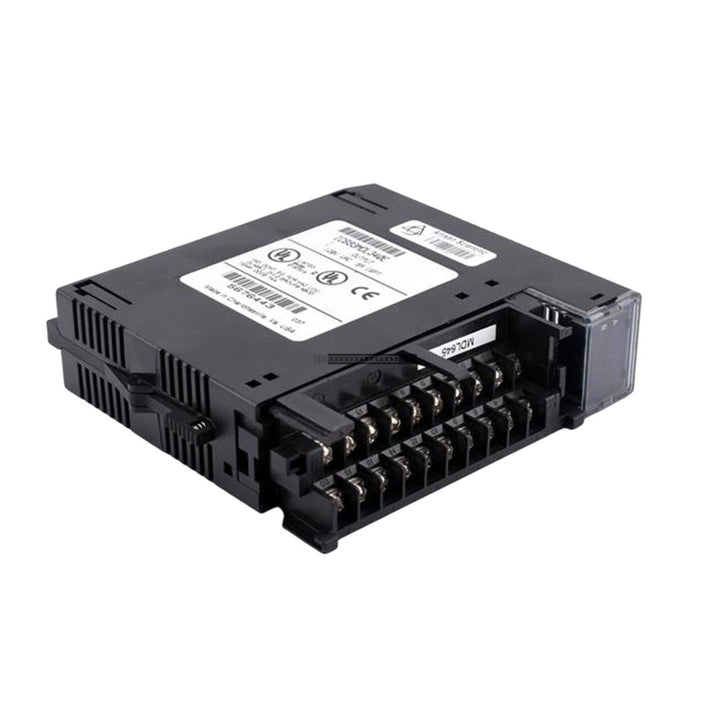

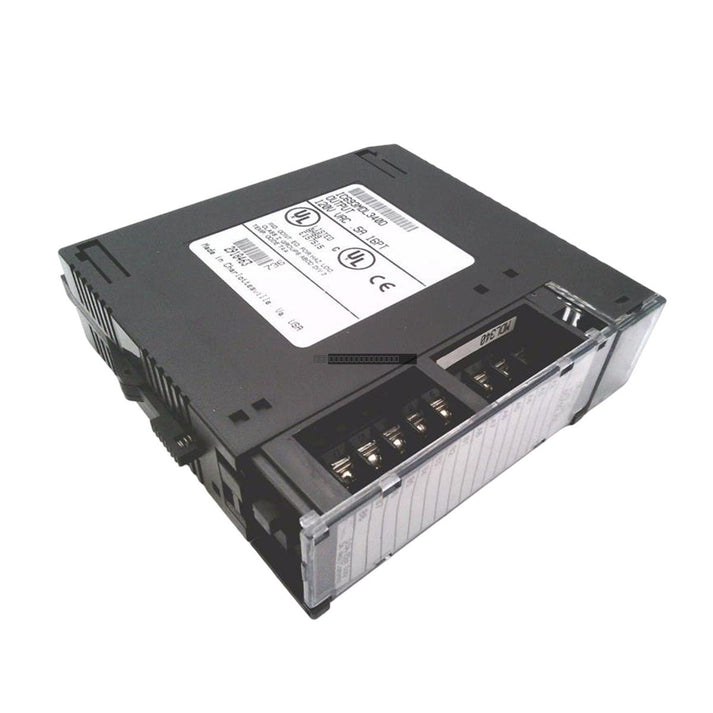

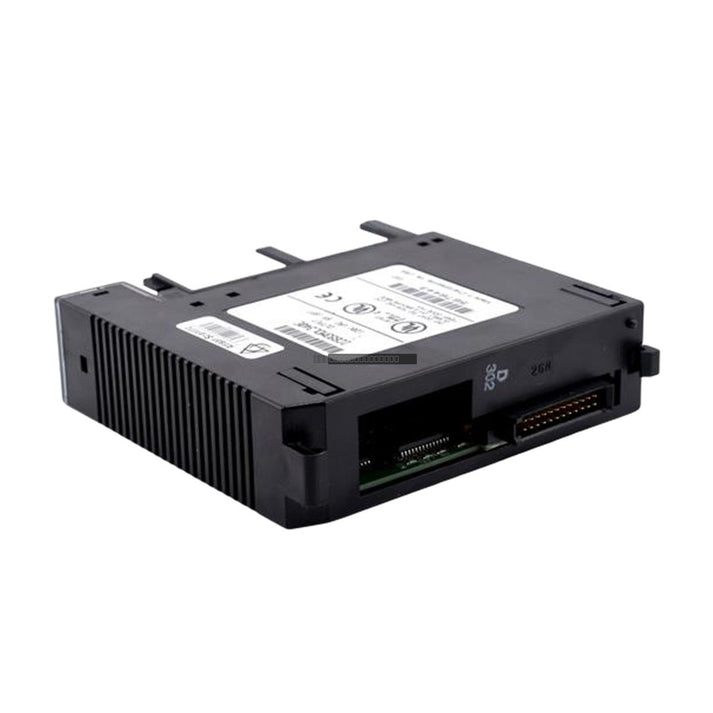

GE Fanuc IC693MDL340 Series 90-30 16-Point 120V AC Output Module

GE Fanuc IC693MDL340 Series 90-30 16-Point 120V AC Output Module

Description

The IC693MDL340 is a 16-point discrete output module designed for the GE Fanuc Series 90-30 Programmable Logic Controller (PLC) system. This module provides sixteen isolated output points arranged in two...

18 la gente está viendo esto ahora mismo

Disponibilidad: Bajas existencias: quedan 1

SKU: IC693MDL340
Proveedora: General Electric
tipo: Discrete Output Module
Related Series:

Envíos y devoluciones

Entrega confiable a nivel mundial

  • Transportistas: Envíos a través de DHL, FedEx, UPS o USPS .
  • Envío: Los pedidos se procesan en 1-2 días hábiles y se envían dentro de 3-5 días hábiles .
  • Seguimiento: Detalles completos de seguimiento proporcionados por correo electrónico después del envío.

Garantía de devolución de dinero de 30 días

  • Garantía: período de devolución de 30 días para productos en stock y sellados de fábrica.
  • Condición: Los artículos deben estar sin abrir, sin usar y en su embalaje original.
  • Autenticidad: Garantizamos hardware 100% original y auténtico.

¿Necesitas más información? Consulta nuestra Política de envíos y reembolsos completa.

Autenticidad y garantía

  • Garantía genuina: Suministramos únicamente piezas de automatización industrial 100% originales, nuevas y selladas de fábrica .
  • Cobertura total: cada componente está respaldado por una garantía integral de 12 meses a partir de la fecha de compra.
  • Trazabilidad: Todos los productos se entregan con documentación original de fábrica y accesorios para un pleno cumplimiento industrial.

Soporte técnico y abastecimiento

  • Asistencia de expertos: Nuestro equipo técnico ofrece consulta gratuita para ayudarle a verificar la compatibilidad de los sistemas DCS y PLC.
  • Abastecimiento de piezas raras: nos especializamos en componentes obsoletos y difíciles de encontrar de Allen-Bradley, Siemens, ABB, HIMA y más.
  • Consultas al por mayor: contáctenos en pambo@5gplc.com para obtener precios por volumen o cotizaciones de proyectos personalizados.
Ver todos los detalles

Description

The IC693MDL340 is a 16-point discrete output module designed for the GE Fanuc Series 90-30 Programmable Logic Controller (PLC) system. This module provides sixteen isolated output points arranged in two groups of eight, facilitating the control of 120V AC field devices. It is engineered to interface directly with the Series 90-30 backplane, providing reliable switching for industrial automation applications.

Features

  • Sixteen (16) discrete output channels organized into two groups of eight.
  • Rated for 120V AC operation with an output signal range of 85-132V AC.
  • Maximum output current of 0.5A per point.
  • Robust isolation: 1500V between field and logic sides, and 500V between groups.
  • Supports a frequency range of 50 to 60 Hz.
  • Inrush current capacity of 20A for one cycle.

Technical Specifications

Model IC693MDL340
Manufacturer General Electric (GE Fanuc)
Series Series 90-30
Output Type Discrete AC Output
Channels 16 (2 groups of 8)
Voltage Rating 120V AC
Current per Point 0.5A
Minimum Load Current 50mA
Leakage Current 2mA max at 120V AC
Isolation 1500V (Field to Logic) / 500V (Group to Group)
Lifecycle Status Discontinued / Obsolete

Installation Guidelines

  • Ensure power is disconnected from the PLC rack before installing or removing the module to prevent electrical shock or damage to the backplane.
  • Verify that the module is fully seated in the designated slot and that the locking tabs are engaged.
  • Use appropriate wire gauges for field connections; ensure all terminal screws are tightened to the recommended torque to prevent loose connections.
  • Maintain proper clearance for ventilation to prevent overheating, as the module requires adequate airflow for cooling.
  • Route high-voltage AC field wiring away from low-voltage logic or communication cables to minimize electromagnetic interference (EMI).
  • Handle the module using ESD-safe practices to prevent damage to sensitive internal circuitry.

FAQ

Is the IC693MDL340 still in production? No, this module is classified as discontinued/obsolete by the manufacturer. We provide high-quality refurbished or surplus units to support legacy systems.

What is the isolation rating of this module? The module provides 1500V isolation between the field and logic sides, and 500V isolation between the two output groups.

Can this module be used with other Series 90-30 components? Yes, it is fully compatible with the GE Fanuc Series 90-30 PLC backplane and CPU modules.
