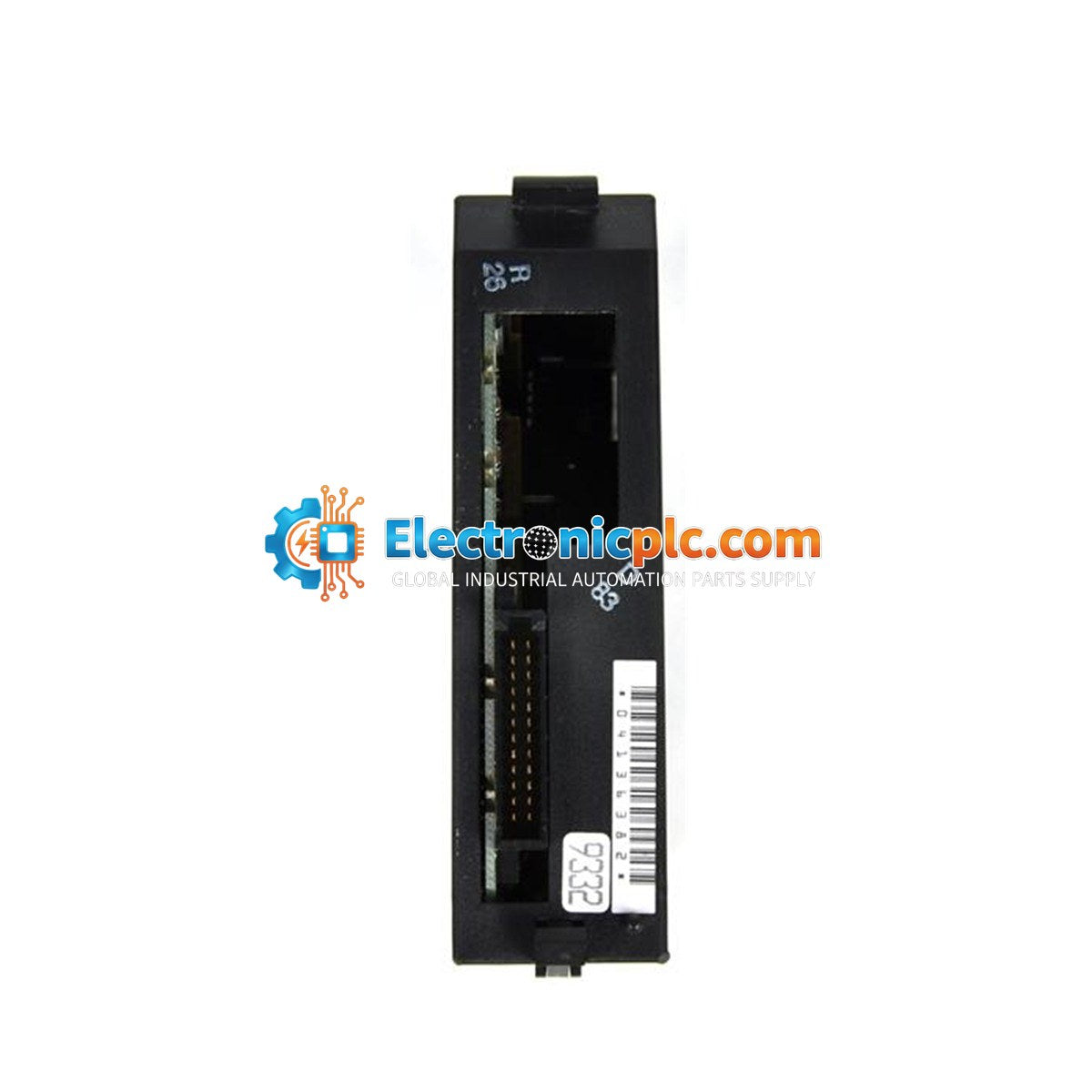

General Electric IC693MDL646 16-Point 24VDC Discrete Input Module

General Electric IC693MDL646 16-Point 24VDC Discrete Input Module

Description

The IC693MDL646 is a 16-point discrete input module designed for the GE Fanuc Series 90-30 PLC platform. This module provides a reliable interface for monitoring binary field devices, such as...

17 la gente está viendo esto ahora mismo

Disponibilidad: Bajas existencias: quedan 3

SKU: IC693MDL646
Proveedora: General Electric
tipo: Discrete Input Module
Related Series:

Envíos y devoluciones

Entrega confiable a nivel mundial

  • Transportistas: Envíos a través de DHL, FedEx, UPS o USPS .
  • Envío: Los pedidos se procesan en 1-2 días hábiles y se envían dentro de 3-5 días hábiles .
  • Seguimiento: Detalles completos de seguimiento proporcionados por correo electrónico después del envío.

Garantía de devolución de dinero de 30 días

  • Garantía: período de devolución de 30 días para productos en stock y sellados de fábrica.
  • Condición: Los artículos deben estar sin abrir, sin usar y en su embalaje original.
  • Autenticidad: Garantizamos hardware 100% original y auténtico.

¿Necesitas más información? Consulta nuestra Política de envíos y reembolsos completa.

Autenticidad y garantía

  • Garantía genuina: Suministramos únicamente piezas de automatización industrial 100% originales, nuevas y selladas de fábrica .
  • Cobertura total: cada componente está respaldado por una garantía integral de 12 meses a partir de la fecha de compra.
  • Trazabilidad: Todos los productos se entregan con documentación original de fábrica y accesorios para un pleno cumplimiento industrial.

Soporte técnico y abastecimiento

  • Asistencia de expertos: Nuestro equipo técnico ofrece consulta gratuita para ayudarle a verificar la compatibilidad de los sistemas DCS y PLC.
  • Abastecimiento de piezas raras: nos especializamos en componentes obsoletos y difíciles de encontrar de Allen-Bradley, Siemens, ABB, HIMA y más.
  • Consultas al por mayor: contáctenos en pambo@5gplc.com para obtener precios por volumen o cotizaciones de proyectos personalizados.
Ver todos los detalles

Description

The IC693MDL646 is a 16-point discrete input module designed for the GE Fanuc Series 90-30 PLC platform. This module provides a reliable interface for monitoring binary field devices, such as push buttons, limit switches, proximity sensors, and auxiliary contacts. It supports both positive and negative logic wiring configurations, offering flexibility for various control circuit requirements. The module is engineered for use in both local and remote I/O baseplates within the 90-30 system architecture.

Features

  • 16 discrete input channels grouped with a single common terminal.
  • Supports both Positive and Negative logic wiring configurations.
  • Compatible with 24 VDC nominal field devices (0-30 VDC range).
  • Integrated status LEDs for individual channel monitoring and module health.
  • 1500 VDC isolation between the field side and the logic side.
  • Designed for installation in any I/O slot of a 5 or 10-slot Series 90-30 baseplate.

Technical Specifications

Model IC693MDL646
Input Points 16 (1 group)
Input Voltage Range 0 to +30 VDC
Nominal Voltage 24 VDC
On-State Voltage 11.5 to 30 VDC
Off-State Voltage 0 to 5 VDC
Input Current 7 mA per channel (nominal)
Backplane Current Draw 80 mA @ 5VDC; 125 mA @ 24VDC
Response Time 1 ms (On/Off)
Isolation 1500 VDC (Field to Logic)

Applications

  • Packaging and bottling line automation.
  • Material handling and conveyor tracking.
  • Injection molding and plastics processing control.
  • Robotic work cell interfacing.
  • Boiler and chemical process management.
  • Elevator and lift control systems.

Installation Guidelines

  • Power Down: Always ensure the rack power is disconnected before inserting or removing any module to prevent electrical damage.
  • Mounting: Tilt the module upward to engage the top hook into the baseplate notch, then swing the module downward until the backplane connectors fully mate.
  • Locking: Ensure the locking lever at the bottom of the module snaps securely into place.
  • Wiring: The module features 20 connection terminals protected by a swing door. Refer to the wiring diagram located on the inside of the swing door for correct terminal assignments.
  • Environment: Ensure the module is installed in an environment free from excessive vibration and within the specified temperature ratings for the 90-30 series.

FAQs

What is the IC693MDL646?

It is a 16-point, 24-volt DC Positive/Negative Logic Input module for the GE Fanuc Series 90-30 PLC system.

What wiring configurations are supported?

The IC693MDL646 supports both positive and negative logic wiring configurations.

Can this module be used in remote I/O?

Yes, it supports installation in both local CPU baseplates and remote I/O or I/O expansion baseplates.

Where can this module be installed?

It can be installed in any I/O slot of a 5 or 10-slot baseplate within the Series 90-30 PLC system.
