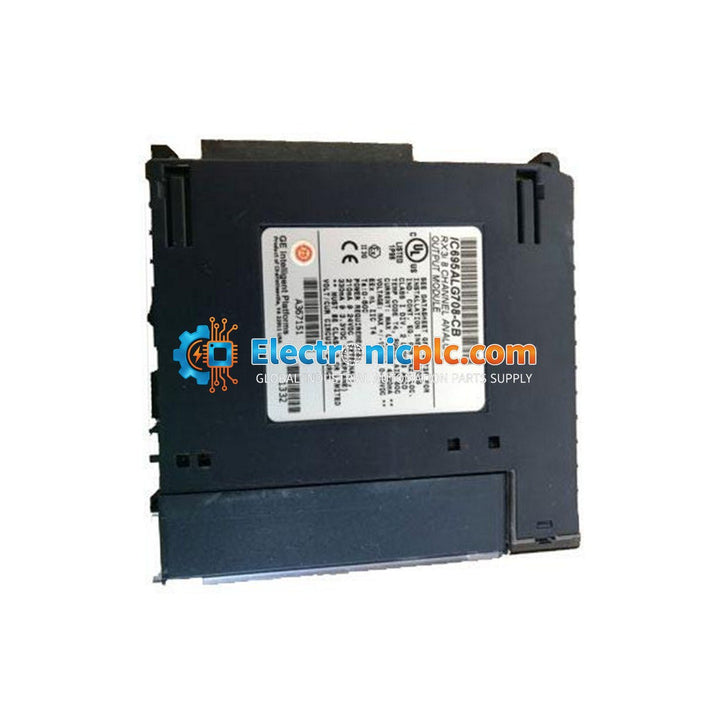

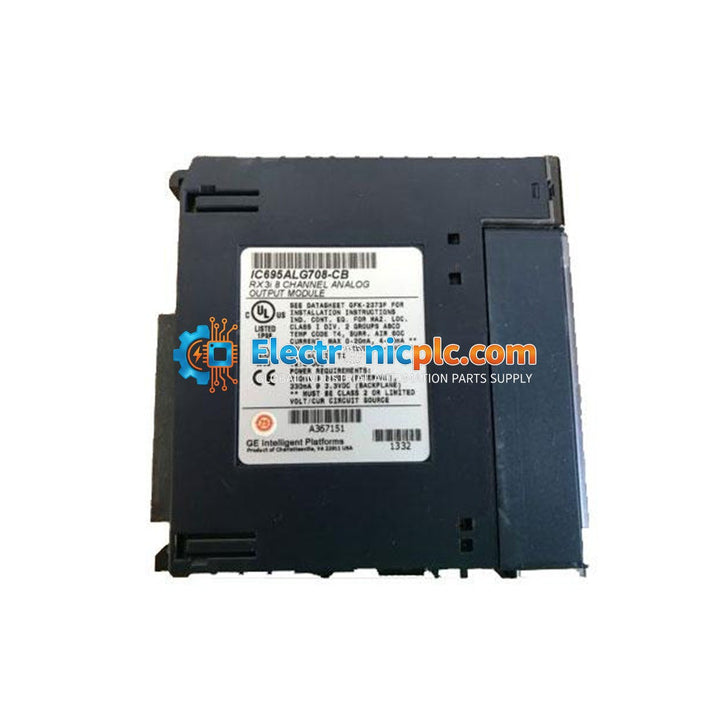

General Electric IC695ALG708 PACSystems RX3i 8-Channel Analog Output Module

General Electric IC695ALG708 PACSystems RX3i 8-Channel Analog Output Module

Description

The IC695ALG708 is an 8-channel, non-isolated analog output module designed for the GE PACSystems RX3i Programmable Automation Controller (PAC) platform. This module provides high-precision signal conversion and is configurable for...

15 la gente está viendo esto ahora mismo

Disponibilidad: Bajas existencias: quedan 8

SKU: IC695ALG708
Proveedora: General Electric
tipo: Analog Output Module
Related Series:

Envíos y devoluciones

Entrega confiable a nivel mundial

  • Transportistas: Envíos a través de DHL, FedEx, UPS o USPS .
  • Envío: Los pedidos se procesan en 1-2 días hábiles y se envían dentro de 3-5 días hábiles .
  • Seguimiento: Detalles completos de seguimiento proporcionados por correo electrónico después del envío.

Garantía de devolución de dinero de 30 días

  • Garantía: período de devolución de 30 días para productos en stock y sellados de fábrica.
  • Condición: Los artículos deben estar sin abrir, sin usar y en su embalaje original.
  • Autenticidad: Garantizamos hardware 100% original y auténtico.

¿Necesitas más información? Consulta nuestra Política de envíos y reembolsos completa.

Autenticidad y garantía

  • Garantía genuina: Suministramos únicamente piezas de automatización industrial 100% originales, nuevas y selladas de fábrica .
  • Cobertura total: cada componente está respaldado por una garantía integral de 12 meses a partir de la fecha de compra.
  • Trazabilidad: Todos los productos se entregan con documentación original de fábrica y accesorios para un pleno cumplimiento industrial.

Soporte técnico y abastecimiento

  • Asistencia de expertos: Nuestro equipo técnico ofrece consulta gratuita para ayudarle a verificar la compatibilidad de los sistemas DCS y PLC.
  • Abastecimiento de piezas raras: nos especializamos en componentes obsoletos y difíciles de encontrar de Allen-Bradley, Siemens, ABB, HIMA y más.
  • Consultas al por mayor: contáctenos en pambo@5gplc.com para obtener precios por volumen o cotizaciones de proyectos personalizados.
Ver todos los detalles

Description

The IC695ALG708 is an 8-channel, non-isolated analog output module designed for the GE PACSystems RX3i Programmable Automation Controller (PAC) platform. This module provides high-precision signal conversion and is configurable for both voltage and current output ranges, making it suitable for a wide variety of industrial control applications, including process control loops and actuator positioning.

Features

  • 8 independent output channels, software-configurable.
  • Supports current ranges: 0 to 20 mA and 4 to 20 mA.
  • Supports voltage ranges: +/- 10 VDC and 0 to 10 VDC.
  • High resolution: 15.6 to 15.9-bit conversion.
  • Individual channel alarm settings (very low, low, high, very high).
  • Output clamping and bias adjustment for PID loop fine-tuning.
  • Built-in module fault reporting and configurable hold-last-state or default-state behavior.
  • Field-to-backplane isolation of 2550 VDC.

Applications

This module is primarily used in the PACSystems RX3i series for demanding industrial automation environments, such as manufacturing, energy management, and process control systems. It is ideal for driving analog actuators, valves, and variable frequency drives (VFDs) where precise control and signal monitoring are required.

Technical Specifications

Model IC695ALG708
Channels 8
Output Current 0-20 mA, 4-20 mA
Output Voltage +/- 10 V, 0-10 V
Update Rate 8 ms
Load Impedance (Current) 850 Ohms max
Resolution 15.6 - 15.9 bits
Power Consumption 375 mA @ +3.3VDC, 315 mA @ +24VDC
Enclosure Rating IP20

Installation Guidelines

  • Ensure the RX3i CPU is running firmware version 3.5 or later.
  • Configure the module using Machine Edition Version 5.0 SP3 or higher.
  • Requires an external 24 VDC power supply connected directly to the module terminal block.
  • Compatible terminal blocks: IC694TBB032, IC694TBB132, IC694TBS032, or IC694TBS132.
  • Install in a NEMA/UL Type 1 or equivalent enclosure to maintain a pollution degree 2 environment.
  • Always power down the backplane before inserting or removing the module to prevent electrical damage.
  • Adhere to thermal derating curves provided by the manufacturer when operating in high-temperature environments.

FAQs

What is the IC695ALG708?

The IC695ALG708 is an 8-channel, non-isolated, voltage/current analog output module designed for the PACSystems RX3i series.

What is the function of the IC695ALG708?

It provides user-configurable voltage or current output channels for controlling industrial field devices.

What is the resolution of the IC695ALG708?

The module features a high resolution of 15.6 to 15.9 bits, depending on the configured output signal.

How many slots does the IC695ALG708 occupy?

The module occupies a single slot in an RX3i Universal Backplane.
