General Electric IC697ALG230 Series 90-70 Analog Input Module

General Electric IC697ALG230 Series 90-70 Analog Input Module

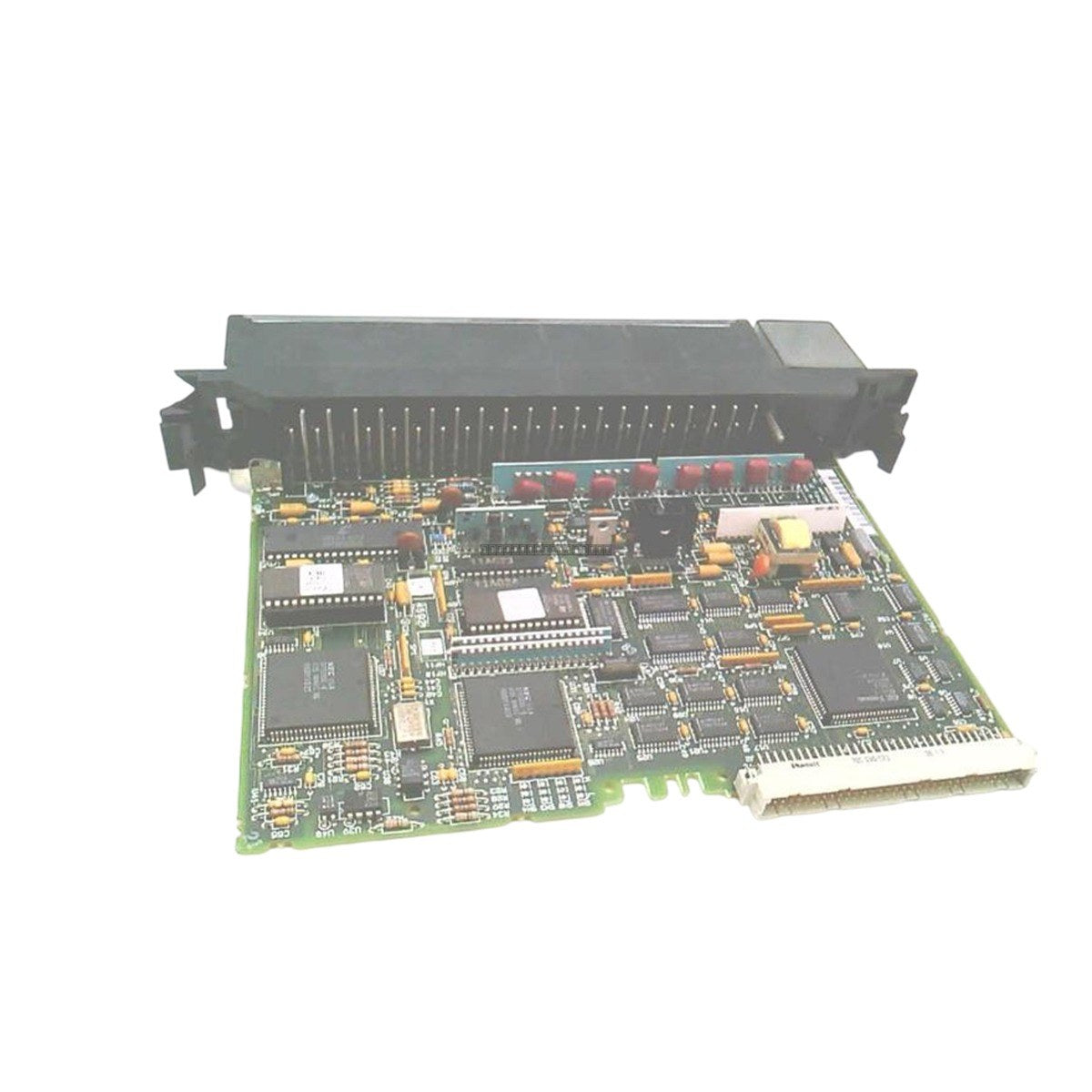

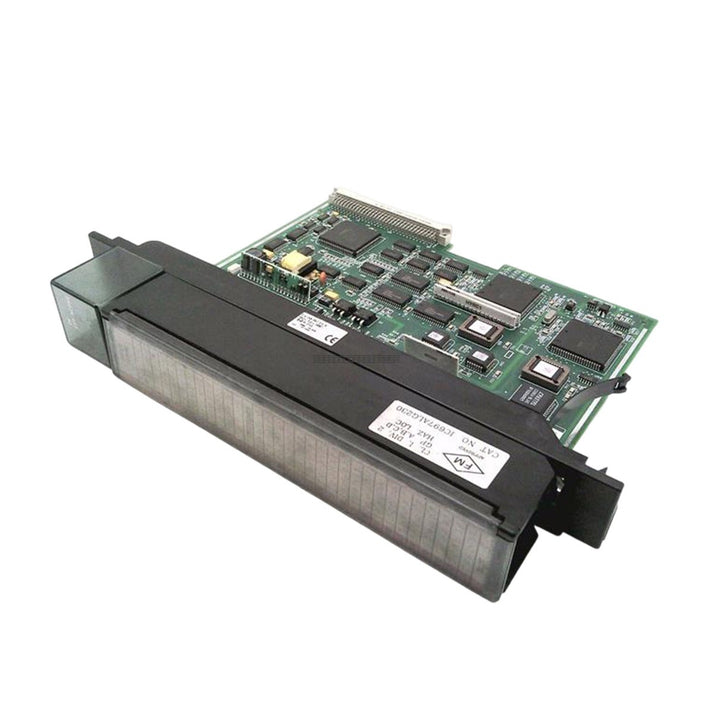

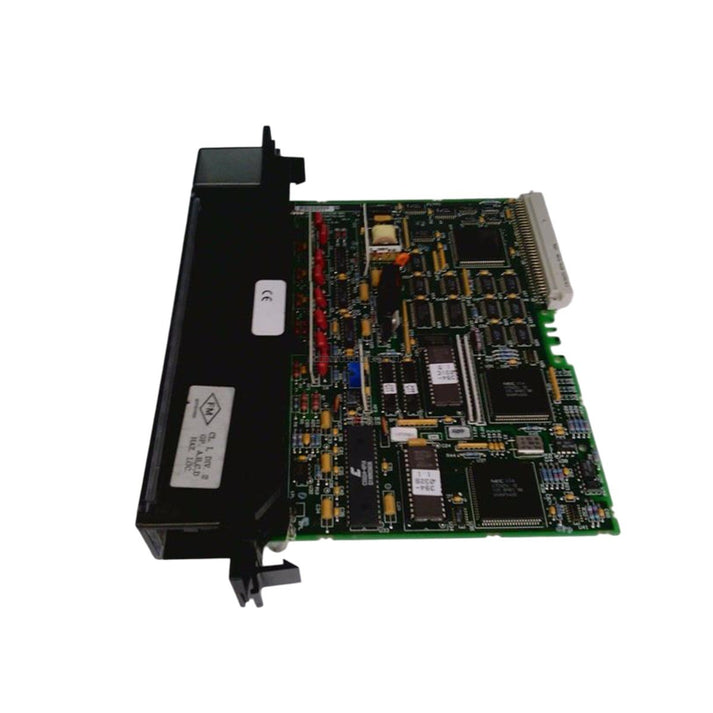

The General Electric IC697ALG230 is an 8-channel high-level analog input module designed for the Series 90-70 Programmable Logic Controller (PLC) system. Serving as a base converter module, it provides high-precision...

27 la gente está viendo esto ahora mismo

Disponibilidad: Bajas existencias: quedan 9

SKU: IC697ALG230
Proveedora: General Electric
tipo: Analog Input Module
Related Series:

Envíos y devoluciones

Entrega confiable a nivel mundial

  • Transportistas: Envíos a través de DHL, FedEx, UPS o USPS .
  • Envío: Los pedidos se procesan en 1-2 días hábiles y se envían dentro de 3-5 días hábiles .
  • Seguimiento: Detalles completos de seguimiento proporcionados por correo electrónico después del envío.

Garantía de devolución de dinero de 30 días

  • Garantía: período de devolución de 30 días para productos en stock y sellados de fábrica.
  • Condición: Los artículos deben estar sin abrir, sin usar y en su embalaje original.
  • Autenticidad: Garantizamos hardware 100% original y auténtico.

¿Necesitas más información? Consulta nuestra Política de envíos y reembolsos completa.

Autenticidad y garantía

  • Garantía genuina: Suministramos únicamente piezas de automatización industrial 100% originales, nuevas y selladas de fábrica .
  • Cobertura total: cada componente está respaldado por una garantía integral de 12 meses a partir de la fecha de compra.
  • Trazabilidad: Todos los productos se entregan con documentación original de fábrica y accesorios para un pleno cumplimiento industrial.

Soporte técnico y abastecimiento

  • Asistencia de expertos: Nuestro equipo técnico ofrece consulta gratuita para ayudarle a verificar la compatibilidad de los sistemas DCS y PLC.
  • Abastecimiento de piezas raras: nos especializamos en componentes obsoletos y difíciles de encontrar de Allen-Bradley, Siemens, ABB, HIMA y más.
  • Consultas al por mayor: contáctenos en pambo@5gplc.com para obtener precios por volumen o cotizaciones de proyectos personalizados.
Ver todos los detalles

The General Electric IC697ALG230 is an 8-channel high-level analog input module designed for the Series 90-70 Programmable Logic Controller (PLC) system. Serving as a base converter module, it provides high-precision signal processing for industrial automation applications. The module supports both voltage and current inputs, which are software-configurable per channel, and can be integrated with expansion modules to scale system capacity.

Features

  • 8 differential input channels.
  • Individually configurable for voltage (±10V) or current (4-20 mA) signals.
  • 16-bit resolution with oversampling and averaging techniques.
  • Compatible with IC697ALG440 (voltage) and IC697ALG441 (current) expander modules.
  • Mechanical keying for secure rack installation and error-free replacement.
  • User-defined scaling via programming software.

Applications

  • Process Monitoring: Captures data from temperature, pressure, and flow sensors.
  • Manufacturing: Provides precise feedback for motion control, CNC, and robotics.
  • Utilities: Manages flow, pressure, and chemical levels in water and power facilities.
  • Industrial Automation: Suitable for complex control systems requiring high-density analog input.

Technical Specifications

Model IC697ALG230
Input Channels 8 Differential
Voltage Range -10V to +10V
Current Range 0 to 22.5 mA (4-20 mA default)
Resolution 16-bit
Power Requirement 0.8A at +5V (4 Watts)
Voltage Accuracy ±0.01% of full scale, ±0.02% of value
Current Accuracy ±0.05% of full scale, ±0.1% of value
Linearity ±0.02% of full scale

Installation Guidelines

  • Ensure the PLC rack power is disconnected before inserting or removing the module.
  • The module is mechanically keyed; ensure it is aligned correctly with the rack slot to prevent damage to the backplane pins.
  • Field wiring should be connected to the provided removable terminal board.
  • Maintain proper grounding practices to minimize EMI/RFI interference, especially when using long analog signal cable runs.
  • Use shielded twisted-pair cabling for analog inputs to ensure signal integrity.
  • Configure channel parameters using Proficy Machine Edition or legacy software (Logicmaster/VersaPro) via the CPU's SNP port or Ethernet.

FAQ

What is the primary function of the IC697ALG230?

It is an 8-channel base converter module that converts analog voltage or current signals into a digital format (2's complement) for processing by the Series 90-70 CPU via the VME backplane.

Can this module be expanded?

Yes, the IC697ALG230 can support up to 7 additional expander modules (IC697ALG440 or IC697ALG441) to increase the total number of analog inputs in the system.

How is the module configured?

Configuration is performed entirely through software. There are no physical jumpers or DIP switches on the module. Users define the input type, scaling, and memory references within the programming software.
