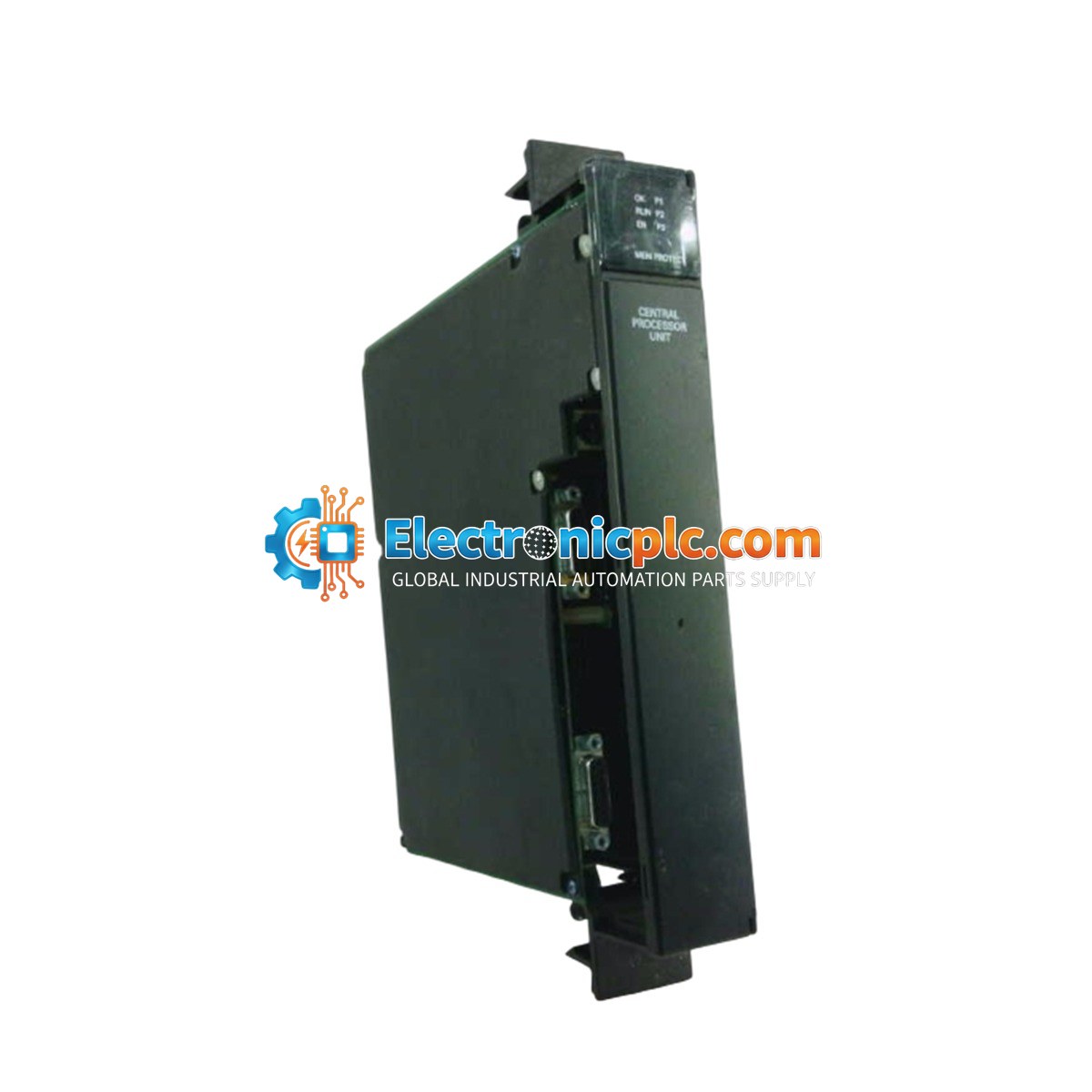

General Electric IC697CGR935 Series 90-70 Hot Stand-By CPU Module

General Electric IC697CGR935 Series 90-70 Hot Stand-By CPU Module

Description

The General Electric IC697CGR935 is a high-performance, single-slot Central Processing Unit (CPU) designed for the Series 90-70 PLC system. This module features a 96 MHz 80486DX4 microprocessor and is specifically...

29 la gente está viendo esto ahora mismo

Disponibilidad: Bajas existencias: quedan 2

SKU: IC697CGR935
Proveedora: General Electric
tipo: PLC CPU Module
Related Series:

Envíos y devoluciones

Entrega confiable a nivel mundial

  • Transportistas: Envíos a través de DHL, FedEx, UPS o USPS .
  • Envío: Los pedidos se procesan en 1-2 días hábiles y se envían dentro de 3-5 días hábiles .
  • Seguimiento: Detalles completos de seguimiento proporcionados por correo electrónico después del envío.

Garantía de devolución de dinero de 30 días

  • Garantía: período de devolución de 30 días para productos en stock y sellados de fábrica.
  • Condición: Los artículos deben estar sin abrir, sin usar y en su embalaje original.
  • Autenticidad: Garantizamos hardware 100% original y auténtico.

¿Necesitas más información? Consulta nuestra Política de envíos y reembolsos completa.

Autenticidad y garantía

  • Garantía genuina: Suministramos únicamente piezas de automatización industrial 100% originales, nuevas y selladas de fábrica .
  • Cobertura total: cada componente está respaldado por una garantía integral de 12 meses a partir de la fecha de compra.
  • Trazabilidad: Todos los productos se entregan con documentación original de fábrica y accesorios para un pleno cumplimiento industrial.

Soporte técnico y abastecimiento

  • Asistencia de expertos: Nuestro equipo técnico ofrece consulta gratuita para ayudarle a verificar la compatibilidad de los sistemas DCS y PLC.
  • Abastecimiento de piezas raras: nos especializamos en componentes obsoletos y difíciles de encontrar de Allen-Bradley, Siemens, ABB, HIMA y más.
  • Consultas al por mayor: contáctenos en pambo@5gplc.com para obtener precios por volumen o cotizaciones de proyectos personalizados.
Ver todos los detalles

Description

The General Electric IC697CGR935 is a high-performance, single-slot Central Processing Unit (CPU) designed for the Series 90-70 PLC system. This module features a 96 MHz 80486DX4 microprocessor and is specifically engineered for CPU redundancy applications, providing reliable control for complex industrial processes. It supports 1 Mbyte of battery-backed fast CMOS RAM and high-speed floating-point calculations, making it suitable for demanding real-time control tasks in manufacturing and material handling systems.

Features

  • Required for CPU redundancy applications
  • 96 MHz, 80486DX4 microprocessor
  • 1 Mbyte of battery-backed fast CMOS RAM
  • Supports floating-point calculation
  • Single-slot design for Series 90-70 backplanes
  • Capacity for up to 12K inputs and 12K outputs
  • Supports up to 8K analog I/O
  • Integrated battery-backed calendar clock
  • Three-position operation mode switch and keyswitch memory protection
  • Compatible with IC660/IC661 and IC697 I/O products

Applications

  • Automotive manufacturing and paint shop control
  • Power plant turbine and grid switching management
  • Pulp and paper mill high-speed processing
  • Chemical and oil refinery process control
  • Food and beverage batch mixing and pasteurization

Technical Specifications

Product Model IC697CGR935
Product Line Series 90-70
Processor 96 MHz 80486DX4
Memory 1 MB CMOS RAM
Current Draw 3.1 Amperes
Operating Temperature 0 to 50 degC
Form Factor Single Slot

Installation Guidelines

  • Ensure the rack power is turned OFF before inserting or removing the module.
  • Set the keyswitch to MEMORY PROTECT OFF during initial installation.
  • Connect the battery to one of the two battery connectors on the module to ensure memory retention.
  • Install the module into Slot 1 of Rack 0 for standard CPU configuration.
  • Upon power-up, the top-left OK LED should blink during the self-diagnostic sequence.
  • Handle with care to prevent ESD damage; use a grounded wrist strap when handling internal components.

FAQ

What is the primary function of the IC697CGR935?

The IC697CGR935 is a 32-bit floating-point CPU module used in GE Series 90-70 PLC systems, specifically required for implementing CPU redundancy to ensure high system availability.

Can the memory be protected?

Yes, the module features a physical keyswitch for memory protection, preventing unauthorized changes to program and configuration data when set to the protected position.

How is the module programmed?

The module is programmed and configured using MS-DOS or Windows-based software via a programmer connected through parallel communications or a Bus Transmitter module.
