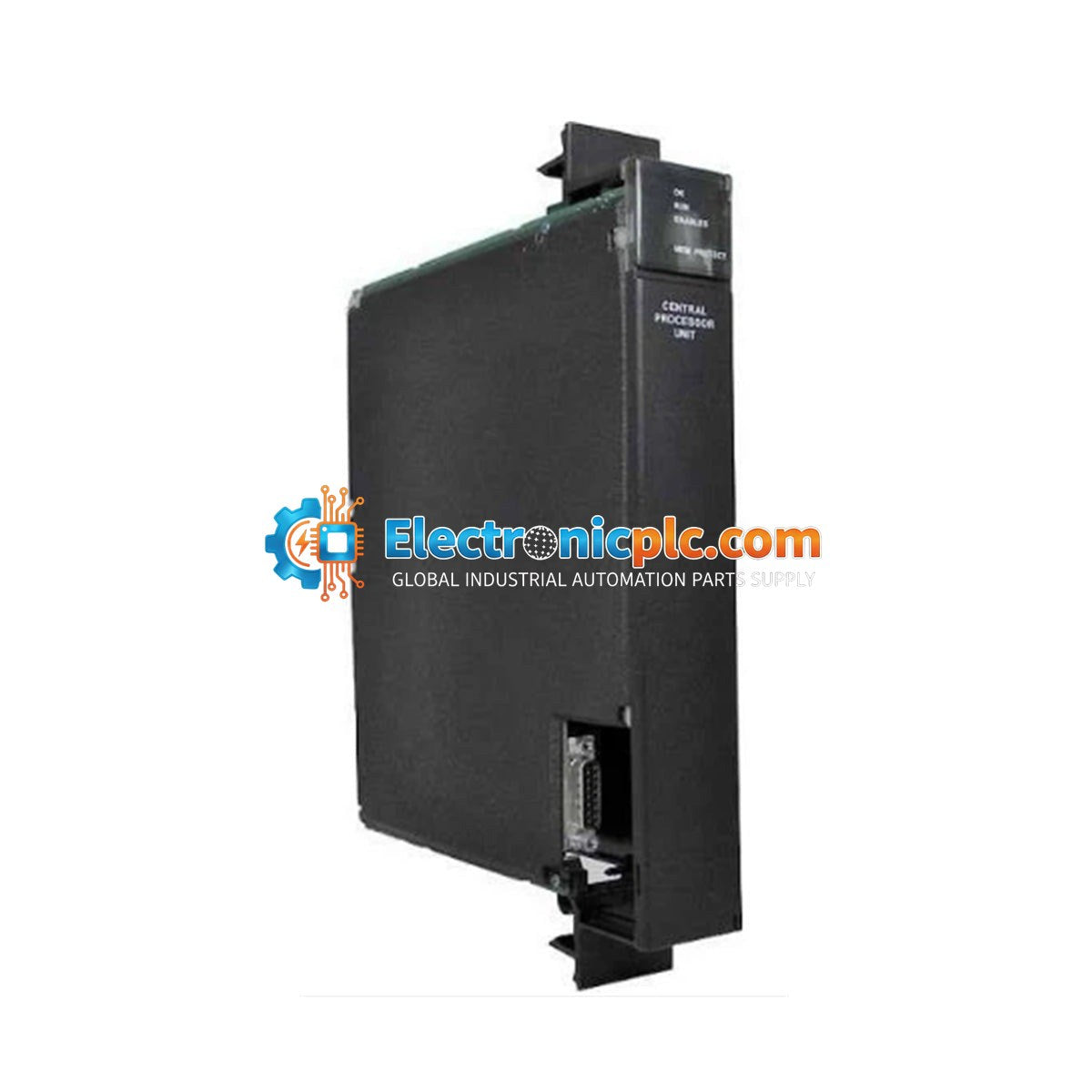

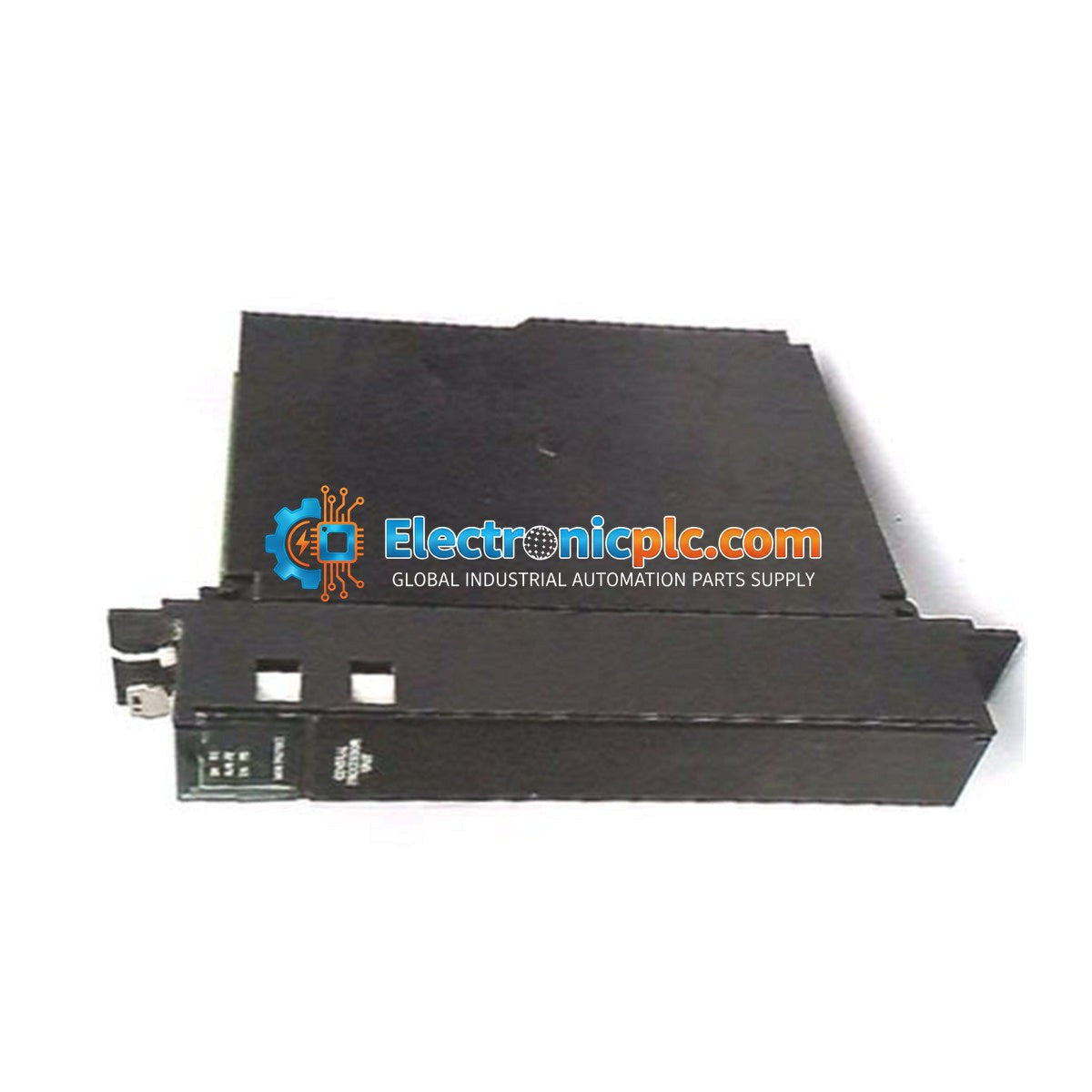

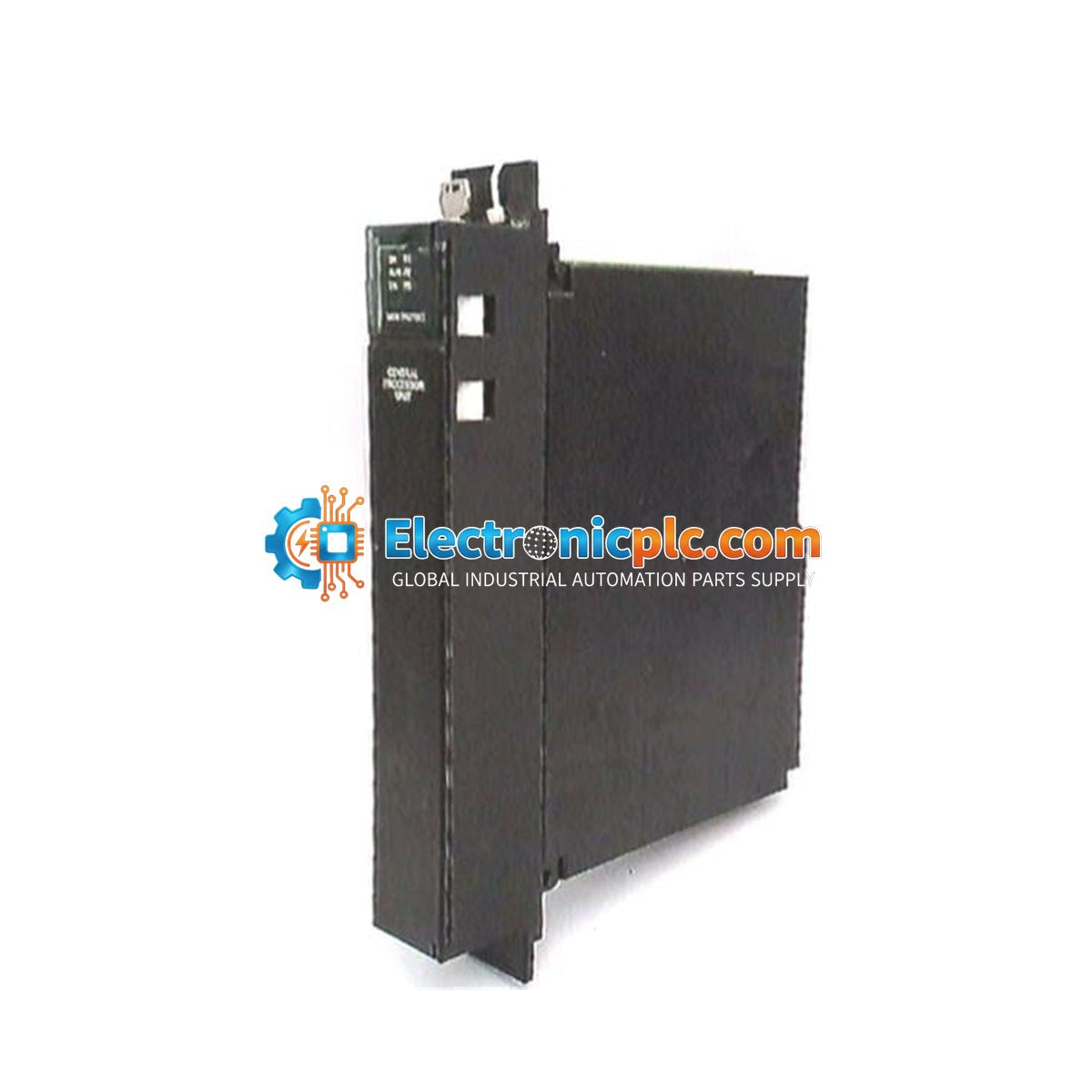

GE Fanuc IC697CPX928 Series 90-70 CPU Module

GE Fanuc IC697CPX928 Series 90-70 CPU Module

Description

The IC697CPX928 is a high-performance central processing unit designed for the GE Fanuc Series 90-70 PLC platform. Built around an 80486DX4 microprocessor operating at 96 MHz, this module provides...

16 la gente está viendo esto ahora mismo

Disponibilidad: Bajas existencias: quedan 8

SKU: IC697CPX928
Proveedora: GE FANUC
tipo: PLC CPU Module
Related Series:

Envíos y devoluciones

Entrega confiable a nivel mundial

  • Transportistas: Envíos a través de DHL, FedEx, UPS o USPS .
  • Envío: Los pedidos se procesan en 1-2 días hábiles y se envían dentro de 3-5 días hábiles .
  • Seguimiento: Detalles completos de seguimiento proporcionados por correo electrónico después del envío.

Garantía de devolución de dinero de 30 días

  • Garantía: período de devolución de 30 días para productos en stock y sellados de fábrica.
  • Condición: Los artículos deben estar sin abrir, sin usar y en su embalaje original.
  • Autenticidad: Garantizamos hardware 100% original y auténtico.

¿Necesitas más información? Consulta nuestra Política de envíos y reembolsos completa.

Autenticidad y garantía

  • Garantía genuina: Suministramos únicamente piezas de automatización industrial 100% originales, nuevas y selladas de fábrica .
  • Cobertura total: cada componente está respaldado por una garantía integral de 12 meses a partir de la fecha de compra.
  • Trazabilidad: Todos los productos se entregan con documentación original de fábrica y accesorios para un pleno cumplimiento industrial.

Soporte técnico y abastecimiento

  • Asistencia de expertos: Nuestro equipo técnico ofrece consulta gratuita para ayudarle a verificar la compatibilidad de los sistemas DCS y PLC.
  • Abastecimiento de piezas raras: nos especializamos en componentes obsoletos y difíciles de encontrar de Allen-Bradley, Siemens, ABB, HIMA y más.
  • Consultas al por mayor: contáctenos en pambo@5gplc.com para obtener precios por volumen o cotizaciones de proyectos personalizados.
Ver todos los detalles

Description

The IC697CPX928 is a high-performance central processing unit designed for the GE Fanuc Series 90-70 PLC platform. Built around an 80486DX4 microprocessor operating at 96 MHz, this module provides the computational speed required for complex logic execution and large-scale data management. It features 6 MB of onboard RAM and a rapid scan rate of 0.4 microseconds per Boolean function, making it suitable for demanding industrial applications including power generation, steel manufacturing, and oil and gas processing. The module supports up to 12K discrete I/O points, ensuring efficient control of distributed automation infrastructures.

Features

  • High-Speed Processing: 80486DX4 CPU clocked at 96 MHz for high-throughput logic execution.
  • Memory Capacity: 6 MB of CMOS RAM for extensive user programs and data storage, plus 256KB of non-volatile flash memory.
  • Connectivity: Integrated communication suite featuring one RS232 port and two RS485 ports for HMI, programming, and network integration.
  • System Scalability: Supports up to 12,288 discrete I/O points and 8,192 analog I/O points.
  • Data Integrity: Utilizes an IC697ACC701 lithium battery for non-volatile memory backup during power loss.

Applications

The IC697CPX928 is designed for mission-critical industrial automation environments requiring high-speed logic and large I/O counts. Typical applications include:

  • Large-scale distributed control systems (DCS).
  • Automated manufacturing and assembly lines.
  • Oil refinery and petrochemical process control.
  • Power generation and utility management systems.

Technical Specifications

Model IC697CPX928
Brand GE Fanuc
Series Series 90-70
Microprocessor 80486DX4 (96 MHz)
Execution Speed 0.4 microseconds / Boolean function
RAM 6 MB
Flash Memory 256 KB
Max Discrete I/O 12,288 points
Max Analog I/O 8,192 points
Input Voltage 5 VDC
Current Draw 3.1 Amps
Operating Temperature 0 to 60 deg Celsius
Battery Type IC697ACC701 Lithium

Installation Guidelines

  • Power Down: Always disconnect power from the PLC rack before inserting or removing the CPU module to prevent electrical damage.
  • ESD Protection: Use a grounded wrist strap when handling the module to prevent electrostatic discharge damage to sensitive internal components.
  • Seating: Ensure the module is fully seated in the designated Series 90-70 rack slot and secure the locking levers to maintain proper electrical contact.
  • Environment: Ensure the installation environment is within the 0 to 60 deg Celsius range and provides adequate ventilation for heat dissipation.
  • Wiring: Route communication cables away from high-voltage power lines to minimize electromagnetic interference (EMI).

FAQ

What battery does the IC697CPX928 use?
The module uses the IC697ACC701 lithium battery to maintain RAM data during power outages.

Can this module handle analog I/O?
Yes, it supports up to 8,192 analog I/O points within the total system capacity.

What is the scan rate of this CPU?
The module features a scan rate of 0.4 microseconds per Boolean function.
