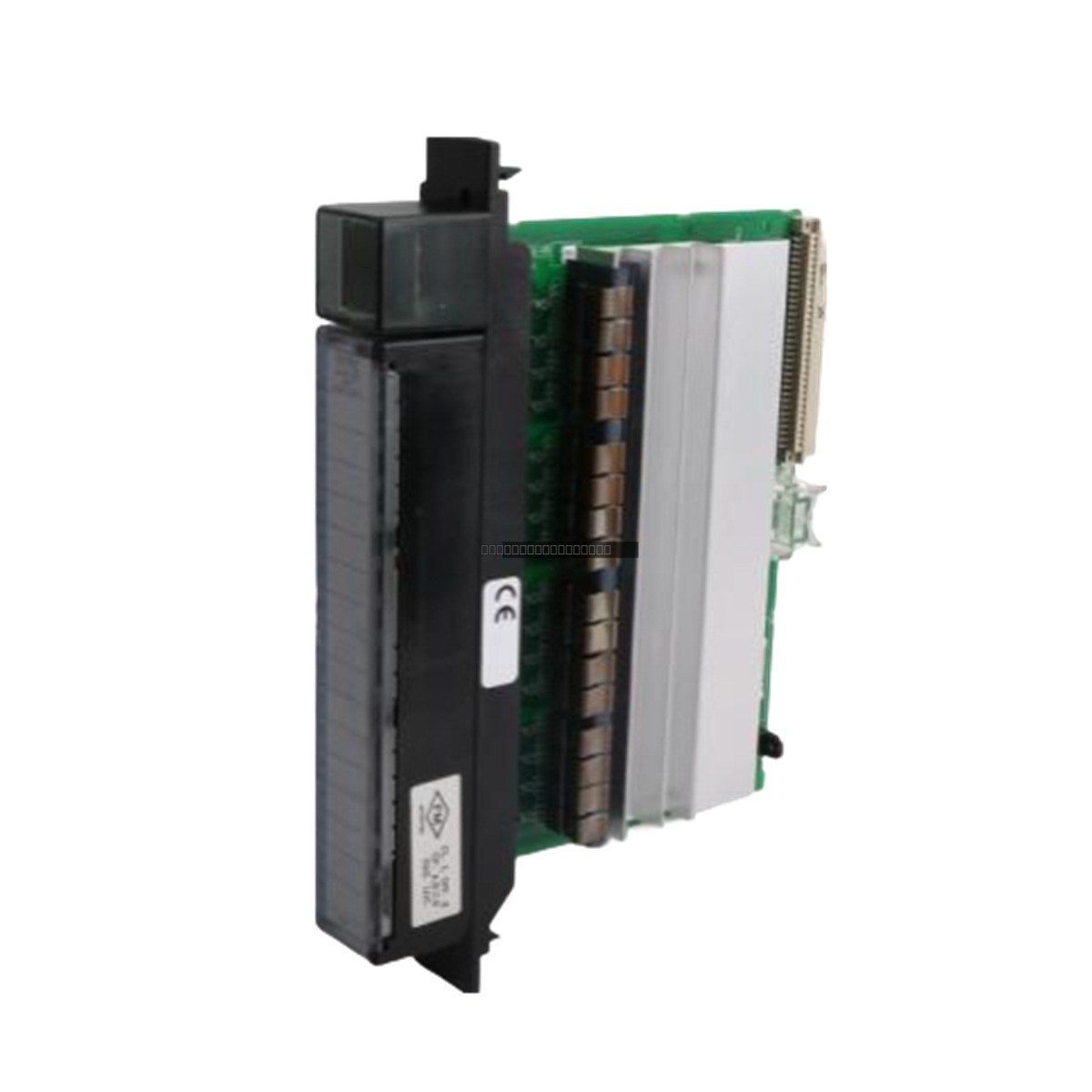

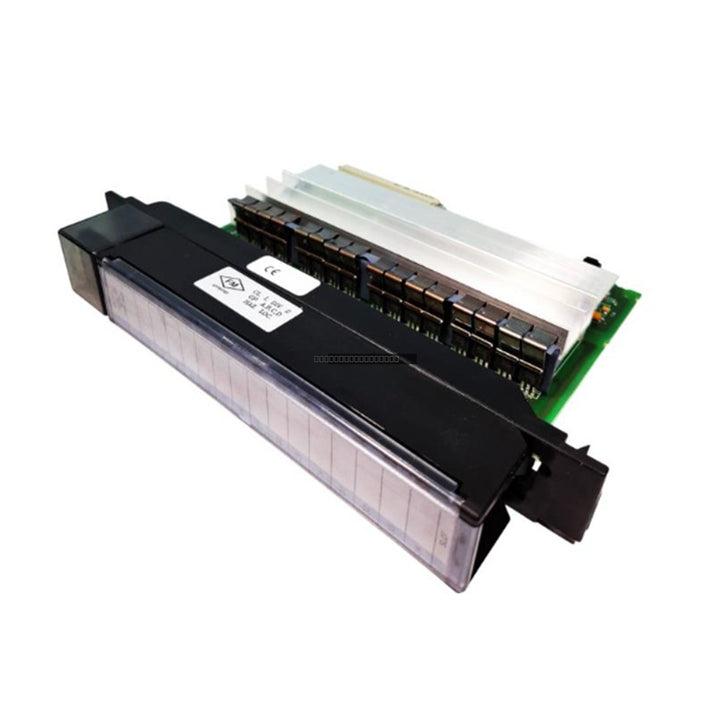

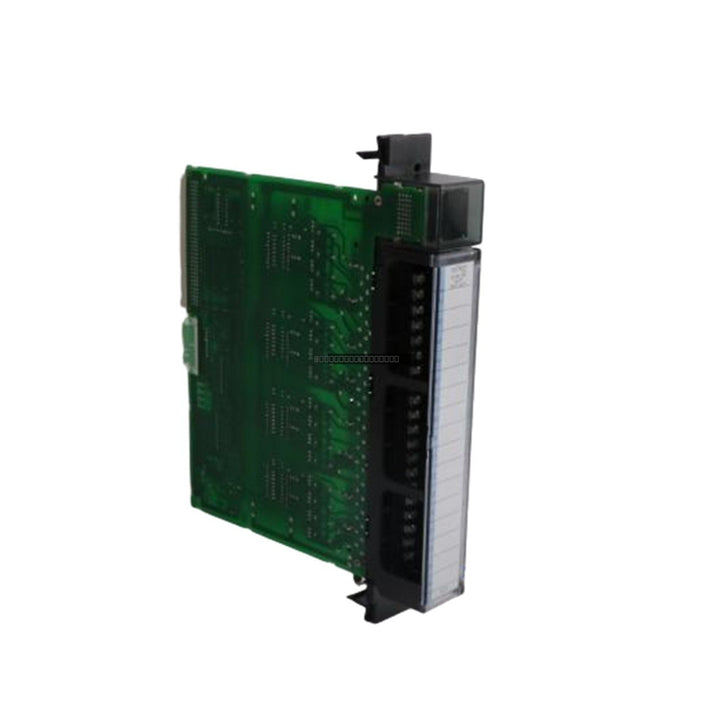

General Electric IC697MDL740 90-70 Series Discrete Output Module

General Electric IC697MDL740 90-70 Series Discrete Output Module

The General Electric IC697MDL740 is a high-performance discrete output module designed for the Series 90-70 PLC platform. This module provides 16 output points, organized into four isolated groups of four...

17 la gente está viendo esto ahora mismo

Disponibilidad: Bajas existencias: quedan 3

SKU: IC697MDL740
Proveedora: General Electric
tipo: Discrete Output Module
Related Series:

Envíos y devoluciones

Entrega confiable a nivel mundial

  • Transportistas: Envíos a través de DHL, FedEx, UPS o USPS .
  • Envío: Los pedidos se procesan en 1-2 días hábiles y se envían dentro de 3-5 días hábiles .
  • Seguimiento: Detalles completos de seguimiento proporcionados por correo electrónico después del envío.

Garantía de devolución de dinero de 30 días

  • Garantía: período de devolución de 30 días para productos en stock y sellados de fábrica.
  • Condición: Los artículos deben estar sin abrir, sin usar y en su embalaje original.
  • Autenticidad: Garantizamos hardware 100% original y auténtico.

¿Necesitas más información? Consulta nuestra Política de envíos y reembolsos completa.

Autenticidad y garantía

  • Garantía genuina: Suministramos únicamente piezas de automatización industrial 100% originales, nuevas y selladas de fábrica .
  • Cobertura total: cada componente está respaldado por una garantía integral de 12 meses a partir de la fecha de compra.
  • Trazabilidad: Todos los productos se entregan con documentación original de fábrica y accesorios para un pleno cumplimiento industrial.

Soporte técnico y abastecimiento

  • Asistencia de expertos: Nuestro equipo técnico ofrece consulta gratuita para ayudarle a verificar la compatibilidad de los sistemas DCS y PLC.
  • Abastecimiento de piezas raras: nos especializamos en componentes obsoletos y difíciles de encontrar de Allen-Bradley, Siemens, ABB, HIMA y más.
  • Consultas al por mayor: contáctenos en pambo@5gplc.com para obtener precios por volumen o cotizaciones de proyectos personalizados.
Ver todos los detalles

The General Electric IC697MDL740 is a high-performance discrete output module designed for the Series 90-70 PLC platform. This module provides 16 output points, organized into four isolated groups of four points each, allowing for flexible application across different supply phases. Engineered for industrial reliability, it supports 24-48 VDC operation and is capable of driving various inductive and incandescent loads, including size-4 contactors.

Features

  • 16 discrete output points arranged in four isolated groups.
  • Rated for 24-48 VDC operation with 2 Amps per point output current.
  • High inrush current capacity (up to 10x rated current) for demanding inductive loads.
  • Integrated LED status indicators for each point and a dedicated 'FUSE' indicator for internal fault diagnostics.
  • Mechanically keyed design to prevent incorrect module insertion.
  • Software-configurable I/O references, eliminating the need for physical DIP switches or jumpers.

Technical Specifications

Model IC697MDL740
Series 90-70
Output Points 16
Voltage Range 20 to 60 VDC
Rated Voltage 24 to 48 VDC
Output Current 2 Amps per point (4 Amps per group)
Inrush Current 20 Amps (max) for 20 ms
Response Time (Off) 2 ms (max)
Isolation Voltage 1500 Volts
Required Current 0.15 Amps

Applications

  • Automotive assembly lines for robot coordination and conveyor control.
  • Power generation facilities including turbine control and grid synchronization.
  • Oil and gas refinery systems for drilling monitoring and emergency shutdown (ESD) management.
  • Municipal water treatment plants for pump and valve automation.

Installation Guidelines

  • Ensure the PLC system is powered down before inserting or removing the module from the rack.
  • Use the front-mounted jackscrew to secure or release the module; turn counter-clockwise to detach the board for wiring access.
  • The terminal block accepts wire sizes ranging from AWG #22 to AWG #14. For AWG #14, ensure insulation diameter does not exceed 0.135 inches.
  • Secure wire bundles using the integrated cleats at the bottom of the board to prevent strain on terminals.
  • Each of the four isolated groups is protected by an internal 10-amp fuse; ensure proper load calculation to avoid nuisance tripping.

FAQ

What is the primary function of the IC697MDL740?

The IC697MDL740 is a 16-point positive logic discrete output module used in GE Series 90-70 PLC systems to interface with and control high-current DC field devices such as solenoids and motor starters.

How are the outputs grouped?

The 16 points are divided into four isolated groups of four points each, allowing for independent power supply configurations for each group.

Does this module require manual configuration?

No, the module is software-configurable. All I/O references are set via the PLC programming software, and the module is mechanically keyed to ensure correct physical installation.
