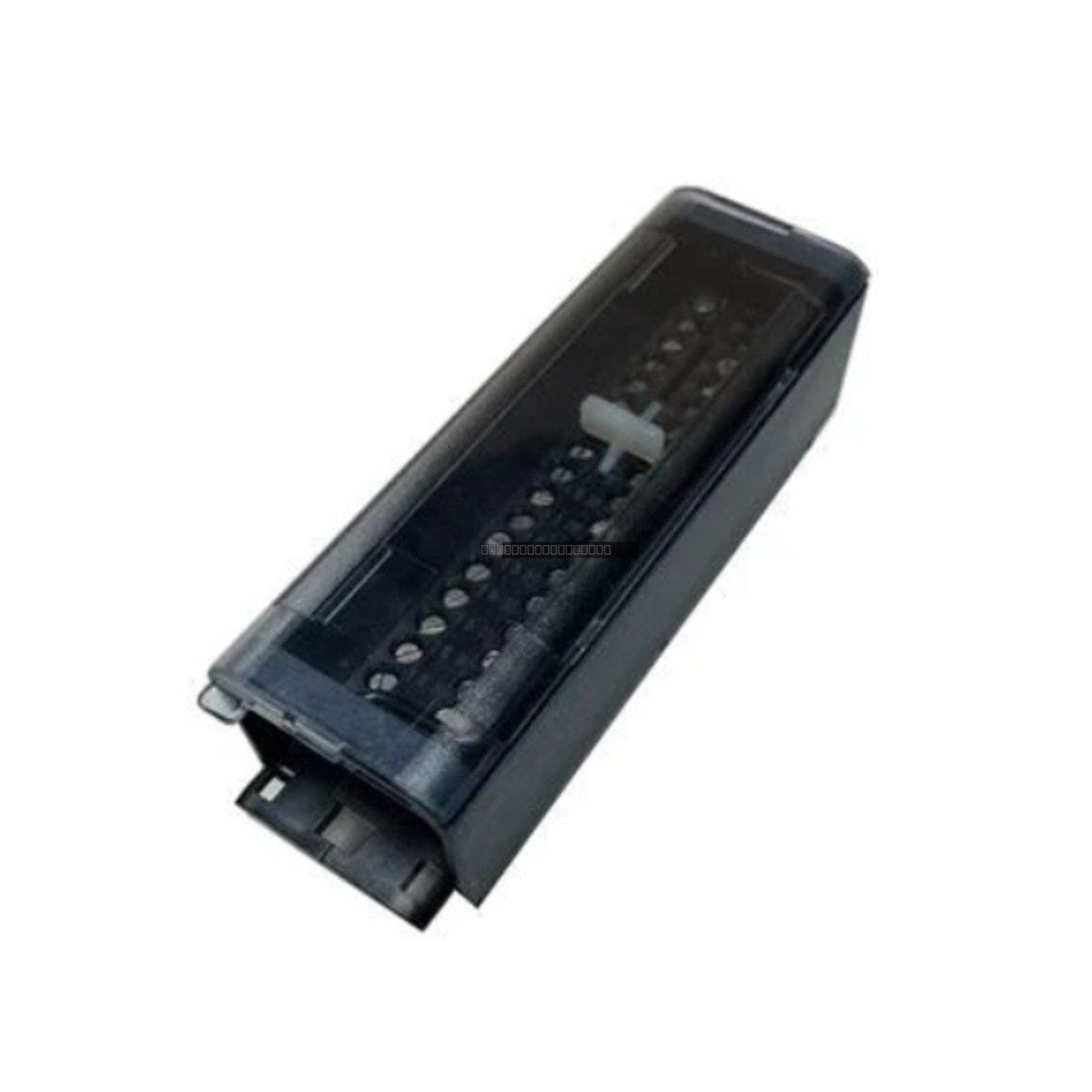

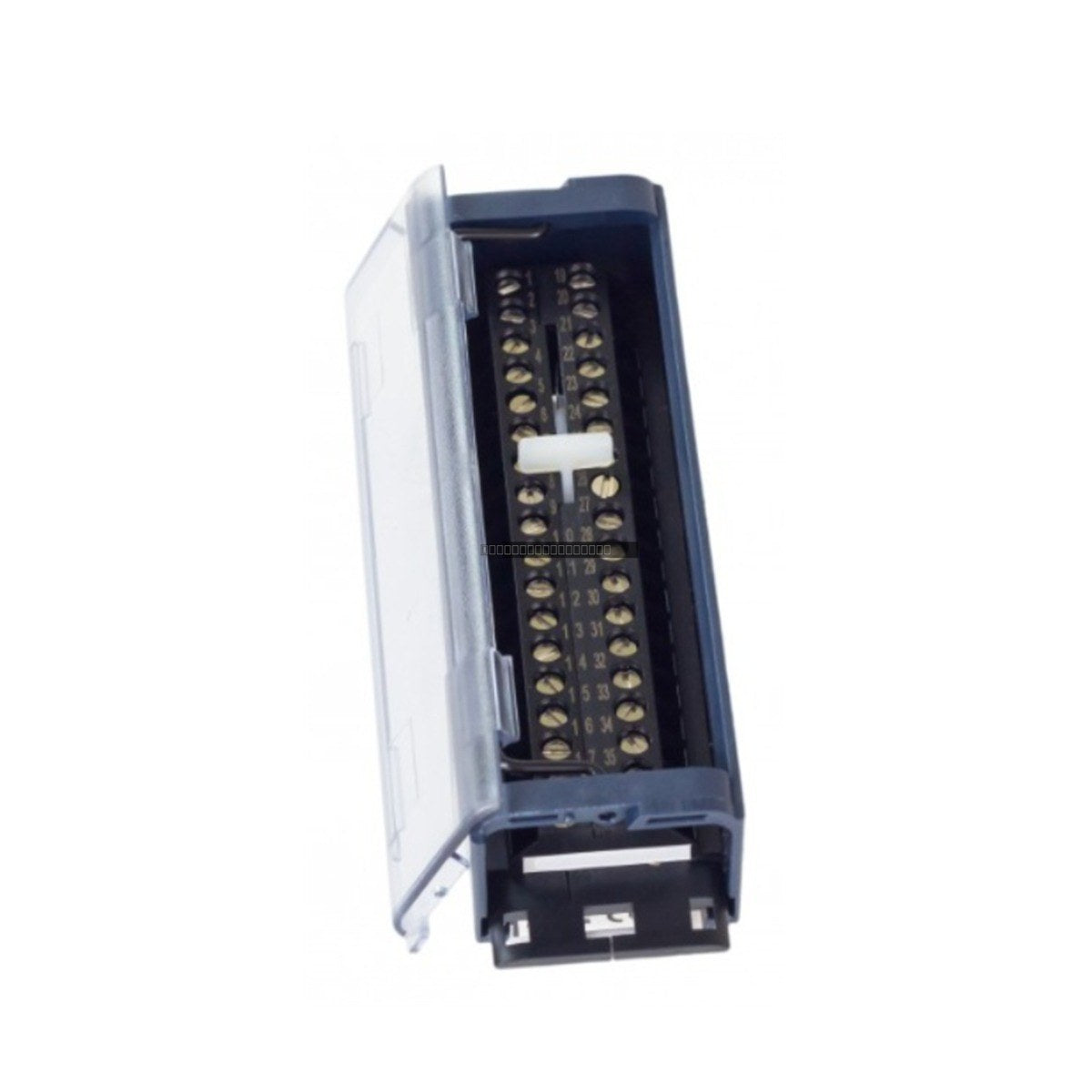

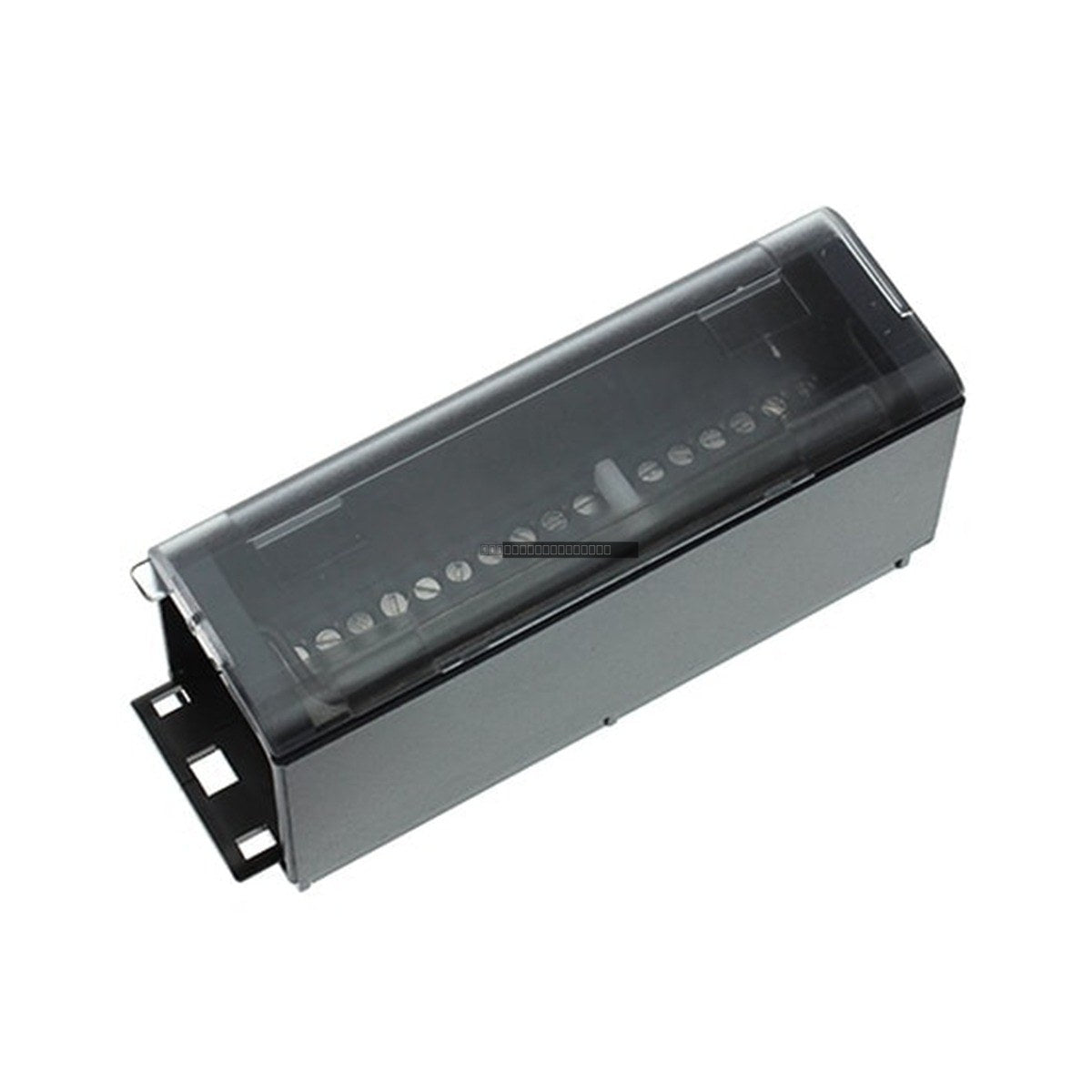

General Electric IC694TBB032 36-Connection Box-Style Terminal Block

General Electric IC694TBB032 36-Connection Box-Style Terminal Block

The General Electric IC694TBB032 is a high-density, box-style terminal block designed for seamless integration with GE PACSystems RX3i and Series 90-30 PLC modules. It provides 36 screw-type connection points, facilitating...

23 la gente está viendo esto ahora mismo

Disponibilidad: Bajas existencias: quedan 5

SKU: IC694TBB032
Proveedora: General Electric
tipo: Terminal Block
Related Series:

Envíos y devoluciones

Entrega confiable a nivel mundial

  • Transportistas: Envíos a través de DHL, FedEx, UPS o USPS .
  • Envío: Los pedidos se procesan en 1-2 días hábiles y se envían dentro de 3-5 días hábiles .
  • Seguimiento: Detalles completos de seguimiento proporcionados por correo electrónico después del envío.

Garantía de devolución de dinero de 30 días

  • Garantía: período de devolución de 30 días para productos en stock y sellados de fábrica.
  • Condición: Los artículos deben estar sin abrir, sin usar y en su embalaje original.
  • Autenticidad: Garantizamos hardware 100% original y auténtico.

¿Necesitas más información? Consulta nuestra Política de envíos y reembolsos completa.

Autenticidad y garantía

  • Garantía genuina: Suministramos únicamente piezas de automatización industrial 100% originales, nuevas y selladas de fábrica .
  • Cobertura total: cada componente está respaldado por una garantía integral de 12 meses a partir de la fecha de compra.
  • Trazabilidad: Todos los productos se entregan con documentación original de fábrica y accesorios para un pleno cumplimiento industrial.

Soporte técnico y abastecimiento

  • Asistencia de expertos: Nuestro equipo técnico ofrece consulta gratuita para ayudarle a verificar la compatibilidad de los sistemas DCS y PLC.
  • Abastecimiento de piezas raras: nos especializamos en componentes obsoletos y difíciles de encontrar de Allen-Bradley, Siemens, ABB, HIMA y más.
  • Consultas al por mayor: contáctenos en pambo@5gplc.com para obtener precios por volumen o cotizaciones de proyectos personalizados.
Ver todos los detalles

The General Electric IC694TBB032 is a high-density, box-style terminal block designed for seamless integration with GE PACSystems RX3i and Series 90-30 PLC modules. It provides 36 screw-type connection points, facilitating reliable field wiring for high-density I/O applications in industrial automation environments.

Features

  • 36-point screw terminal configuration for high-density I/O modules.
  • Standard-depth outer cover design, consistent with the profile of most RX3i and Series 90-30 modules.
  • Compatible with both PACSystems RX3i and Series 90-30 PLC product lines.
  • Robust box-style construction for secure wire retention.

Applications

  • Automotive assembly line robotic controls.
  • Oil and gas refinery process control systems.
  • Water and wastewater treatment facility automation.
  • Power generation control and monitoring systems.
  • General factory floor manufacturing control systems.

Technical Specifications

Model IC694TBB032
Terminal Count 36
Terminal Type Screw type
Wire Gauge Supported #14-26 AWG (solid or stranded)
Tightening Torque 7 lb-in (0.79 N-m)
Wire Strip Length 0.310 inches (7.87 mm)
Product Line PACSystems RX3i / Series 90-30

Installation Guidelines

  • Ensure all power is removed from the PLC rack before installing or removing the terminal block to prevent electrical shock or equipment damage.
  • Align the terminal block carefully with the module connector before pressing firmly into place.
  • Use appropriate wire stripping tools to ensure the conductor is exposed to the specified 0.310-inch length.
  • Tighten screw terminals to the recommended 7 lb-in torque to ensure a reliable electrical connection and prevent terminal damage.
  • For applications requiring thicker insulation (e.g., AC I/O modules), consider the extended-depth IC694TBB132 model.
  • Maintain proper cable management to avoid mechanical stress on the terminal block connections.

FAQ

What is the primary function of the IC694TBB032?

The IC694TBB032 is a 36-pin terminal block used to provide a physical interface for field wiring to high-density I/O modules within the GE PACSystems RX3i and Series 90-30 PLC families.

How does the IC694TBB032 differ from the IC694TBB132?

Both models are functionally identical in terms of pinout and capacity. The IC694TBB132 features an extended outer cover that is approximately 1/2 inch (13mm) deeper, designed to accommodate thicker wire insulation often found in AC I/O applications.

Can I use this with spring-style modules?

While this block is the box-style (screw) version, it is generally compatible with the same modules that accept the spring-style (IC694TBS032) block, as the pinout and module interface are identical.
