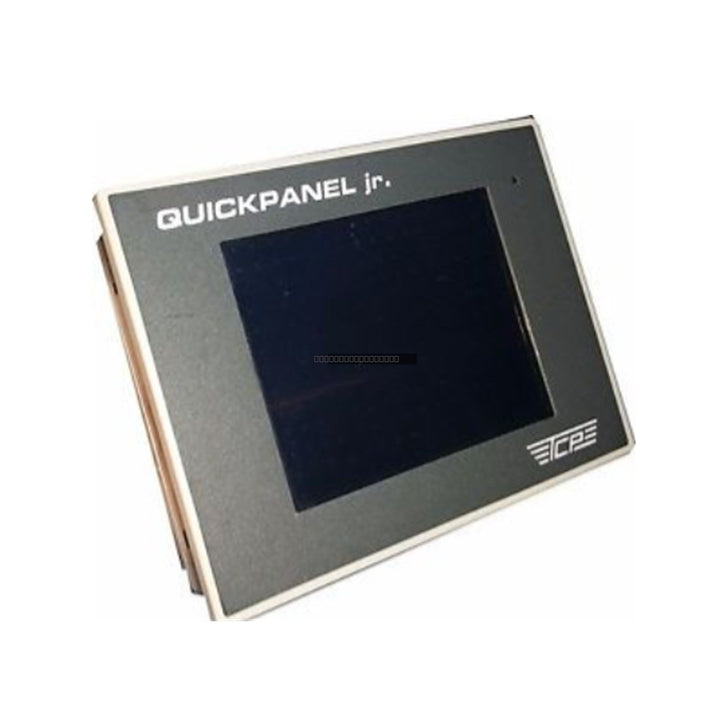

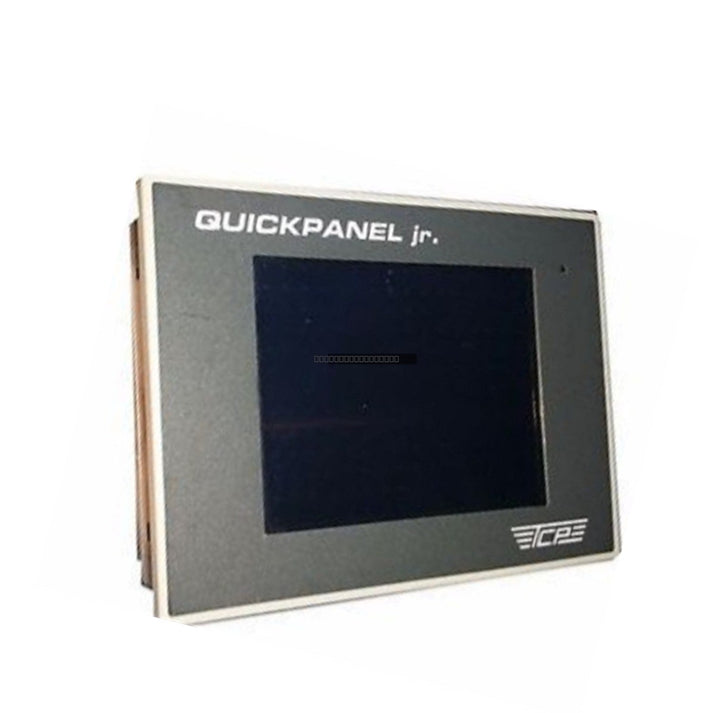

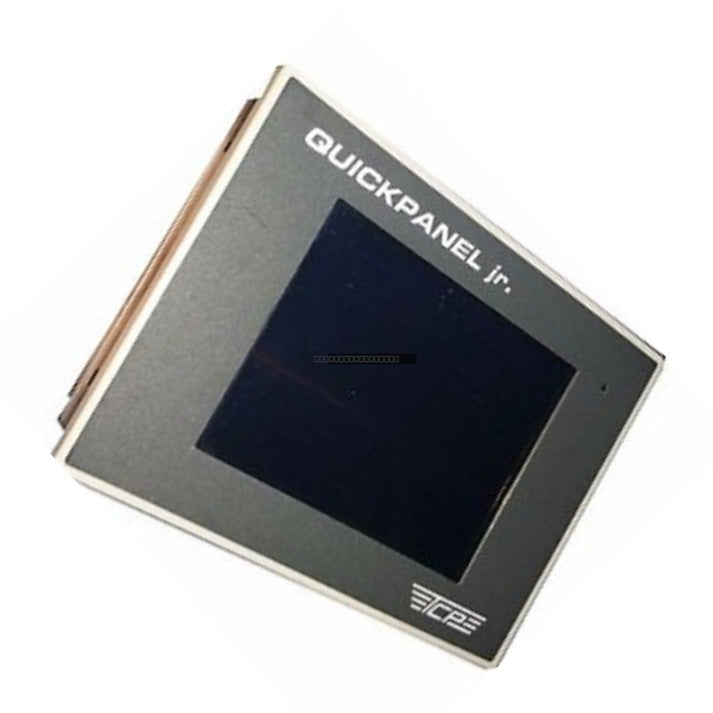

GE Fanuc QPJ2D101L2P QuickPanel Jr. Operator Interface Terminal

GE Fanuc QPJ2D101L2P QuickPanel Jr. Operator Interface Terminal

Description

The GE Fanuc QPJ2D101L2P is a compact operator interface terminal belonging to the QuickPanel Junior series. Designed for localized machine monitoring and control, this unit features a 4.7-inch monochrome LCD...

16 la gente está viendo esto ahora mismo

Disponibilidad: Bajas existencias: quedan 8

SKU: QPJ2D101L2P
Proveedora: GE FANUC
tipo: Operator Interface Terminal
Related Series:

Envíos y devoluciones

Entrega confiable a nivel mundial

  • Transportistas: Envíos a través de DHL, FedEx, UPS o USPS .
  • Envío: Los pedidos se procesan en 1-2 días hábiles y se envían dentro de 3-5 días hábiles .
  • Seguimiento: Detalles completos de seguimiento proporcionados por correo electrónico después del envío.

Garantía de devolución de dinero de 30 días

  • Garantía: período de devolución de 30 días para productos en stock y sellados de fábrica.
  • Condición: Los artículos deben estar sin abrir, sin usar y en su embalaje original.
  • Autenticidad: Garantizamos hardware 100% original y auténtico.

¿Necesitas más información? Consulta nuestra Política de envíos y reembolsos completa.

Autenticidad y garantía

  • Garantía genuina: Suministramos únicamente piezas de automatización industrial 100% originales, nuevas y selladas de fábrica .
  • Cobertura total: cada componente está respaldado por una garantía integral de 12 meses a partir de la fecha de compra.
  • Trazabilidad: Todos los productos se entregan con documentación original de fábrica y accesorios para un pleno cumplimiento industrial.

Soporte técnico y abastecimiento

  • Asistencia de expertos: Nuestro equipo técnico ofrece consulta gratuita para ayudarle a verificar la compatibilidad de los sistemas DCS y PLC.
  • Abastecimiento de piezas raras: nos especializamos en componentes obsoletos y difíciles de encontrar de Allen-Bradley, Siemens, ABB, HIMA y más.
  • Consultas al por mayor: contáctenos en pambo@5gplc.com para obtener precios por volumen o cotizaciones de proyectos personalizados.
Ver todos los detalles

Description

The GE Fanuc QPJ2D101L2P is a compact operator interface terminal belonging to the QuickPanel Junior series. Designed for localized machine monitoring and control, this unit features a 4.7-inch monochrome LCD touchscreen with a 320 x 240 pixel resolution. It serves as a robust alternative to traditional hardwired control panels, allowing operators to manage telemetry data and machine status through a consolidated digital interface. This unit is widely utilized in industrial environments such as packaging lines, material handling, and water treatment systems to streamline operator interaction and reduce the maintenance requirements associated with mechanical pushbuttons and indicators.

Features

  • 4.7-inch monochrome LCD display providing clear visual feedback for process variables.
  • Analog resistive touchscreen for reliable operator input in industrial settings.
  • 256 KB of non-volatile Flash EPROM memory for secure storage of graphical configurations and driver profiles.
  • Compatible with QuickDesigner Version 3.7 or later for screen development and system configuration.
  • NEMA 4X/12 and IP65 rated front panel, ensuring protection against dust and water ingress in harsh environments.
  • Supports integration with various industrial communication protocols, including Modbus, Profibus, and DeviceNet, via compatible add-on modules.

Applications

This operator interface is engineered for distributed control applications where space is at a premium. It is frequently deployed in:

  • Automated packaging and assembly machinery.
  • Wastewater treatment process skids.
  • Material handling and conveyor control systems.
  • Localized telemetry and status monitoring for PLC-based architectures.

Technical Specifications

Brand GE Fanuc Total Control
Model QPJ2D101L2P
Product Line QuickPanel Jr.
Display Size 4.7 inches (diagonal)
Resolution 320 x 240 pixels
Memory 256 KB Flash EPROM
Input Voltage 24 VDC
Power Consumption 12 Watts (max)
Operating Temperature 0 to 50 deg C
Enclosure Rating NEMA 4X / 12, IP65 (front)

Installation Guidelines

  • Ensure the panel cutout is prepared according to manufacturer specifications to maintain the NEMA/IP seal integrity.
  • Use a 24 VDC power supply that meets the power requirements of the unit; verify polarity before connection to prevent damage.
  • Ground the unit properly to the control cabinet chassis to mitigate electromagnetic interference (EMI).
  • Avoid installing the terminal in areas subject to extreme vibration or direct exposure to high-heat sources.
  • Handle the touchscreen surface with care to avoid scratches or punctures; use only compatible styluses or clean fingers for operation.
  • Power down the system before performing any wiring changes or maintenance on the terminal.

FAQ

What software is required to program this terminal? The QPJ2D101L2P requires QuickDesigner Version 3.7 or later for creating and compiling screen configurations.

Can this unit communicate with non-GE PLCs? Yes, the QuickPanel Junior series is designed to interface with various industrial protocols, including Allen-Bradley, Modicon, and Profibus, provided the appropriate communication drivers or modules are utilized.

What is the primary memory type for this device? It uses 256 KB of non-volatile Flash EPROM, which ensures that your configuration and data are retained even during a power loss.
