Description

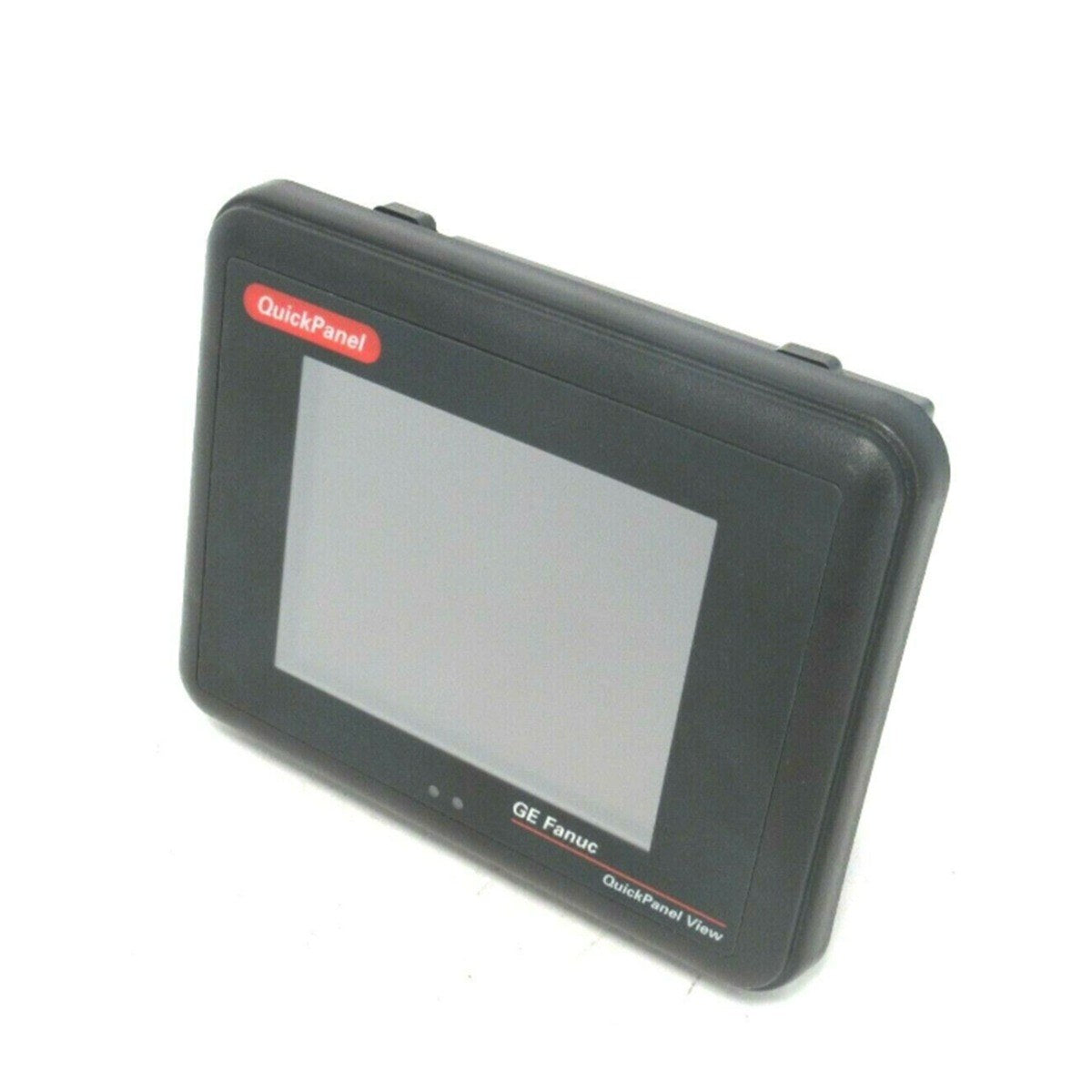

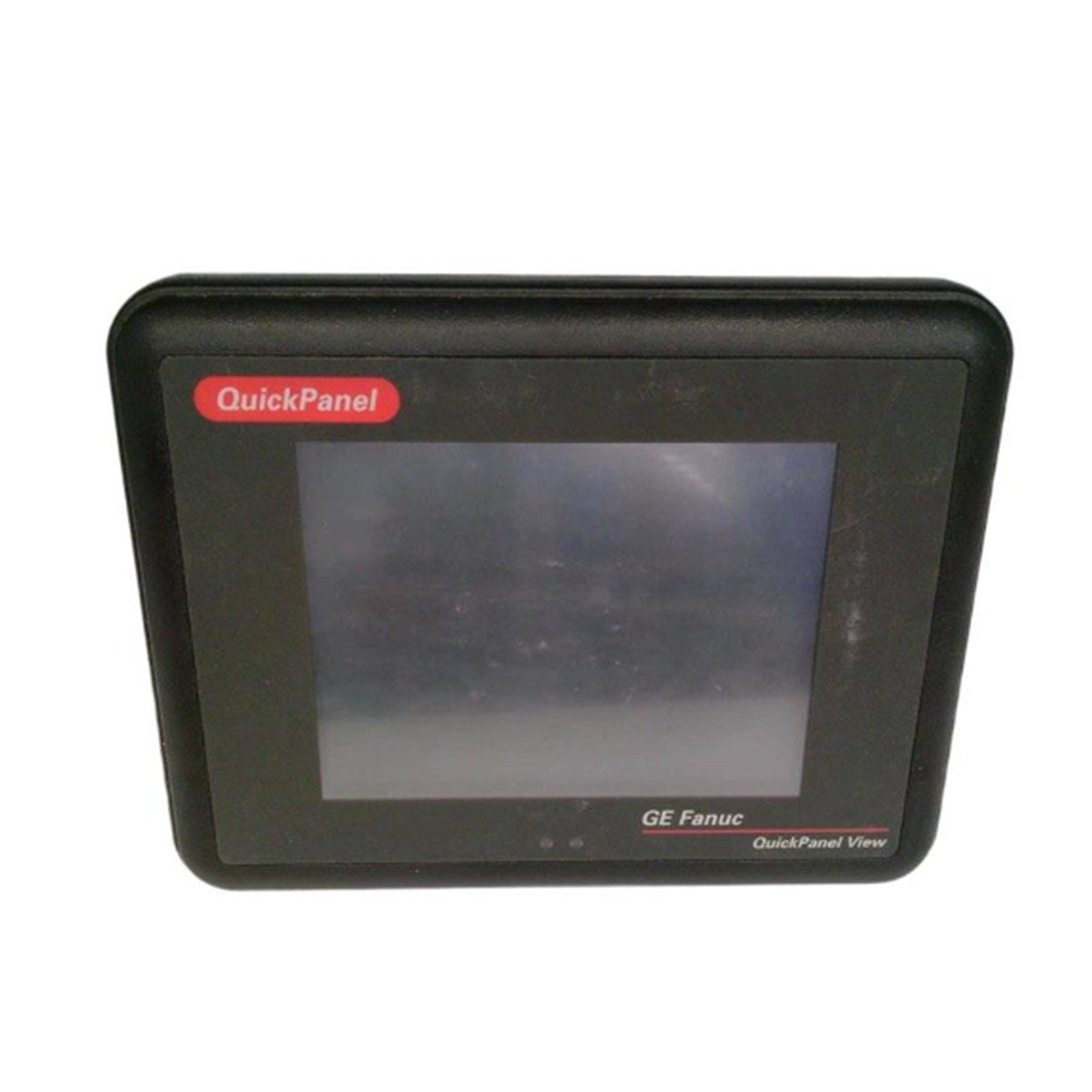

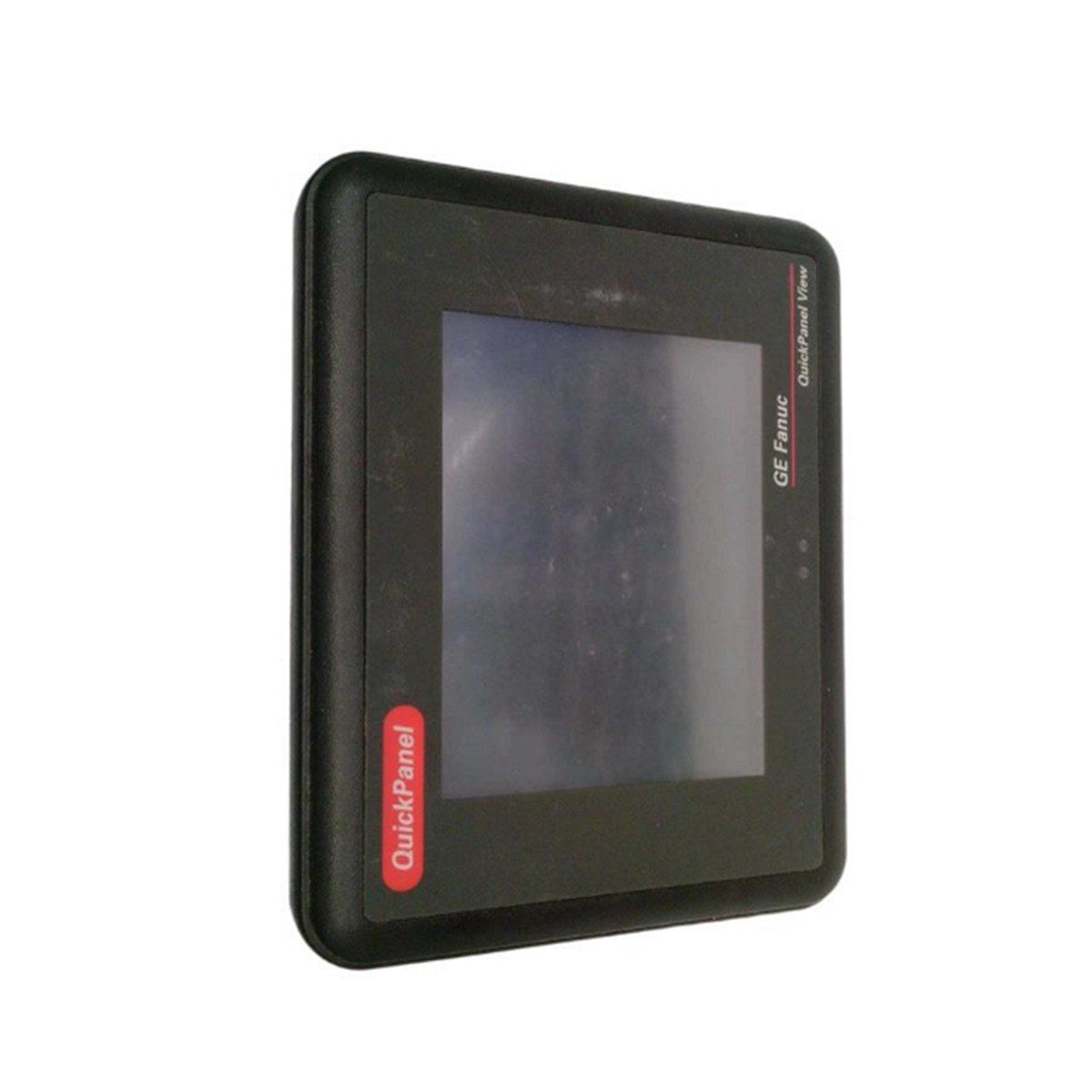

The GE Fanuc IC754VSB06MTD is a rugged operator interface engineered to deliver precise machine and process visualization across automated industrial environments. Running on the Microsoft Windows CE.NET operating system, this Human Machine Interface (HMI) combines standard file management and command-line execution with an efficient Intel XScale PXA255 processor running at 200 MHz. This terminal is extensively deployed in severe industrial environments including oil refining, power generation, and chemical processing plants to consolidate machine-level data into a single operational window. By rendering real-time diagnostic analytics, the unit helps plant personnel isolate process anomalies swiftly, mitigating critical system failures and significantly cutting down unexpected facility downtime.

System Architecture and Connectivity

The core computing layer couples 16 MB of non-volatile Flash memory with 16 MB of high-speed Dynamic RAM (DRAM) and a dedicated 512 KB bootloader ROM to secure system initialization. Data communication to host Programmable Logic Controllers (PLCs) relies on two primary physical layers. For high-speed networking, a single RJ45 Ethernet interface transfers data at 10/100 Mbps using the Ethernet I/P protocol over segment lengths reaching up to 100 meters. Local serial field connections are established via a combined RS232 / RS485 9-pin D-shell port capable of handling point-to-point or multidrop daisy-chain topologies. The serial data lines integrate an onboard 1.0 A, 125 V fast-blow Littlefuse cartridge (part number 154001) to protect internal components from field voltage surges.

Features

• 5.75-inch Passive FSTN monochrome display with 320 x 240 resolution.
• 12-bit analog resistive touchscreen for reliable operator input.
• NEMA 4/4X/12 rated enclosure for harsh industrial environments.
• Integrated real-time clock with battery-backed memory retention.
• Programmable tri-color LED for custom status indication.

Technical Specifications

Installation Guidelines

• Ensure the panel cutout is prepared according to the specific dimensions for the QuickPanel View series to maintain the NEMA 4/4X seal.
• Use shielded communication cables for Ethernet and Serial connections to minimize EMI interference in high-noise industrial zones.
• Verify that the 24 VDC power source is stable and within the 12-30 VDC range before connection.
• Maintain proper ventilation around the unit to ensure the ambient temperature remains within the -10 to 60 deg C operating range.
• Always power down the unit before performing any maintenance, such as replacing the BR2032 memory retention battery.

FAQ

What is the primary purpose of the IC754VSB06MTD?
It is designed as an operator interface terminal for machine and process visualization, allowing operators to monitor and control PLC data in real-time.

Can the backlight be replaced?
No, the CCFL backlight assembly is non-replaceable and is rated for a 50,000-hour half-life.
