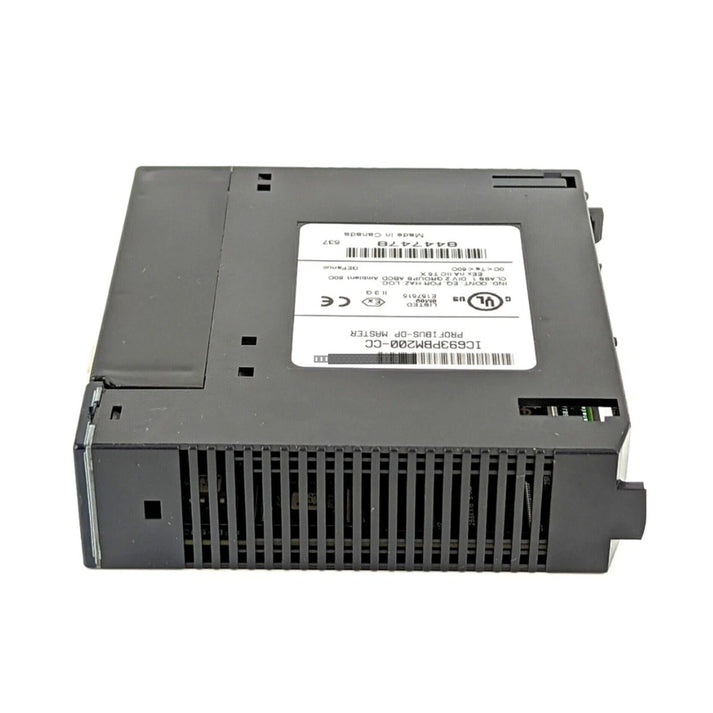

GE Fanuc IC693PBM200 Profibus DP Master Module Series 90-30

GE Fanuc IC693PBM200 Profibus DP Master Module Series 90-30

The IC693PBM200 is a high-performance communication module designed for the GE Fanuc Series 90-30 Programmable Logic Controller (PLC) platform. As a PROFIBUS DP Master module, it enables the integration of...

19 la gente está viendo esto ahora mismo

Disponibilidad: Bajas existencias: quedan 3

SKU: IC693PBM200
Proveedora: General Electric
tipo: Profibus DP Master Module
Related Series:

Envíos y devoluciones

Entrega confiable a nivel mundial

  • Transportistas: Envíos a través de DHL, FedEx, UPS o USPS .
  • Envío: Los pedidos se procesan en 1-2 días hábiles y se envían dentro de 3-5 días hábiles .
  • Seguimiento: Detalles completos de seguimiento proporcionados por correo electrónico después del envío.

Garantía de devolución de dinero de 30 días

  • Garantía: período de devolución de 30 días para productos en stock y sellados de fábrica.
  • Condición: Los artículos deben estar sin abrir, sin usar y en su embalaje original.
  • Autenticidad: Garantizamos hardware 100% original y auténtico.

¿Necesitas más información? Consulta nuestra Política de envíos y reembolsos completa.

Autenticidad y garantía

  • Garantía genuina: Suministramos únicamente piezas de automatización industrial 100% originales, nuevas y selladas de fábrica .
  • Cobertura total: cada componente está respaldado por una garantía integral de 12 meses a partir de la fecha de compra.
  • Trazabilidad: Todos los productos se entregan con documentación original de fábrica y accesorios para un pleno cumplimiento industrial.

Soporte técnico y abastecimiento

  • Asistencia de expertos: Nuestro equipo técnico ofrece consulta gratuita para ayudarle a verificar la compatibilidad de los sistemas DCS y PLC.
  • Abastecimiento de piezas raras: nos especializamos en componentes obsoletos y difíciles de encontrar de Allen-Bradley, Siemens, ABB, HIMA y más.
  • Consultas al por mayor: contáctenos en pambo@5gplc.com para obtener precios por volumen o cotizaciones de proyectos personalizados.
Ver todos los detalles

The IC693PBM200 is a high-performance communication module designed for the GE Fanuc Series 90-30 Programmable Logic Controller (PLC) platform. As a PROFIBUS DP Master module, it enables the integration of the Series 90-30 system into complex fieldbus networks, facilitating seamless data exchange with up to 125 PROFIBUS DP slave devices. This module is essential for applications requiring robust, high-speed remote I/O communication and multi-vendor device interoperability.

Features

  • Compatible with all Series 90-30 baseplates (CPU, expansion, or remote).
  • Supports up to 125 PROFIBUS DP slave devices.
  • Configurable data transfer capacity up to 244 bytes of input and 244 bytes of output per slave.
  • Supports standard PROFIBUS transmission rates from 9.6 Kbaud up to 12 MBaud.

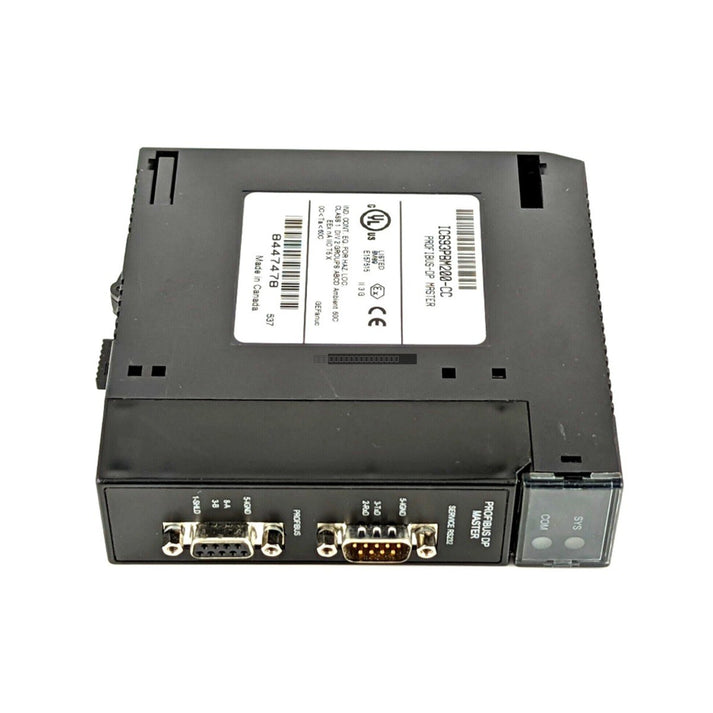

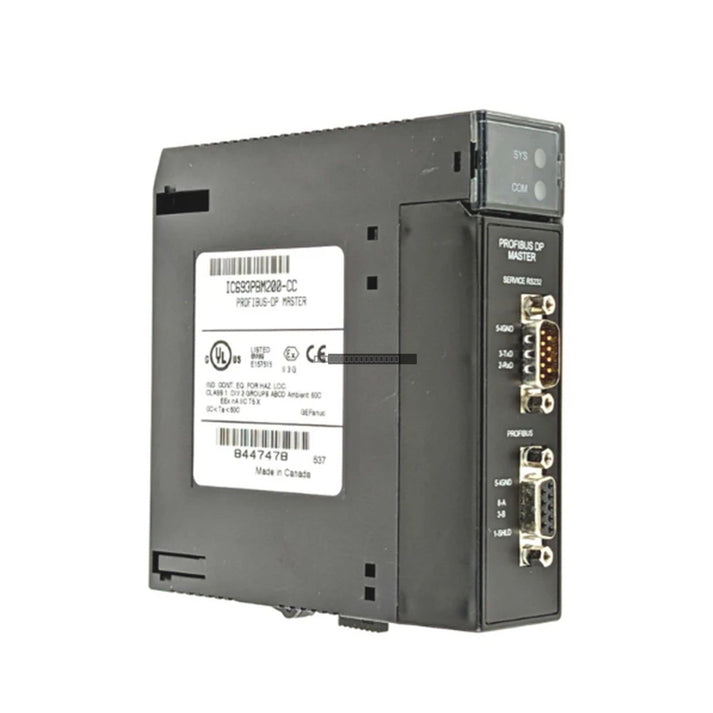

  • Includes one (1) RS485 PROFIBUS Master port and one (1) RS232 service port for configuration and firmware updates.
  • Integrated diagnostic capabilities including slave status bit arrays, network diagnostic counters, and master diagnostic counters.
  • Status monitoring via dedicated SYS and COM LEDs.

Applications

  • Automotive & Manufacturing: Synchronization of variable frequency drives (VFDs) and motor starters for conveyor systems and robotics.
  • Food & Beverage: High-speed I/O management for synchronized sorting and packaging lines.
  • Process Industry: Remote monitoring of sensors and actuators in steel, chemical, and plastic injection molding facilities.

Technical Specifications

Model IC693PBM200
Manufacturer General Electric
Bus Interface PROFIBUS DP Master
Backplane Current 450 mA at 5VDC (typical)
Baud Rates 9.6K, 19.2K, 93.75K, 187.5K, 500K, 1.5M, 3M, 6M, 12M
Max Slaves 125
Ports 1x RS485 (Profibus), 1x RS232 (Service)
Tariff Code 8537101190

Installation Guidelines

  • Power down the PLC rack completely before inserting or removing the module to prevent electrical damage.
  • The module can be installed in any slot on a Series 90-30 baseplate, excluding Slot 1, which is reserved for the CPU.
  • Ensure the use of high-quality, continuous shielded PROFIBUS cabling to maintain signal integrity.
  • Maintain a high-frequency ground connection within 18 inches of the module to maximize noise immunity in industrial environments.

FAQ

What is the primary function of the IC693PBM200?

It acts as a master node on a PROFIBUS-DP network, allowing a Series 90-30 PLC to act as a controller for remote I/O, drives, and other field devices.

Which software is required for configuration?

Configuration is typically performed using Proficy Machine Edition Logic Developer, version 2.6 or later.

How does the IC693PBM200 differ from the older HE693PBM101?

The IC693PBM200 provides a larger default slave status area (128 points) and organizes status bits by bus address for improved diagnostic clarity.
