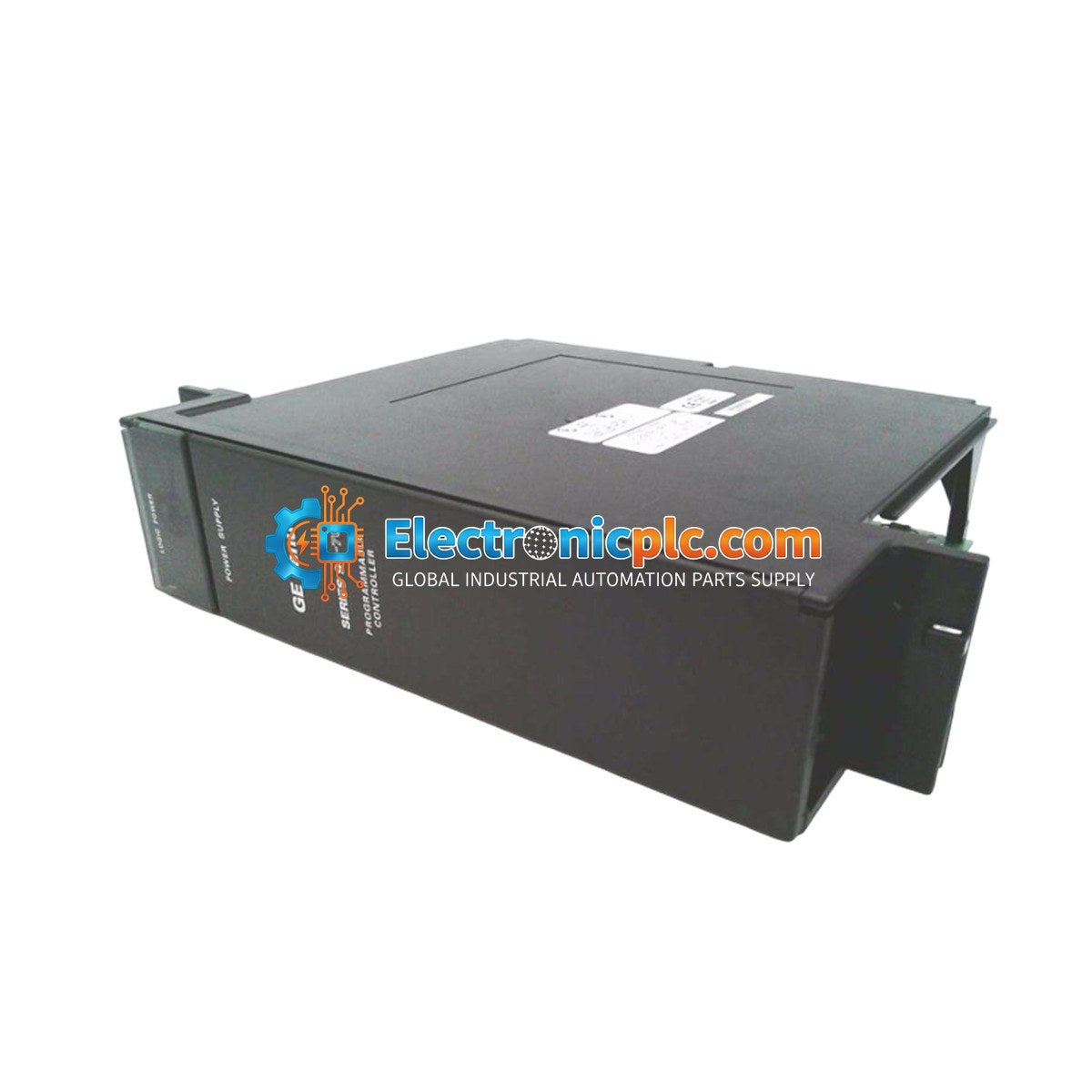

General Electric IC697PWR710 Series 90-70 PLC Power Supply Module

General Electric IC697PWR710 Series 90-70 PLC Power Supply Module

Description

The IC697PWR710 is a high-performance power supply module designed for the General Electric Series 90-70 programmable logic controller (PLC) platform. This rack-mountable unit provides regulated +5 VDC power and essential...

18 la gente está viendo esto ahora mismo

Disponibilidad: Bajas existencias: quedan 3

SKU: IC697PWR710
Proveedora: General Electric
tipo: PLC Power Supply Module
Related Series:

Envíos y devoluciones

Entrega confiable a nivel mundial

  • Transportistas: Envíos a través de DHL, FedEx, UPS o USPS .
  • Envío: Los pedidos se procesan en 1-2 días hábiles y se envían dentro de 3-5 días hábiles .
  • Seguimiento: Detalles completos de seguimiento proporcionados por correo electrónico después del envío.

Garantía de devolución de dinero de 30 días

  • Garantía: período de devolución de 30 días para productos en stock y sellados de fábrica.
  • Condición: Los artículos deben estar sin abrir, sin usar y en su embalaje original.
  • Autenticidad: Garantizamos hardware 100% original y auténtico.

¿Necesitas más información? Consulta nuestra Política de envíos y reembolsos completa.

Autenticidad y garantía

  • Garantía genuina: Suministramos únicamente piezas de automatización industrial 100% originales, nuevas y selladas de fábrica .
  • Cobertura total: cada componente está respaldado por una garantía integral de 12 meses a partir de la fecha de compra.
  • Trazabilidad: Todos los productos se entregan con documentación original de fábrica y accesorios para un pleno cumplimiento industrial.

Soporte técnico y abastecimiento

  • Asistencia de expertos: Nuestro equipo técnico ofrece consulta gratuita para ayudarle a verificar la compatibilidad de los sistemas DCS y PLC.
  • Abastecimiento de piezas raras: nos especializamos en componentes obsoletos y difíciles de encontrar de Allen-Bradley, Siemens, ABB, HIMA y más.
  • Consultas al por mayor: contáctenos en pambo@5gplc.com para obtener precios por volumen o cotizaciones de proyectos personalizados.
Ver todos los detalles

Description

The IC697PWR710 is a high-performance power supply module designed for the General Electric Series 90-70 programmable logic controller (PLC) platform. This rack-mountable unit provides regulated +5 VDC power and essential logic-level sequencing signals to the system backplane. Engineered for versatility, it supports a wide range of input voltages, including 120/240 VAC or 125 VDC, making it suitable for diverse industrial environments. The module features active power factor correction and integrated protection against overcurrent and overvoltage conditions to ensure system stability.

Features

  • Operates on 120/240 VAC (90-264 VAC range) or 125 VDC (100-150 VDC range).
  • Delivers up to 56 watts of output power with a nominal 5.1 VDC output.
  • Supports up to 11 amps of current on the 5V bus.
  • Active power factor correction (PF > 0.95) for efficient energy usage.
  • Capable of powering two racks simultaneously, provided the total load is within the 56W rating.
  • Integrated electronic short-circuit and overcurrent protection.
  • Slide-in rack mount design for installation in the leftmost slot of a Series 90-70 rack.

Applications

  • Process manufacturing (chemical, pharmaceutical, and batch processing).
  • Turbine control and monitoring systems.
  • Automated material handling and conveyor systems.
  • High-precision metalworking and industrial assembly equipment.
  • Electrical distribution and utility monitoring.

Technical Specifications

Parameter Specification
Model IC697PWR710
Input Voltage (AC) 90 to 264 VAC, 47 to 63 Hz
Input Voltage (DC) 100 to 150 VDC
Output Power 56 Watts (max)
Output Voltage 4.90 to 5.25 VDC (5.1 VDC nominal)
Output Current Up to 11 Amps
Ride Through Time 21 ms minimum
Power Factor > 0.95
Overvoltage Limit 6.2 Volts

Installation Guidelines

  • The module must be installed in the leftmost slot of the Series 90-70 rack, which is dedicated to the power supply.
  • Ensure the system power is disconnected before inserting or removing the module from the backplane.
  • Use copper AWG #16 (1.3mm2) wire rated for 75 degC for power input connections (L1 and N).
  • The ground terminal must be connected to the rack GND terminal and earth using copper AWG #12 (3.3mm2) wire rated for 75 degC to ensure proper grounding.
  • Verify that all wiring is secure and that the same wire type/size is used for terminals.
  • Maintain adequate ventilation around the rack to prevent overheating.

FAQ

What is the IC697PWR710?

The IC697PWR710 is a 56-Watt power supply module for the GE Series 90-70 PLC system, providing 5V DC power and sequencing signals to the rack.

Can this power supply support two racks?

Yes, a single IC697PWR710 can power two racks, provided the total power consumption of all modules in both racks does not exceed the 56-watt output capacity.

What protection features are included?

The module includes electronic short-circuit protection on the 5V bus and overvoltage protection with a 6.2V limit.
