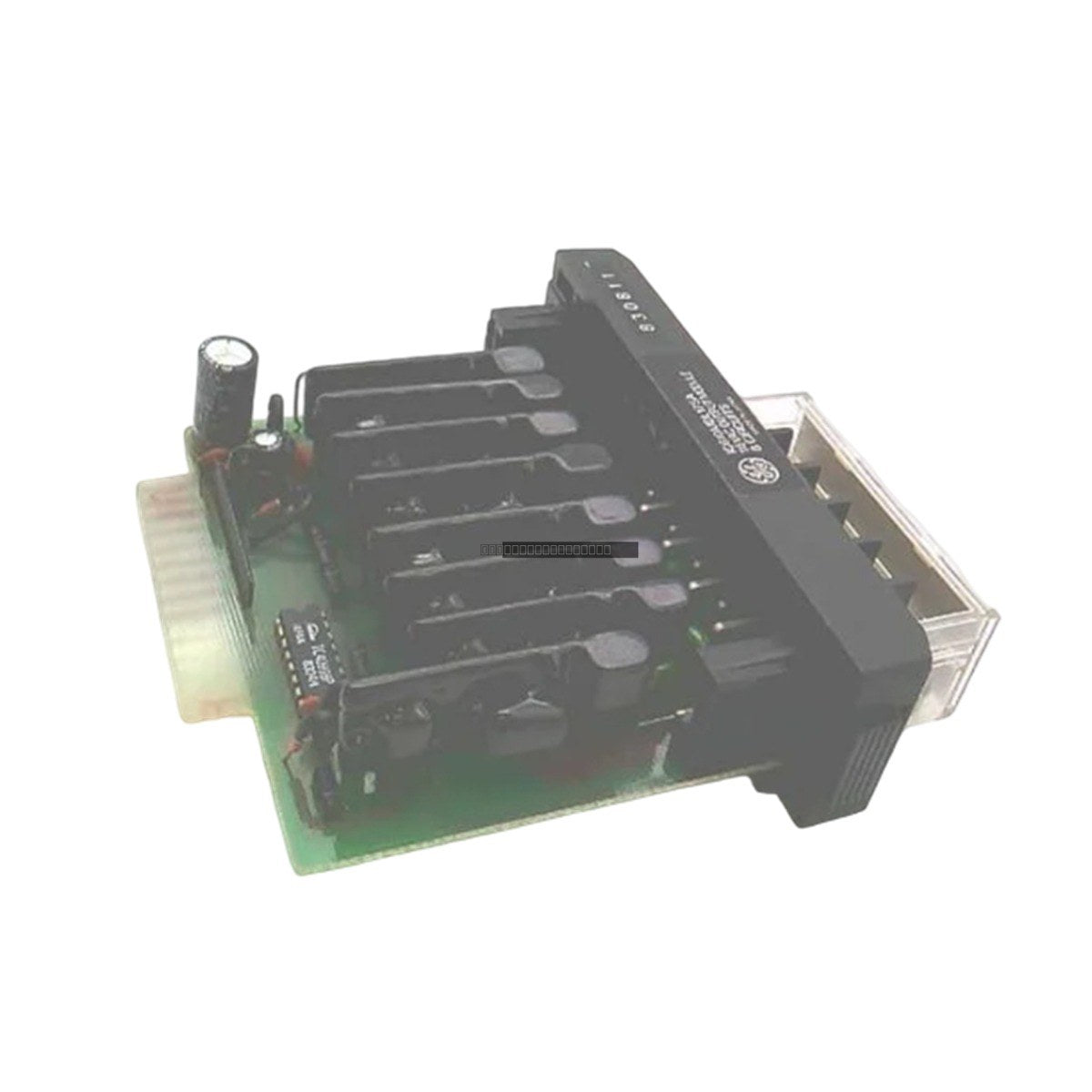

GE Fanuc IC610MDL180 Series One 8-Point Relay Output Module

GE Fanuc IC610MDL180 Series One 8-Point Relay Output Module

Description

The GE Fanuc IC610MDL180 is a robust 8-point relay output module engineered for the Series One PLC platform. This module is designed to provide reliable switching for field devices in...

20 la gente está viendo esto ahora mismo

Disponibilidad: Bajas existencias: quedan 3

SKU: IC610MDL180
Proveedora: GE FANUC
tipo: Relay Output Module
Related Series:

Envíos y devoluciones

Entrega confiable a nivel mundial

  • Transportistas: Envíos a través de DHL, FedEx, UPS o USPS .
  • Envío: Los pedidos se procesan en 1-2 días hábiles y se envían dentro de 3-5 días hábiles .
  • Seguimiento: Detalles completos de seguimiento proporcionados por correo electrónico después del envío.

Garantía de devolución de dinero de 30 días

  • Garantía: período de devolución de 30 días para productos en stock y sellados de fábrica.
  • Condición: Los artículos deben estar sin abrir, sin usar y en su embalaje original.
  • Autenticidad: Garantizamos hardware 100% original y auténtico.

¿Necesitas más información? Consulta nuestra Política de envíos y reembolsos completa.

Autenticidad y garantía

  • Garantía genuina: Suministramos únicamente piezas de automatización industrial 100% originales, nuevas y selladas de fábrica .
  • Cobertura total: cada componente está respaldado por una garantía integral de 12 meses a partir de la fecha de compra.
  • Trazabilidad: Todos los productos se entregan con documentación original de fábrica y accesorios para un pleno cumplimiento industrial.

Soporte técnico y abastecimiento

  • Asistencia de expertos: Nuestro equipo técnico ofrece consulta gratuita para ayudarle a verificar la compatibilidad de los sistemas DCS y PLC.
  • Abastecimiento de piezas raras: nos especializamos en componentes obsoletos y difíciles de encontrar de Allen-Bradley, Siemens, ABB, HIMA y más.
  • Consultas al por mayor: contáctenos en pambo@5gplc.com para obtener precios por volumen o cotizaciones de proyectos personalizados.
Ver todos los detalles

Description

The GE Fanuc IC610MDL180 is a robust 8-point relay output module engineered for the Series One PLC platform. This module is designed to provide reliable switching for field devices in industrial automation applications, including discrete manufacturing and process control. By utilizing independent relay contacts, the IC610MDL180 allows for flexible integration into various control architectures, ensuring operational stability and reliable signal execution under diverse load conditions.

Features

  • 8 independent relay output channels for versatile field device control.
  • Wide operating voltage range supporting 4 to 265 VAC.
  • Consistent 5 ms switching delay for both turn-on and turn-off cycles.
  • Low leakage current of 1 mA to prevent false triggering of sensitive inputs.
  • Designed for high-reliability performance in demanding industrial environments.

Applications

This module is suitable for interfacing PLC control logic with external field equipment such as contactors, solenoids, and indicators. Its relay-based output architecture makes it ideal for applications requiring galvanic isolation between the PLC backplane and the field-side load.

Technical Specifications

Model IC610MDL180
Product Line Series One
Output Points 8
Output Voltage Range 4 to 265 VAC
Line Frequency 47 to 63 Hz
Peak Inrush Current 5 A
Max Leakage Current 1 mA
Min Recommended Load 5 mA
Switching Delay 5 ms
Internal Power Consumption 45 mA

Installation Guidelines

  • Ensure the PLC power is disconnected before installing or removing the module from the rack.
  • Verify that the field wiring is properly secured to the terminal blocks to prevent intermittent connections.
  • Maintain adequate spacing within the enclosure to allow for proper heat dissipation.
  • Observe all local electrical codes regarding wire gauge and grounding requirements for relay output circuits.
  • Avoid routing high-voltage field wiring in the same conduit as low-voltage signal cables to minimize electromagnetic interference.

FAQ

What is the primary function of the IC610MDL180?
The IC610MDL180 is a relay output module for the Series One PLC, used to switch external field devices using 8 independent relay contacts.

Can this module handle high inrush currents?
Yes, the module is rated to support a peak inrush current of up to 5 A, provided it remains within the specified operational parameters.

Is there a minimum load requirement for this module?
Yes, to ensure reliable relay contact operation, it is recommended that the connected load be at least 5 mA.
