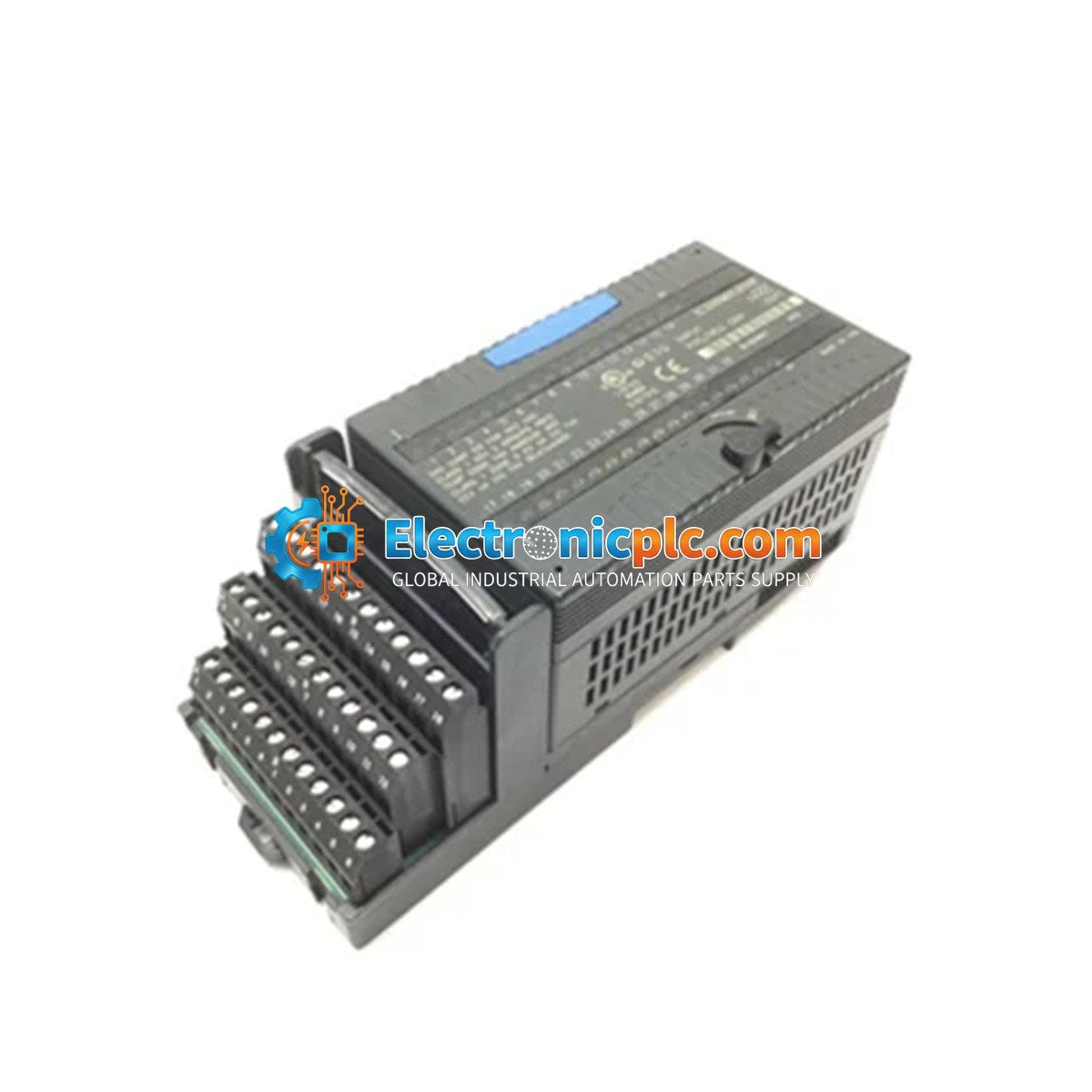

General Electric IC200MDL650 VersaMax 32-Point Discrete Input Module

General Electric IC200MDL650 VersaMax 32-Point Discrete Input Module

Description

The IC200MDL650 is a high-density 32-point discrete input module designed for the GE VersaMax I/O platform. This module provides reliable signal acquisition for industrial control systems, supporting both positive and...

16 la gente está viendo esto ahora mismo

Disponibilidad: Bajas existencias: quedan 5

SKU: IC200MDL650
Proveedora: General Electric
tipo: Digital Input Module
Related Series:

Envíos y devoluciones

Entrega confiable a nivel mundial

  • Transportistas: Envíos a través de DHL, FedEx, UPS o USPS .
  • Envío: Los pedidos se procesan en 1-2 días hábiles y se envían dentro de 3-5 días hábiles .
  • Seguimiento: Detalles completos de seguimiento proporcionados por correo electrónico después del envío.

Garantía de devolución de dinero de 30 días

  • Garantía: período de devolución de 30 días para productos en stock y sellados de fábrica.
  • Condición: Los artículos deben estar sin abrir, sin usar y en su embalaje original.
  • Autenticidad: Garantizamos hardware 100% original y auténtico.

¿Necesitas más información? Consulta nuestra Política de envíos y reembolsos completa.

Autenticidad y garantía

  • Garantía genuina: Suministramos únicamente piezas de automatización industrial 100% originales, nuevas y selladas de fábrica .
  • Cobertura total: cada componente está respaldado por una garantía integral de 12 meses a partir de la fecha de compra.
  • Trazabilidad: Todos los productos se entregan con documentación original de fábrica y accesorios para un pleno cumplimiento industrial.

Soporte técnico y abastecimiento

  • Asistencia de expertos: Nuestro equipo técnico ofrece consulta gratuita para ayudarle a verificar la compatibilidad de los sistemas DCS y PLC.
  • Abastecimiento de piezas raras: nos especializamos en componentes obsoletos y difíciles de encontrar de Allen-Bradley, Siemens, ABB, HIMA y más.
  • Consultas al por mayor: contáctenos en pambo@5gplc.com para obtener precios por volumen o cotizaciones de proyectos personalizados.
Ver todos los detalles

Description

The IC200MDL650 is a high-density 32-point discrete input module designed for the GE VersaMax I/O platform. This module provides reliable signal acquisition for industrial control systems, supporting both positive and negative logic wiring configurations. It is organized into four groups of eight input channels each, allowing for flexible integration with various field devices such as limit switches, proximity sensors, pushbuttons, and auxiliary contacts.

Features

  • 32 discrete input channels arranged in four groups of eight.
  • Supports both positive and negative logic configurations.
  • Configurable input filtering (0 ms, 1.0 ms default, or 7.0 ms) to suppress noise and eliminate mechanical contact bounce.
  • High-density design suitable for space-constrained control cabinets.
  • Group-to-group isolation rated at 250 VAC continuous and 1500 VAC for 1 minute.

Applications

  • Pump station control and monitoring of start/stop status.
  • Hydropower station signal acquisition for turbines and circuit breakers.
  • Intelligent fire-fighting water supply systems using pressure and level switches.
  • Thermal control and conveyor logic for industrial furnace applications.

Technical Specifications

Model IC200MDL650
Input Points 32
Nominal Input Voltage 24 VDC
ON-State Voltage 15 to 30 VDC
OFF-State Voltage 0 to 5 VDC
ON-State Current 2.0 to 5.5 mA
OFF-State Current 0 to 0.5 mA
Backplane Current 50 mA at 5 VDC
Input Impedance 10k Ohms (max)
Filter Times 0 ms, 1.0 ms (default), 7.0 ms

Installation Guidelines

  • Ensure the PLC system is powered down before installing or removing the module from the backplane.
  • Mount the module on a standard DIN rail or compatible VersaMax rack system, ensuring secure seating to maintain backplane connectivity.
  • Use shielded cabling for input signals to minimize electromagnetic interference (EMI) in high-noise environments.
  • Maintain proper wire routing to separate signal lines from high-voltage power cables.
  • Observe correct polarity when wiring for positive or negative logic configurations.
  • Handle with care using ESD-safe practices to prevent damage to sensitive internal components.

FAQs

What is the IC200MDL650?

The GE IC200MDL650 is a 32-point, 24VDC discrete input module from the VersaMax PLC series, used to interface field devices with the control system.

What is the input voltage range?

The module operates with a 24 VDC nominal voltage, with an input range of 0 to 30 VDC.

How are the inputs configured?

The 32 inputs are organized into four groups of eight channels each, supporting both positive and negative logic wiring.

Can the input response time be adjusted?

Yes, users can configure input filter times via the CPU software to 0 ms, 1.0 ms (default), or 7.0 ms to filter out noise or contact bounce.
