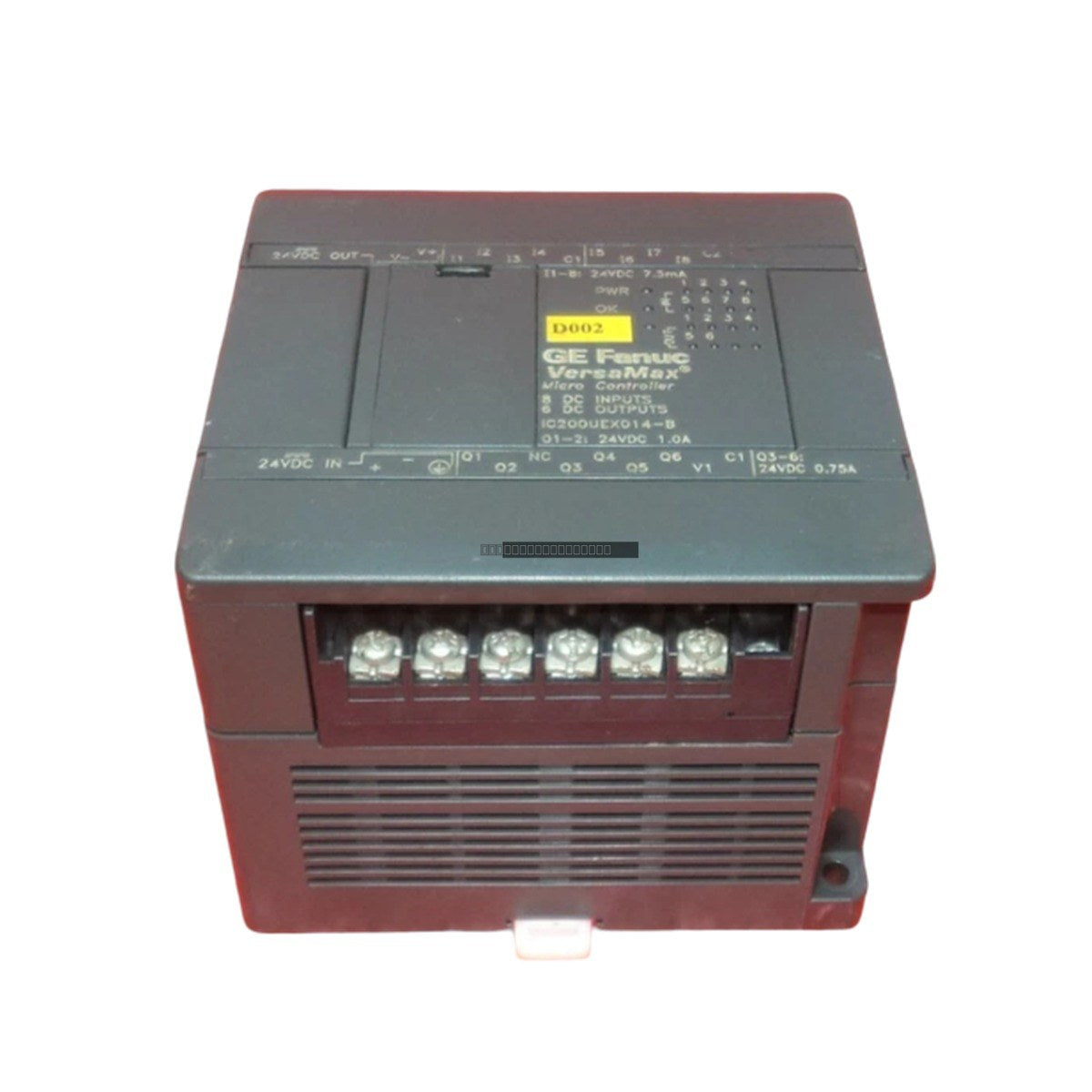

GE Fanuc IC200UEX014 VersaMax Micro Discrete Expansion Unit

GE Fanuc IC200UEX014 VersaMax Micro Discrete Expansion Unit

Description

The GE Fanuc IC200UEX014 is a high-density discrete I/O expansion unit designed to extend the capabilities of the VersaMax Micro controller series. This module provides a robust solution for localized...

26 la gente está viendo esto ahora mismo

Disponibilidad: Bajas existencias: quedan 9

SKU: IC200UEX014
Proveedora: GE FANUC
tipo: Discrete I/O Expansion Module
Related Series:

Envíos y devoluciones

Entrega confiable a nivel mundial

  • Transportistas: Envíos a través de DHL, FedEx, UPS o USPS .
  • Envío: Los pedidos se procesan en 1-2 días hábiles y se envían dentro de 3-5 días hábiles .
  • Seguimiento: Detalles completos de seguimiento proporcionados por correo electrónico después del envío.

Garantía de devolución de dinero de 30 días

  • Garantía: período de devolución de 30 días para productos en stock y sellados de fábrica.
  • Condición: Los artículos deben estar sin abrir, sin usar y en su embalaje original.
  • Autenticidad: Garantizamos hardware 100% original y auténtico.

¿Necesitas más información? Consulta nuestra Política de envíos y reembolsos completa.

Autenticidad y garantía

  • Garantía genuina: Suministramos únicamente piezas de automatización industrial 100% originales, nuevas y selladas de fábrica .
  • Cobertura total: cada componente está respaldado por una garantía integral de 12 meses a partir de la fecha de compra.
  • Trazabilidad: Todos los productos se entregan con documentación original de fábrica y accesorios para un pleno cumplimiento industrial.

Soporte técnico y abastecimiento

  • Asistencia de expertos: Nuestro equipo técnico ofrece consulta gratuita para ayudarle a verificar la compatibilidad de los sistemas DCS y PLC.
  • Abastecimiento de piezas raras: nos especializamos en componentes obsoletos y difíciles de encontrar de Allen-Bradley, Siemens, ABB, HIMA y más.
  • Consultas al por mayor: contáctenos en pambo@5gplc.com para obtener precios por volumen o cotizaciones de proyectos personalizados.
Ver todos los detalles

Description

The GE Fanuc IC200UEX014 is a high-density discrete I/O expansion unit designed to extend the capabilities of the VersaMax Micro controller series. This module provides a robust solution for localized automation, offering 14 discrete input channels and 6 discrete output channels. It is engineered for reliable operation in demanding industrial environments, including water treatment, power generation, and material handling systems, where space-efficient and scalable I/O is required.

Features

  • Provides 14 discrete input channels and 6 discrete output channels for expanded system control.
  • Operates on a standard 24 VDC power supply, ensuring compatibility with common industrial control architectures.
  • Features an integrated auxiliary power circuit capable of supplying 200 mA at 24 VDC for external field devices such as proximity sensors and limit switches.
  • Compact, space-saving design optimized for high-density DIN rail mounting in control cabinets.
  • Maintains strict electrical isolation between signal channels to ensure operational integrity.

Technical Specifications

Model IC200UEX014
Series VersaMax Micro
Input Channels 14
Output Channels 6
Signal Voltage 24 VDC
Power Consumption 4 Watts
Auxiliary Sensor Power 200 mA at 24 VDC
Operating Temperature 0 to 60 deg C
Storage Temperature -40 to 85 deg C
Humidity 5-95 percent (non-condensing)

Installation Guidelines

  • Ensure the main power supply is disconnected before installing or removing the expansion unit from the controller bus.
  • Mount the module on a standard DIN rail, ensuring secure mechanical seating to prevent vibration-related issues.
  • Maintain adequate clearance around the module to allow for proper heat dissipation and airflow.
  • Use shielded cabling for all I/O connections to minimize electromagnetic interference (EMI) in high-noise environments.
  • Verify that all field wiring is properly terminated and that the 24 VDC power supply is correctly polarized before energizing the system.
  • Follow standard ESD (Electrostatic Discharge) handling procedures when touching the module circuitry.

FAQ

What is the primary function of the IC200UEX014?

The IC200UEX014 is a discrete I/O expansion unit designed to increase the number of available inputs and outputs for a GE Fanuc VersaMax Micro controller, allowing for more complex machine control without needing a larger main processor.

Can this module power external sensors?

Yes, the module includes an onboard auxiliary power circuit that provides 200 mA at 24 VDC, which is suitable for powering external field devices like proximity or photoelectric sensors.

What is the operating temperature range for this unit?

The module is rated for operation in environments ranging from 0 to 60 deg C.
