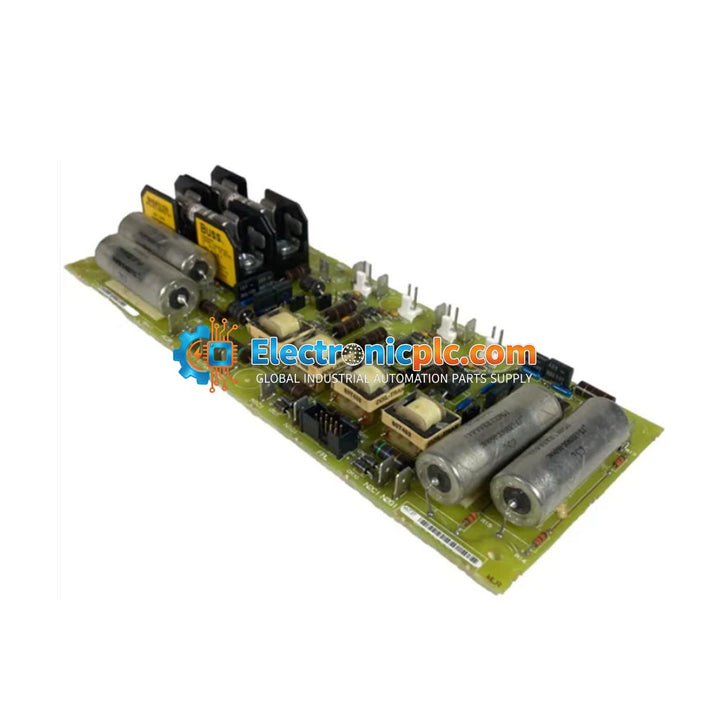

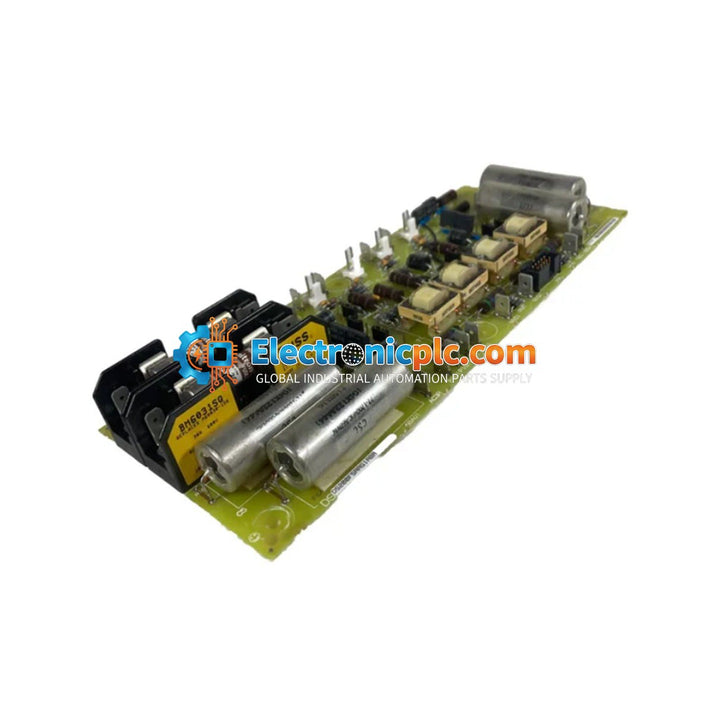

GE Mark V DS200FSAAG1A Field Supply Amplifier

GE Mark V DS200FSAAG1A Field Supply Amplifier

Description

The GE Mark V DS200FSAAG1A is a specialized Field Supply Amplifier board designed for the GE Speedtronic Mark V control system. This module is engineered to provide precise excitation...

27 la gente está viendo esto ahora mismo

Disponibilidad: Bajas existencias: quedan 8

SKU: DS200FSAAG1A
Proveedora: GE FANUC
tipo: Field Supply Amplifier
Related Series:

Envíos y devoluciones

Entrega confiable a nivel mundial

  • Transportistas: Envíos a través de DHL, FedEx, UPS o USPS .
  • Envío: Los pedidos se procesan en 1-2 días hábiles y se envían dentro de 3-5 días hábiles .
  • Seguimiento: Detalles completos de seguimiento proporcionados por correo electrónico después del envío.

Garantía de devolución de dinero de 30 días

  • Garantía: período de devolución de 30 días para productos en stock y sellados de fábrica.
  • Condición: Los artículos deben estar sin abrir, sin usar y en su embalaje original.
  • Autenticidad: Garantizamos hardware 100% original y auténtico.

¿Necesitas más información? Consulta nuestra Política de envíos y reembolsos completa.

Autenticidad y garantía

  • Garantía genuina: Suministramos únicamente piezas de automatización industrial 100% originales, nuevas y selladas de fábrica .
  • Cobertura total: cada componente está respaldado por una garantía integral de 12 meses a partir de la fecha de compra.
  • Trazabilidad: Todos los productos se entregan con documentación original de fábrica y accesorios para un pleno cumplimiento industrial.

Soporte técnico y abastecimiento

  • Asistencia de expertos: Nuestro equipo técnico ofrece consulta gratuita para ayudarle a verificar la compatibilidad de los sistemas DCS y PLC.
  • Abastecimiento de piezas raras: nos especializamos en componentes obsoletos y difíciles de encontrar de Allen-Bradley, Siemens, ABB, HIMA y más.
  • Consultas al por mayor: contáctenos en pambo@5gplc.com para obtener precios por volumen o cotizaciones de proyectos personalizados.
Ver todos los detalles

Description

The GE Mark V DS200FSAAG1A is a specialized Field Supply Amplifier board designed for the GE Speedtronic Mark V control system. This module is engineered to provide precise excitation current control for motor drives and turbine generators in demanding industrial environments, including power plants and mining operations. It facilitates high-speed signal amplification for stable magnetic field regulation and interfaces with host drive components via a dedicated 10-pin connector.

Features

  • High-Capacity Fusing: Integrated with two 30 Amp fuses for primary circuit overcurrent protection, allowing for rapid inspection and maintenance.
  • Energy Management: Equipped with four high-voltage electrolytic capacitors to manage energy storage and release, ensuring a consistent field supply.
  • Hardware Configuration: Features five onboard jumper sets for manual configuration; critical for matching settings during board replacement.
  • Diagnostic Support: Includes multiple onboard test points to facilitate efficient troubleshooting and system verification.
  • Robust Mounting: Designed for secure installation using a standoff-and-screw system, providing vibration resistance in heavy-duty applications.

Applications

This amplifier is primarily used within GE Mark V Speedtronic control systems to regulate excitation current for turbine generators and large-scale industrial motor drives. It is a critical component for maintaining stable magnetic fields in power generation and heavy industrial drive systems.

Technical Specifications

Model DS200FSAAG1A
Brand General Electric (GE)
Series Mark V
Function Field Supply Amplifier
Connector Type 10-pin primary interface
Fusing 2 x 30 Amp high-voltage fuses
Hardware Config 5 Configurable jumpers
Operating Temp 0 to 60 deg C

Installation Guidelines

  • Power Down: Always ensure the system is fully de-energized and capacitors are discharged before attempting to remove or install the board.
  • Jumper Configuration: Before commissioning, ensure all five jumper settings match the configuration of the original board to maintain system performance.
  • Mounting: Secure the board using the four corner mounting holes and appropriate standoffs to ensure proper grounding and vibration resistance.
  • Handling: Observe standard ESD (Electrostatic Discharge) precautions when handling the board to prevent damage to sensitive electronic components.

FAQ

How do I ensure the replacement board is configured correctly?

Technicians must manually set the five onboard jumpers to match the exact positions of the existing board being replaced to ensure identical performance characteristics.

What is the primary function of the capacitors on this board?

The four large electrolytic capacitors are responsible for the storage and controlled release of high-voltage energy, which is necessary to maintain a consistent field supply during operation.
