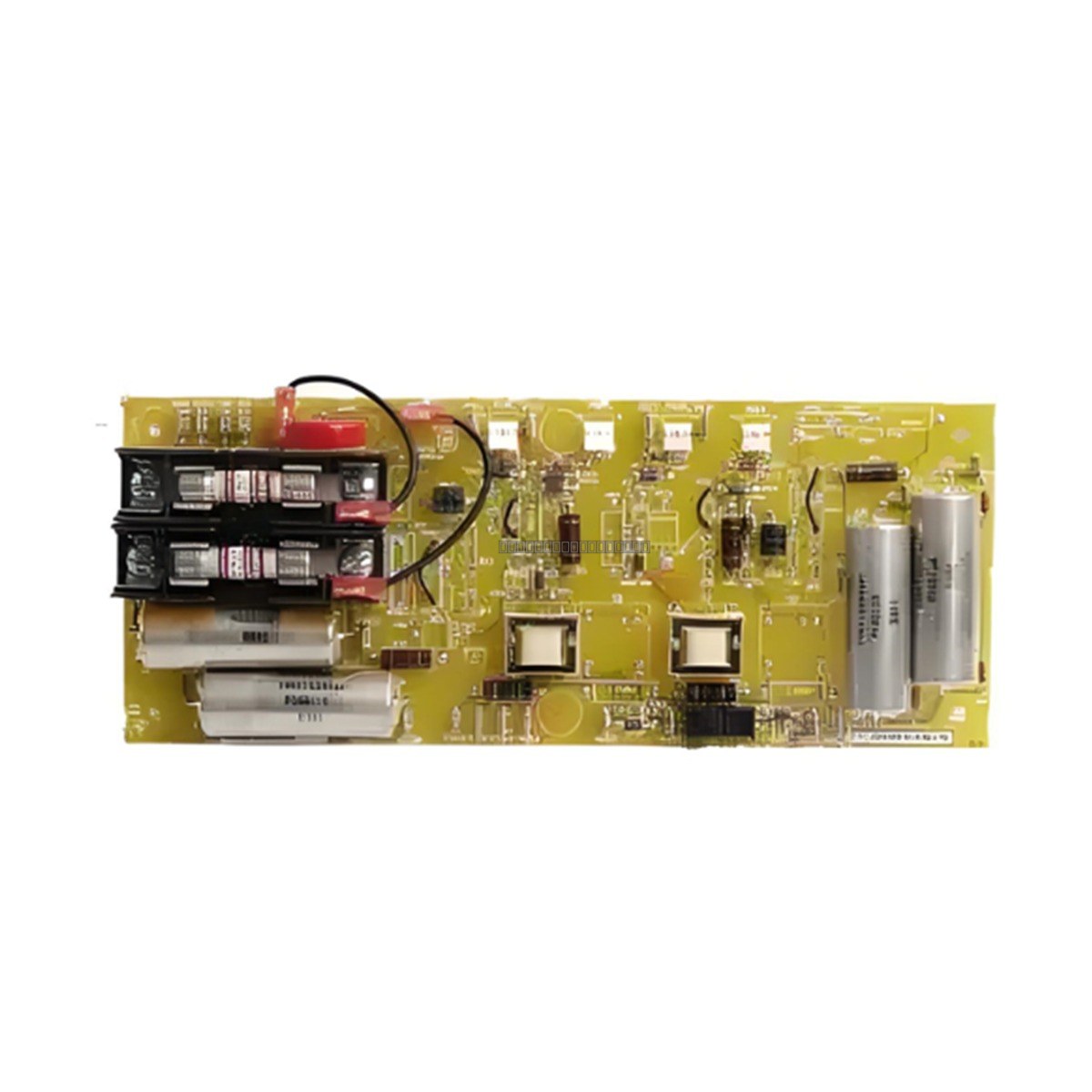

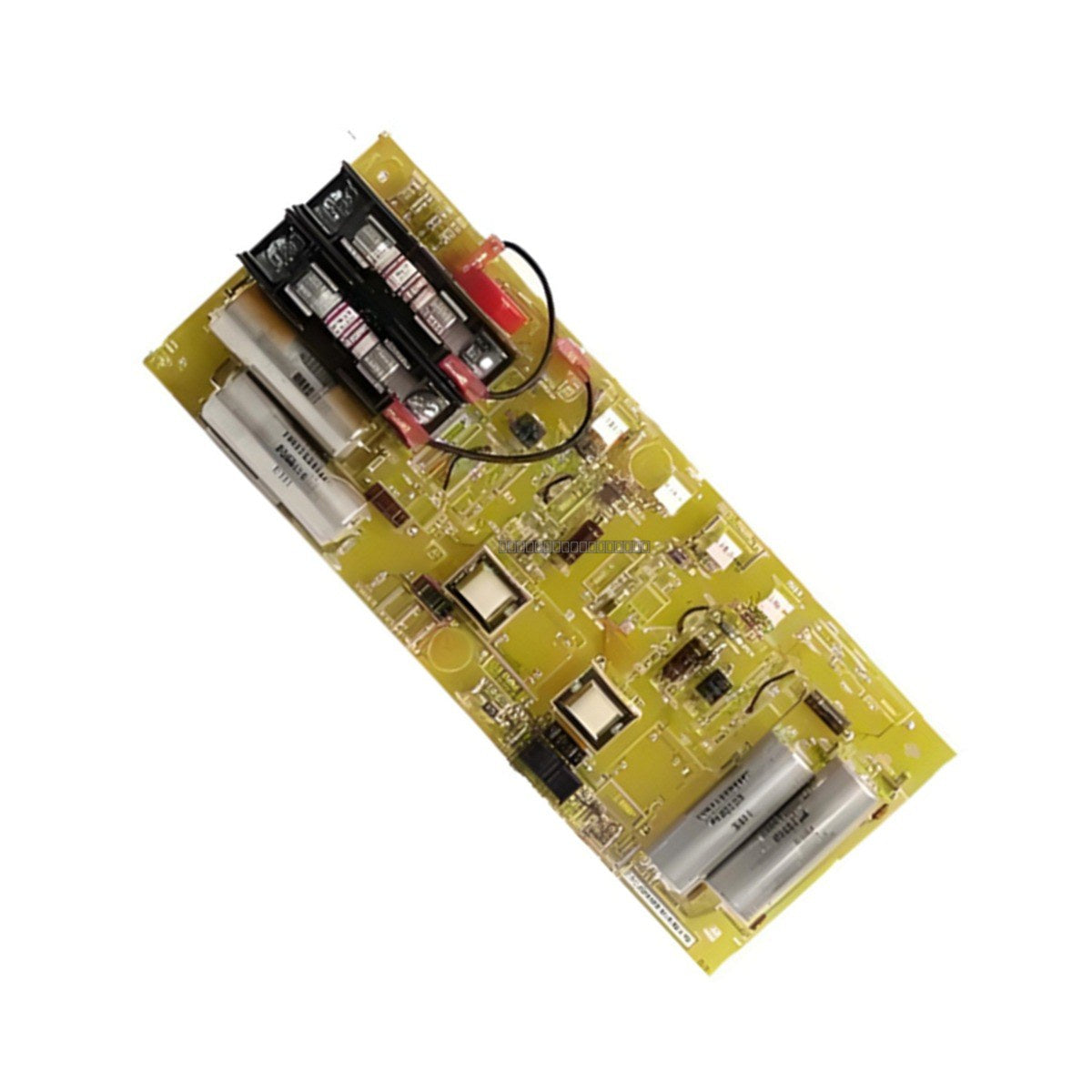

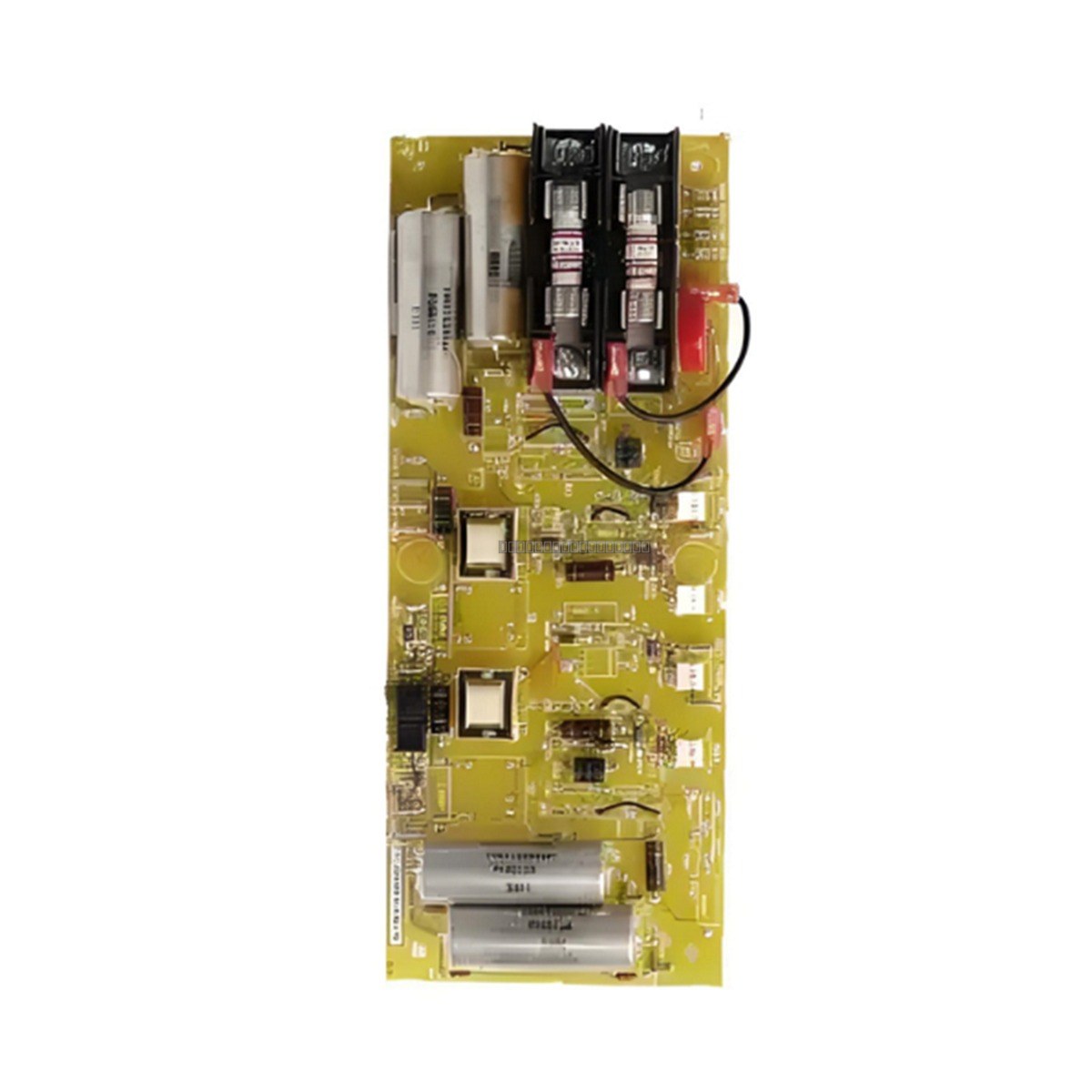

GE Mark V DS200FSAAG2ABA Field Supply Amplifier Board

GE Mark V DS200FSAAG2ABA Field Supply Amplifier Board

Description

The DS200FSAAG2ABA is a Field Supply Gate Amplifier Board (FSAA) designed for the GE Mark V Turbine Control System. This printed circuit board is responsible for managing excitation and...

23 la gente está viendo esto ahora mismo

Disponibilidad: Bajas existencias: quedan 3

SKU: DS200FSAAG2ABA
Proveedora: GE FANUC
tipo: Field Supply Amplifier Board
Related Series:

Envíos y devoluciones

Entrega confiable a nivel mundial

  • Transportistas: Envíos a través de DHL, FedEx, UPS o USPS .
  • Envío: Los pedidos se procesan en 1-2 días hábiles y se envían dentro de 3-5 días hábiles .
  • Seguimiento: Detalles completos de seguimiento proporcionados por correo electrónico después del envío.

Garantía de devolución de dinero de 30 días

  • Garantía: período de devolución de 30 días para productos en stock y sellados de fábrica.
  • Condición: Los artículos deben estar sin abrir, sin usar y en su embalaje original.
  • Autenticidad: Garantizamos hardware 100% original y auténtico.

¿Necesitas más información? Consulta nuestra Política de envíos y reembolsos completa.

Autenticidad y garantía

  • Garantía genuina: Suministramos únicamente piezas de automatización industrial 100% originales, nuevas y selladas de fábrica .
  • Cobertura total: cada componente está respaldado por una garantía integral de 12 meses a partir de la fecha de compra.
  • Trazabilidad: Todos los productos se entregan con documentación original de fábrica y accesorios para un pleno cumplimiento industrial.

Soporte técnico y abastecimiento

  • Asistencia de expertos: Nuestro equipo técnico ofrece consulta gratuita para ayudarle a verificar la compatibilidad de los sistemas DCS y PLC.
  • Abastecimiento de piezas raras: nos especializamos en componentes obsoletos y difíciles de encontrar de Allen-Bradley, Siemens, ABB, HIMA y más.
  • Consultas al por mayor: contáctenos en pambo@5gplc.com para obtener precios por volumen o cotizaciones de proyectos personalizados.
Ver todos los detalles

Description

The DS200FSAAG2ABA is a Field Supply Gate Amplifier Board (FSAA) designed for the GE Mark V Turbine Control System. This printed circuit board is responsible for managing excitation and gate drive signals for power electronics, which are critical for the operational stability of gas, steam, and wind turbine assemblies. By providing precise control over field power distribution, the module ensures reliable synchronization and regulation, helping to minimize unscheduled downtime in power generation infrastructure.

Features

  • Engineered for high-speed switching signal management within the field supply subsystem.
  • Acts as a critical interface between the control processor and the power output stage.
  • Enhanced signal integrity and noise immunity compared to earlier base models.
  • Designed for fixed installation within standard Mark V control cabinets.
  • Utilizes high-density connector interfaces to maintain secure signal paths under continuous vibration and thermal load.

Applications

This board is specifically designed for use in GE Mark V Speedtronic control systems, serving as a key component in the regulation of turbine field power for gas, steam, and wind power generation applications.

Technical Specifications

Model DS200FSAAG2ABA
Brand GE (General Electric)
Series Mark V
Device Type Field Supply Gate Amplifier Board (FSAA)
PCB Coating Normal
Functional Revision A (1st), B (2nd)
Artwork Revision A
Operating Temperature 0 to 60 degC
Mounting Standard Mark V Cabinet Rack

Installation Guidelines

  • Ensure the control system is powered down before attempting to insert or remove the board from the rack.
  • Handle the board using proper ESD (Electrostatic Discharge) protection protocols to prevent damage to sensitive electronic components.
  • Ensure the board is fully seated in the Mark V cabinet rack and that all high-density connectors are securely fastened to maintain signal integrity.
  • Verify that the operating environment remains within the specified temperature range of 0 to 60 degC to prevent thermal degradation.
  • Route signal cables away from high-power or high-EMI sources to maintain the noise immunity benefits of this revision.

FAQ

What is the primary function of the DS200FSAAG2ABA?
It functions as a Field Supply Gate Amplifier Board (FSAA) that manages gate drive signals for power electronics within the GE Mark V turbine control system.

Is this board compatible with all Mark V systems?
This board is designed for the Mark V Speedtronic control ecosystem. Please verify your specific cabinet configuration and revision requirements before installation.

What do the revision codes on this board signify?
The board features functional revisions A and B, along with artwork revision A, which collectively provide improved signal integrity and noise immunity over the original base model.
