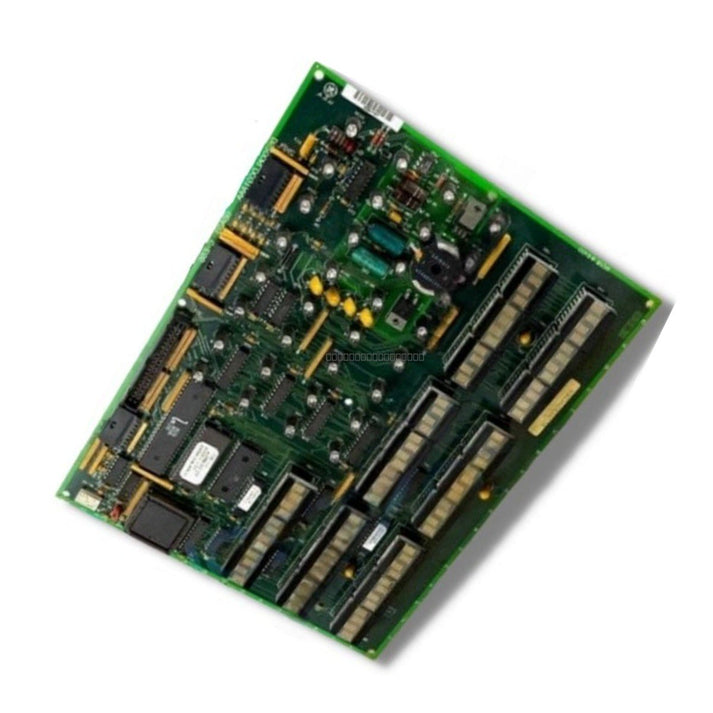

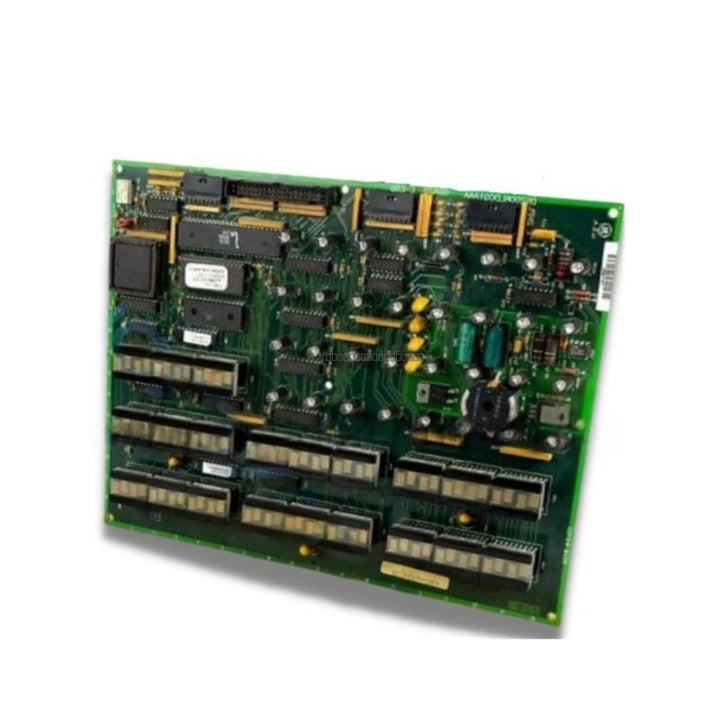

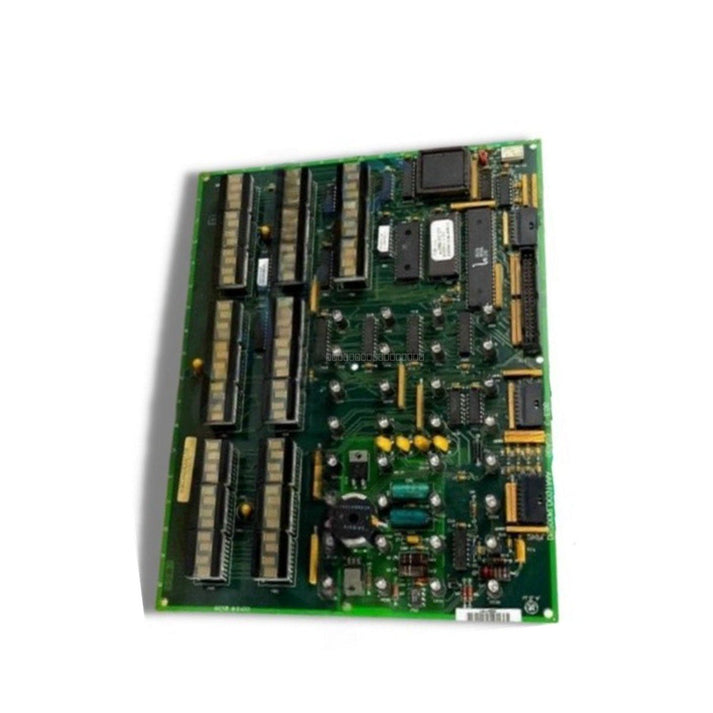

GE Speedtronic Mark V DS200KLDCG1A Key LED Display Relay Output Board

GE Speedtronic Mark V DS200KLDCG1A Key LED Display Relay Output Board

Description

The DS200KLDCG1A is a specialized Key/LED/Display Relay Output Board engineered by General Electric for the Mark V Speedtronic turbine control system. This module is primarily utilized in gas turbine generation...

26 la gente está viendo esto ahora mismo

Disponibilidad: Bajas existencias: quedan 7

SKU: DS200KLDCG1A
Proveedora: GE FANUC
tipo: Relay Output Board
Related Series:

Envíos y devoluciones

Entrega confiable a nivel mundial

  • Transportistas: Envíos a través de DHL, FedEx, UPS o USPS .
  • Envío: Los pedidos se procesan en 1-2 días hábiles y se envían dentro de 3-5 días hábiles .
  • Seguimiento: Detalles completos de seguimiento proporcionados por correo electrónico después del envío.

Garantía de devolución de dinero de 30 días

  • Garantía: período de devolución de 30 días para productos en stock y sellados de fábrica.
  • Condición: Los artículos deben estar sin abrir, sin usar y en su embalaje original.
  • Autenticidad: Garantizamos hardware 100% original y auténtico.

¿Necesitas más información? Consulta nuestra Política de envíos y reembolsos completa.

Autenticidad y garantía

  • Garantía genuina: Suministramos únicamente piezas de automatización industrial 100% originales, nuevas y selladas de fábrica .
  • Cobertura total: cada componente está respaldado por una garantía integral de 12 meses a partir de la fecha de compra.
  • Trazabilidad: Todos los productos se entregan con documentación original de fábrica y accesorios para un pleno cumplimiento industrial.

Soporte técnico y abastecimiento

  • Asistencia de expertos: Nuestro equipo técnico ofrece consulta gratuita para ayudarle a verificar la compatibilidad de los sistemas DCS y PLC.
  • Abastecimiento de piezas raras: nos especializamos en componentes obsoletos y difíciles de encontrar de Allen-Bradley, Siemens, ABB, HIMA y más.
  • Consultas al por mayor: contáctenos en pambo@5gplc.com para obtener precios por volumen o cotizaciones de proyectos personalizados.
Ver todos los detalles

Description

The DS200KLDCG1A is a specialized Key/LED/Display Relay Output Board engineered by General Electric for the Mark V Speedtronic turbine control system. This module is primarily utilized in gas turbine generation stations, thermal power plants, and heavy industrial utility environments. It integrates multi-channel relay execution with local visual monitoring, providing operators with real-time drive diagnostics and telemetry to facilitate rapid troubleshooting and manual override control. By offering immediate visual feedback and local command capabilities, this board helps streamline maintenance intervals and reduce unscheduled downtime.

Features

  • Integrated visual feedback system with 32 discrete LED indicators (DS1-DS32).
  • 21 alphanumeric display blocks for real-time telemetry and status monitoring.
  • Onboard user interface keys for manual alarm acknowledgment and relay triggering.
  • High-density circuit design combining low-voltage logic with robust DC relay command execution.
  • Configurable via an onboard hardware jumper for specific system parameters.

Technical Specifications

Model DS200KLDCG1A
Brand General Electric (GE)
System Mark V Speedtronic
Visual Indicators 32 LEDs, 21 4-character alphanumeric displays
Connectivity 40-pin connection strip, 28-pin exciter connector
Wiring Interface 24-position terminal block
Power Supply 240 VDC
Operating Temperature 30 to 75 deg C

Installation Guidelines

  • Ensure all power is removed from the Mark V cabinet before inserting or removing the board to prevent electrical damage or system faults.
  • Handle the board using proper ESD (Electrostatic Discharge) precautions to protect sensitive logic components.
  • Verify that the 24-position terminal block and multi-pin connectors are securely seated and aligned to prevent intermittent signal loss.
  • Ensure adequate ventilation within the cabinet to maintain the operating temperature between 30 and 75 deg C.
  • Check the position of the onboard hardware jumper prior to installation to ensure it matches site-specific configuration requirements.

FAQ

What is the primary function of the DS200KLDCG1A board?

This board acts as a local operator interface and relay output module for the Mark V Speedtronic system, allowing for real-time monitoring of turbine status via LEDs and displays, as well as manual relay control via integrated keys.

Is this board compatible with other Speedtronic systems?

The DS200KLDCG1A is specifically designed for the Mark V series. It is not intended for use in earlier or later generations of GE turbine control systems.
