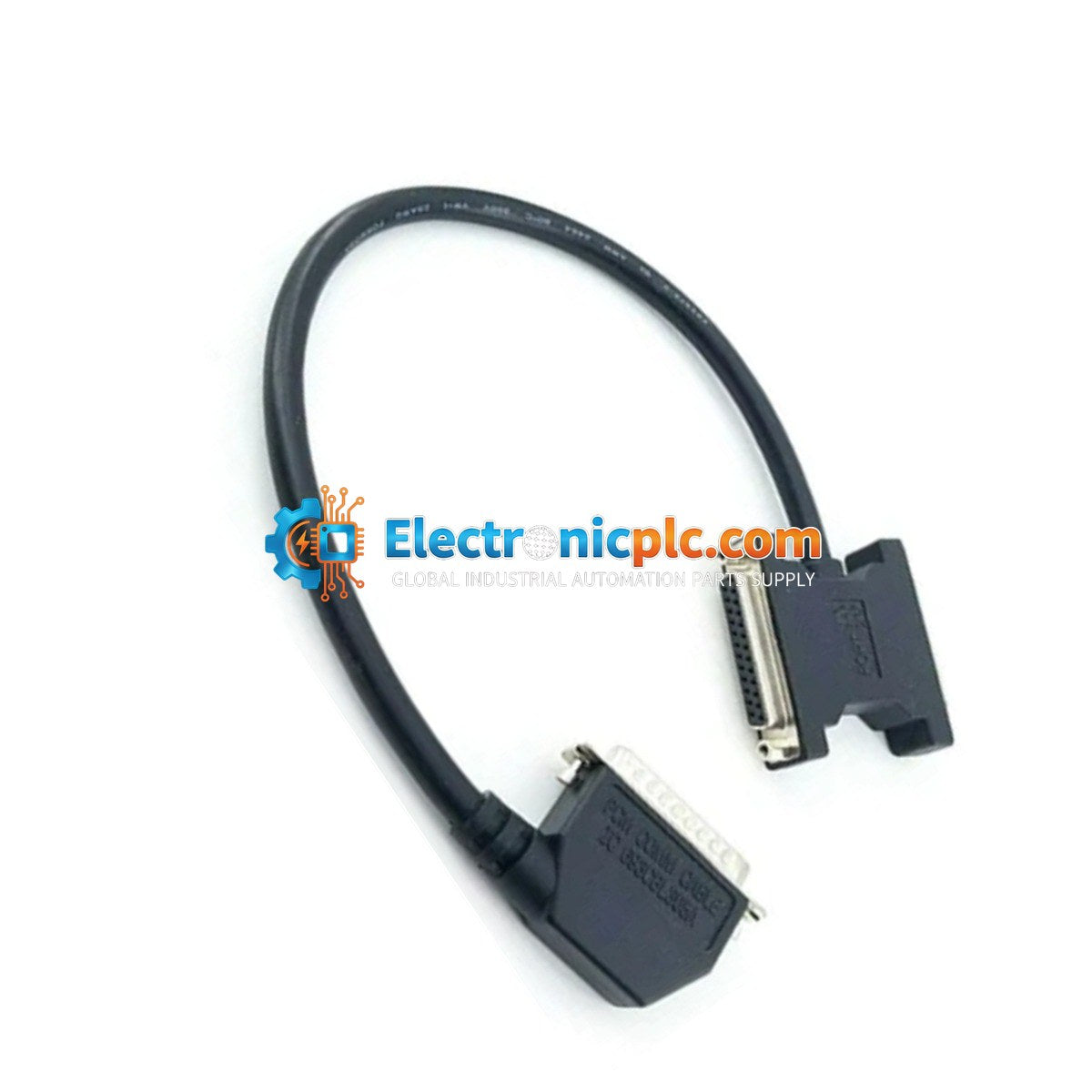

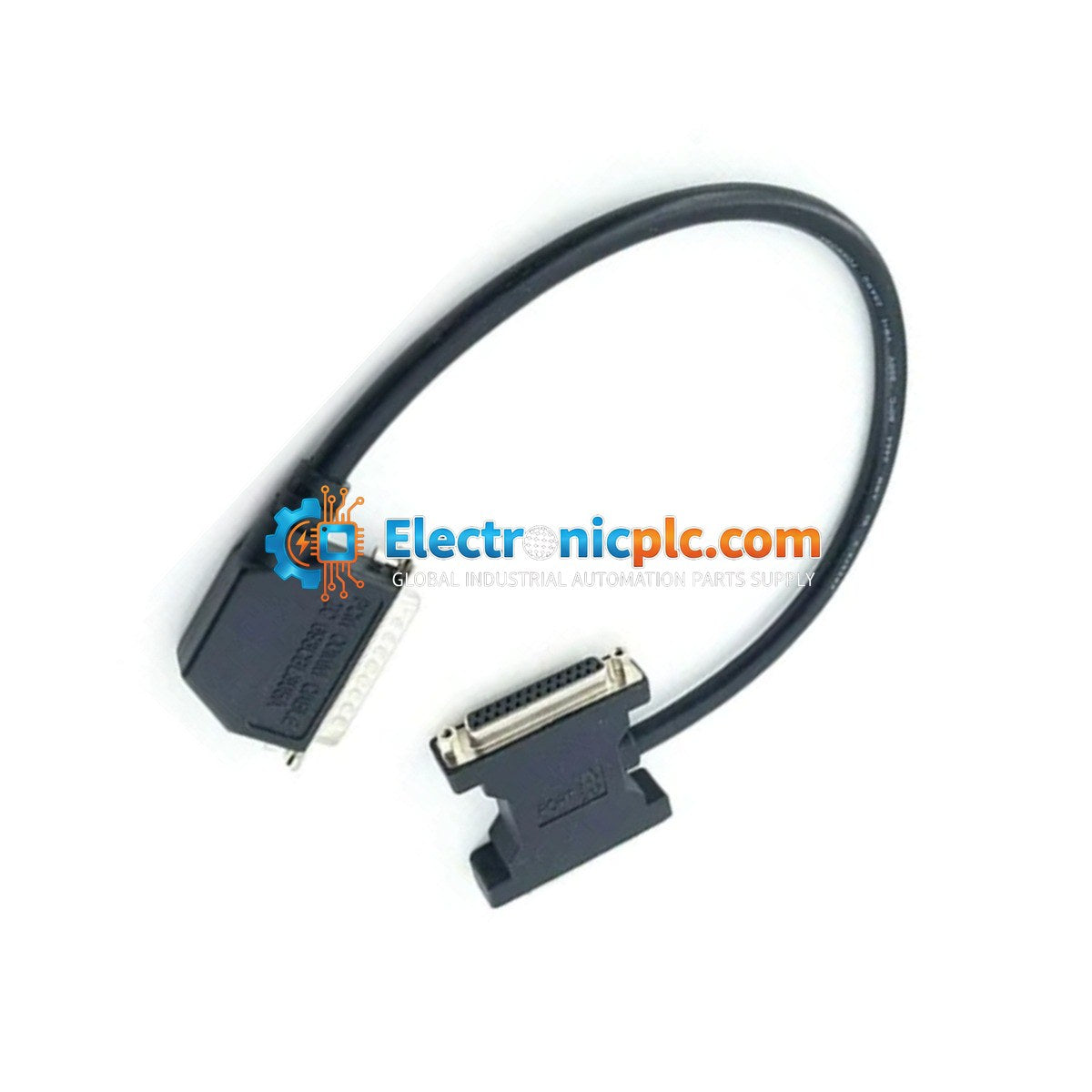

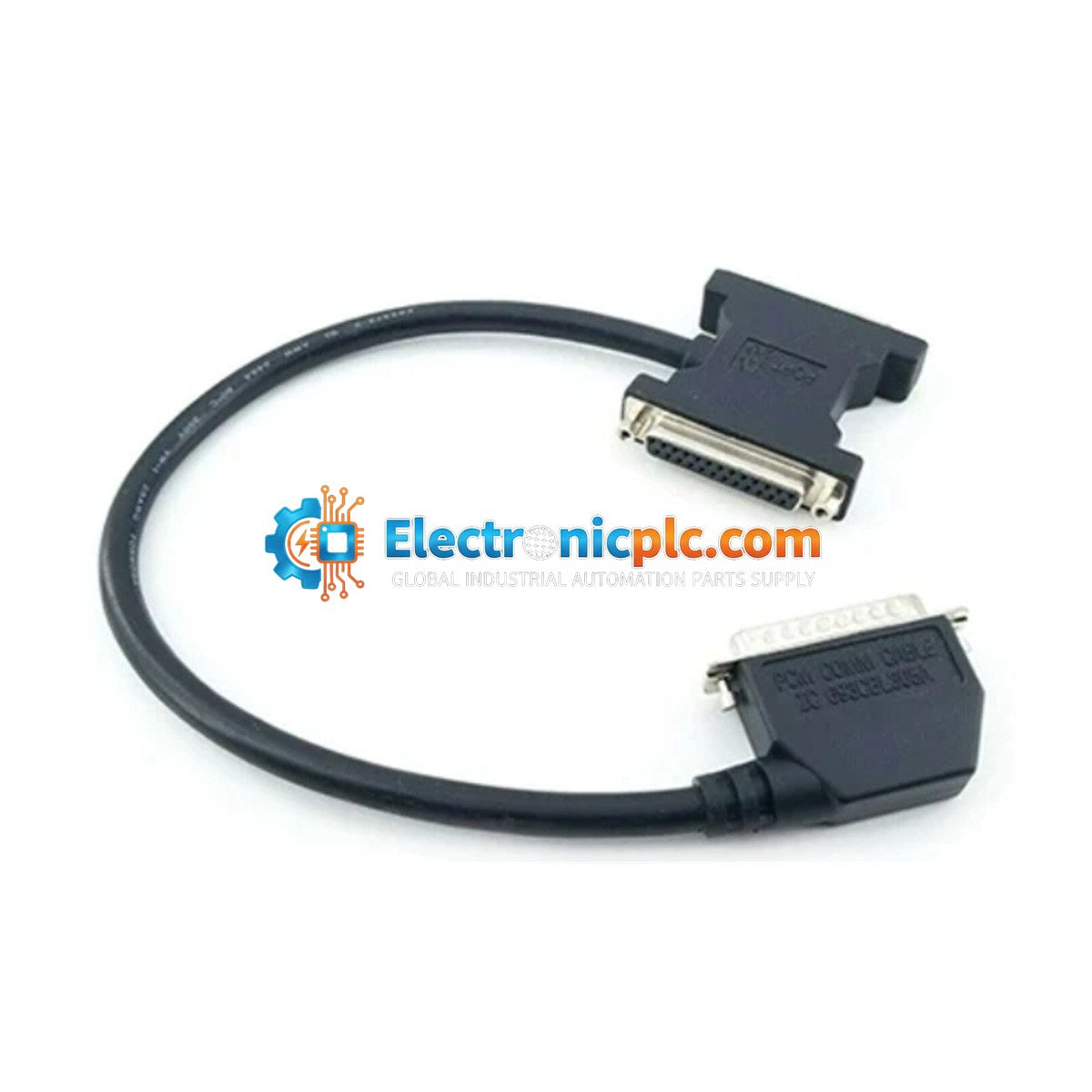

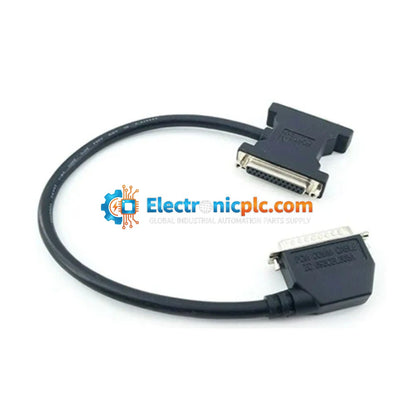

General Electric IC693CBK001 Cable Kit for 90-30 Series High Density I/O Modules

General Electric IC693CBK001 Cable Kit for 90-30 Series High Density I/O Modules

Description

The General Electric IC693CBK001 is a specialized cable kit designed for the GE Fanuc Series 90-30 PLC platform. This kit is engineered to facilitate the connection of high-density I/O modules,...

28 la gente está viendo esto ahora mismo

Disponibilidad: Bajas existencias: quedan 5

SKU: IC693CBK001
Proveedora: General Electric
tipo: PLC I/O Cable
Related Series:

Envíos y devoluciones

Entrega confiable a nivel mundial

  • Transportistas: Envíos a través de DHL, FedEx, UPS o USPS .
  • Envío: Los pedidos se procesan en 1-2 días hábiles y se envían dentro de 3-5 días hábiles .
  • Seguimiento: Detalles completos de seguimiento proporcionados por correo electrónico después del envío.

Garantía de devolución de dinero de 30 días

  • Garantía: período de devolución de 30 días para productos en stock y sellados de fábrica.
  • Condición: Los artículos deben estar sin abrir, sin usar y en su embalaje original.
  • Autenticidad: Garantizamos hardware 100% original y auténtico.

¿Necesitas más información? Consulta nuestra Política de envíos y reembolsos completa.

Autenticidad y garantía

  • Garantía genuina: Suministramos únicamente piezas de automatización industrial 100% originales, nuevas y selladas de fábrica .
  • Cobertura total: cada componente está respaldado por una garantía integral de 12 meses a partir de la fecha de compra.
  • Trazabilidad: Todos los productos se entregan con documentación original de fábrica y accesorios para un pleno cumplimiento industrial.

Soporte técnico y abastecimiento

  • Asistencia de expertos: Nuestro equipo técnico ofrece consulta gratuita para ayudarle a verificar la compatibilidad de los sistemas DCS y PLC.
  • Abastecimiento de piezas raras: nos especializamos en componentes obsoletos y difíciles de encontrar de Allen-Bradley, Siemens, ABB, HIMA y más.
  • Consultas al por mayor: contáctenos en pambo@5gplc.com para obtener precios por volumen o cotizaciones de proyectos personalizados.
Ver todos los detalles

Description

The General Electric IC693CBK001 is a specialized cable kit designed for the GE Fanuc Series 90-30 PLC platform. This kit is engineered to facilitate the connection of high-density I/O modules, specifically those featuring 32-point configurations. By utilizing these pre-manufactured cables, users can streamline the wiring process for complex I/O setups, ensuring reliable signal transmission between the field devices and the PLC backplane.

Features

  • Designed for 32-point high-density I/O modules in the Series 90-30 system.
  • Includes two cables (left and right) to support full module connectivity.
  • Features Fujitsu FCN-365S024-AU connectors for secure, industry-standard interfacing.
  • Reduces required clearance space in front of the PLC cabinet compared to manual hard-wiring.
  • Amperage rating of 1.2 Amps per conductor.
  • Cable length of 10 feet (3 meters) for flexible installation.

Technical Specifications

Model IC693CBK001
Series Series 90-30
Cable Type High Density I/O Cable Kit
Connector Type 24-pin Fujitsu FCN-365S024-AU
Cable Configuration Two cables (Left and Right)
Current Rating 1.2 Amps per conductor
Length 10 feet (3 meters)
Lifecycle Status Discontinued / Obsolete

Installation Guidelines

  • Ensure the PLC system is powered down before attempting to connect or disconnect I/O cabling.
  • Route cables away from high-voltage lines and sources of electromagnetic interference (EMI) to prevent signal noise.
  • Verify that the Fujitsu connectors are fully seated and locked into the 32-point I/O module ports.
  • Use proper cable management (e.g., cable ties or wire ducts) to secure the 10-foot leads and prevent strain on the module connectors.
  • Handle connectors with care to avoid bending the pins, which can cause intermittent connection issues.

FAQ

What is the primary purpose of the IC693CBK001?

This kit is used to simplify the wiring of 32-point high-density I/O modules in GE Series 90-30 PLCs, replacing the need for individual point-to-point wiring with a pre-terminated solution.

Does this kit include all necessary cables for one module?

Yes, the IC693CBK001 kit contains two cables (left and right) required to fully interface with a single 32-point high-density I/O module.

Is this cable kit compatible with other PLC series?

No, this kit is specifically designed for the GE Fanuc Series 90-30 I/O modules and utilizes proprietary connector configurations for that system.
