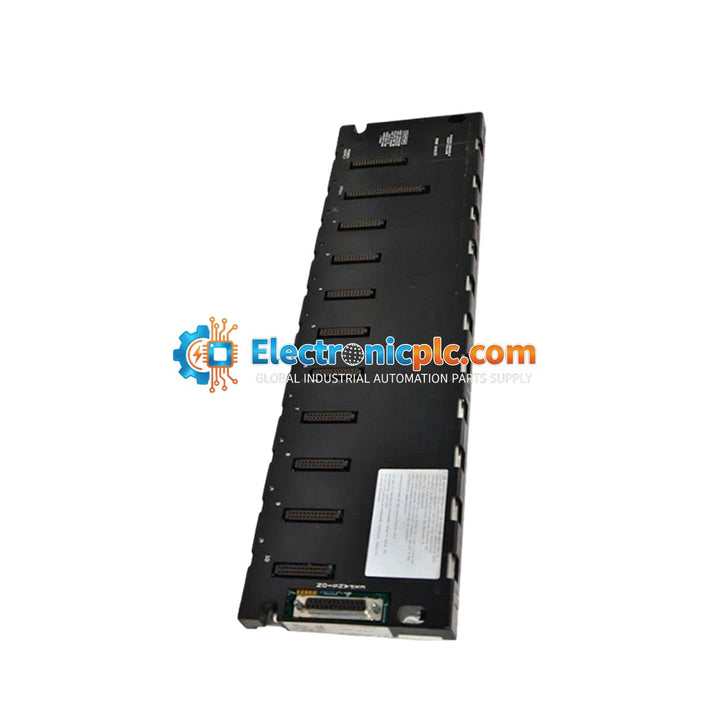

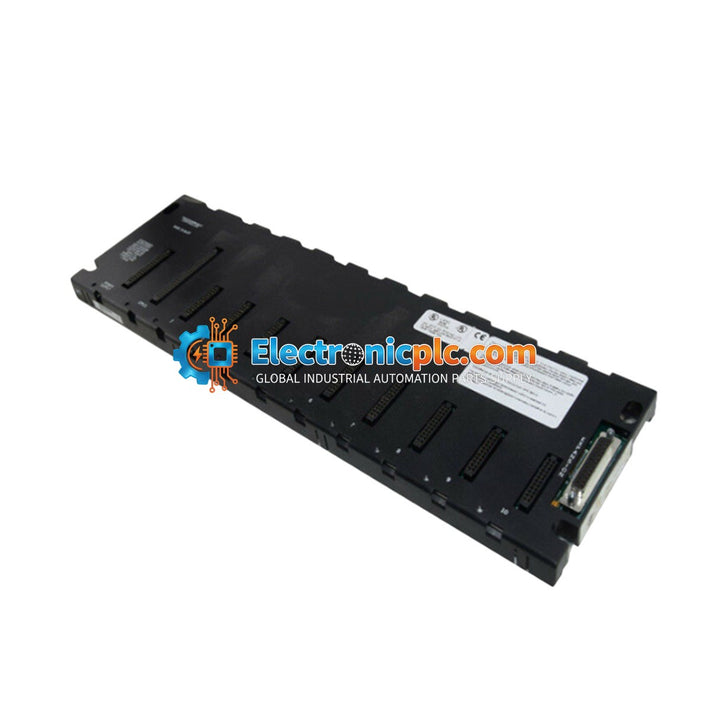

General Electric IC693CHS391H Series 90-30 10-Slot Expansion Baseplate

General Electric IC693CHS391H Series 90-30 10-Slot Expansion Baseplate

Description

The General Electric IC693CHS391H is a 10-slot expansion baseplate designed for the Series 90-30 Programmable Logic Controller (PLC) system. This modular baseplate provides the necessary physical mounting and electrical interconnects...

23 la gente está viendo esto ahora mismo

Disponibilidad: Bajas existencias: quedan 6

SKU: IC693CHS391H
Proveedora: General Electric
tipo: PLC Baseplate
Related Series:

Envíos y devoluciones

Entrega confiable a nivel mundial

  • Transportistas: Envíos a través de DHL, FedEx, UPS o USPS .
  • Envío: Los pedidos se procesan en 1-2 días hábiles y se envían dentro de 3-5 días hábiles .
  • Seguimiento: Detalles completos de seguimiento proporcionados por correo electrónico después del envío.

Garantía de devolución de dinero de 30 días

  • Garantía: período de devolución de 30 días para productos en stock y sellados de fábrica.
  • Condición: Los artículos deben estar sin abrir, sin usar y en su embalaje original.
  • Autenticidad: Garantizamos hardware 100% original y auténtico.

¿Necesitas más información? Consulta nuestra Política de envíos y reembolsos completa.

Autenticidad y garantía

  • Garantía genuina: Suministramos únicamente piezas de automatización industrial 100% originales, nuevas y selladas de fábrica .
  • Cobertura total: cada componente está respaldado por una garantía integral de 12 meses a partir de la fecha de compra.
  • Trazabilidad: Todos los productos se entregan con documentación original de fábrica y accesorios para un pleno cumplimiento industrial.

Soporte técnico y abastecimiento

  • Asistencia de expertos: Nuestro equipo técnico ofrece consulta gratuita para ayudarle a verificar la compatibilidad de los sistemas DCS y PLC.
  • Abastecimiento de piezas raras: nos especializamos en componentes obsoletos y difíciles de encontrar de Allen-Bradley, Siemens, ABB, HIMA y más.
  • Consultas al por mayor: contáctenos en pambo@5gplc.com para obtener precios por volumen o cotizaciones de proyectos personalizados.
Ver todos los detalles

Description

The General Electric IC693CHS391H is a 10-slot expansion baseplate designed for the Series 90-30 Programmable Logic Controller (PLC) system. This modular baseplate provides the necessary physical mounting and electrical interconnects for a CPU module and up to nine additional I/O or specialty modules. It is engineered to support robust communication and power distribution across the 90-30 rack architecture.

Features

  • Ten total slots: One dedicated CPU slot and nine slots for I/O or specialty modules.
  • Modular design: Facilitates easy expansion and maintenance of the PLC rack configuration.
  • Integrated power distribution: Operates at 5 Volts DC with a current requirement of 420 mA.
  • Connectivity: Includes a 25-pin female connector for system expansion and communication.
  • Compatibility: Fully compatible with the GE Fanuc Series 90-30 product ecosystem.

Applications

This expansion baseplate is utilized in industrial automation environments where additional I/O capacity is required beyond the primary CPU rack. It is commonly found in manufacturing, process control, and machine automation systems where the Series 90-30 PLC platform is deployed to manage distributed I/O modules.

Technical Specifications

Model Number IC693CHS391H
Total Slots 10
CPU Slots 1
I/O Slots 9
Voltage 5V DC
Current 420 mA
Connector Type 25-Pin Female

Installation Guidelines

  • Ensure the power supply is disconnected before installing or removing any modules from the baseplate.
  • Mount the baseplate securely to a flat, vibration-resistant surface within an industrial enclosure.
  • Maintain adequate clearance around the baseplate to ensure proper airflow and cooling for the modules.
  • Handle modules using proper ESD (Electrostatic Discharge) protection practices to prevent damage to internal circuitry.
  • Verify that all modules are fully seated in their respective slots and that the backplane connectors are aligned correctly.
  • Route communication cables away from high-voltage power lines to minimize electromagnetic interference (EMI).

FAQ

What is the primary function of the IC693CHS391H baseplate?

The IC693CHS391H serves as a mounting and communication interface for a Series 90-30 CPU and up to nine additional I/O or specialty modules, allowing for the expansion of the PLC system.

Can this baseplate be used as a standalone rack?

Yes, it functions as a standard baseplate in the 90-30 system, providing the necessary backplane bus for the CPU and I/O modules to communicate.

What type of connector is used for expansion?

The unit features a 25-pin female connector for system expansion purposes.
