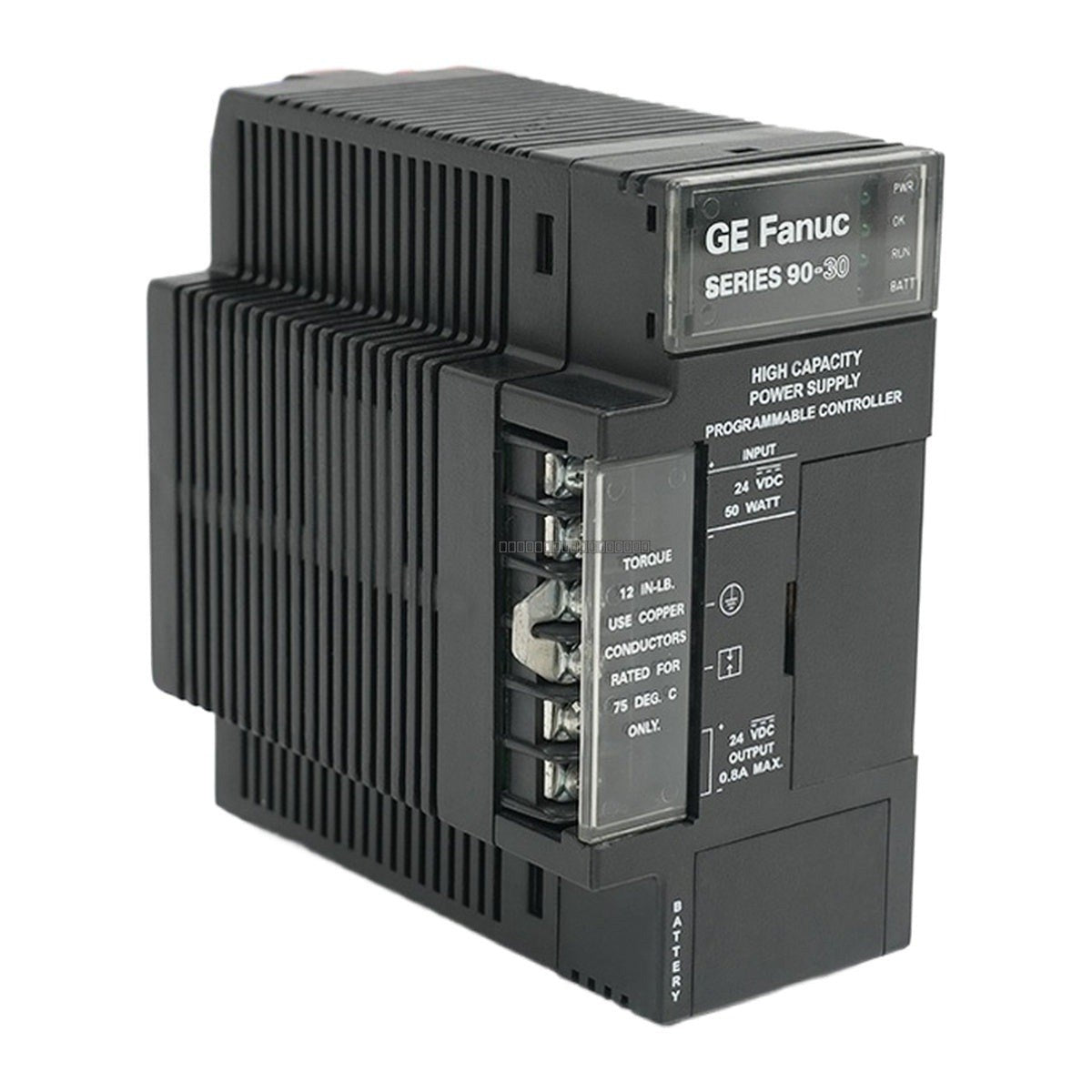

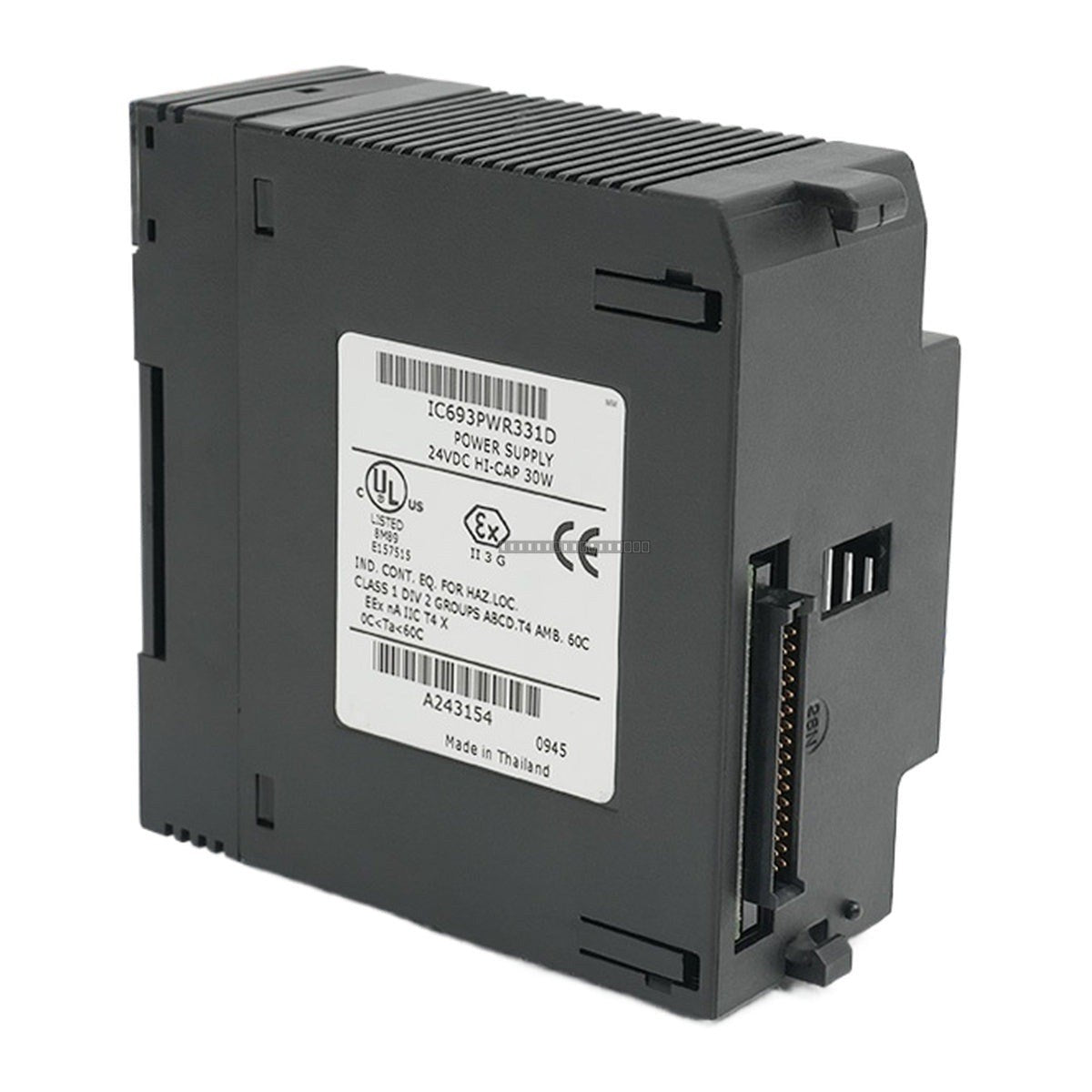

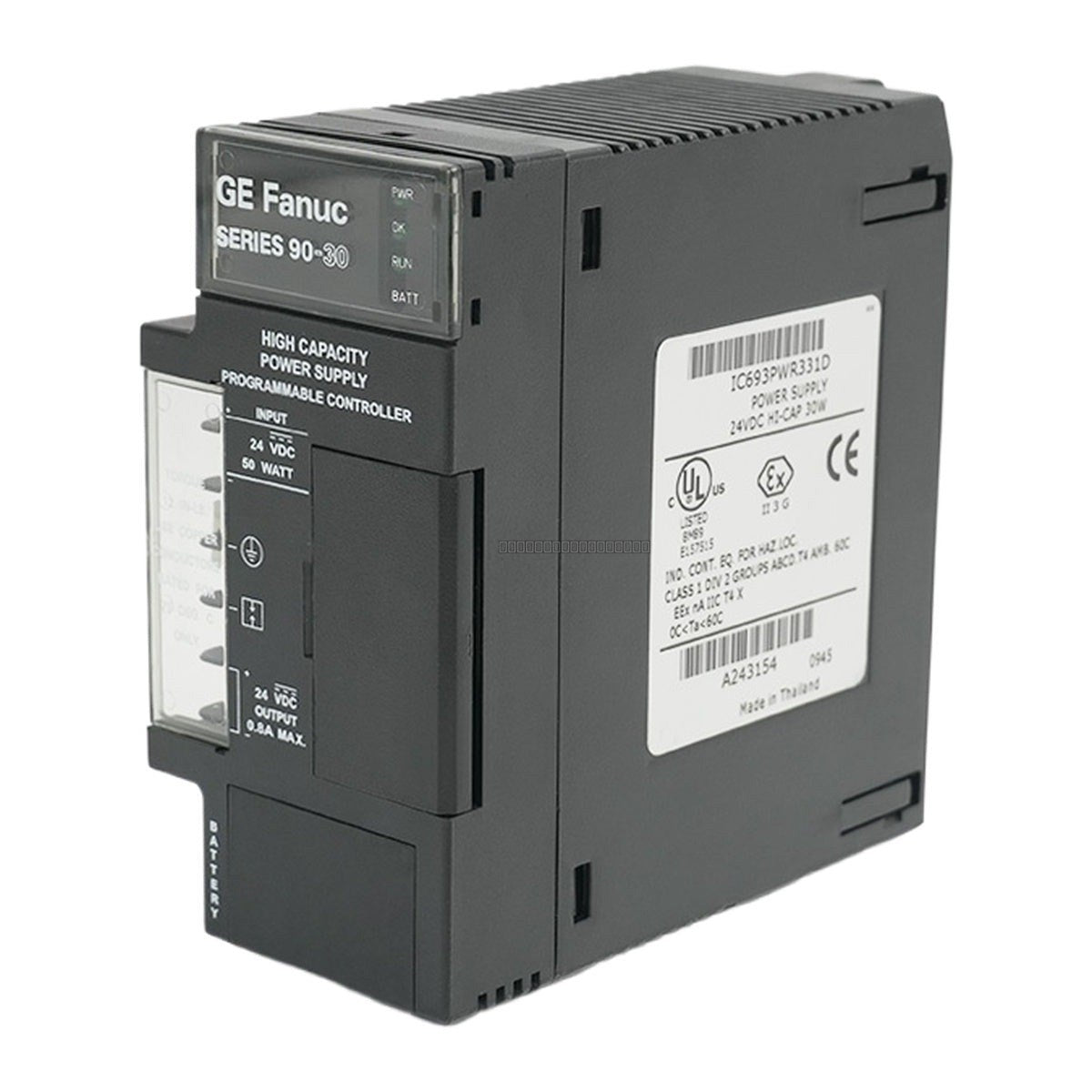

General Electric IC693PWR331D 90-30 Series High Capacity Power Supply

General Electric IC693PWR331D 90-30 Series High Capacity Power Supply

The General Electric IC693PWR331D is a high-capacity power supply module designed specifically for the Series 90-30 PLC system. This unit provides a stable 30-watt power output and is engineered to...

15 la gente está viendo esto ahora mismo

Disponibilidad: Bajas existencias: quedan 5

SKU: IC693PWR331D
Proveedora: General Electric
tipo: PLC Power Supply Module
Related Series:

Envíos y devoluciones

Entrega confiable a nivel mundial

  • Transportistas: Envíos a través de DHL, FedEx, UPS o USPS .
  • Envío: Los pedidos se procesan en 1-2 días hábiles y se envían dentro de 3-5 días hábiles .
  • Seguimiento: Detalles completos de seguimiento proporcionados por correo electrónico después del envío.

Garantía de devolución de dinero de 30 días

  • Garantía: período de devolución de 30 días para productos en stock y sellados de fábrica.
  • Condición: Los artículos deben estar sin abrir, sin usar y en su embalaje original.
  • Autenticidad: Garantizamos hardware 100% original y auténtico.

¿Necesitas más información? Consulta nuestra Política de envíos y reembolsos completa.

Autenticidad y garantía

  • Garantía genuina: Suministramos únicamente piezas de automatización industrial 100% originales, nuevas y selladas de fábrica .
  • Cobertura total: cada componente está respaldado por una garantía integral de 12 meses a partir de la fecha de compra.
  • Trazabilidad: Todos los productos se entregan con documentación original de fábrica y accesorios para un pleno cumplimiento industrial.

Soporte técnico y abastecimiento

  • Asistencia de expertos: Nuestro equipo técnico ofrece consulta gratuita para ayudarle a verificar la compatibilidad de los sistemas DCS y PLC.
  • Abastecimiento de piezas raras: nos especializamos en componentes obsoletos y difíciles de encontrar de Allen-Bradley, Siemens, ABB, HIMA y más.
  • Consultas al por mayor: contáctenos en pambo@5gplc.com para obtener precios por volumen o cotizaciones de proyectos personalizados.
Ver todos los detalles

The General Electric IC693PWR331D is a high-capacity power supply module designed specifically for the Series 90-30 PLC system. This unit provides a stable 30-watt power output and is engineered to operate from a DC input source. It is designed to be installed in the leftmost slot of the PLC baseplate, serving as the primary power source for the rack and its associated I/O modules.

Features

  • High-capacity 30W power output for demanding PLC configurations.
  • Supports 24 VDC to 48 VDC nominal input ranges.
  • Provides three distinct outputs: +5 VDC, +24 VDC Relay power, and Isolated +24 VDC.
  • Integrated battery backup support to maintain volatile PLC memory.
  • Front-panel LED indicators for PWR, OK, RUN, and BATT status monitoring.
  • Includes a dedicated terminal strip and battery connection behind a protective swing door.

Applications

  • Injection Molding Machines: Powers PLC and sensors for consistent plastic part production.
  • Packaging & Palletizing Robots: Provides stable power for high-speed logistics and robotic automation.
  • Material Handling Systems: Supports conveyors, sorters, and pick-and-place operations.
  • Assembly Line Automation: Reliable power delivery for multiple power-intensive I/O modules.
  • Industrial Elevators & Lifts: Controls logic and safety signals for large-scale lift systems.

Technical Specifications

Model IC693PWR331D
Manufacturer General Electric
Input Voltage Range 38 to 56 VDC
Load Capacity 30 Watts
Input Power 50 W at full load
Outputs +5 VDC, +24 VDC Relay, Isolated +24 VDC
Mounting Location Leftmost Slot (Baseplate)
Weight 0.55 kg

Installation Guidelines

  • Mounting: Align the module with the baseplate connectors in the dedicated power supply slot (far left). Press firmly until the module is fully seated.
  • Grounding: Ensure the frame ground (Terminal 3) is connected to a solid earth ground for electrical protection.
  • Overvoltage Configuration: Keep the jumper between pins 3 and 4 installed for standard operation. Remove this jumper only if performing a Hi-pot test or if overvoltage protection is provided upstream.
  • Handling: Always power down the rack before inserting or removing the power supply module to prevent electrical damage.

FAQs

What is the IC693PWR331D?

The GE IC693PWR331D is a high-capacity 30-watt, 24/48V DC input power supply designed for the Series 90-30 PLC system.

What input voltage does the IC693PWR331D support?

It is designed for 24V DC to 48V DC nominal inputs, with an operating input range of 38 to 56 VDC.

What is the purpose of the battery on the power supply?

The battery is used to retain the contents of the PLC processor's volatile RAM memory.

How can I troubleshoot a non-working unit?

Common signs of failure include a lack of LED illumination, audible noise upon power-up, or an inability for the CPU to communicate with programming software. A healthy unit will show a green "PWR" LED.
