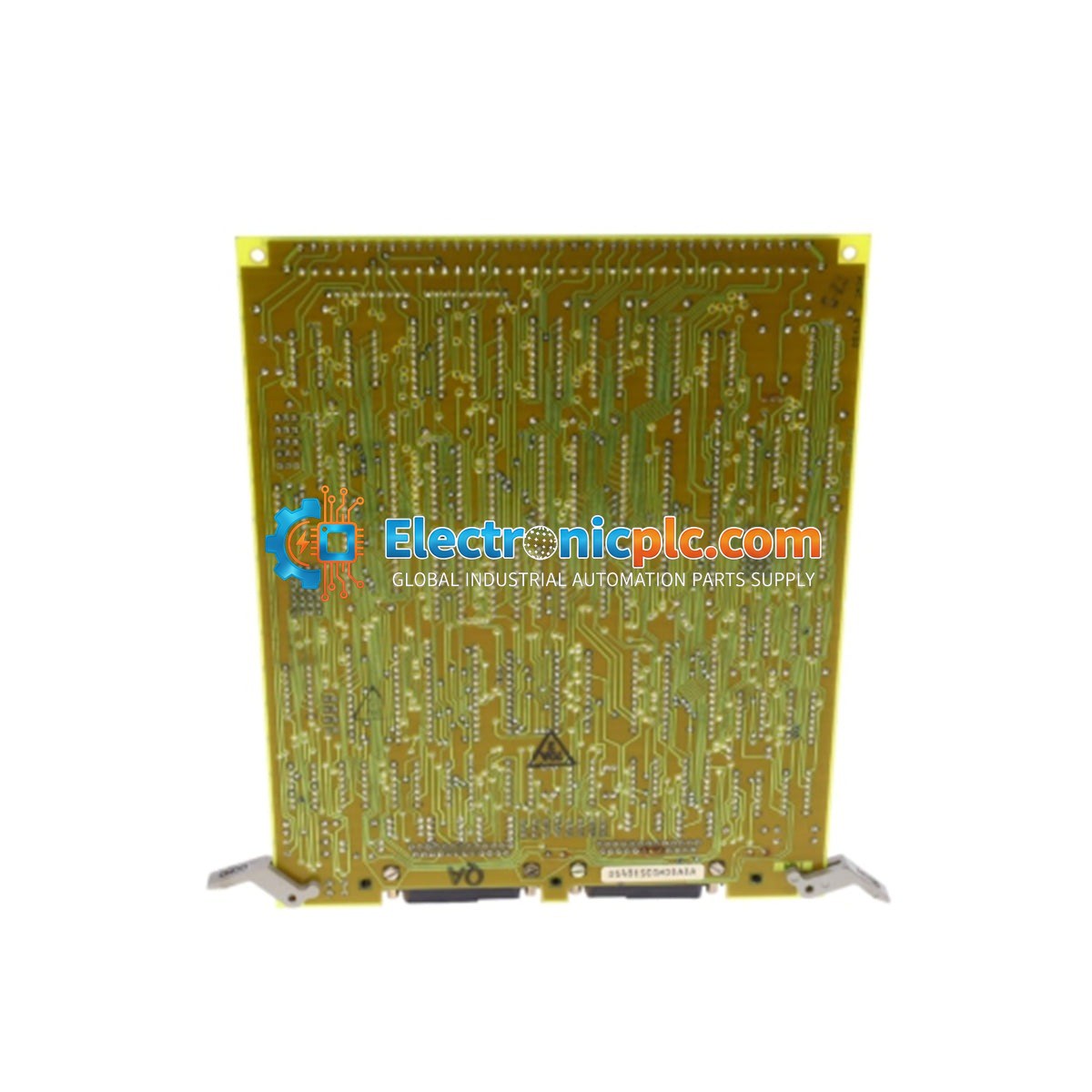

GE Fanuc DS3800HCMC1A1B Mark IV CAN Communication Card

GE Fanuc DS3800HCMC1A1B Mark IV CAN Communication Card

Description

The DS3800HCMC1A1B is a dual-port isolation CAN communication card designed for the General Electric Speedtronic Mark IV gas turbine control system. This module provides high-speed, reliable data exchange across...

16 la gente está viendo esto ahora mismo

Disponibilidad: Bajas existencias: quedan 10

SKU: DS3800HCMC1A1B
Proveedora: GE FANUC
tipo: Communication Module
Related Series:

Envíos y devoluciones

Entrega confiable a nivel mundial

  • Transportistas: Envíos a través de DHL, FedEx, UPS o USPS .
  • Envío: Los pedidos se procesan en 1-2 días hábiles y se envían dentro de 3-5 días hábiles .
  • Seguimiento: Detalles completos de seguimiento proporcionados por correo electrónico después del envío.

Garantía de devolución de dinero de 30 días

  • Garantía: período de devolución de 30 días para productos en stock y sellados de fábrica.
  • Condición: Los artículos deben estar sin abrir, sin usar y en su embalaje original.
  • Autenticidad: Garantizamos hardware 100% original y auténtico.

¿Necesitas más información? Consulta nuestra Política de envíos y reembolsos completa.

Autenticidad y garantía

  • Garantía genuina: Suministramos únicamente piezas de automatización industrial 100% originales, nuevas y selladas de fábrica .
  • Cobertura total: cada componente está respaldado por una garantía integral de 12 meses a partir de la fecha de compra.
  • Trazabilidad: Todos los productos se entregan con documentación original de fábrica y accesorios para un pleno cumplimiento industrial.

Soporte técnico y abastecimiento

  • Asistencia de expertos: Nuestro equipo técnico ofrece consulta gratuita para ayudarle a verificar la compatibilidad de los sistemas DCS y PLC.
  • Abastecimiento de piezas raras: nos especializamos en componentes obsoletos y difíciles de encontrar de Allen-Bradley, Siemens, ABB, HIMA y más.
  • Consultas al por mayor: contáctenos en pambo@5gplc.com para obtener precios por volumen o cotizaciones de proyectos personalizados.
Ver todos los detalles

Description

The DS3800HCMC1A1B is a dual-port isolation CAN communication card designed for the General Electric Speedtronic Mark IV gas turbine control system. This module provides high-speed, reliable data exchange across CAN networks in demanding industrial environments, such as power generation and petrochemical facilities. By utilizing high-tier galvanic isolation, the card protects sensitive control logic from voltage spikes, ground loops, and electromagnetic interference (EMI), ensuring system stability and minimizing downtime.

Features

  • Dual-port configuration for independent network interfacing.
  • Supports CAN 2.0A, CAN 2.0B, and CAN FD protocols.
  • High-level galvanic isolation (1500 V to 2500 V) for signal integrity.
  • Integrated 64-byte buffer memory to manage data flow and prevent overflow.
  • Versatile power requirements with 3.3 V or 5 V logic supply support.
  • Robust switching capability for field-side loads up to 250 VAC or 30 VDC.

Applications

This communication card is specifically engineered for use within the GE Mark IV turbine control architecture. It is suitable for critical control loops requiring noise-resistant communication between controllers, I/O nodes, and field instrumentation in heavy industrial settings.

Technical Specifications

Model DS3800HCMC1A1B
Series Speedtronic Mark IV
Protocol Support CAN 2.0A, 2.0B, CAN FD
Ports 2 (Dual independent)
Isolation Rating 1500 V - 2500 V
Buffer Memory 64-byte
Operating Voltage 3.3 V / 5 V
Switching Voltage 250 VAC / 30 VDC
Operating Temperature -20 to +70 deg C
Storage Temperature -40 to +85 deg C
Mounting DIN Rail or Rack Mount

Installation Guidelines

  • Ensure the system power is disconnected before installing or removing the module to prevent electrical damage.
  • Handle the card using ESD-safe practices to protect sensitive internal components.
  • Ensure the module is securely seated in the rack or snapped firmly onto the DIN rail.
  • Route communication cabling away from high-voltage power lines and high-EMI sources to maintain signal integrity.
  • Verify that the logic supply voltage (3.3 V or 5 V) is correctly configured for the specific slot application.

FAQ

What is the primary function of the DS3800HCMC1A1B?
It acts as a dual-port CAN communication interface for the Mark IV control system, providing isolated, high-speed data transmission between control components.

Does this card support CAN FD?
Yes, the card is designed to support CAN 2.0A, 2.0B, and CAN FD protocols.

How is the card mounted?
The module is designed for flexible deployment and supports both standard DIN-rail mounting and rack-mount configurations within the control cabinet.
