Description

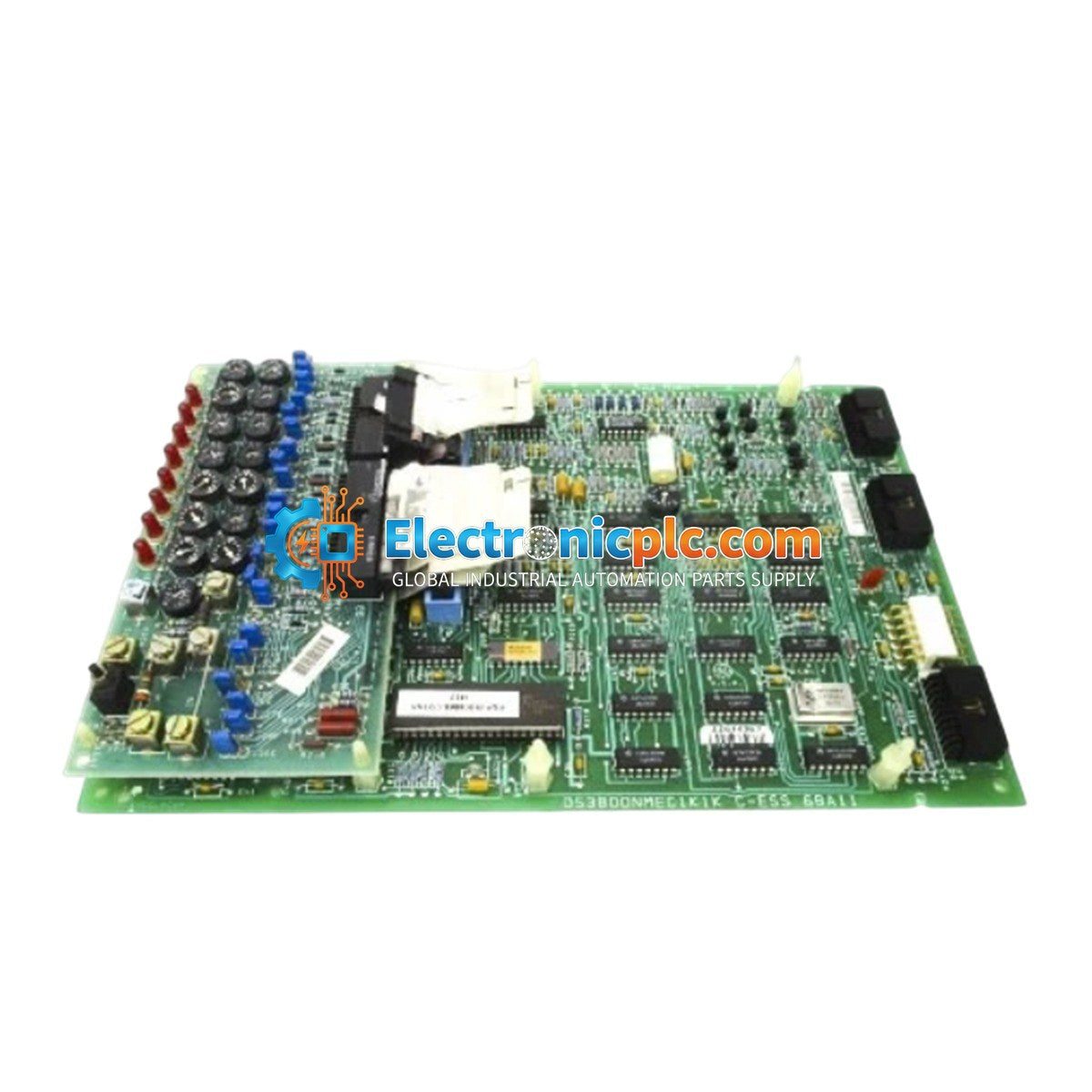

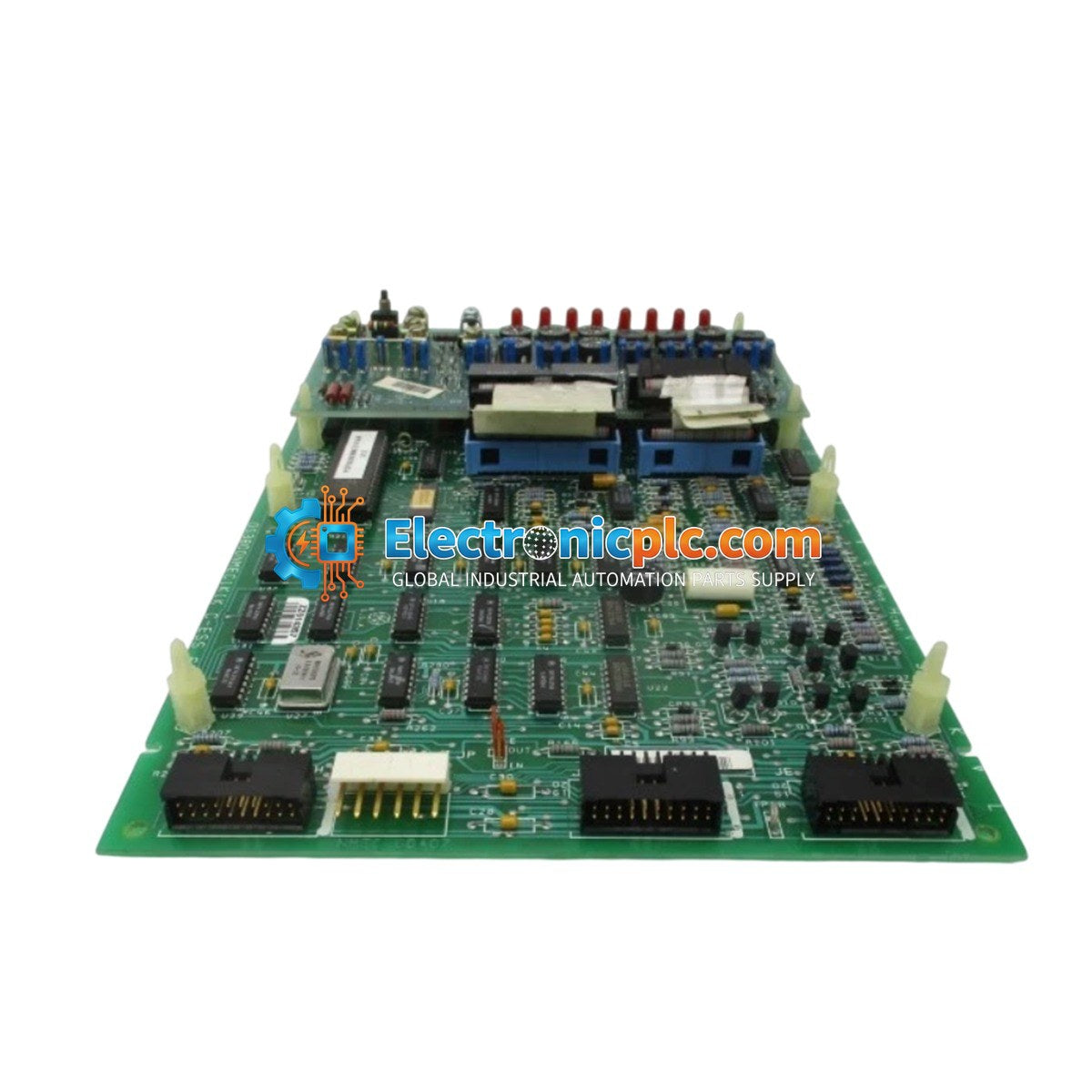

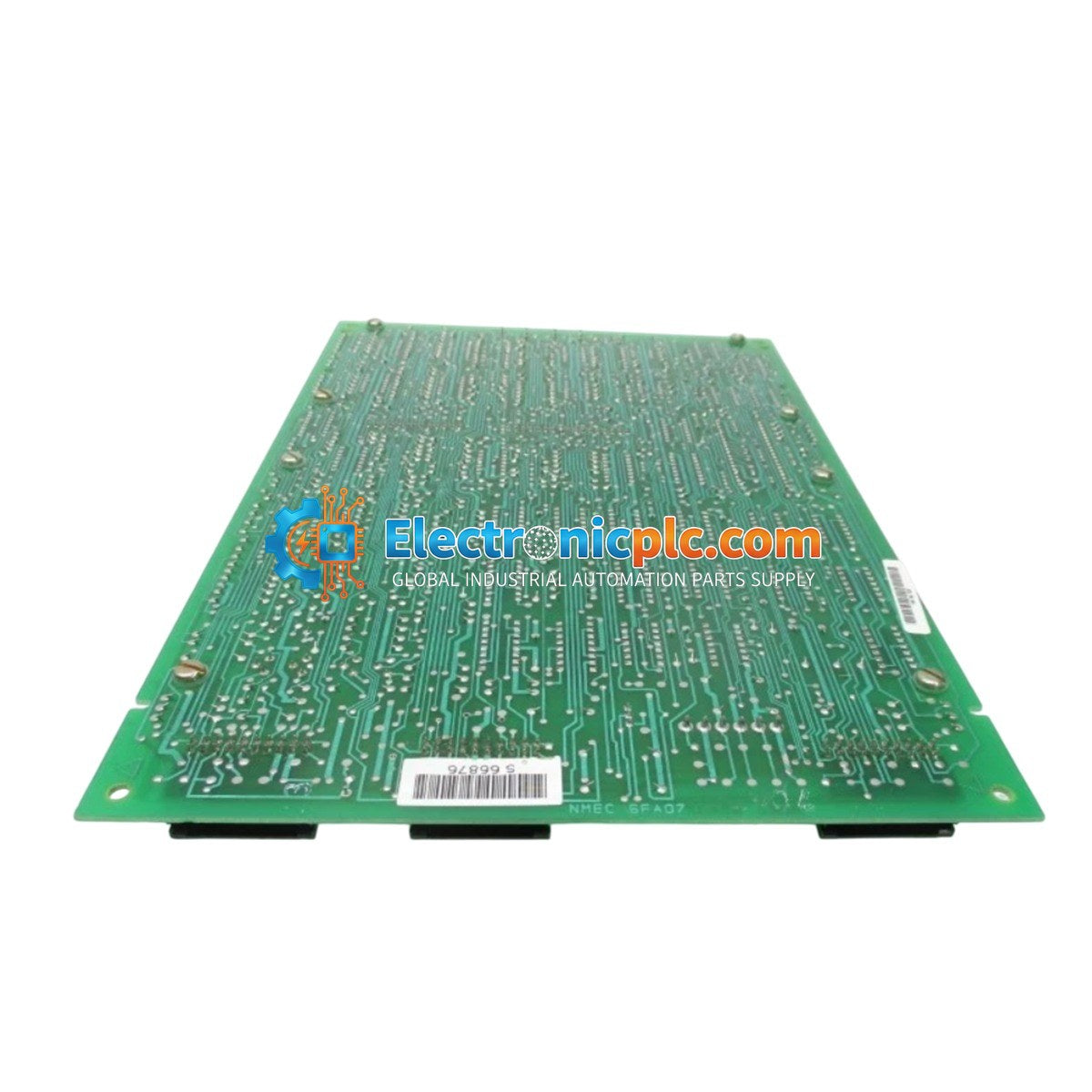

The DS3800NMEC1K1K is a high-precision motor exciter control board engineered for the General Electric Speedtronic Mark IV turbine control system. This module serves as a critical component in the regulation of gas and steam turbines, facilitating stable energy conversion and turbine rotation management. It is widely utilized in mission-critical industrial sectors, including power generation, oil and gas refining, and heavy mining, where precise frequency management and grid synchronization are essential for operational reliability.

Features

• Advanced Signal Processing: Equipped with ten semi-circular transistors for high-fidelity signal amplification and modulation.
• Frequency Stability: Features an integrated silver crystal oscillator to provide a stable clock pulse for digital logic operations.
• Manual Field Tuning: Includes an onboard variable resistor with a calibrated 0-100 scale knob for precise excitation parameter adjustment.
• Robust Architecture: Utilizes a high-density circuit layout with 35 integrated circuits, including EPROM and EEPROM units for firmware and logic storage.
• Noise Filtering: Incorporates a comprehensive network of resistors, diodes, and capacitors to manage energy flow and suppress electrical noise.

Applications

This control board is specifically designed for the GE Mark IV Speedtronic series. It is primarily used in turbine control cabinets to manage excitation currents, ensuring that turbine output remains within specified operational parameters during varying load conditions.

Technical Specifications

Installation Guidelines

• ESD Precautions: Always use a grounded wrist strap and anti-static mat when handling the board to prevent damage to sensitive CMOS components.
• Power Status: Ensure the Mark IV system rack is fully powered down before inserting or removing the module from the backplane.
• Seating: Ensure the 6-point male connector is properly aligned with the backplane slot before applying firm, even pressure to seat the board.
• Environment: Maintain the cabinet environment within the specified 0 to 60 deg C range to ensure component longevity and prevent thermal drift.
• Calibration: After installation, verify excitation settings using the onboard variable resistor if the application requires specific field tuning.

FAQ

What is the primary function of the DS3800NMEC1K1K?

This board functions as a motor exciter control module within the Mark IV Speedtronic system, responsible for regulating excitation parameters to maintain stable turbine operation and grid synchronization.

Can the excitation parameters be adjusted on this board?

Yes, the board features a manual variable resistor with a 0-100 scale, allowing for field-level tuning of excitation parameters to suit specific turbine requirements.

Is this board compatible with other Speedtronic systems?

The DS3800NMEC1K1K is specifically designed for the Mark IV series. It is not recommended for use in other generations of Speedtronic systems without verifying part compatibility through official GE documentation.
