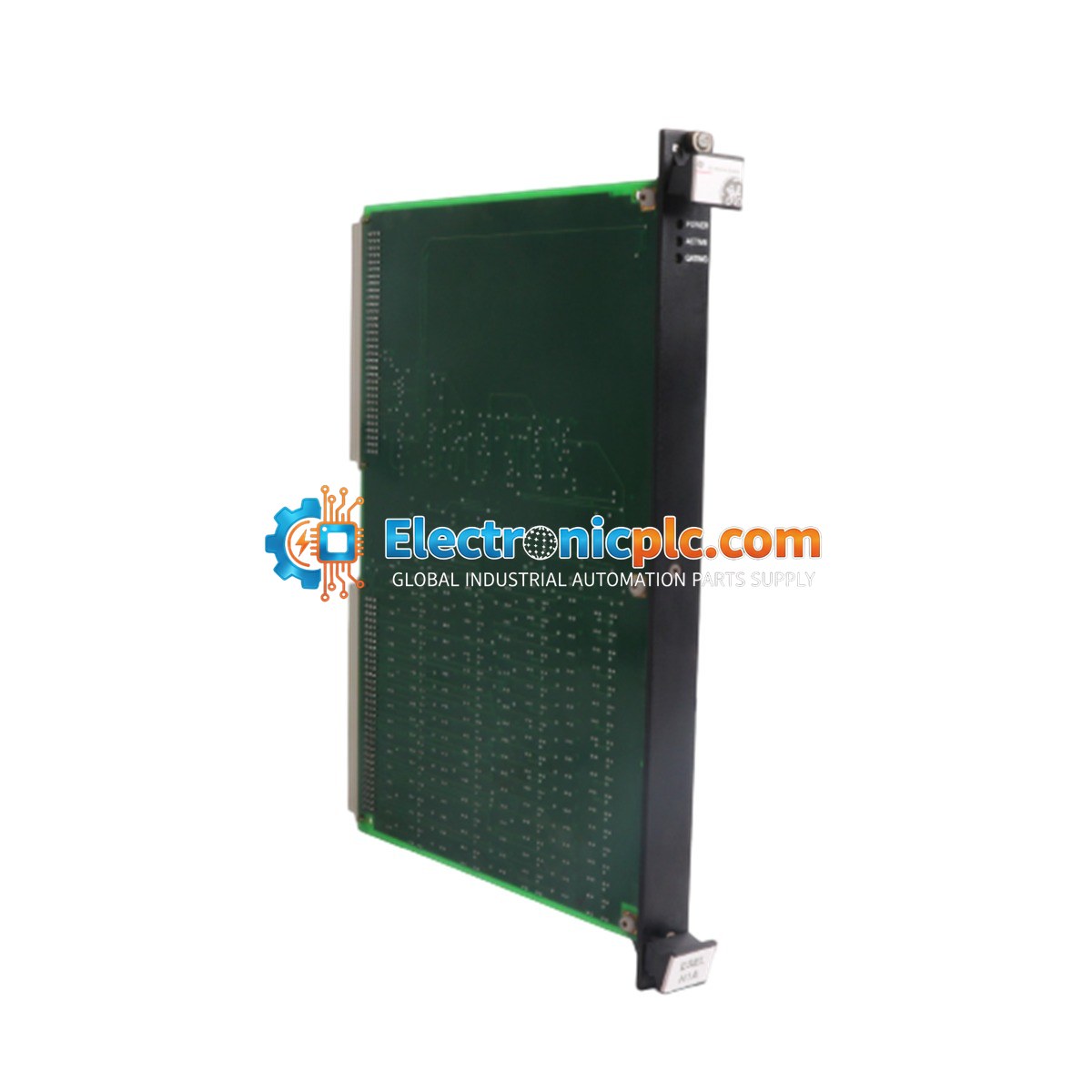

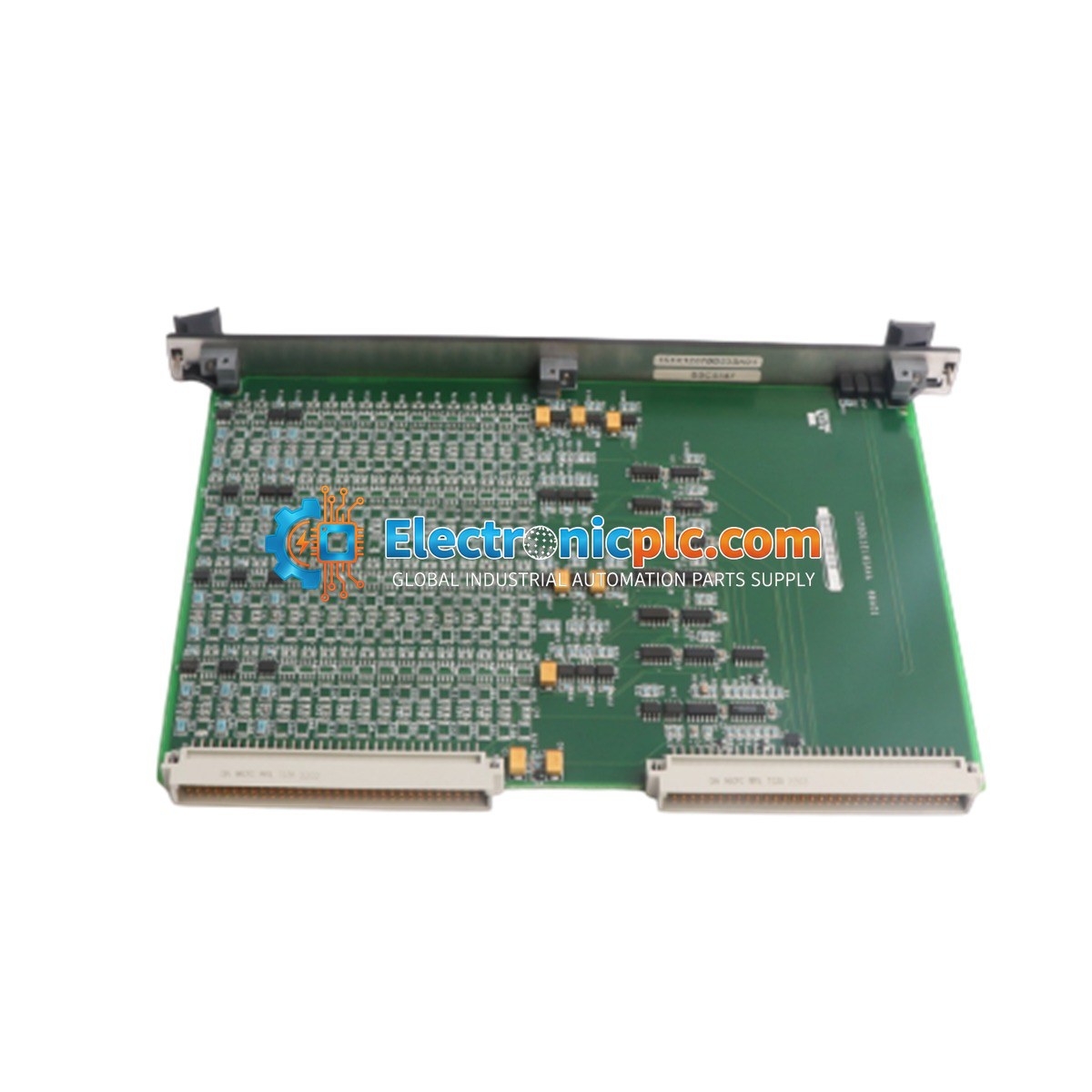

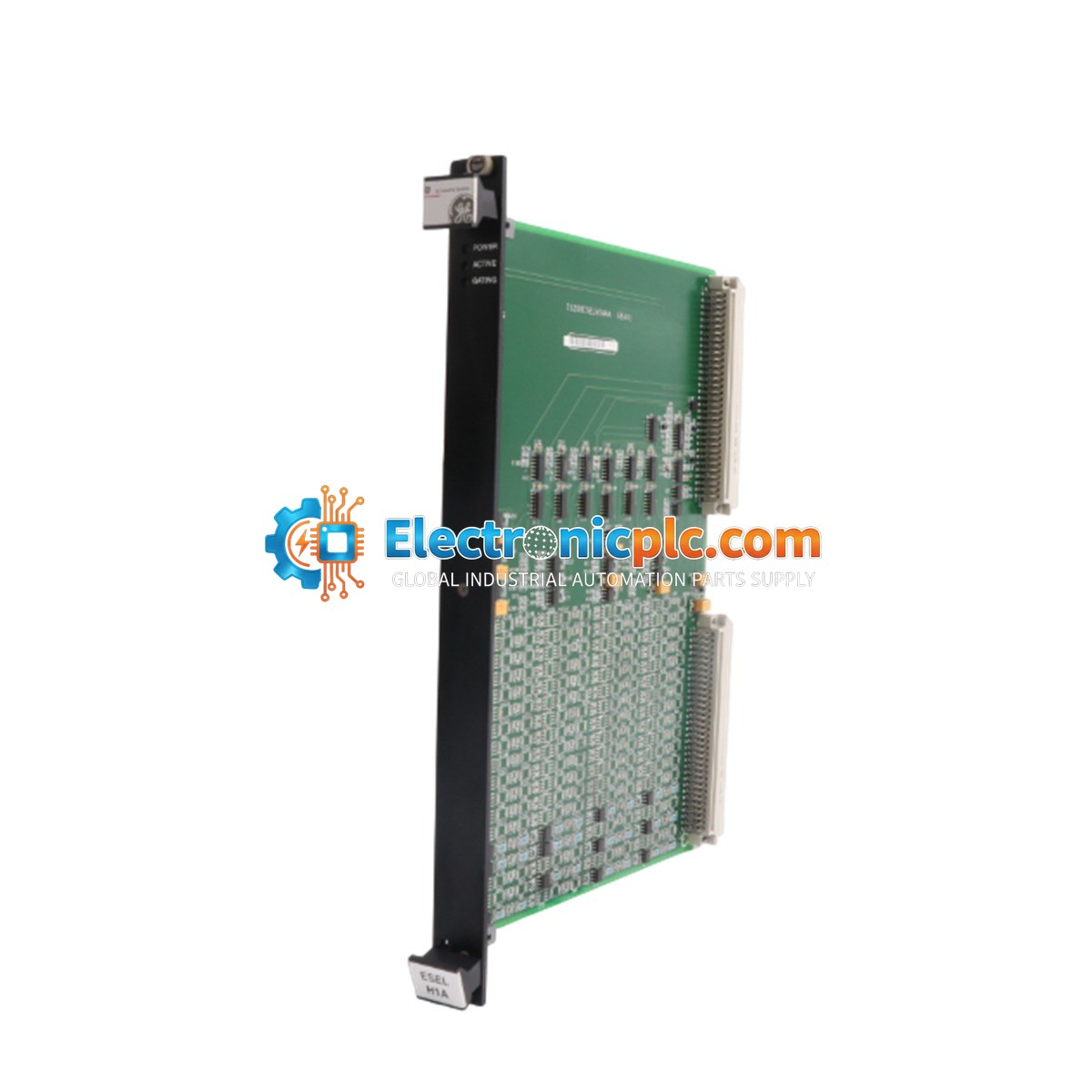

GE Fanuc IS200ESELH1A EX2100 Exciter Selector Board

GE Fanuc IS200ESELH1A EX2100 Exciter Selector Board

Description

The IS200ESELH1A is a critical Exciter Selector Board designed for the General Electric EX2100 series turbine control ecosystem. This module is engineered for high-reliability power generation environments and facilitates the...

15 la gente está viendo esto ahora mismo

Disponibilidad: Bajas existencias: quedan 6

SKU: IS200TNH1A
Proveedora: GE FANUC
tipo: Exciter Selector Board
Related Series:

Envíos y devoluciones

Entrega confiable a nivel mundial

  • Transportistas: Envíos a través de DHL, FedEx, UPS o USPS .
  • Envío: Los pedidos se procesan en 1-2 días hábiles y se envían dentro de 3-5 días hábiles .
  • Seguimiento: Detalles completos de seguimiento proporcionados por correo electrónico después del envío.

Garantía de devolución de dinero de 30 días

  • Garantía: período de devolución de 30 días para productos en stock y sellados de fábrica.
  • Condición: Los artículos deben estar sin abrir, sin usar y en su embalaje original.
  • Autenticidad: Garantizamos hardware 100% original y auténtico.

¿Necesitas más información? Consulta nuestra Política de envíos y reembolsos completa.

Autenticidad y garantía

  • Garantía genuina: Suministramos únicamente piezas de automatización industrial 100% originales, nuevas y selladas de fábrica .
  • Cobertura total: cada componente está respaldado por una garantía integral de 12 meses a partir de la fecha de compra.
  • Trazabilidad: Todos los productos se entregan con documentación original de fábrica y accesorios para un pleno cumplimiento industrial.

Soporte técnico y abastecimiento

  • Asistencia de expertos: Nuestro equipo técnico ofrece consulta gratuita para ayudarle a verificar la compatibilidad de los sistemas DCS y PLC.
  • Abastecimiento de piezas raras: nos especializamos en componentes obsoletos y difíciles de encontrar de Allen-Bradley, Siemens, ABB, HIMA y más.
  • Consultas al por mayor: contáctenos en pambo@5gplc.com para obtener precios por volumen o cotizaciones de proyectos personalizados.
Ver todos los detalles

Description

The IS200ESELH1A is a critical Exciter Selector Board designed for the General Electric EX2100 series turbine control ecosystem. This module is engineered for high-reliability power generation environments and facilitates the transmission of logic-level gate pulse signals from the Master I/O (EMIO) board to the Exciter Gate Pulse Amplifier (EGPA) boards housed within the Power Conversion Cabinet. By managing six distinct gating commands, the IS200ESELH1A ensures precise control over the power bridge, supporting stable excitation in thermal, gas, and hydro power plant operations.

Features

  • Supports single bridge driver configurations for one Power Conversion Module (PCM).
  • Integrates into both simplex and redundant excitation architectures.
  • Enables online repair and fault tolerance when configured in dual-board (ESEL1 and ESEL2) setups.
  • Maintains physical and logical separation between Master 1 and Master 2 control paths.
  • Converts internal logic pulses into robust signals for external distribution cables.

Applications

This board is primarily utilized in GE EX2100 Excitation systems for power generation facilities. It is essential for managing gate pulse distribution to power bridges, ensuring reliable turbine control and minimizing unscheduled downtime in critical infrastructure.

Technical Specifications

Model IS200ESELH1A
Series EX2100 Excitation
Board Version H1 (Single bridge driver)
Operating Temperature 0 to 45 deg C
Compatibility EMIO and EGPA boards

Installation Guidelines

  • Ensure the system is powered down before inserting or removing the module from the rack.
  • Handle the board using proper ESD (Electrostatic Discharge) precautions to prevent damage to sensitive logic components.
  • Verify that the board is correctly seated in the designated slot within the Power Conversion Cabinet.
  • Ensure all signal cables are securely connected and routed to minimize EMI interference.
  • In redundant configurations, ensure that ESEL1 and ESEL2 are correctly mapped to their respective M1 and M2 controllers.

FAQ

What is the primary function of the IS200ESELH1A?

The IS200ESELH1A acts as an interface board that routes gate pulse signals from the Master I/O board to the Exciter Gate Pulse Amplifier boards, enabling precise control of the power bridge.

Can this board be used in redundant systems?

Yes, the IS200ESELH1A is designed to support redundant architectures using dual boards (ESEL1 and ESEL2), which allows for fault tolerance and online maintenance.
