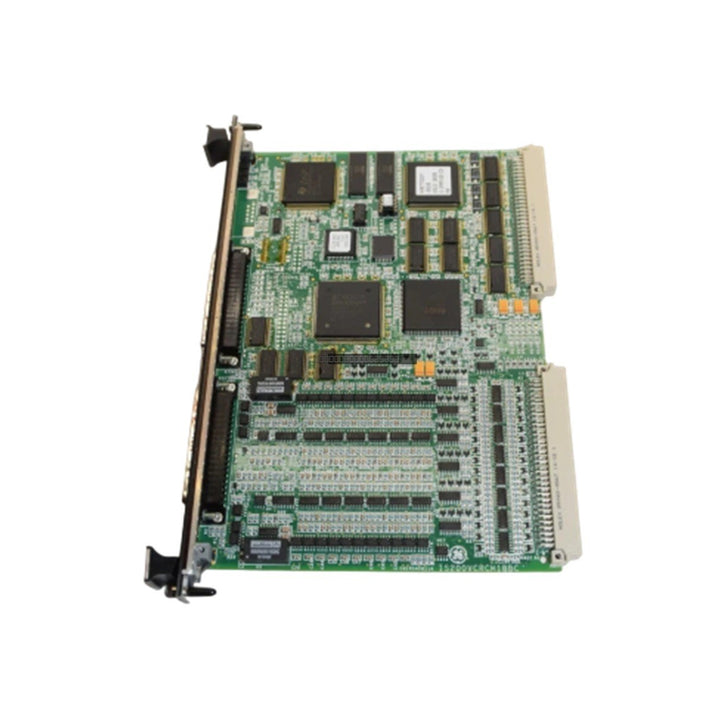

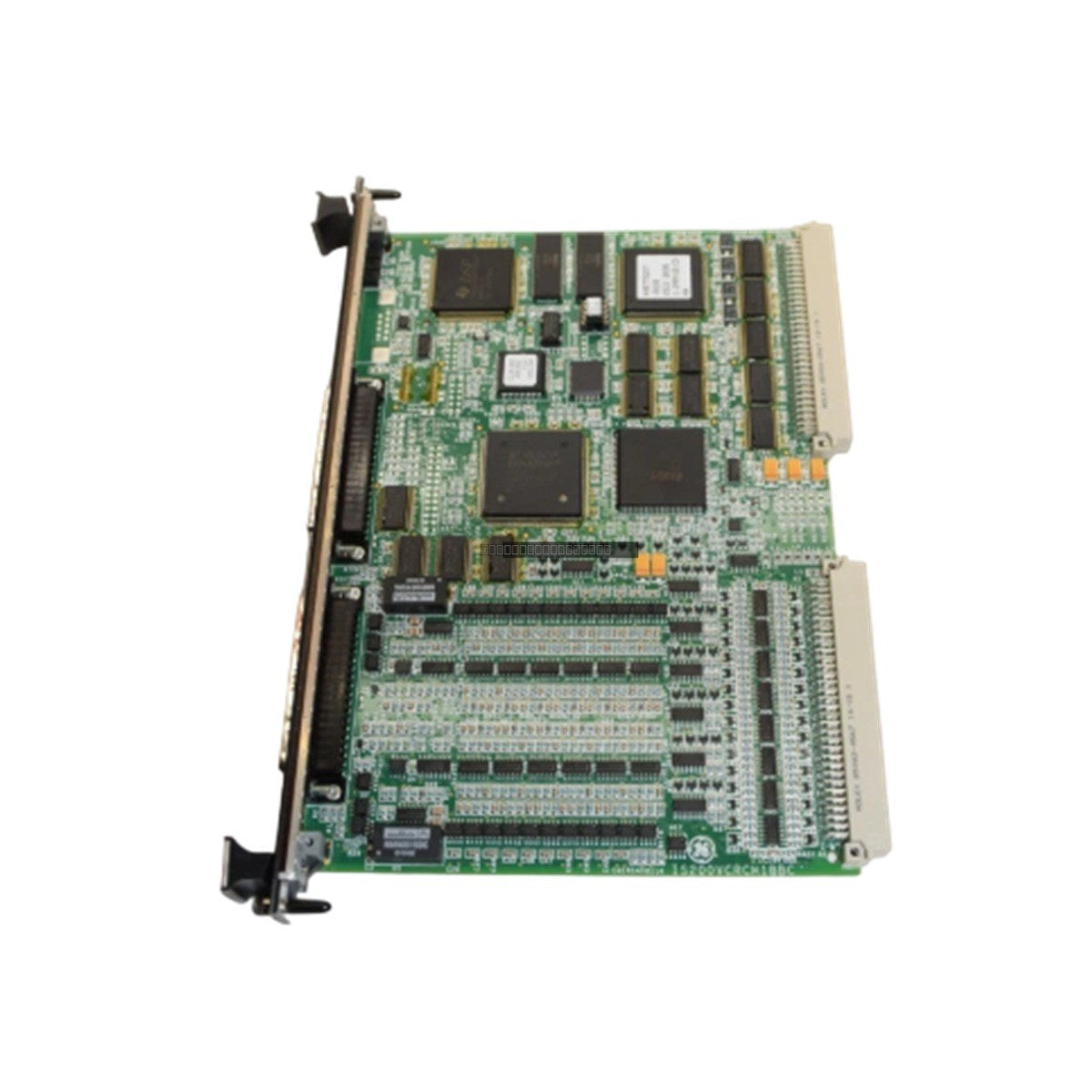

GE Fanuc IS200VCRCH1BBC Mark VI Discrete Input/Output Board

GE Fanuc IS200VCRCH1BBC Mark VI Discrete Input/Output Board

Description

The IS200VCRCH1BBC is a high-density discrete input/output board developed for the GE Mark VI Speedtronic control system. This module is engineered to manage critical industrial processes by providing 48 discrete...

17 la gente está viendo esto ahora mismo

Disponibilidad: Bajas existencias: quedan 9

SKU: IS200VCRCH1BBC
Proveedora: GE FANUC
tipo: Discrete Input/Output Board
Related Series:

Envíos y devoluciones

Entrega confiable a nivel mundial

  • Transportistas: Envíos a través de DHL, FedEx, UPS o USPS .
  • Envío: Los pedidos se procesan en 1-2 días hábiles y se envían dentro de 3-5 días hábiles .
  • Seguimiento: Detalles completos de seguimiento proporcionados por correo electrónico después del envío.

Garantía de devolución de dinero de 30 días

  • Garantía: período de devolución de 30 días para productos en stock y sellados de fábrica.
  • Condición: Los artículos deben estar sin abrir, sin usar y en su embalaje original.
  • Autenticidad: Garantizamos hardware 100% original y auténtico.

¿Necesitas más información? Consulta nuestra Política de envíos y reembolsos completa.

Autenticidad y garantía

  • Garantía genuina: Suministramos únicamente piezas de automatización industrial 100% originales, nuevas y selladas de fábrica .
  • Cobertura total: cada componente está respaldado por una garantía integral de 12 meses a partir de la fecha de compra.
  • Trazabilidad: Todos los productos se entregan con documentación original de fábrica y accesorios para un pleno cumplimiento industrial.

Soporte técnico y abastecimiento

  • Asistencia de expertos: Nuestro equipo técnico ofrece consulta gratuita para ayudarle a verificar la compatibilidad de los sistemas DCS y PLC.
  • Abastecimiento de piezas raras: nos especializamos en componentes obsoletos y difíciles de encontrar de Allen-Bradley, Siemens, ABB, HIMA y más.
  • Consultas al por mayor: contáctenos en pambo@5gplc.com para obtener precios por volumen o cotizaciones de proyectos personalizados.
Ver todos los detalles

Description

The IS200VCRCH1BBC is a high-density discrete input/output board developed for the GE Mark VI Speedtronic control system. This module is engineered to manage critical industrial processes by providing 48 discrete input channels and 24 relay output channels. Designed for deployment within a VME rack environment, it serves as a central interface for signal processing in demanding applications such as gas turbine control, oil refinery operations, and thermal power generation.

Features

  • High-Density I/O: Supports 48 discrete inputs and 24 relay outputs on a single-slot VME board.
  • Robust Relay Design: Utilizes silver cadmium-oxide (AgCdO) contact materials to ensure reliability and prevent contact welding during high-inrush inductive switching.
  • Integrated Protection: Equipped with on-board Metal Oxide Varistors (MOVs) to provide surge protection and mitigate the risk of component failure due to voltage spikes.
  • System Integration: Interfaces seamlessly with TBCI (Contact Input with Group Isolation) and TRLY (Trip Relay) terminal boards via standard J3 and J4 VME connectors.
  • Deterministic Performance: Designed for rapid I/O processing to minimize latency and maintain system stability in critical control loops.

Technical Specifications

Model IS200VCRCH1BBC
System Series Mark VI Speedtronic
Discrete Inputs 48 Channels
Relay Outputs 24 Channels
Response Time (On/Off) 25 ms
Operating Temperature -30 to 65 deg C
Rack Interface Dual J3 / J4 VME Connectors
Compatibility TBCI, TRLY Terminal Boards

Installation Guidelines

  • Handling: This module contains sensitive electronic components. Always use proper ESD (Electrostatic Discharge) grounding procedures when handling or installing the board.
  • Power: Ensure all power to the VME rack is disconnected before inserting or removing the IS200VCRCH1BBC module to prevent electrical damage or system faults.
  • Wiring: Maintain clear separation between high-voltage AC lines and low-voltage DC signal wiring to prevent cross-connection and potential damage to the on-board MOVs.
  • Mounting: Ensure the board is fully seated in the VME rack slot to guarantee reliable contact with the J3 and J4 backplane connectors.

FAQ

What terminal boards are compatible with the IS200VCRCH1BBC?

This board is designed to interface with TBCI (Contact Input with Group Isolation) and TRLY (Trip Relay) terminal blocks.

Does this board require specific environmental conditions?

The module is rated for operation in environments ranging from -30 to 65 deg C. It is intended for use in industrial control cabinets where proper ventilation is maintained.

What is the primary function of the on-board MOVs?

The Metal Oxide Varistors (MOVs) provide overvoltage protection by clamping voltage surges, helping to protect the board's internal circuitry from field-side electrical transients.
