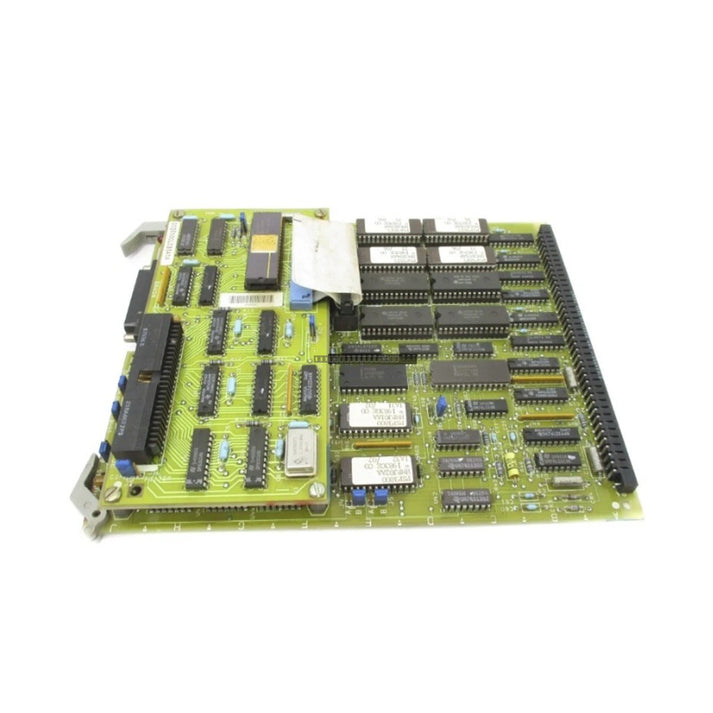

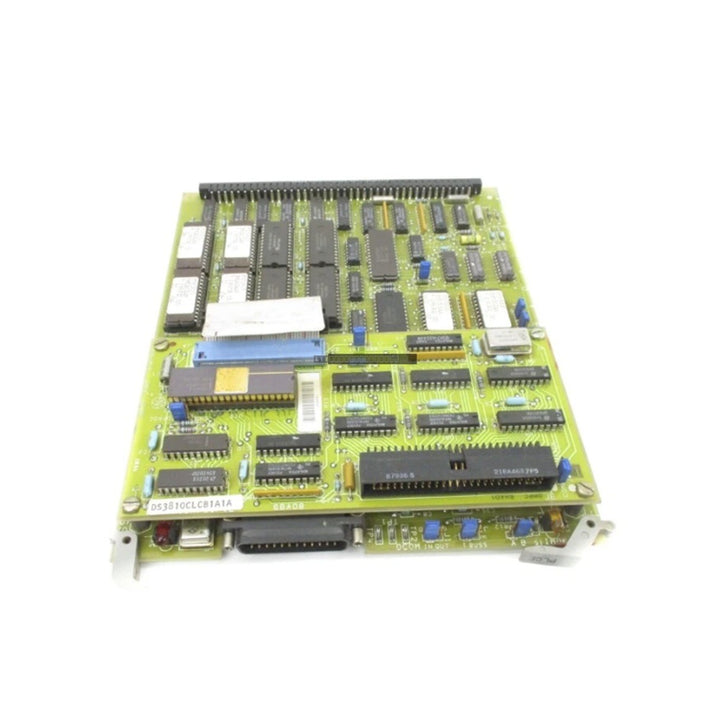

GE Fanuc DS3800HMPJ1A1D Mark IV Speedtronic Circuit Board

GE Fanuc DS3800HMPJ1A1D Mark IV Speedtronic Circuit Board

Description

The DS3800HMPJ1A1D is a microprocessor-based circuit board engineered by General Electric for the Mark IV Speedtronic turbine control system. This component is integral to the management of industrial gas and...

23 la gente está viendo esto ahora mismo

Disponibilidad: Bajas existencias: quedan 4

SKU: DS3800HMPJ1A1D
Proveedora: GE FANUC
tipo: Turbine Control Circuit Board
Related Series:

Envíos y devoluciones

Entrega confiable a nivel mundial

  • Transportistas: Envíos a través de DHL, FedEx, UPS o USPS .
  • Envío: Los pedidos se procesan en 1-2 días hábiles y se envían dentro de 3-5 días hábiles .
  • Seguimiento: Detalles completos de seguimiento proporcionados por correo electrónico después del envío.

Garantía de devolución de dinero de 30 días

  • Garantía: período de devolución de 30 días para productos en stock y sellados de fábrica.
  • Condición: Los artículos deben estar sin abrir, sin usar y en su embalaje original.
  • Autenticidad: Garantizamos hardware 100% original y auténtico.

¿Necesitas más información? Consulta nuestra Política de envíos y reembolsos completa.

Autenticidad y garantía

  • Garantía genuina: Suministramos únicamente piezas de automatización industrial 100% originales, nuevas y selladas de fábrica .
  • Cobertura total: cada componente está respaldado por una garantía integral de 12 meses a partir de la fecha de compra.
  • Trazabilidad: Todos los productos se entregan con documentación original de fábrica y accesorios para un pleno cumplimiento industrial.

Soporte técnico y abastecimiento

  • Asistencia de expertos: Nuestro equipo técnico ofrece consulta gratuita para ayudarle a verificar la compatibilidad de los sistemas DCS y PLC.
  • Abastecimiento de piezas raras: nos especializamos en componentes obsoletos y difíciles de encontrar de Allen-Bradley, Siemens, ABB, HIMA y más.
  • Consultas al por mayor: contáctenos en pambo@5gplc.com para obtener precios por volumen o cotizaciones de proyectos personalizados.
Ver todos los detalles

Description

The DS3800HMPJ1A1D is a microprocessor-based circuit board engineered by General Electric for the Mark IV Speedtronic turbine control system. This component is integral to the management of industrial gas and steam turbines, providing reliable control and monitoring within power generation, petroleum refining, and chemical processing environments. Designed for use within the Triple Modular Redundant (TMR) framework, the board facilitates parallel input voting, which allows the system to maintain operational continuity by mitigating the impact of transient hardware faults.

Features

  • Designed specifically for the GE Mark IV Speedtronic turbine control architecture.
  • Supports TMR (Triple Modular Redundant) system configurations for high availability.
  • Utilizes high-grade onboard components for consistent performance in demanding industrial conditions.
  • Standard edge connector interface ensures secure integration into Mark IV chassis backplanes.
  • Supports real-time processing to minimize turbine system downtime.

Applications

This circuit board is primarily utilized in heavy-duty industrial applications, including:

  • Gas and steam turbine control systems.
  • Power generation plant automation.
  • Petroleum refinery process control.
  • Large-scale chemical processing facilities.

Technical Specifications

Brand General Electric (GE)
Model DS3800HMPJ1A1D
Series Mark IV Speedtronic
Product Type Turbine Control Circuit Board
Operating Temperature 0 to 60 deg C
Storage Temperature -40 to 85 deg C
Relative Humidity 5 to 95% non-condensing
Power Consumption 12 Watts maximum

Installation Guidelines

  • Ensure the control system is powered down before inserting or removing the circuit board to prevent electrical damage.
  • Handle the board using proper ESD (Electrostatic Discharge) precautions to protect sensitive onboard components.
  • Verify that the edge connector is properly aligned with the chassis backplane slot before applying pressure.
  • Ensure the environment meets the specified temperature and humidity ranges to prevent premature component failure.
  • Regularly inspect the board for signs of dust accumulation or thermal stress in high-vibration environments.

FAQ

Is the DS3800HMPJ1A1D compatible with other Mark series systems?

This board is specifically designed for the Mark IV Speedtronic system. Compatibility with other Mark series platforms (such as Mark V or VI) is not supported due to differences in architecture and communication protocols.

What does the HMPJ suffix indicate?

The HMPJ acronym identifies the specific hardware circuit functionality and component layout profile unique to this board version within the Mark IV catalog.
