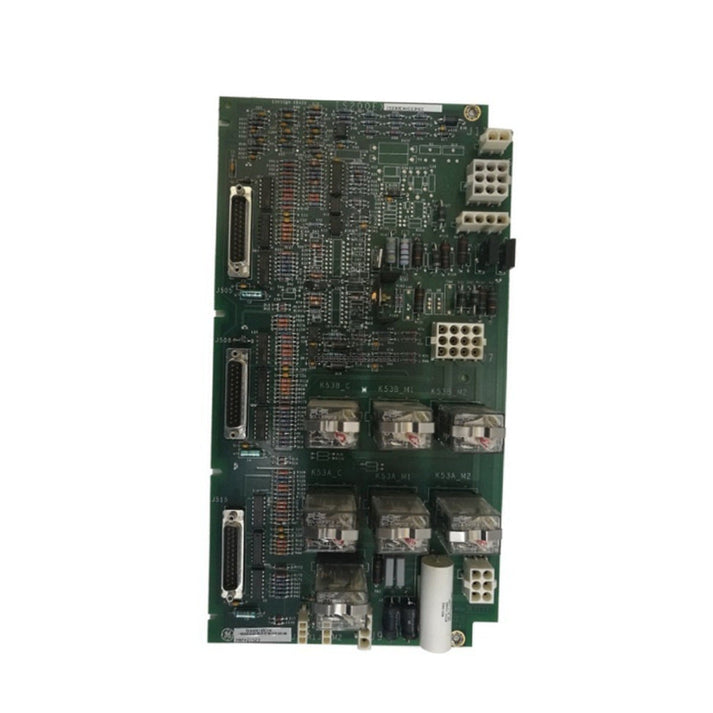

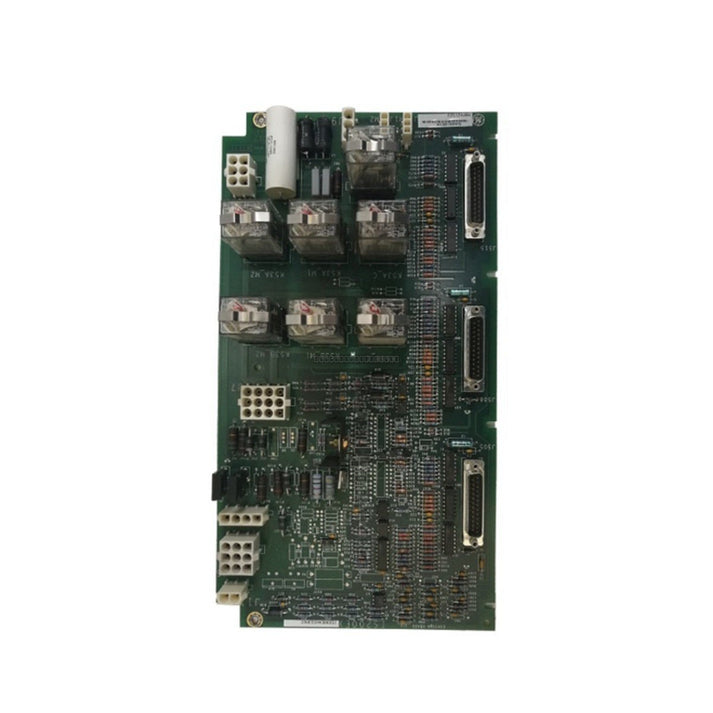

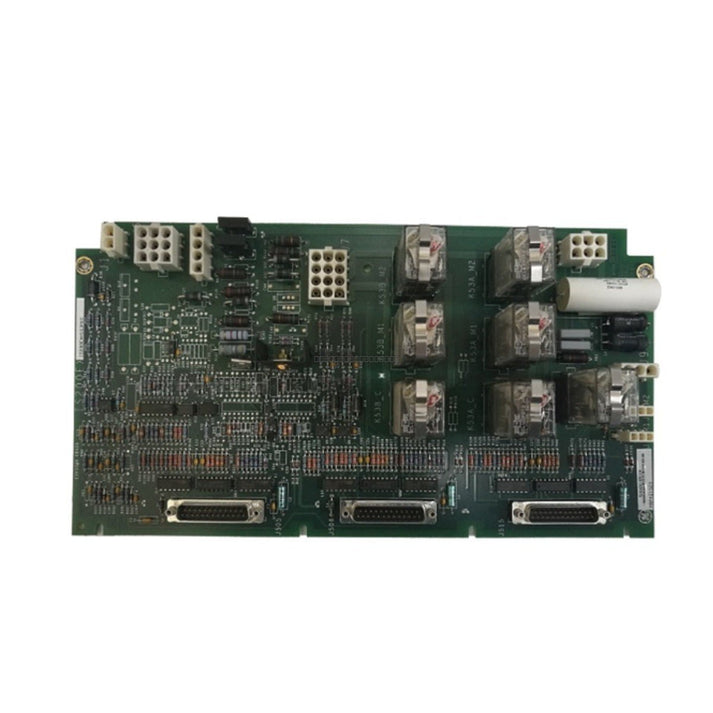

General Electric IS200EXHSG3AEC Exciter HS Relay Driver Board

General Electric IS200EXHSG3AEC Exciter HS Relay Driver Board

Description

The General Electric IS200EXHSG3AEC is an Exciter HS Relay Driver Board designed for use within the EX2100 excitation control system. This component serves as a critical interface for managing relay...

23 la gente está viendo esto ahora mismo

Disponibilidad: Bajas existencias: quedan 7

SKU: IS200EXHSG3AEC
Proveedora: General Electric
tipo: Relay Driver Board
Related Series:

Envíos y devoluciones

Entrega confiable a nivel mundial

  • Transportistas: Envíos a través de DHL, FedEx, UPS o USPS .
  • Envío: Los pedidos se procesan en 1-2 días hábiles y se envían dentro de 3-5 días hábiles .
  • Seguimiento: Detalles completos de seguimiento proporcionados por correo electrónico después del envío.

Garantía de devolución de dinero de 30 días

  • Garantía: período de devolución de 30 días para productos en stock y sellados de fábrica.
  • Condición: Los artículos deben estar sin abrir, sin usar y en su embalaje original.
  • Autenticidad: Garantizamos hardware 100% original y auténtico.

¿Necesitas más información? Consulta nuestra Política de envíos y reembolsos completa.

Autenticidad y garantía

  • Garantía genuina: Suministramos únicamente piezas de automatización industrial 100% originales, nuevas y selladas de fábrica .
  • Cobertura total: cada componente está respaldado por una garantía integral de 12 meses a partir de la fecha de compra.
  • Trazabilidad: Todos los productos se entregan con documentación original de fábrica y accesorios para un pleno cumplimiento industrial.

Soporte técnico y abastecimiento

  • Asistencia de expertos: Nuestro equipo técnico ofrece consulta gratuita para ayudarle a verificar la compatibilidad de los sistemas DCS y PLC.
  • Abastecimiento de piezas raras: nos especializamos en componentes obsoletos y difíciles de encontrar de Allen-Bradley, Siemens, ABB, HIMA y más.
  • Consultas al por mayor: contáctenos en pambo@5gplc.com para obtener precios por volumen o cotizaciones de proyectos personalizados.
Ver todos los detalles

Description

The General Electric IS200EXHSG3AEC is an Exciter HS Relay Driver Board designed for use within the EX2100 excitation control system. This component serves as a critical interface for managing relay operations, ensuring reliable switching and control within high-performance industrial power generation environments. It is engineered to maintain operational integrity under demanding electrical conditions.

Features

  • Designed specifically for the GE EX2100 Exciter system architecture.
  • Supports high-speed relay driving capabilities for precise control.
  • Robust construction suitable for industrial control cabinets.
  • Designed for integration with Mark VIe control platforms.
  • High isolation voltage to protect sensitive control circuitry from field-side transients.

Technical Specifications

Product Model IS200EXHSG3AEC
Spare Model IS200EXHSG3A
Supply Voltage +24 V DC
Voltage Range 24–125 V DC
Current Rating Up to 5 A per channel
Power Consumption ≤15 W
Isolation Voltage 1500 V AC
Operating Temperature -40 degC to +70 degC
Storage Temperature -50 degC to +85 degC
Humidity 5–95% non-condensing

Installation Guidelines

  • Ensure all power to the EX2100 cabinet is disconnected before attempting to install or remove the board.
  • Handle the module using proper ESD (Electrostatic Discharge) mitigation techniques to prevent damage to internal components.
  • Verify that the board is securely seated in the designated rack slot to ensure proper backplane connection.
  • Ensure that all field wiring is routed away from high-EMI sources and properly shielded to prevent signal interference.
  • Confirm that the +24 V DC supply is stable and within the specified operating range before energizing the system.

FAQ

What is the primary function of the IS200EXHSG3AEC?
This board acts as a relay driver within the GE EX2100 excitation system, facilitating the reliable operation of field-side relays.

Is this board compatible with the Mark VIe system?
Yes, the IS200EXHSG3AEC is designed for compatibility within the Mark VIe and EX2100 control ecosystems.

What are the environmental storage requirements?
The board should be stored in a controlled environment between -50 degC and +85 degC with non-condensing humidity levels.
